SP801E WS2811 WS2812B WS2813 SK6812 LED Neo Pixel wifi Bluetooth Controller DIY

LED Chip Code: 5050, 3535 (mini), 2020 (SMD)

Power Source: Wired, 5.5x2.1mm DC Power Jack

Custom Bundle: No

Year Manufactured: 2021

MPN: NA

Compatible Product: WS2801,WS2811,WS2812B,SK6812,WS2813,WS2815,APA102,SK9822

Item Length: 80mm

Smart Home Compatibility: Bluetooth/WIFI

Number of Speeds: 10 or More

Colour: White

Bulb Shape Code: 3PIN/4PIN JST

Current Type: DC

Control Style: App Control

Manufacturer Warranty: 3 Years

Labels & Certifications: CE Marking,Energy Star

Item Height: 20mm

Number in Pack: 1

Voltage: 5VDC - 24VDC

Manufacturer: YUANSI Technology

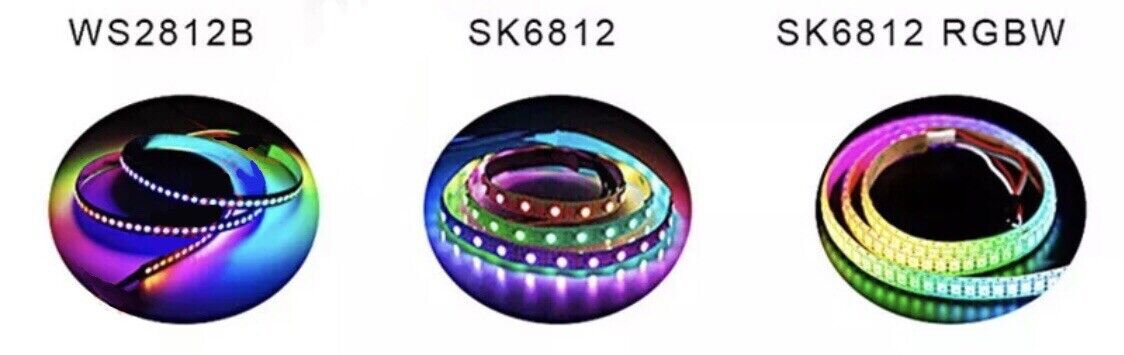

LED String/Strip Type: WS2801/WS2811/WS2812B/SK6812/WS813

Features: Adjustable,Dimmable

Bulb Wattage: Pixels

Finish: Matt

Item Width: 40mm

Lighting Technology: LED

Compatible Brand: WS2801/WS2811/WS2812B/SK6812/WS813

Character: NA

Compatible Model: WS2801/WS2811/WS2812B/SK6812/WS813

Material: ABS

Installation Area: Indoor

Brand: Unbranded

Connectors: 3PIN/4PIN JST

Mounting: Ceiling

Type: Individual LED Controller

IP Rating: IP20

Assembly Required: No

Theme: NA

Power Consumption: 60 W - 74 W

Country/Region of Manufacture: China

Smart Home Protocol: YES

Item Weight: NA

Product Line: NA

WS2811 WS2812B WS2813 LED Pixel SP801E wifi Bluetooth Music Controller. Item is Brand New sent with Australia Post Parcel Post tracking number included.

• SP801E
• LED WiFi Magic Controller SK6812 WS2811 WS2812B WS2815 Etc LED Strip Module Light Smart APP Wireless Control DC5-24V

DESCRIPTION:

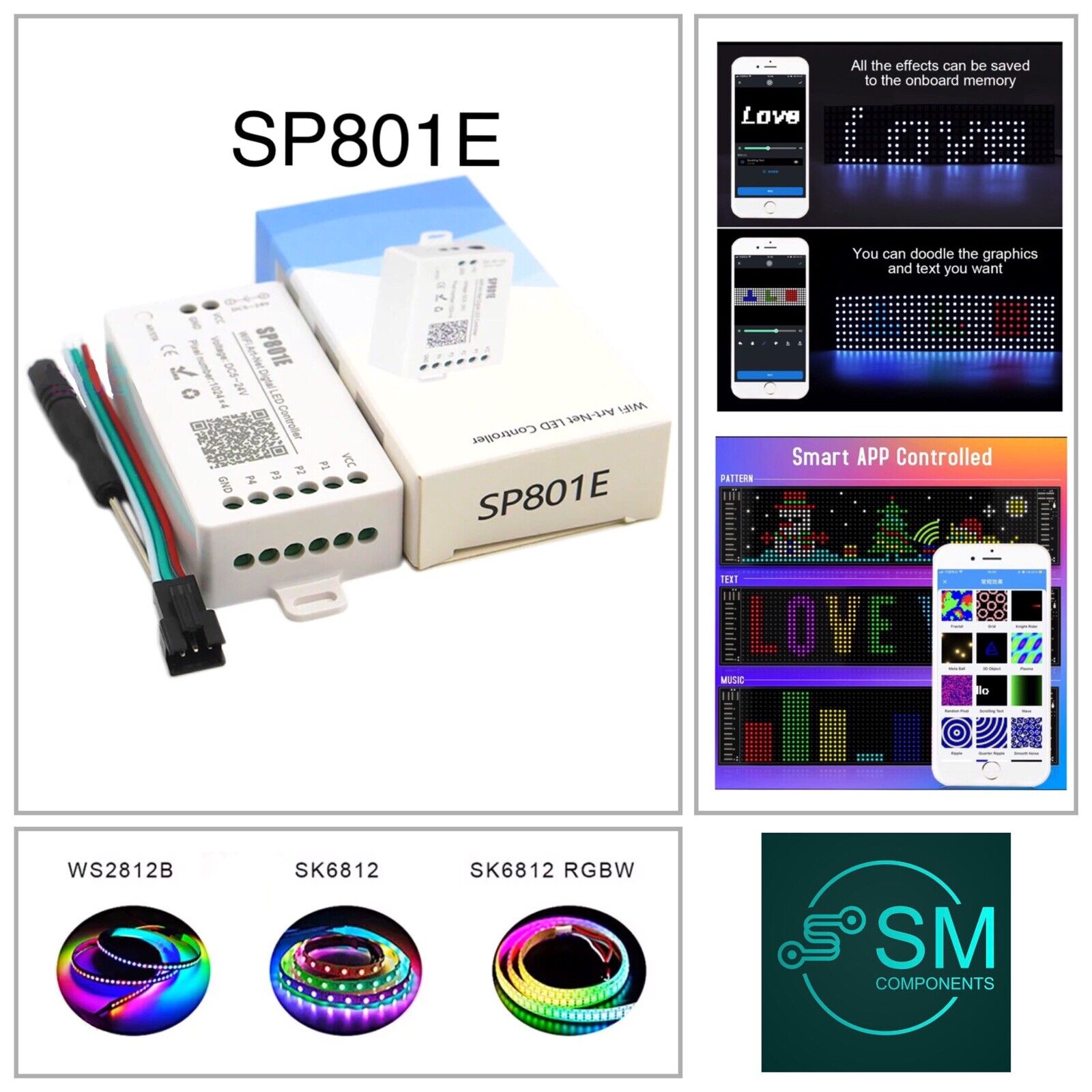

SP801E Wifi Art-Net Magic LED Controller DC5-24V LED Matrix Panel Module WS2812B WS2811 Light Strip Programmable APP Control iOS Android

Features:

1. APP controlled via WiFi, compatible with multiple Art-Net computer software ;

2. BluFi configuration using dual mode chip(WIFI&BT);

3. Support AP mode and STA mode;

4. Two layout setting method: regular rectangle layout setting and importing DXF files ;

5. Support two layers overlay, built-in multiple types of effect layers: text layer, music effect layer...;

6. The effect layers support a variety of custom parameters: direction, width, color, length, shape...;

7. Real-time preview, support recording the current scene to the controller storage;

8. Support change device name ,reorder the RGB order, and OTA update.

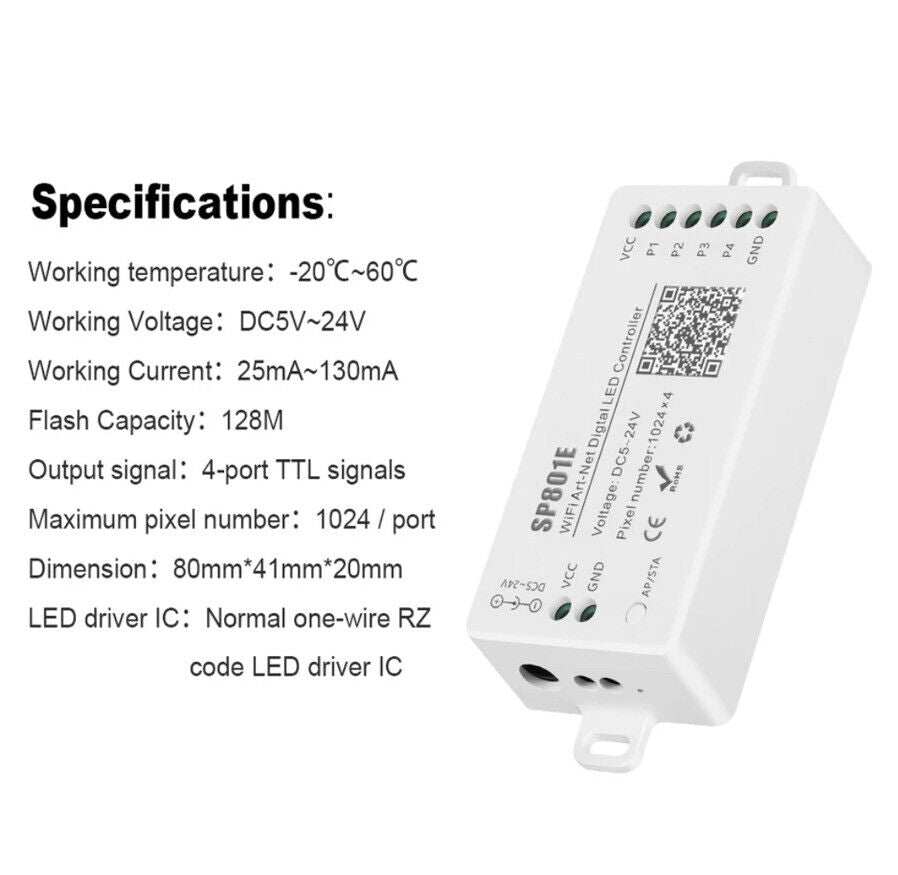

Specifications:

Working temperature : -20℃~60℃;

Working Voltage : DC5V~24V;

Working Current : 25mA~130mA;

Flash Capacity : 128M;

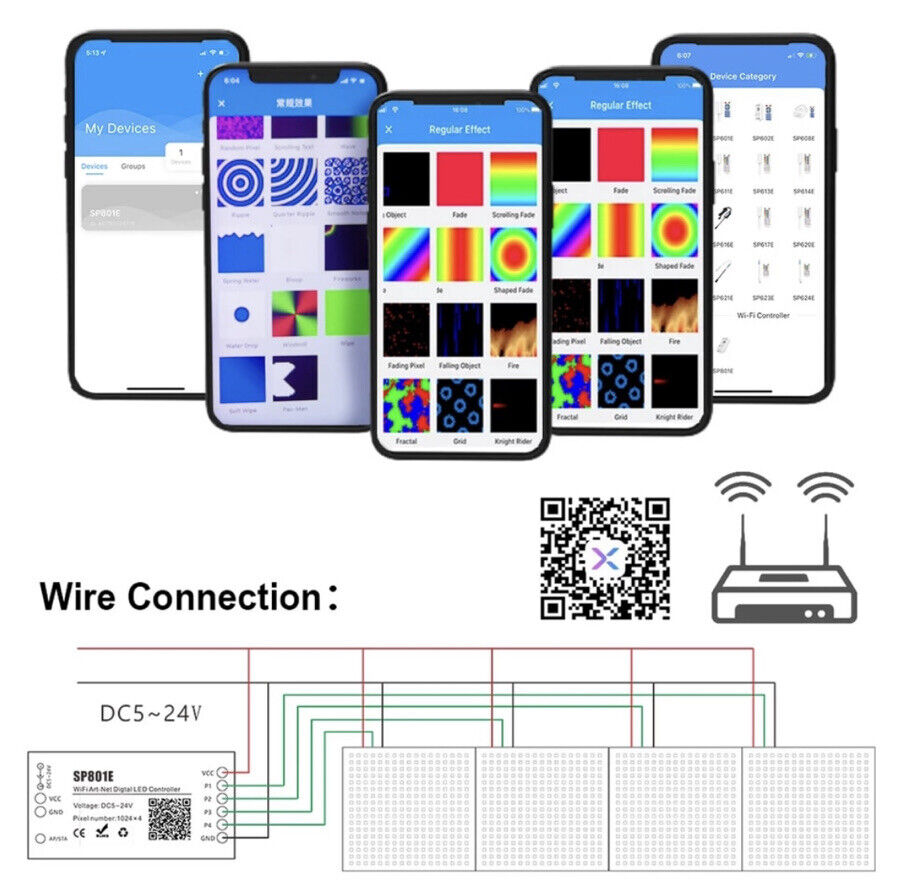

Output signal: 4-port TTL signals;

Maximum pixel number : 1024 / port;

LED driver IC: Normal one-wire RZ code LED driver IC.

Package includes:

1x SP801 Bluetooth LED controller

1x 3pin female JST connector

1x Mini screwdriver

1x User manual

(Note: power supply/mobile/controller/led strip not included!)
