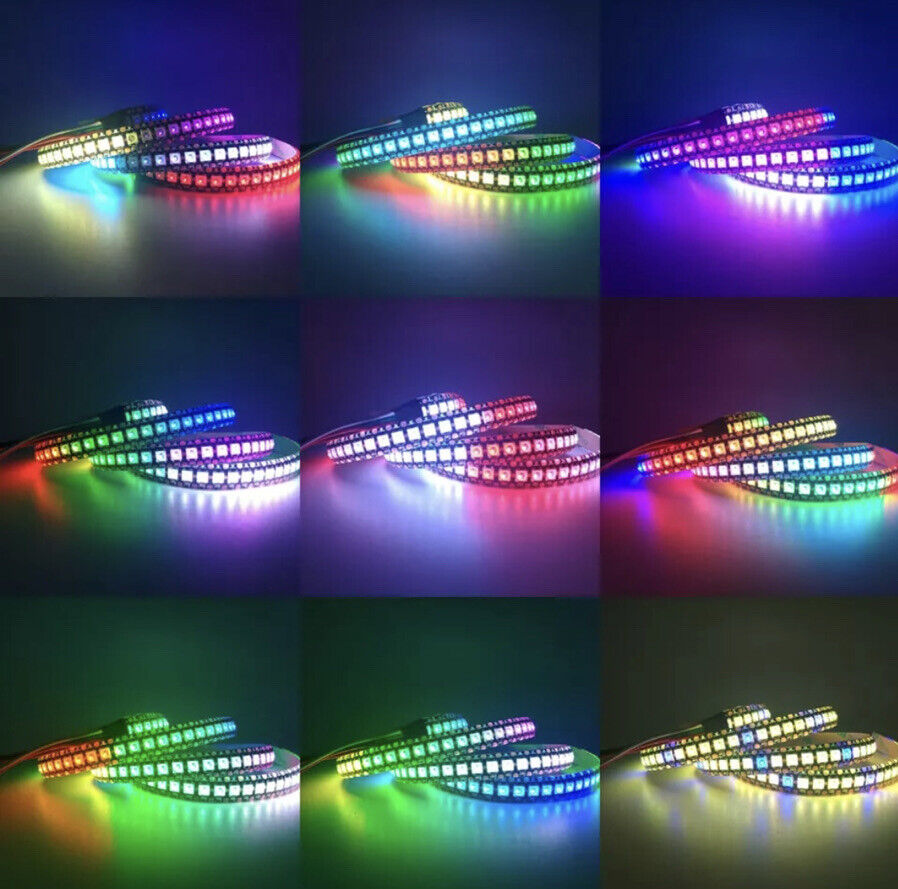

SP108E WS2811 WS2812B WS2813 SK6812 Neo Pixel wifi Bluetooth Music Controller

LED Chip Code: 5050, 3535 (mini), 2020 (SMD)

Power Source: Wired, 5.5x2.1mm DC Power Jack

Custom Bundle: No

Year Manufactured: 2021

MPN: NA

Compatible Product: WS2801,WS2811,WS2812B,SK6812,WS2813,WS2815,APA102,SK9822

Item Length: 80mm

Smart Home Compatibility: Bluetooth/WIFI

Number of Speeds: 10 or More

Colour: White

Bulb Shape Code: 3PIN/4PIN JST

Current Type: DC

Control Style: App Control

Manufacturer Warranty: 3 Years

Labels & Certifications: CE Marking,Energy Star

Item Height: 20mm

Number in Pack: 1

Voltage: 5VDC - 24VDC

Manufacturer: YUANSI Technology

LED String/Strip Type: WS2801/WS2811/WS2812B/SK6812/WS813

Features: Adjustable,Dimmable

Bulb Wattage: Pixels

Finish: Matt

Item Width: 40mm

Lighting Technology: LED

Compatible Brand: WS2801/WS2811/WS2812B/SK6812/WS813

Character: NA

Compatible Model: WS2801/WS2811/WS2812B/SK6812/WS813

Material: ABS

Installation Area: Indoor

Brand: Unbranded

Connectors: 3PIN/4PIN JST

Mounting: Ceiling

Type: Individual LED Controller

IP Rating: IP20

Assembly Required: No

Theme: NA

Power Consumption: 60 W - 74 W

Country/Region of Manufacture: China

Smart Home Protocol: YES

Item Weight: NA

Product Line: NA

WS2811 WS2812B WS2813 LED Pixel SP108E wifi Bluetooth Music Controller. Item is Brand New sent with Australia Post Parcel Post tracking number included.

• SP108E
• LED WiFi Magic Controller SK6812 WS2811 WS2812B WS2815 Etc LED Strip Module Light Smart APP Wireless Control DC5-24V

DESCRIPTION: SP108E WIFI LED Controller Operating Instructions

1. Features:

1. Long distance APP remote control via WIFI;

2. Support routing mode(AP) and LAN connection mode(STA);

3. Support almost every kind of one-wire or two-wire LED driver IC ;

4. Brightness adjustable, With 180 kinds of patterns and 8 kind of color adjustable patterns;

5.Creatively usingfrom-image-to-effect method for user toDIYany effect;

6. Support setting pixel number and segments number, able to control up to 2048pixels;

5. DC5V~24V widerangeworking voltage, preventing reverse connection of power supply;

6. User setting saving;

2. App control:

Both IOS version and Android OS version are available. (hardware should supportWIFI)

•RequiresIOS version 10.0 or later;

•Requires AndroidOSversion 4.4or later;

•Search”LedShop”in App Store or Google pay or scan this QR code to download and install the App:

3. Specifications:

Working temperature : -20℃~60℃;

Working Voltage : DC5V~24V;

Working Current :20mA~130mA;

Remote distance :30 Meters;

Product size : 85mm*45mm*22mm;

Product weight : 40g ;

Certificates : CE, RoHS;

4. Working Mode and Connecting:

•AP(Access Point) mode:Controller and Phone connect directly, controller works as an access point.

Connect steps: 1.When the device is not connected to any WIFI network, power on the controller and wait for 20s

and then controller will switch intoAP mode ;

2.In the WIFI setting page,find and connect the controller(named likeSP108E_xxx, the default pin code is 12345678),

3.Open the LED Shop App ,then the controller will be showed on the device list;

•STA(Station) mode:Controller and phone are in one same WIFI network, in this network, users can operate the controller smoothly.

Connect steps: 1.When the device is not connected to any WIFI network,power on the controller,

controller will be remain inWait-For-Connet mode for 20 seconds;

2. Make sure that your phone is connected to a WIFI network, Open LED Shop APP, pressing the Add Device button,

input the WIFI pin code, then press theOKto confirm and wait for the configure processing finish;

3. When controller successfully enter the WIFI network, it will be showed on the device list;

4. User can select the controller and remove it out of the network by pressing theRemove Device button,

then the controller will switch into AP mode.

Package includes:

1x SP108E Bluetooth LED controller

1x 3pin female JST connector

1x Mini screwdriver

1x User manual

(Note: power supply/mobile/controller/led strip not included!)
