Soldering Practice BGA Ball Grid Array Electronic Kit Inc Chips Stencil LEDs

Brand: Maker Supplies

Mounting Style: Ball Grid Array (BGA)

PCB Type: Double-Sided PCB

Operating Voltage: 3-5 Volts

Item Height: 1.6 mm

Material: FR-4

Item Length: 100 mm

Country of Origin: China

Item Width: 38 mm

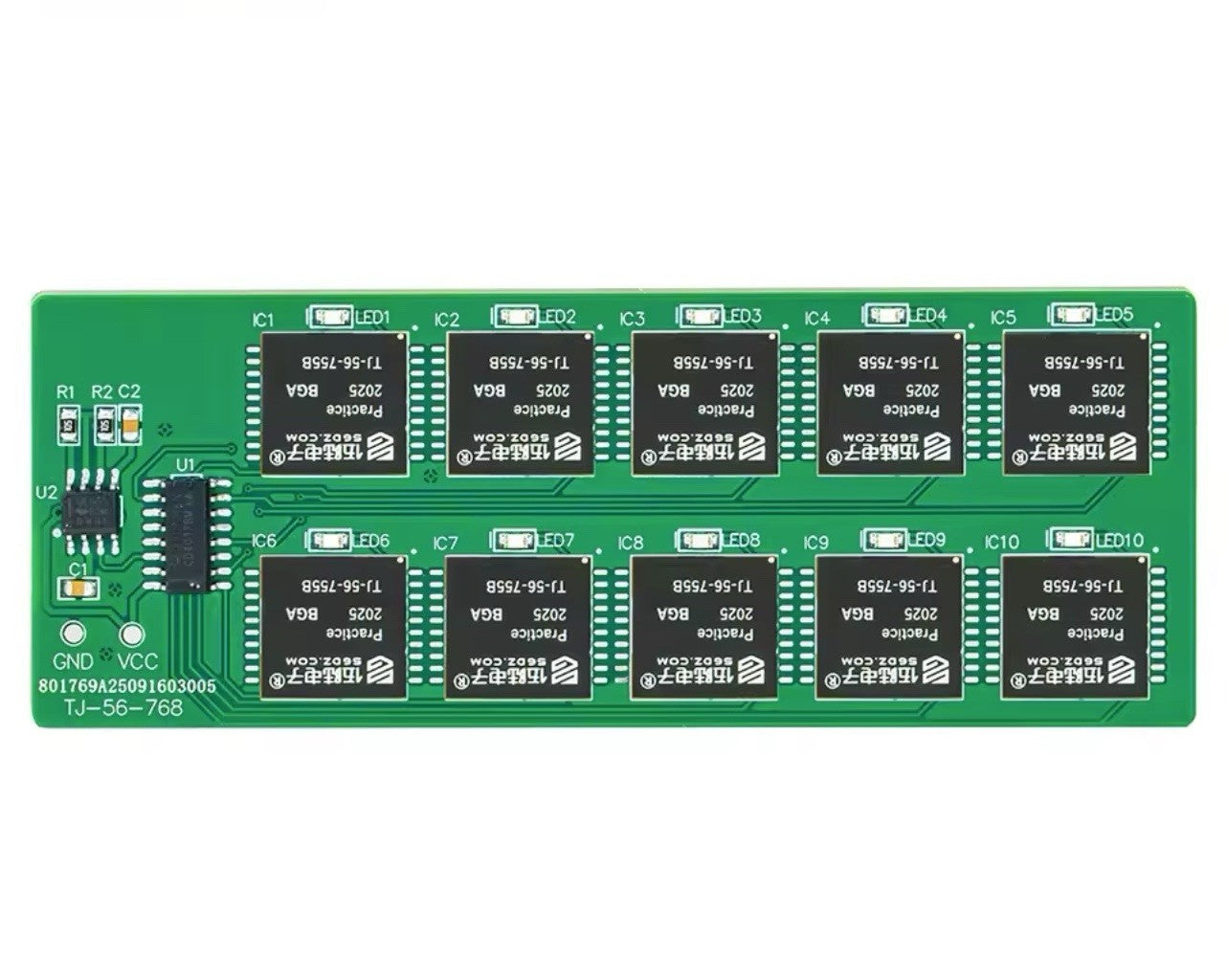

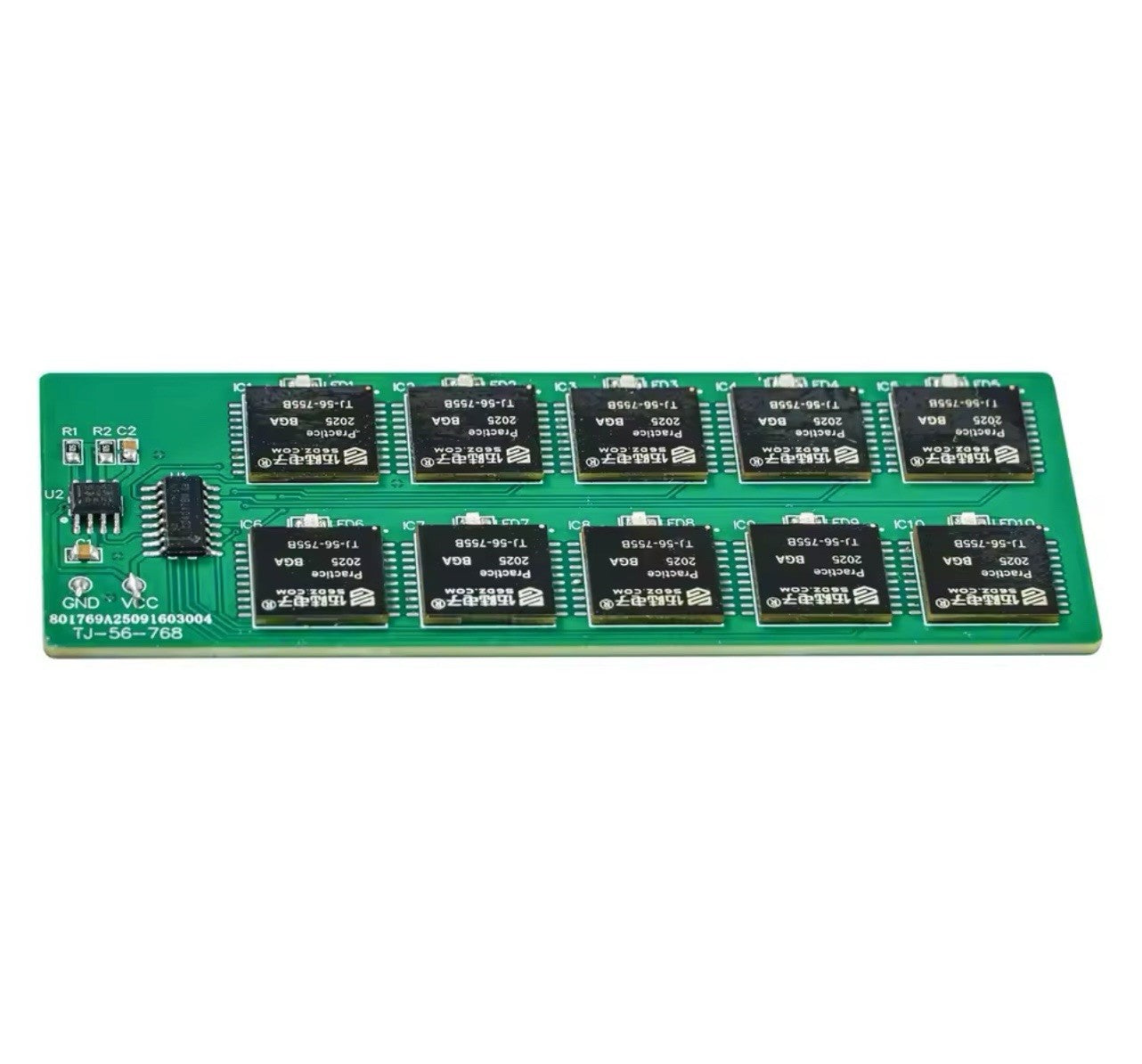

Soldering Practice BGA Ball Grid Array Kit

Item is ‘Brand New’ sent with Australia Post Regular Letter, NO TRACKING

1.Board Size: 100mm x 38mm

All Components supplied, including stencil, to allow you to hone your skills in the art of bga reflow.

Is circuit LEDs allow you to confirm that your work has been successfully. When the LEDs light, you have completed the solder connection under the IC.No LEDs lit, circuit connections are not complete.

Please allow 0.5-1cm errors due to manual measurement

Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same

*This board is a practice board. It is mainly used for practice of reflow and air pen. Please do not place an order if you do not have experience in reflow.

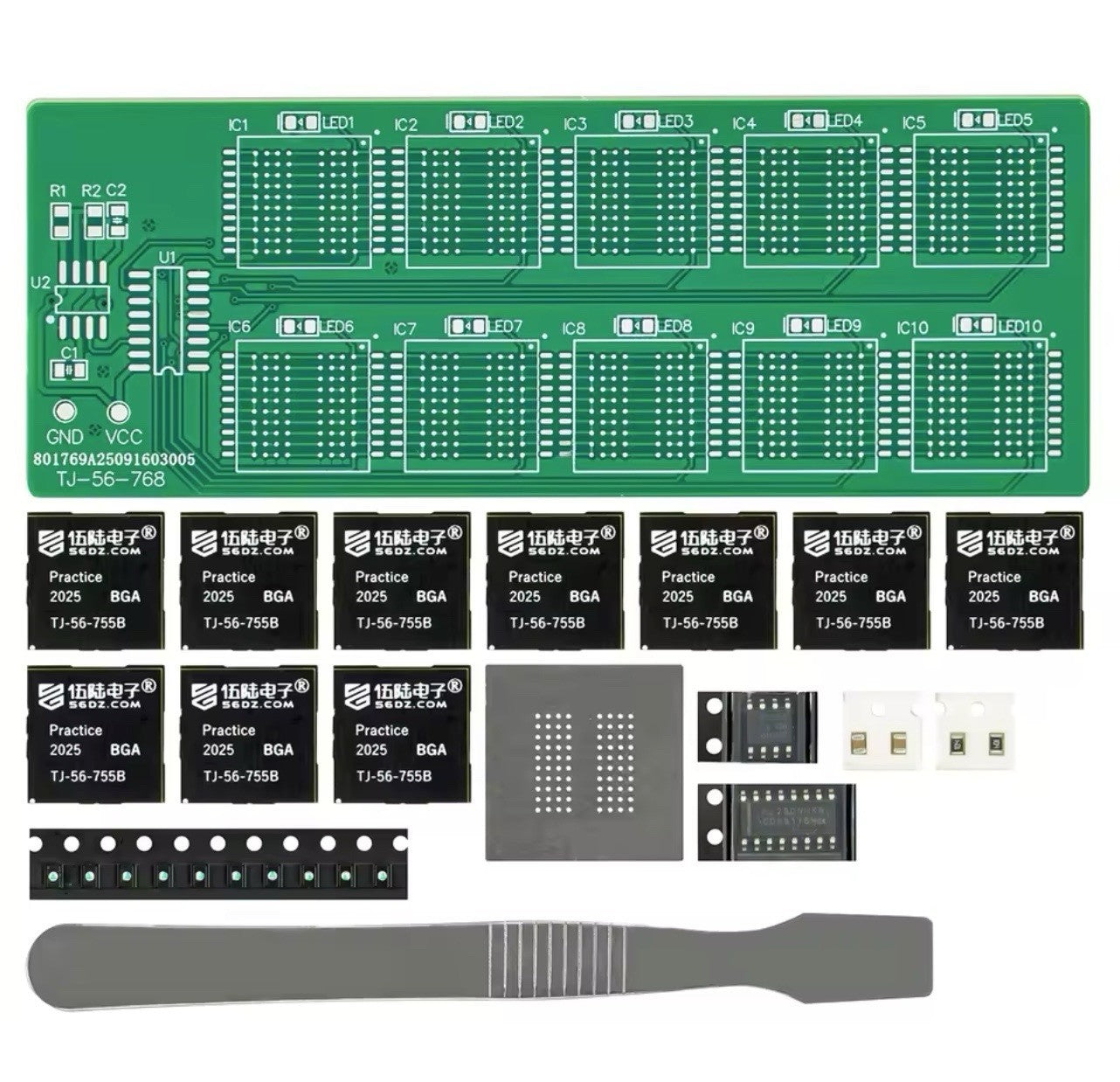

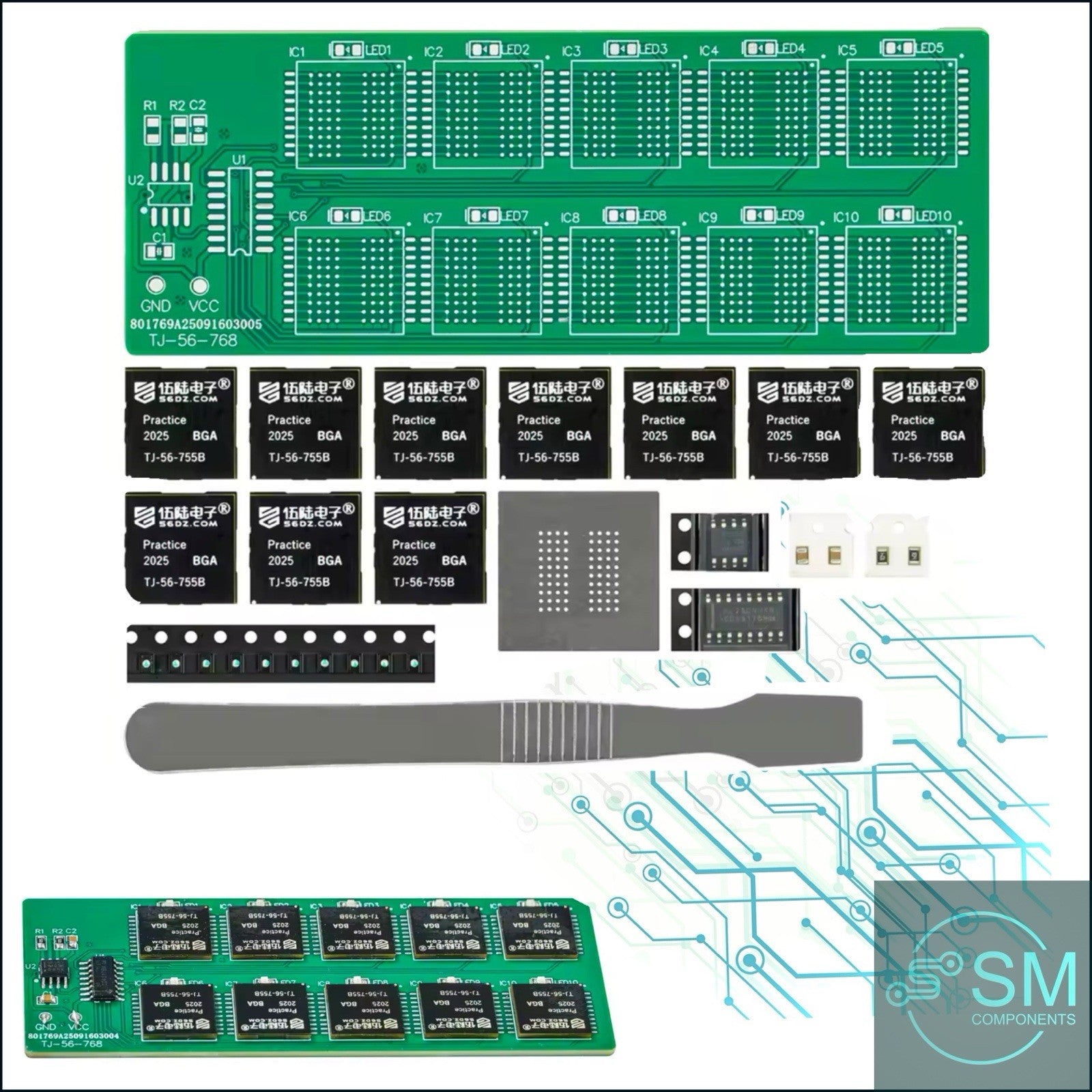

Packing List:

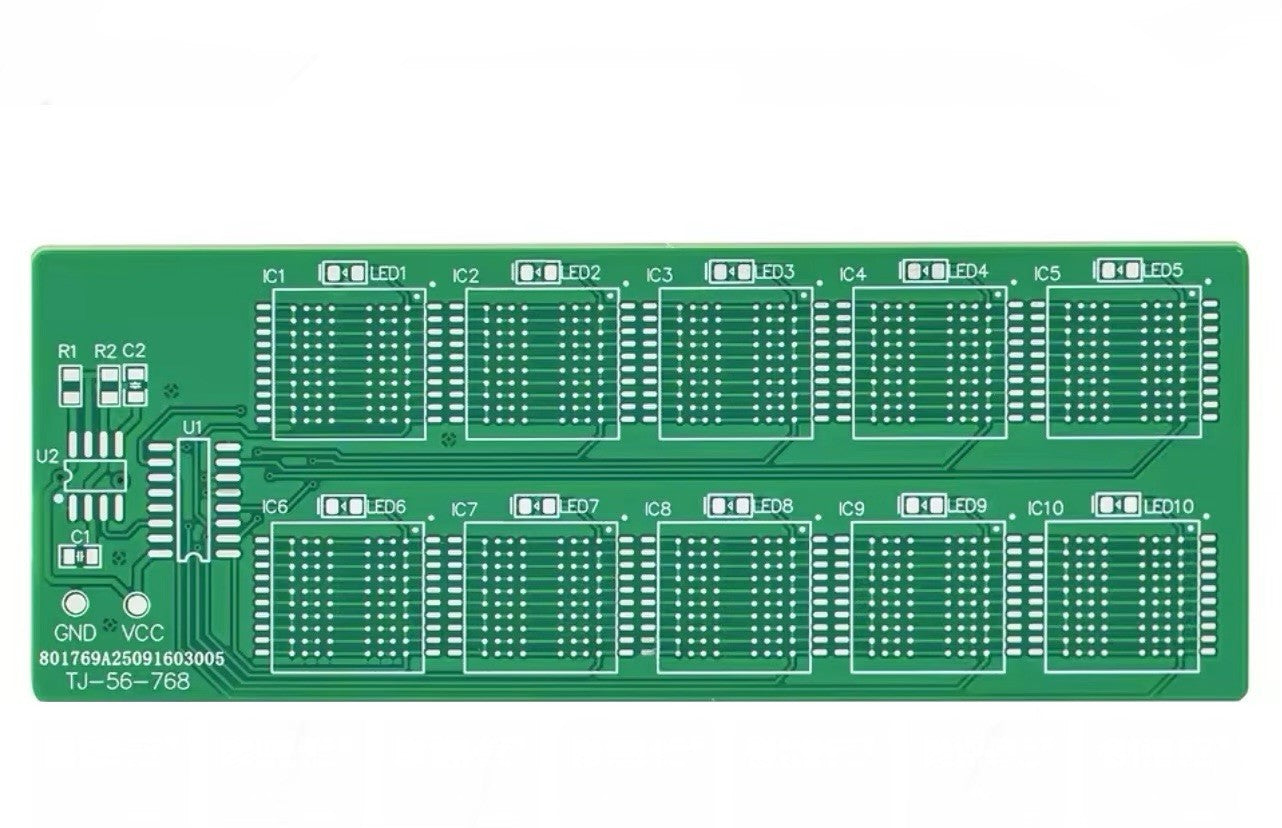

1 x BGA PCB

10 x IC1-IC10 IC Chips

1 x CD4017 Chip

1 x NE555 Timer Chip

10 0805 LEDs

2 x 0805 Capacitors

2 x 0805 Resistors

1 x BGA Stencil

1 x Solder Paste Spatula

You will need:

Solder paste #3-4 T3-T4 (low temperature preferred)

Liquid Gel Flux

Reflow Plate or Oven.

Hot Air Pen found on most Solder Stations.

As long as the PCB isn’t damaged between component installation, the kit can be used many times over.
