Rechargeable IGBT Transistor 0-3700V 50uA-5mA Diode Capacitance Breakdown Test

Brand: Shenzhen Baiyou

Model: BAB001

Product: 0-3700V Breakdown Test Unit

MPN: Does Not Apply

Country of Origin: China

0-3700V IGBT Tester Transistor Withstand Voltage Tester Diode MOS Triode MOV LED Voltage Capability Tester

Sent with Australia Post Parcel Post tracking number included.

0-3500V IGBT Tester Transistor Withstand Voltage Tester Diode MOS Triode MOV LED Voltage Capability Tester

Features:

1. Can test the insulation voltage of objects at the same time.

For example, switches, buttons, and insulation voltage tests between the two pins of connectors.

2. The product is small in size.

3. Easy to carry and store

4. It is also convenient for insulation testing between windings, such as motors, power frequency transformers, high-frequency transformers, phase insulation, and insulation testing of shell

cores

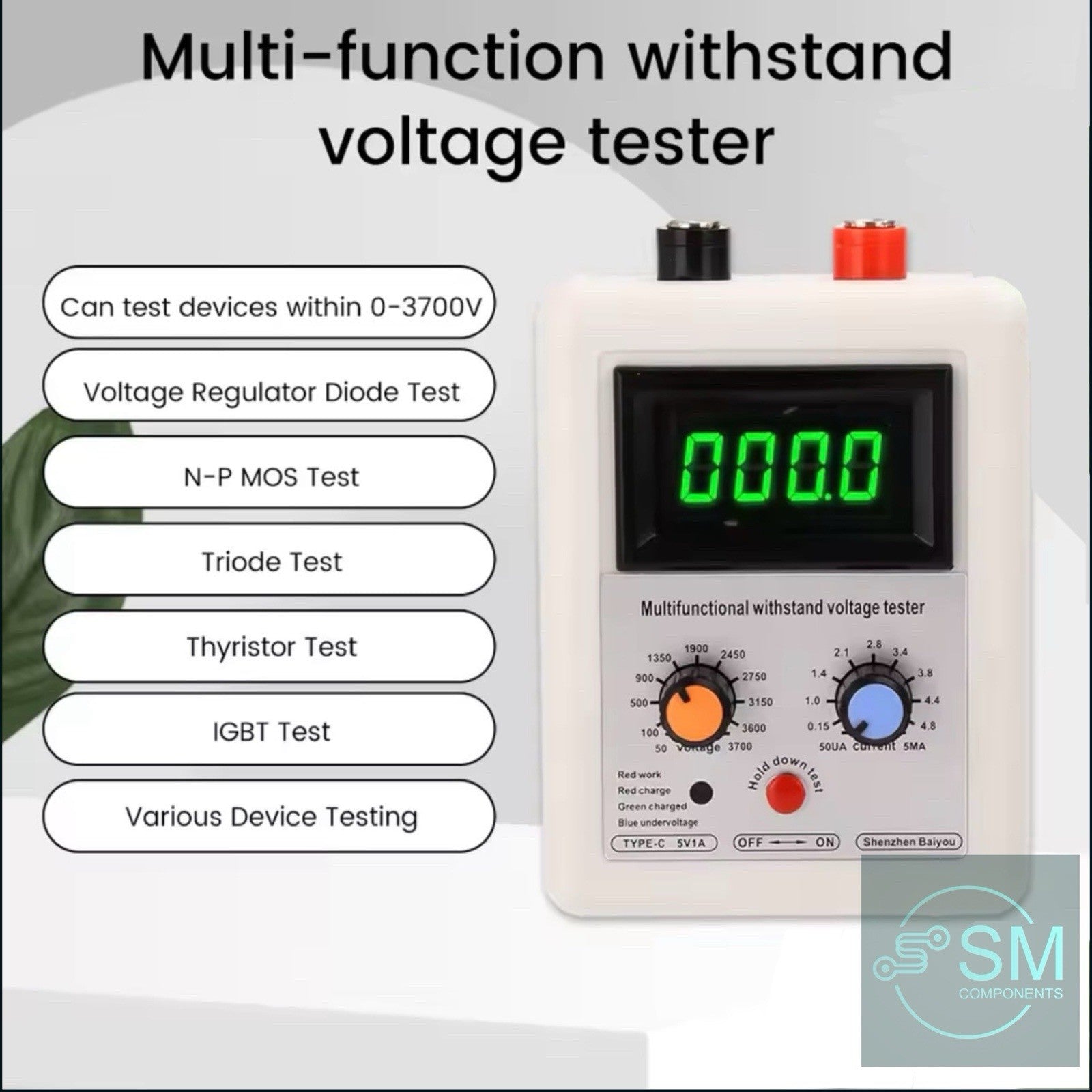

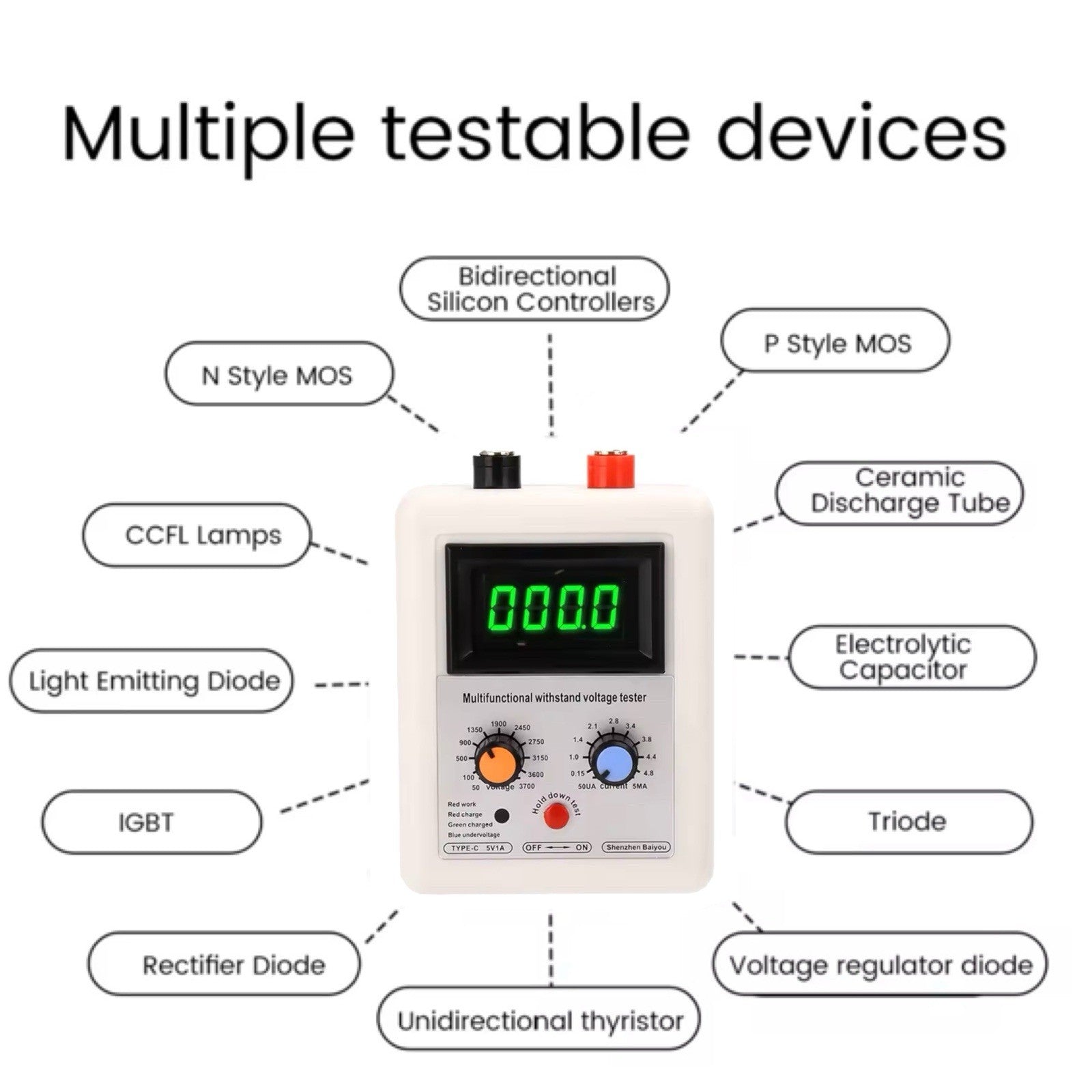

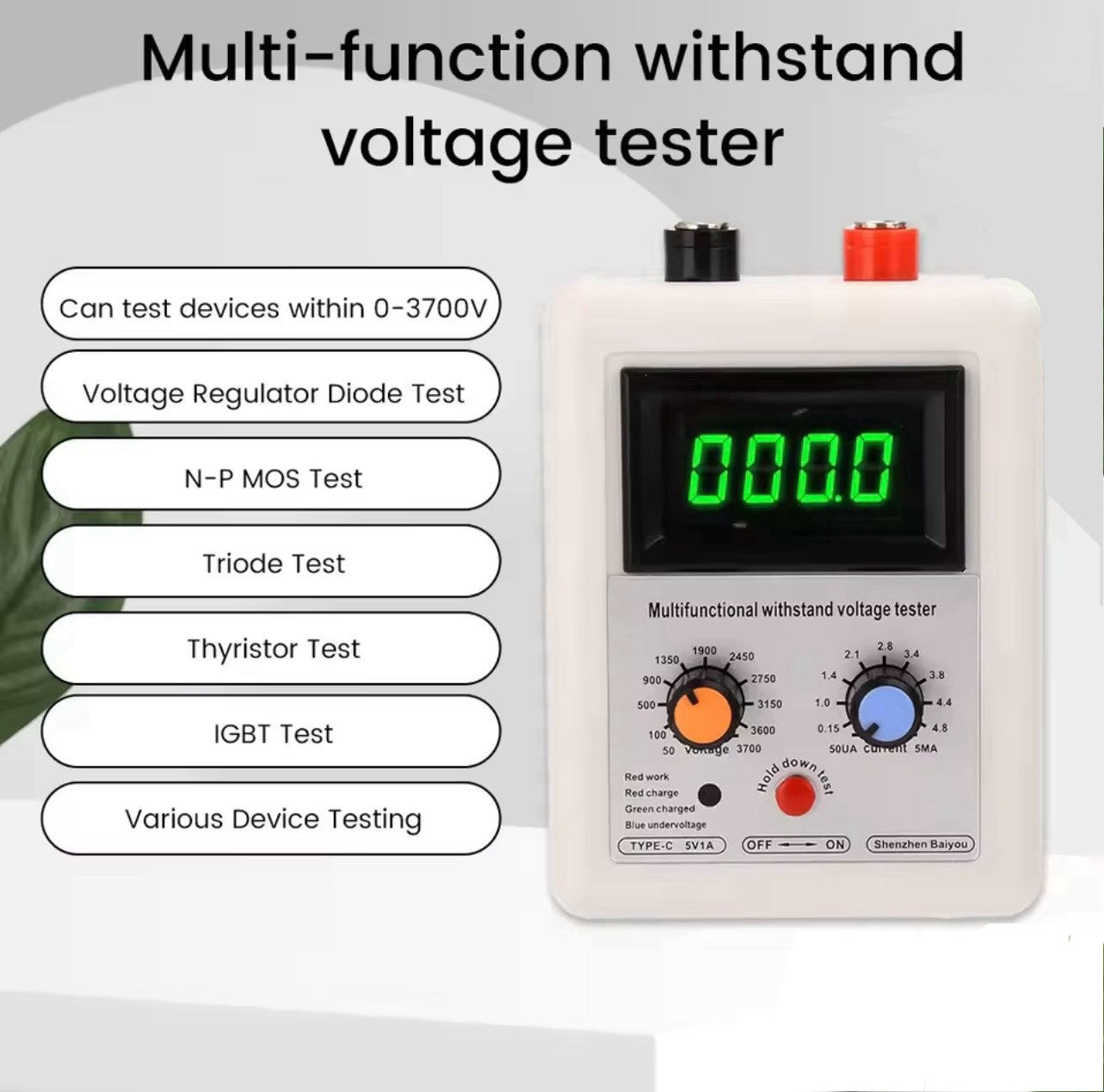

5. Widely used and can measure: NIMOS/PMOS/IGBT/triode/ unidirectional thyristor/voltage regulator diode/light-emitting diode/rectifier bridge/varistor/ceramic gas discharge tube/ electrolytic capacitor/withstand voltage value

• Parameters:

Adjustable output voltage: DC 0-3700V

Voltage display accuracy: 0.3%

Output voltage error: 50V, the actual output of the resistor is 3600-3700V

Adjustable output current: 50uA-5mA

Output mode: constant voltage, constant current output

Maximum power of the whole machine: 5W

Voltmeter resolution: O.1V below 10OV, 1V above 100V

Battery capacity: 700mA lithium battery

Charging current: 550mA

Charging interface: TYPE-C (Red light on when charging, green light on when fully charged)

Charging adapter: 5V1A mobile phone charger for charging

Protection function: 80% over temperature protection (blue light on when high temperature is high)

Lithium battery undervoltage: blue light on when battery is below 3.3V

Device size: 98*70*37

Host weight: 108g (without any accessories)

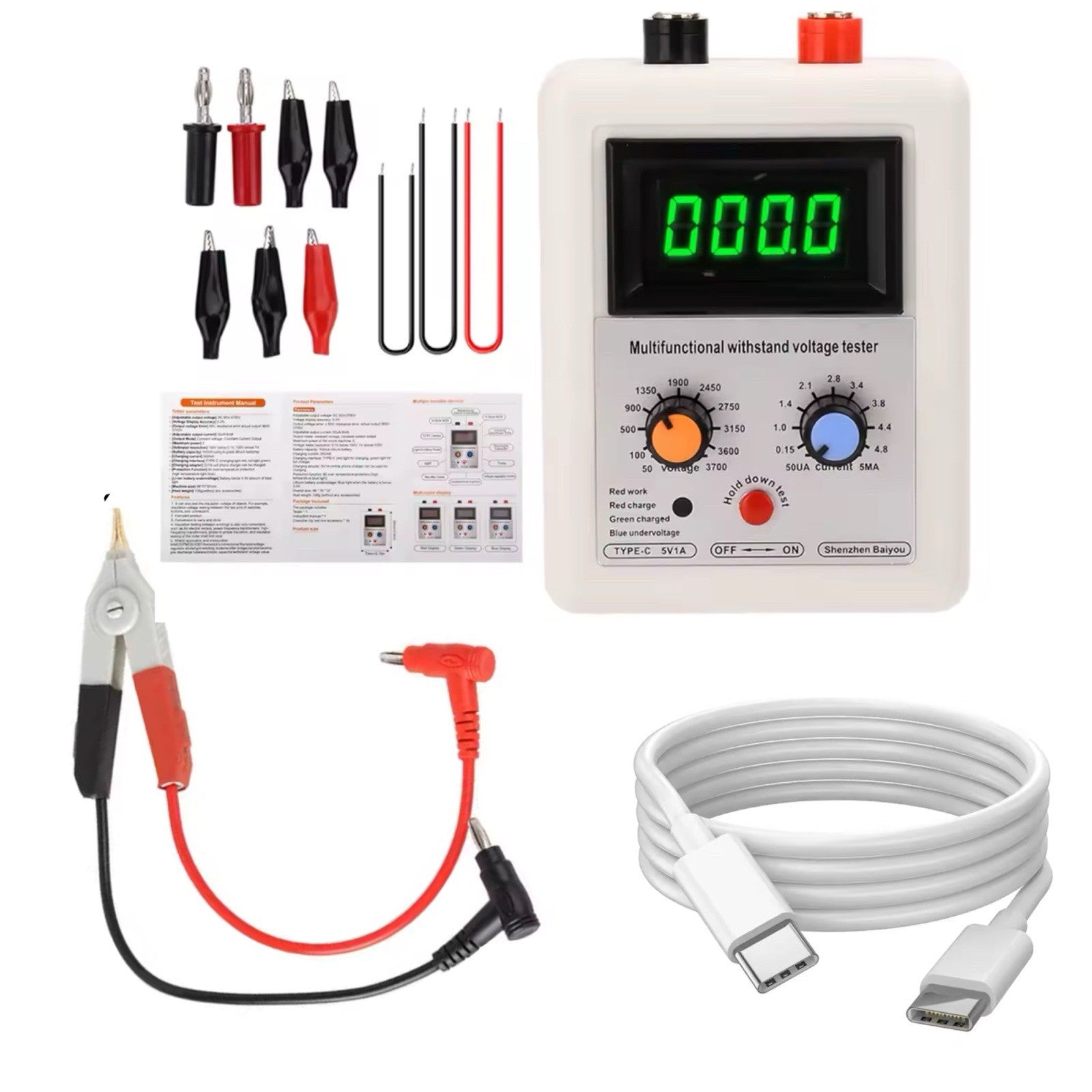

• Package includes:

Unit Tester

Instruction manual

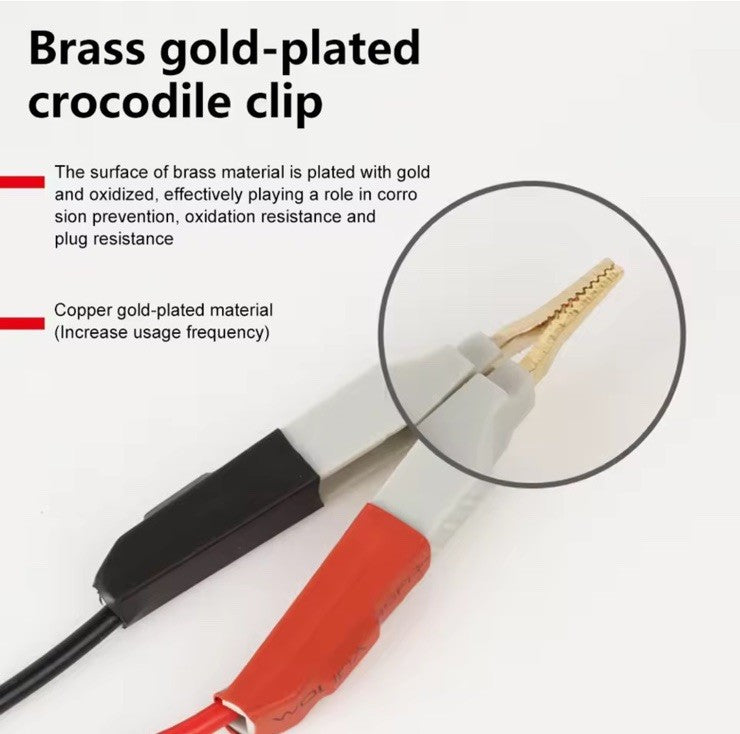

Alligator clip test line accessories

USB Type C charging cable

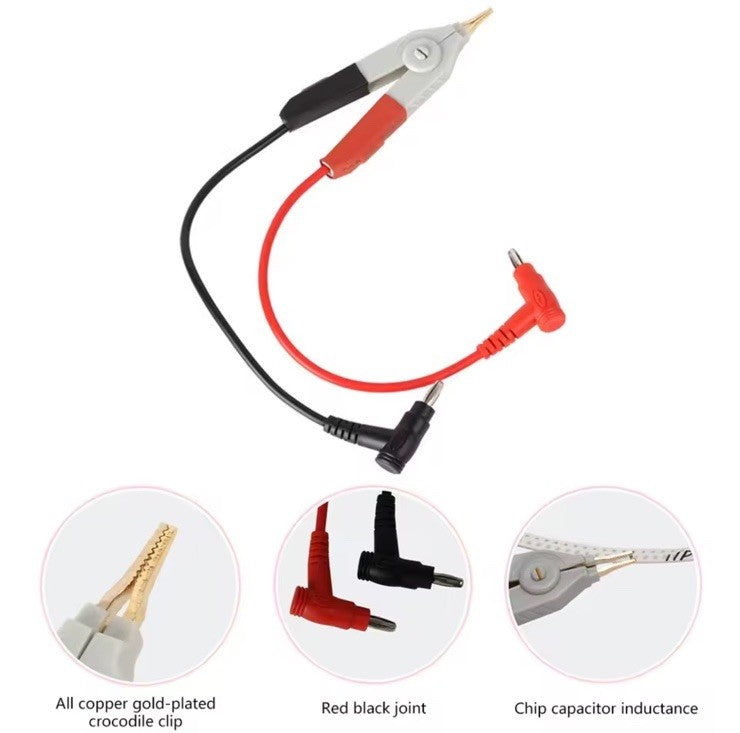

2 Pole Kelvin Clip Set
