2-20 PCS Pre-Soldered Micro Litz Wired Leads SMD Led 0402 0805 Inc Resistors 12VDC

sent with Australia Post Regular Letter.. NO TRACKING NUMBER INCLUDED

Features:

Brand new. Perfect for small models and really tight places!

Soldering SMDs is very difficult, but these pre-wired units take all the work out of it for the modeler.

This kind of soldering is very extensive and difficult to perform, but is offering maximum flexibility when applying the LED and is ensuring place-saving usage.

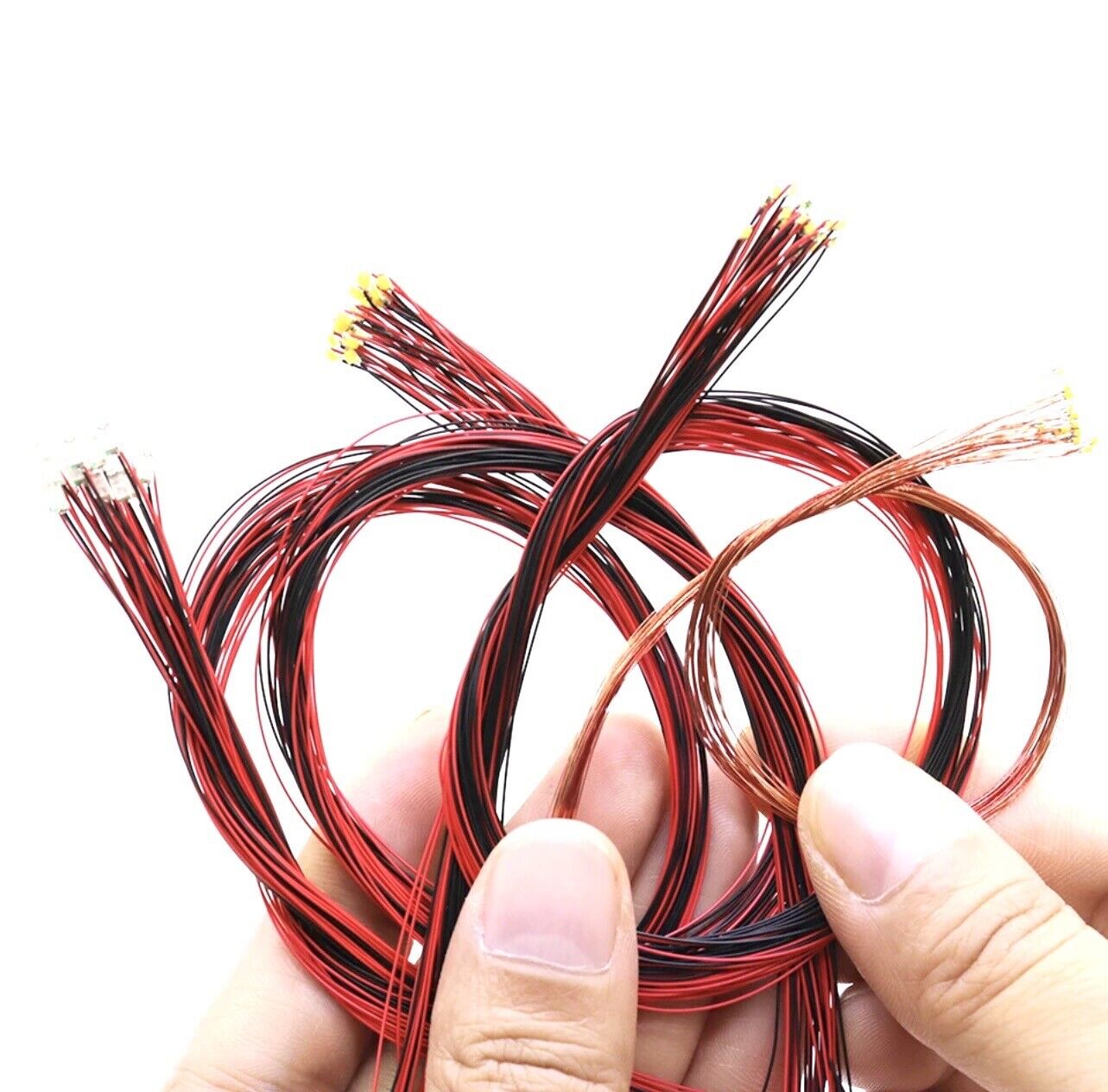

For optimal insulation with minimal outside diameter and at the same time "water-like" softness, translucent grey stranded micro litz wire with only 0.28 mm in diameter is used.

The insulation is made from a highly heat-resistant material with a high Teflon®-fraction. That´s why during soldering there is almost no longitudinal shrinkage.

The wire length is approximately 200 mm. For easy recognizable connecting, the Cathode is black and the Anode red.

Specifications:

Brand: EverLight

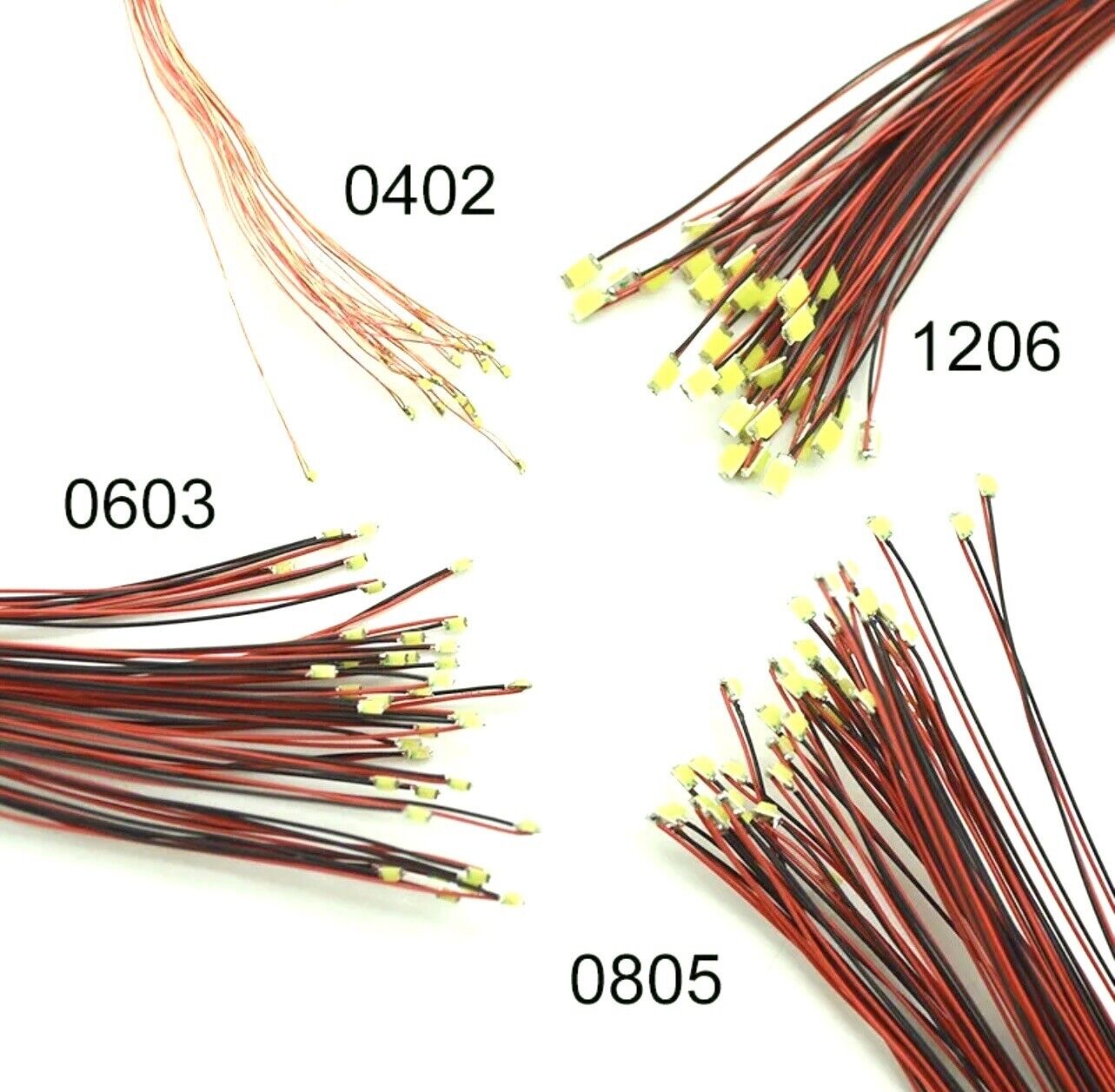

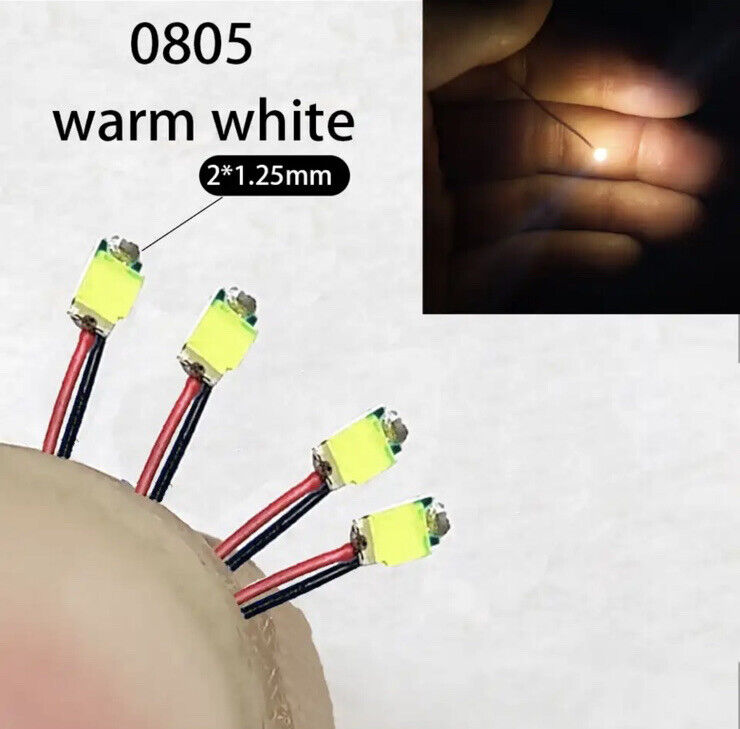

Size: SMD Led available for your selection are 0402, 0603, 0805, 1206.

The LITZ wire is approximately 20cm(L).

Forward voltage:2.8V~3.4VDC without Resistors, 12 VDC with supplied resistors (NOT SOLDERED TO LEDS)

Forward current (typ/max): 15mA/20mA.

Viewing angle:120°.

Available Emitting Colours:

Cool White, Warm White, Blue, Green, Ice Blue, Yellow, Orange, Red, Pink, UV.

Package includes:

2, 5,10 or 20 pieces Pre-soldered with micro litz wired leads SMD Leds including resistors to suit 12V

*************PLEASE NOTE: RESISTORS TO SUIT 12V ARE SUPPLIED ONLY NOT SOLDERED*************
