NE555 Pulse Generator Frequency Adjustable & Duty Cycle Module DIY Project Kit

Brand: Unbranded

Current Type: DC

Termination Type: Connector Pins

Output Type: Voltage

Model: Pulse Frequency Module

MPN: NE555 Pulse Generator

NE555 Pulse Generator Frequency Adjustable & Duty Cycle Module DIY Project Kit. Item is Brand New shipped with Australia Post regular Letter no tracking number included.

Condition: 100% new

Color: As Show in the Picture

Main Chip: NE555

Input current: >=100MA

Input Voltage: 5V-15VDC (when power supply is 5V, the output current can be 15MA around, when 12V power supply, the output current can 35MA around)

Output amplitude: 4.2V V-PP to 11.4V V-PP (Different input voltage, the output amplitude will be different)

Maximum output current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%)

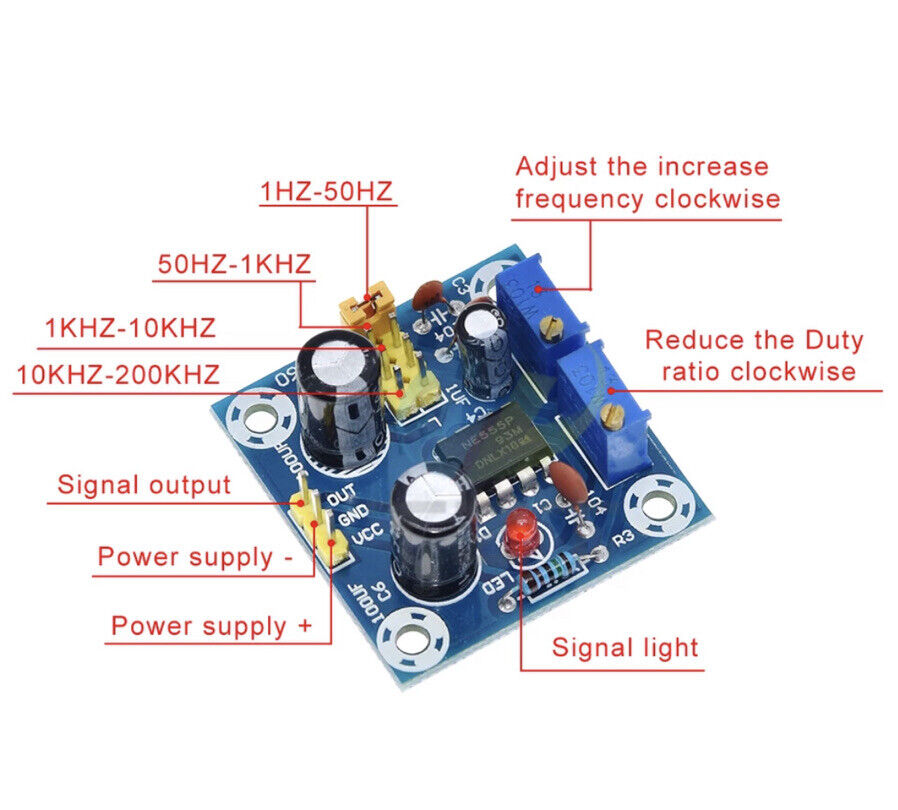

The output frequency range is selectable: LF file: 1Hz ~ 50Hz,IF file: 50Hz ~ 1kHz, High-frequency file: 1KHz ~ 10kHz, HF file: 10kHz ~ 200kHz

The output frequency is adjustable:

1) Period T = 0.7 (RA +2 RB) C

2) RA, RB is 0-10K adjustable

3) Low profile when C = 0.001UF

4) IF stalls C = 0.1UF

5) High-frequency file C = 1UF

6) HF stalls C = 100UF (so buyers can calculate the frequency of the waveform.)

Suitable: for experimental development, experimental development and so on.
