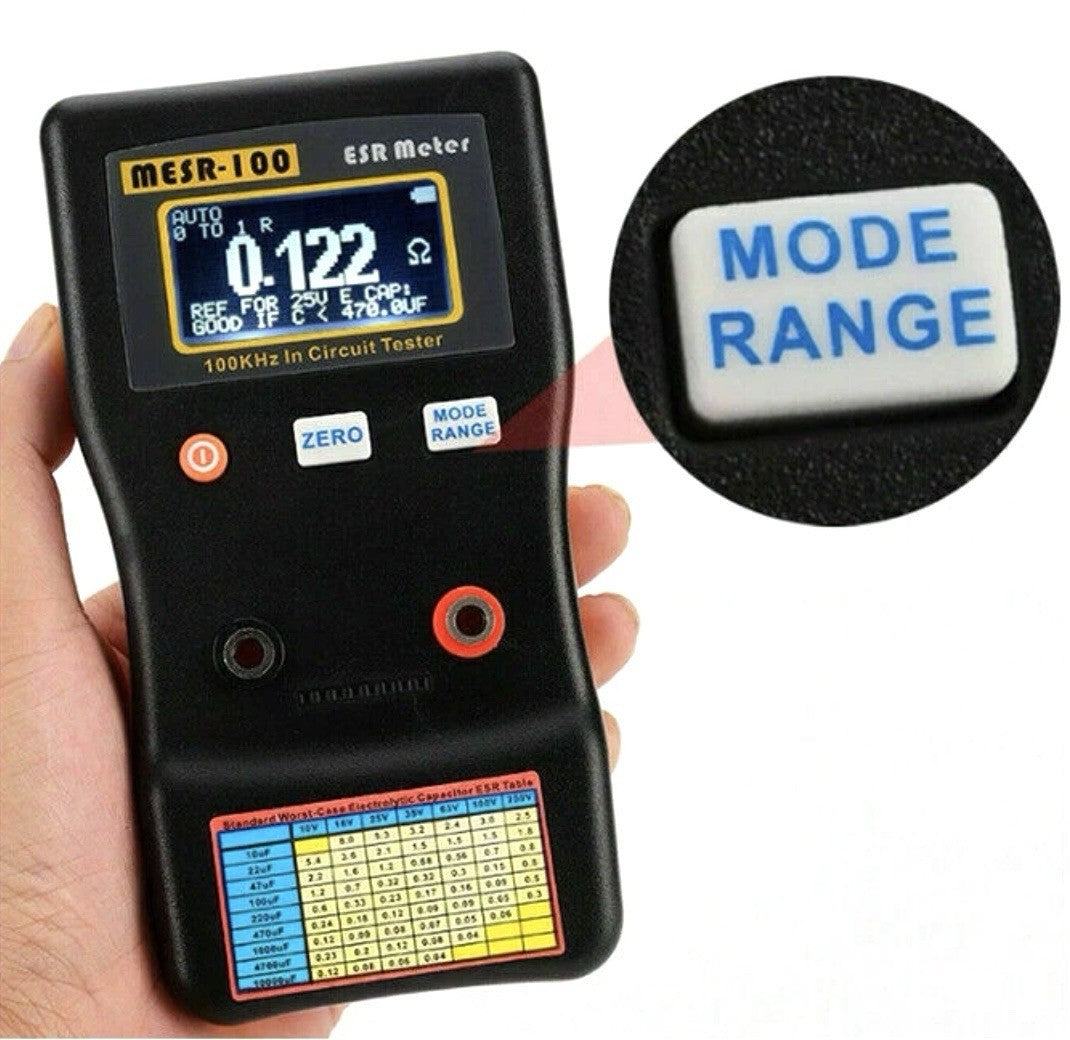

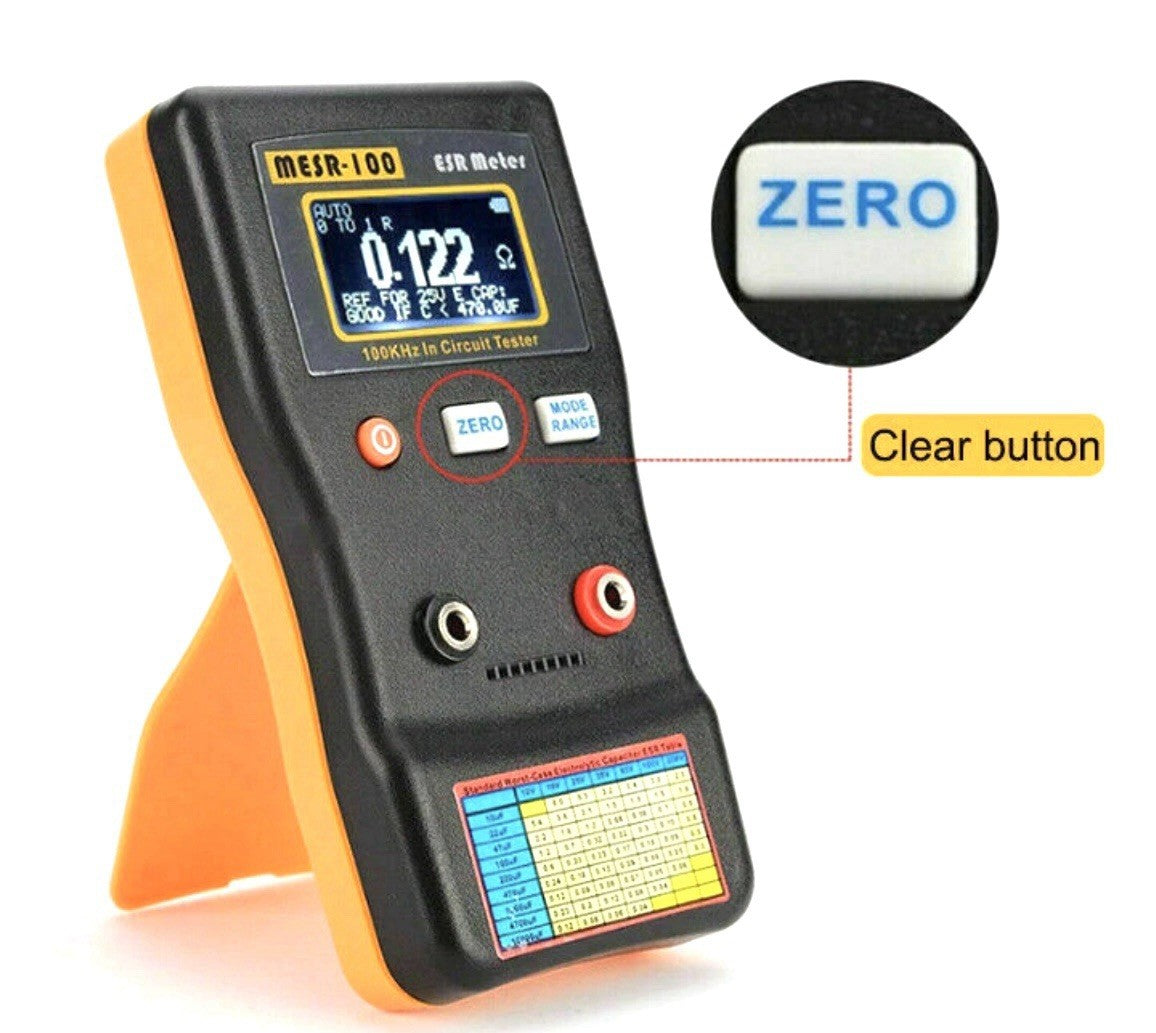

MESR-100 V2 Auto Ranging In Circuit ESR Capacitor Meter Tester 0.001-100Ω

Brand: LC Meters

Capacitance Range: 0.01pF-470mF

Model: MESR-100

Product: Capacitance Meter With ESR & Resistance

MPN: Does Not Apply

Country of Origin: China

MESR-100 V2 Auto Ranging In Circuit ESR Capacitor Meter Tester with Resistance Down to 0.001.

Sent with Australia Post Parcel Post tracking number included.

• MESR-100 :

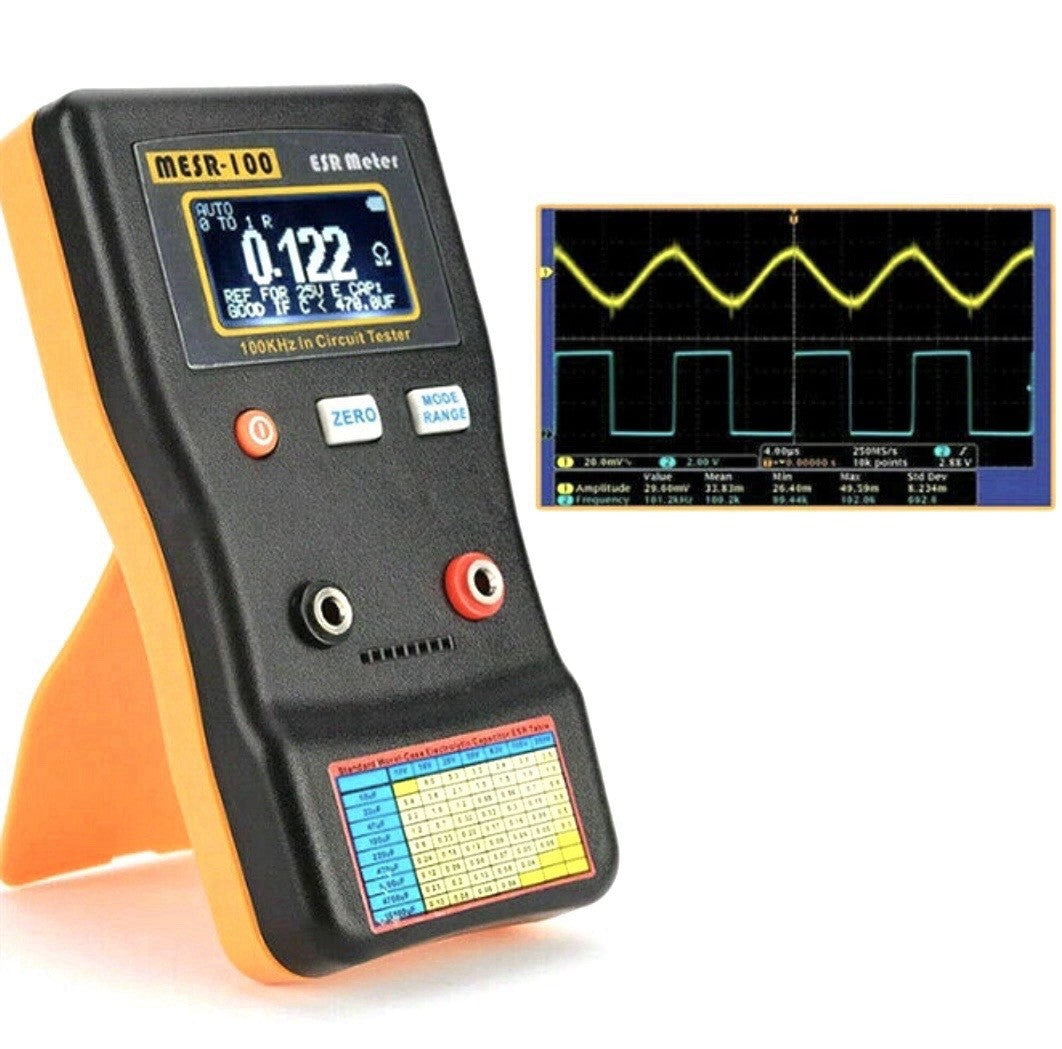

This MESR-100 auto-ranging capacitor ESR and low Ohm meter measuring range from 0.001 to 100.OR, support in circuit testing. Using true 100 KHz sine wave to measure the ESR value, which is equal to the testing method of capacitor manufacturer.

• Features:

1. It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C).

2. The impedance become small, and we can then measure the true series resistor value.

3. Using this theory, we can measure the capacitor is bad/ damaged or good in condition.

4. Our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test.

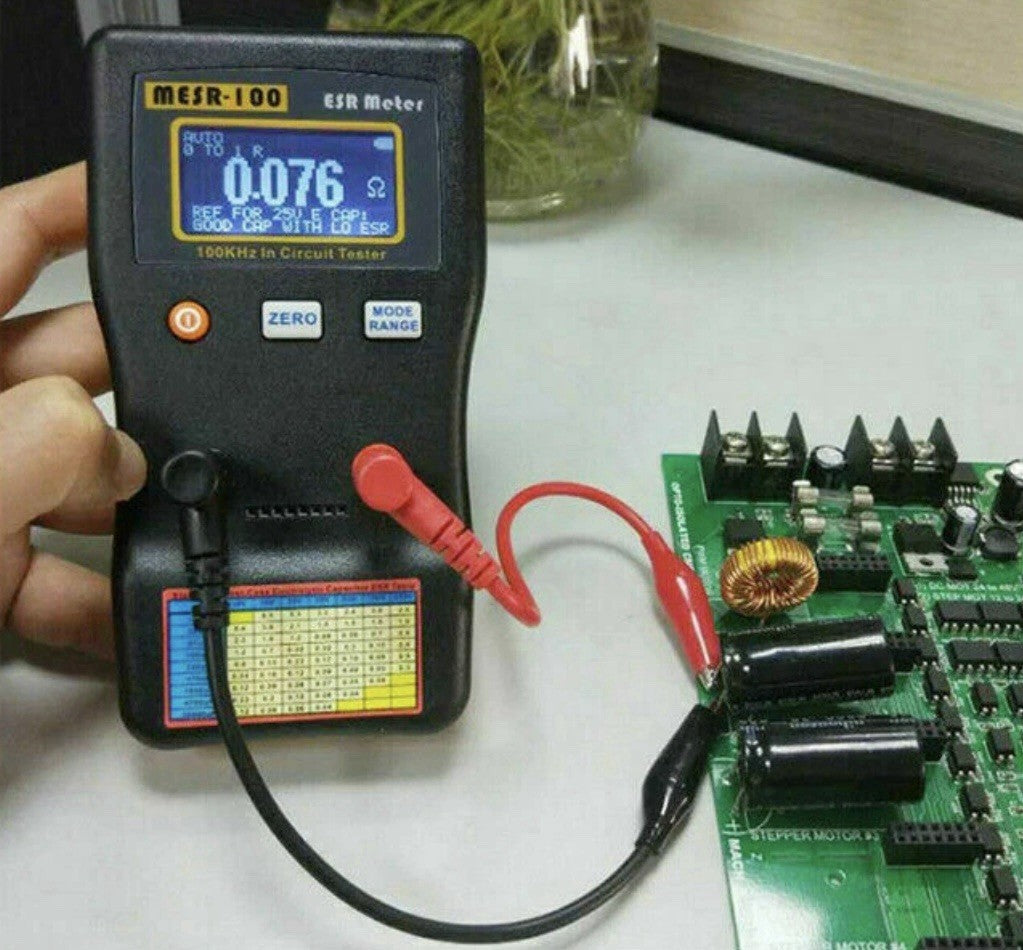

5. During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not.

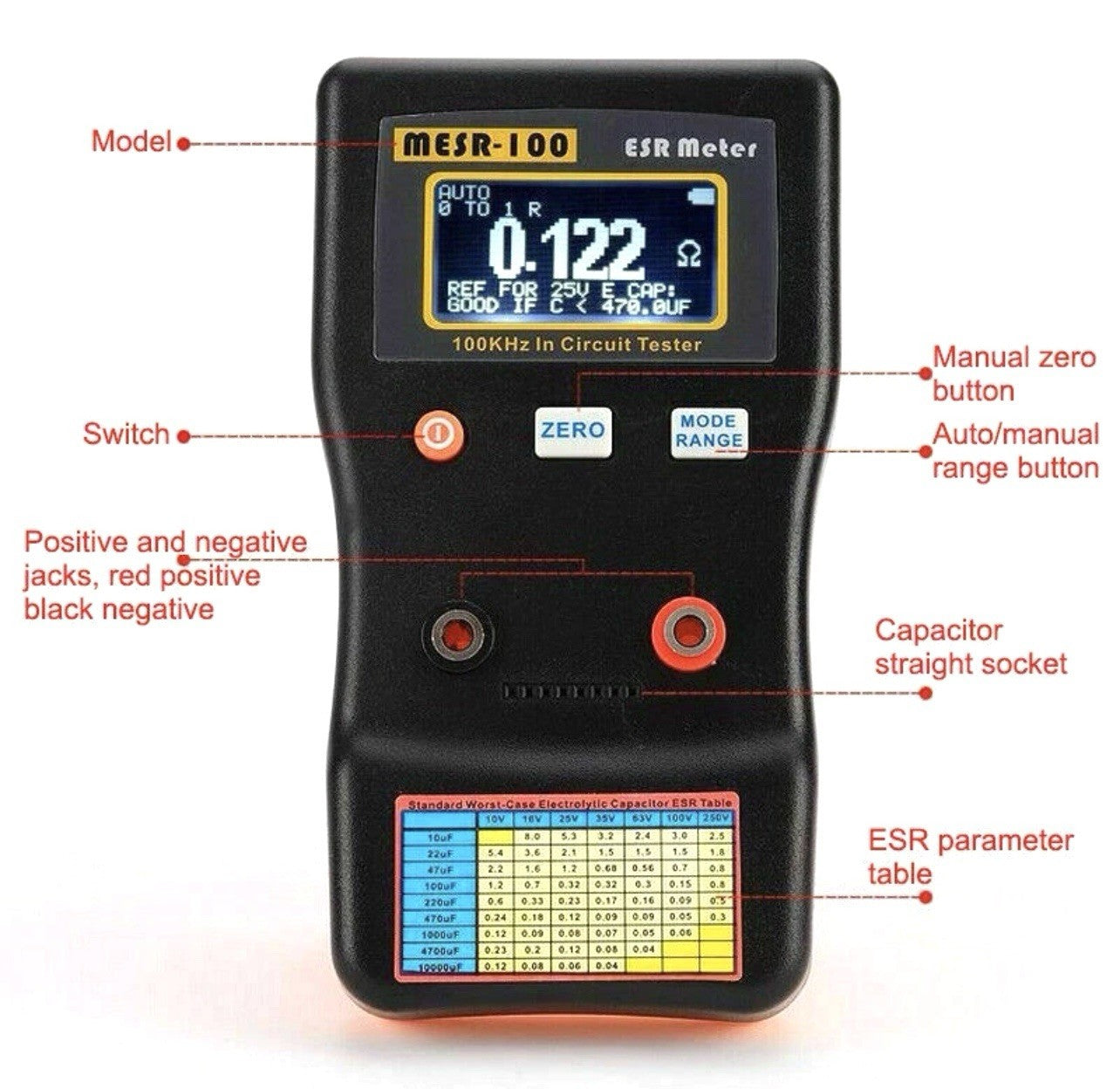

6. Dual terminal, for fast and easy inspect internal resistance of the capacitor, a printed ESR table for fast check.

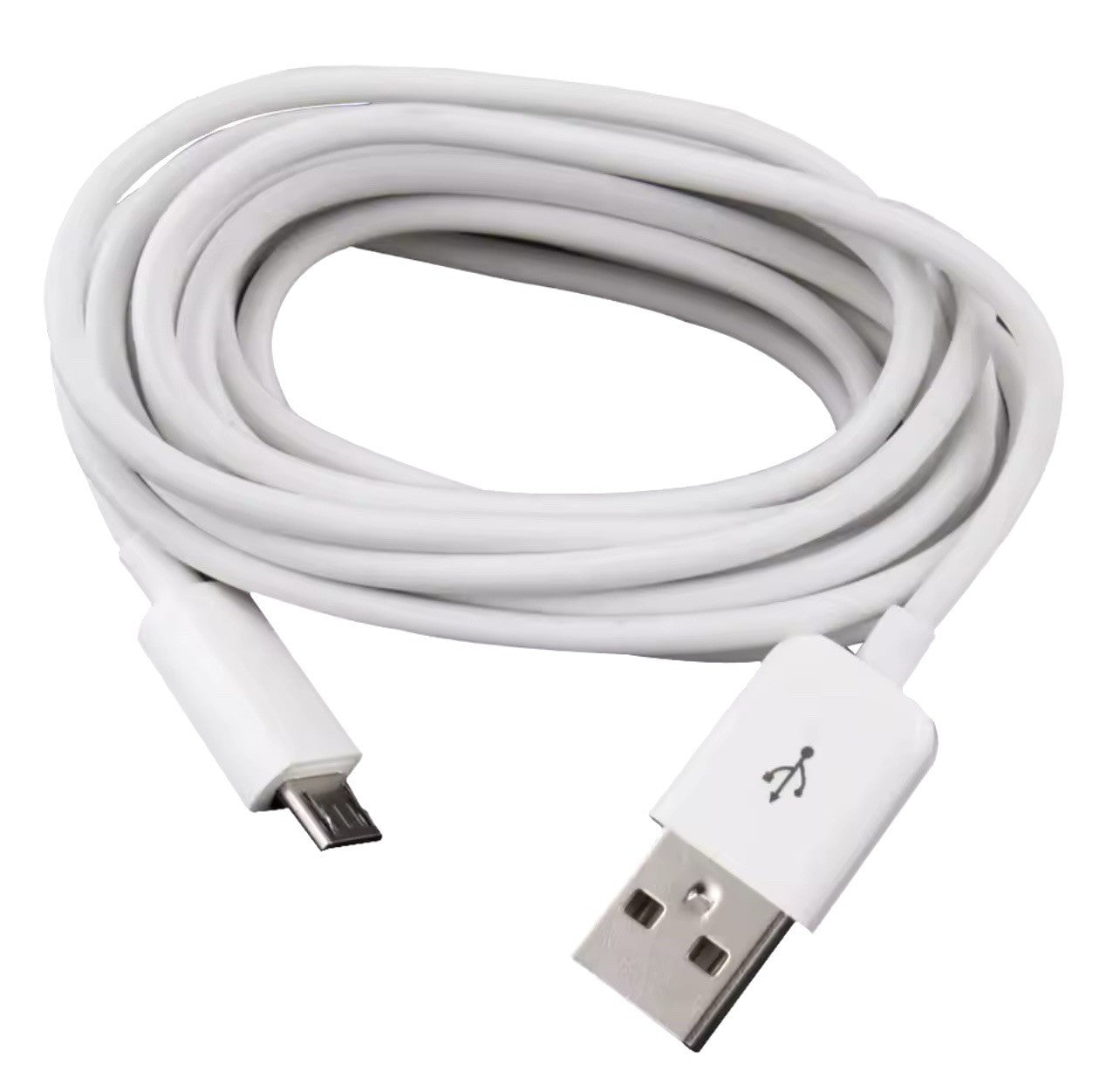

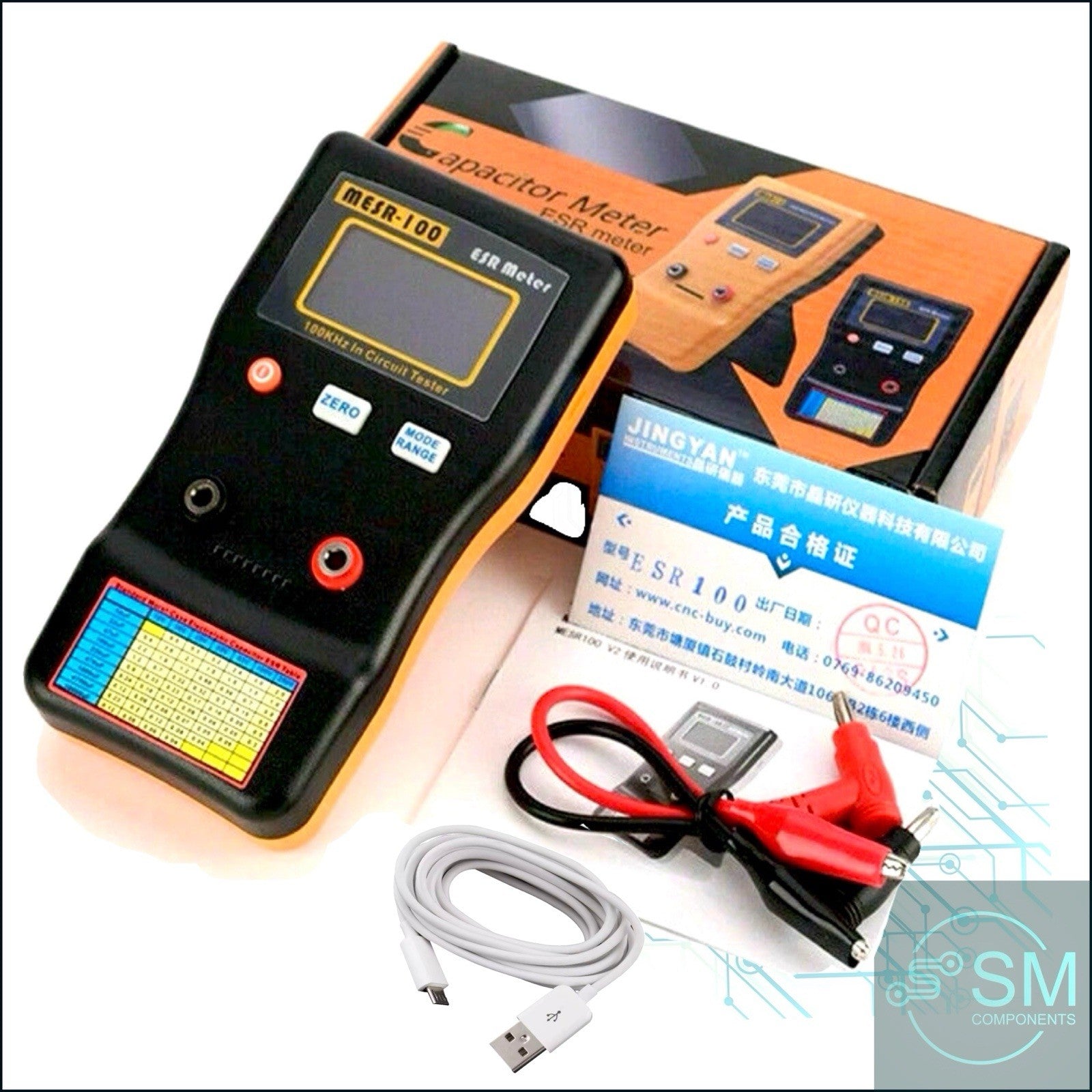

7. 2 Meter Micro USB cable included.

• Note:

- The Capacitance Meter is used for testing the internal resistance of the capacitor, not for testing capacitance value.

• Specifications:

Colour: Black

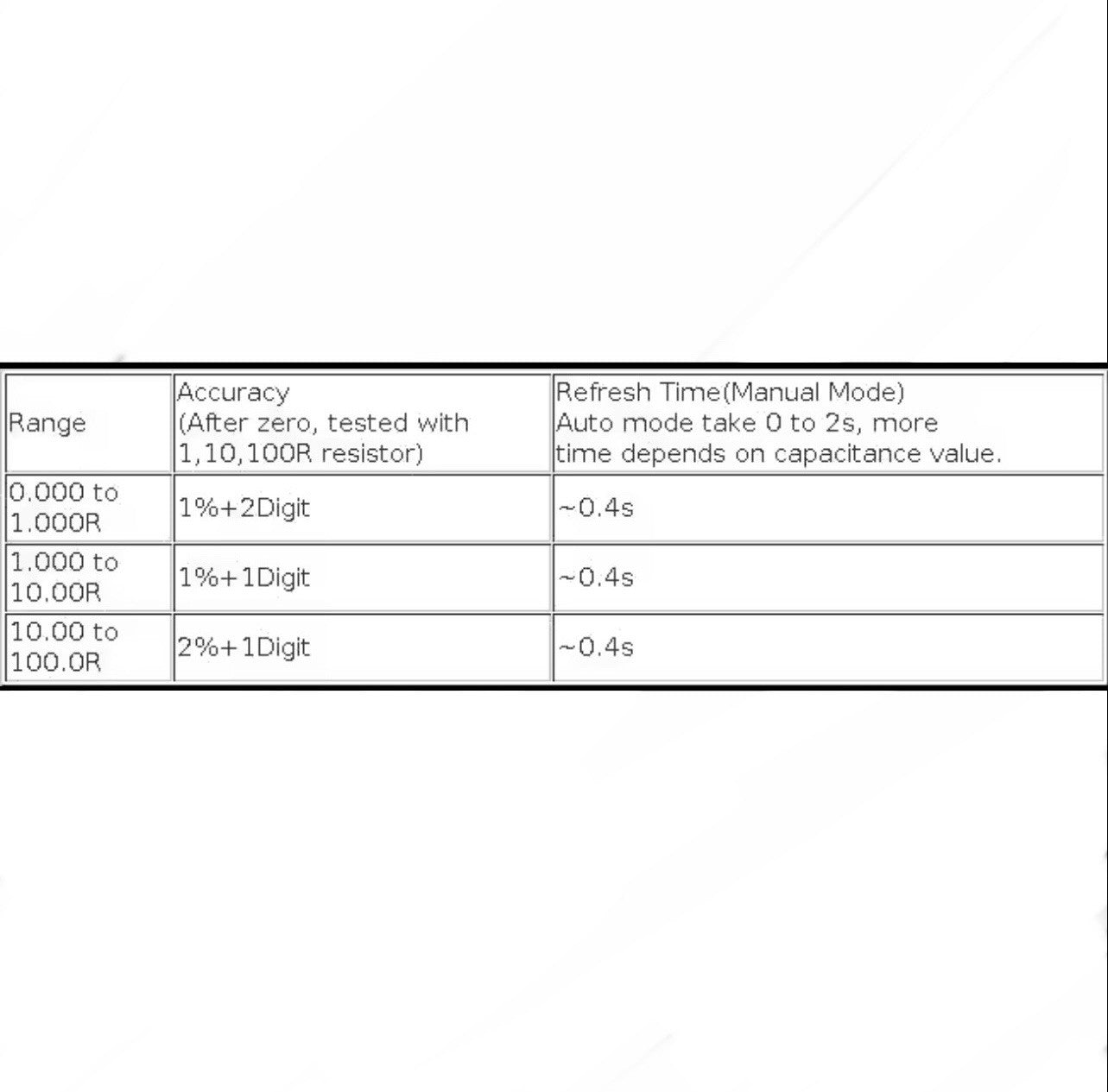

Accuracy: Up to 1% (detail on table in pictures)

Wide Measurement Range: >1uF

High Resolution: 4 digit, or 0.0010hm @10 range

Measuring voltage: <~40m V RMS (TESTING VOLTAGE)

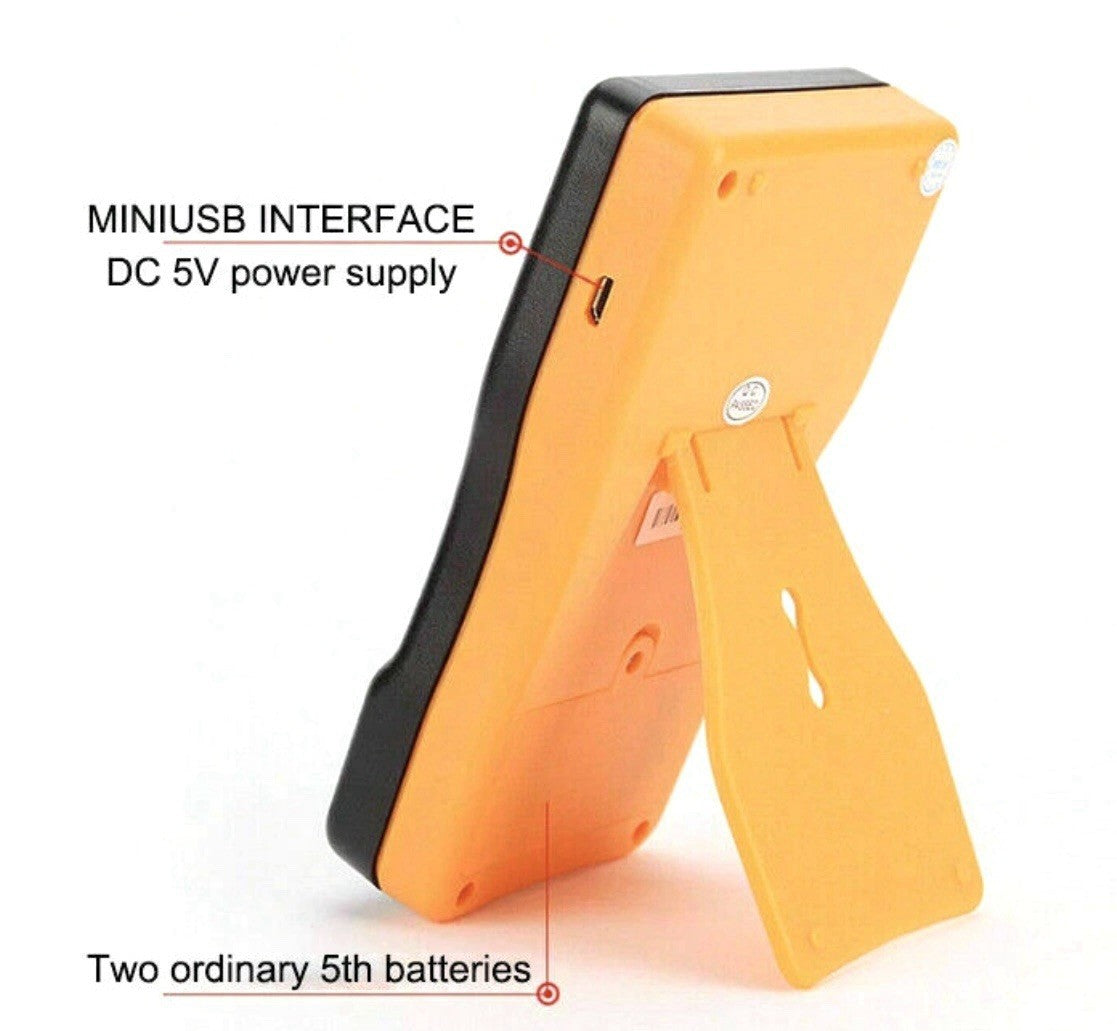

External Power: 5V micro USB

Operating Current: 0.02A

Battery: 2 * AA 1.5V Battery (not included)

Battery Life time: >80 Hours

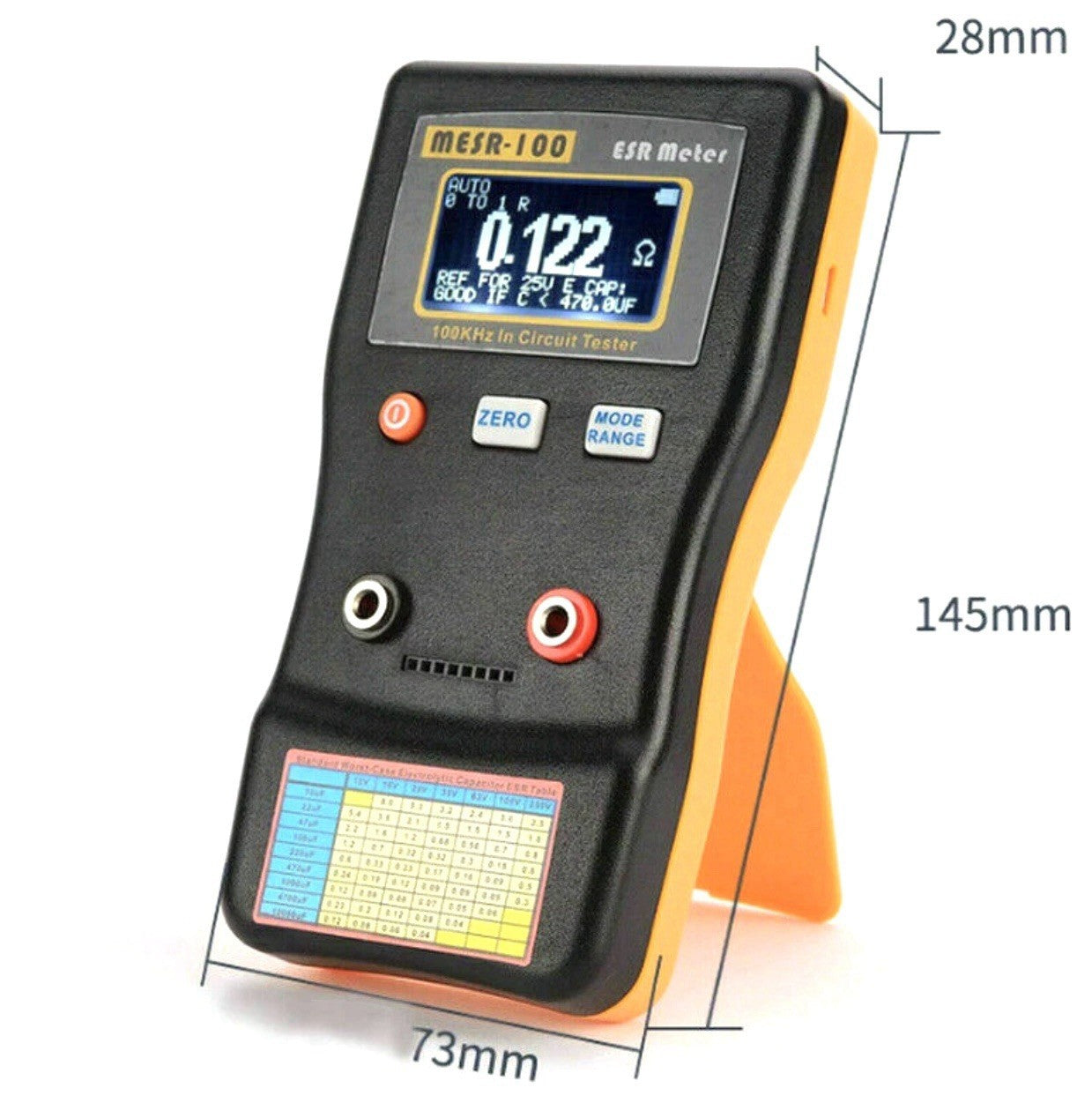

Item Size: Approx 14.5 * 8 * 3cm / 5.7 * 3.1 * 1.2in

Item Weight: Approx 139.6g / 4.9oz

Package Size: Approx 17 * 9 * 5cm / 6.7 * 3.5 * 2.Oin

Package Weight: Approx 218g / 7.7oz
