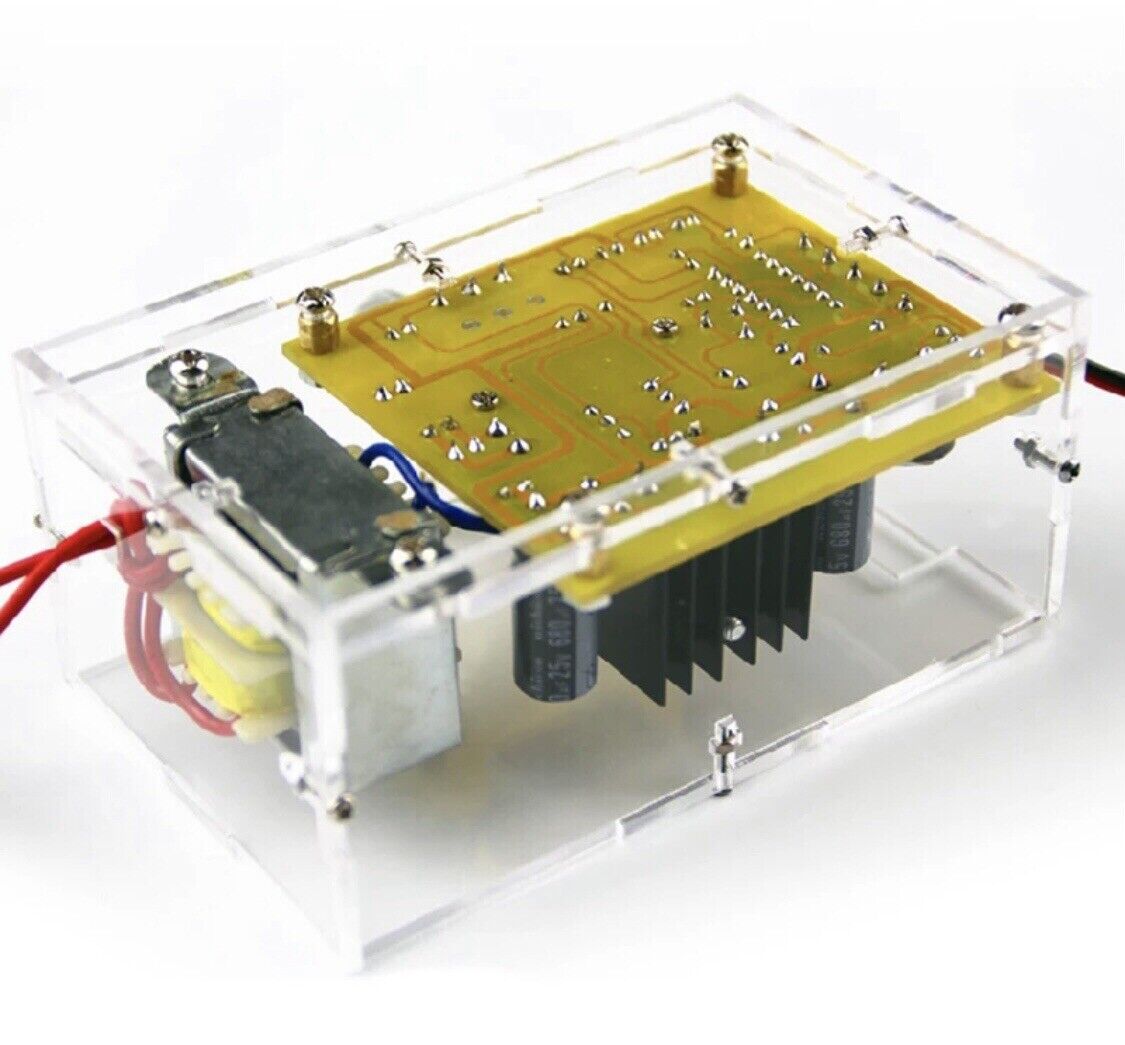

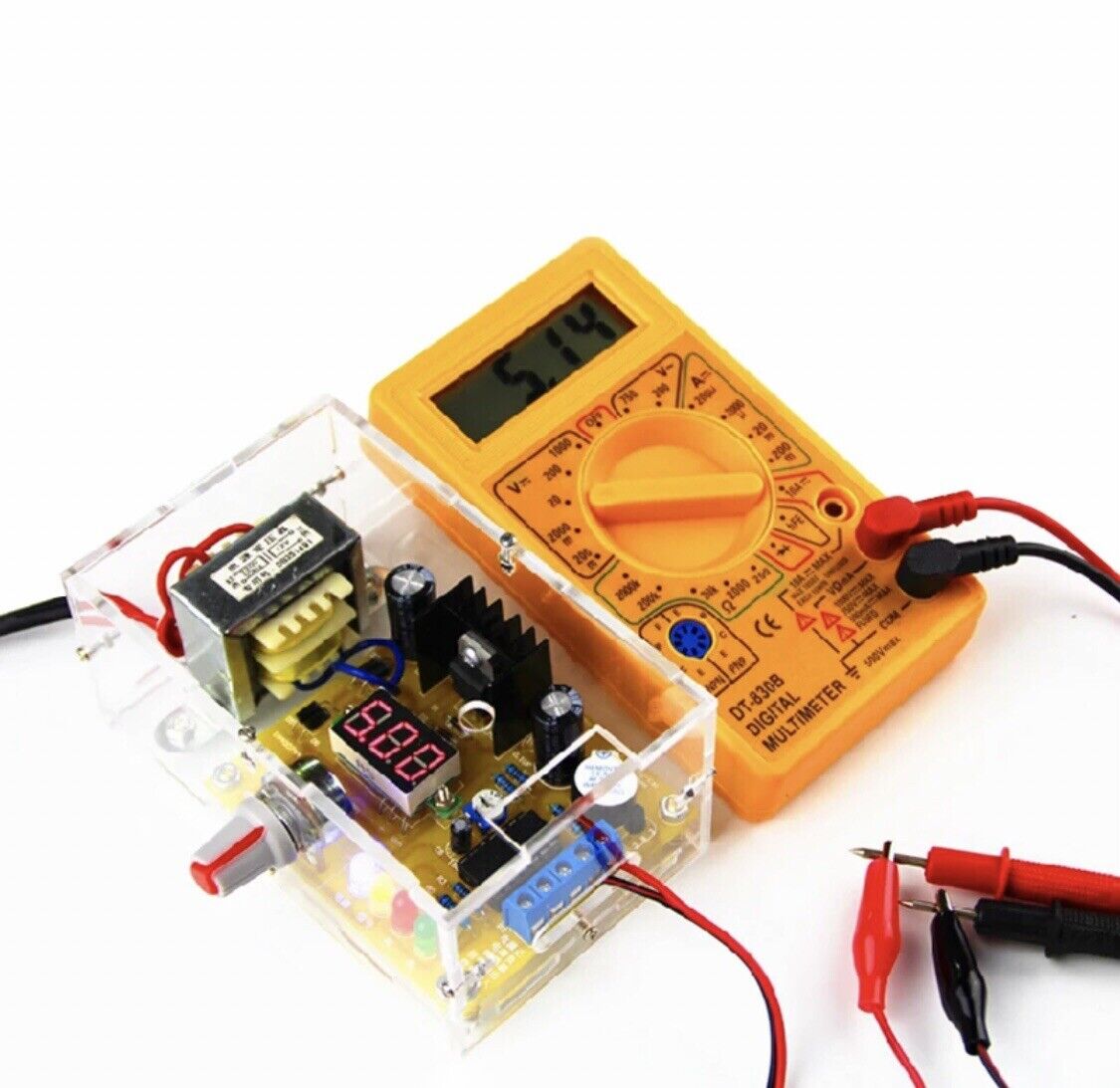

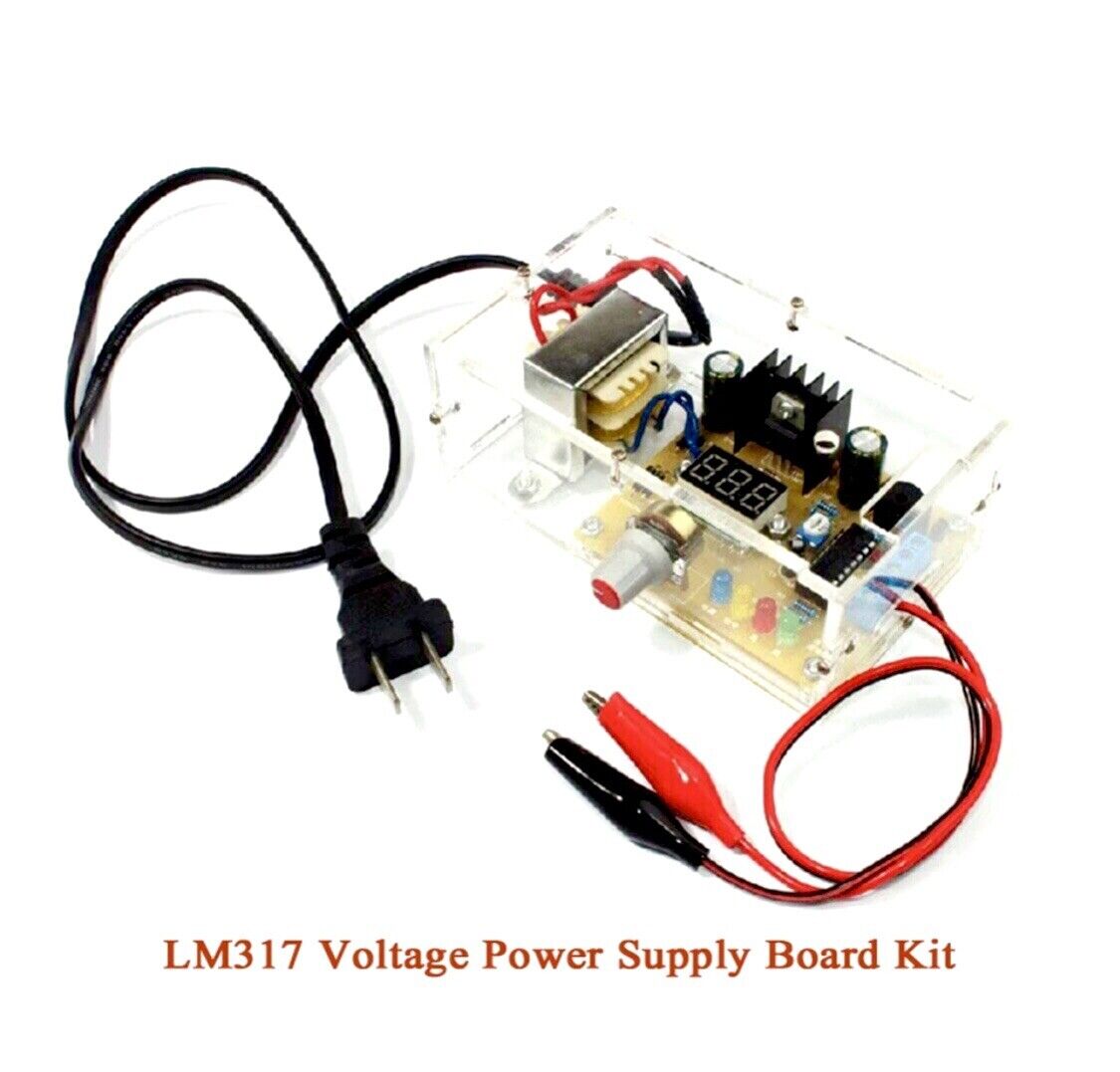

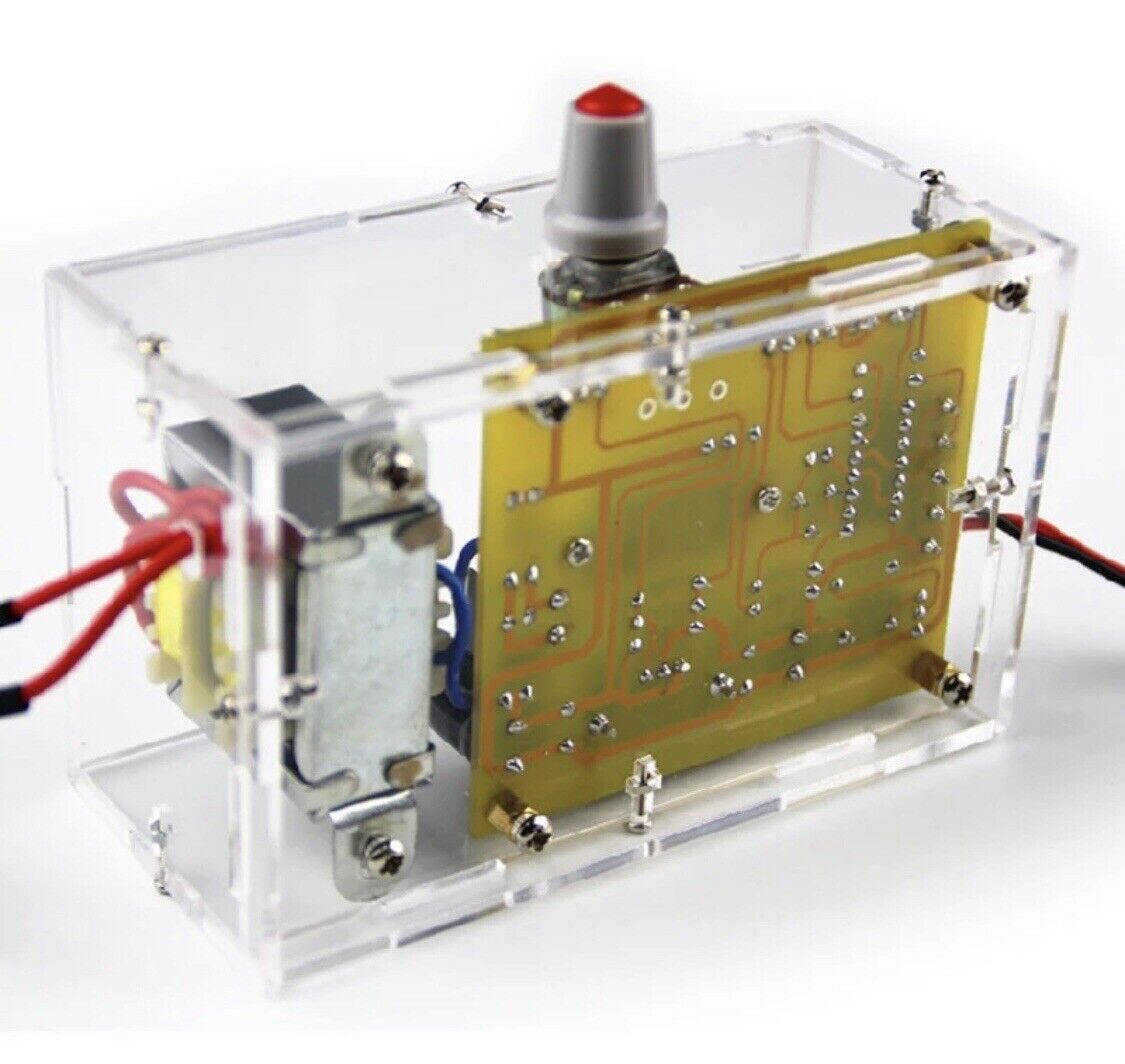

LM317 Continuously Adjustable Regulated DC Power Supply Kit LM317 1.25-12V 2W

Nominal Voltage Rating (DC): 25 V

Mounting Style: Through-Hole

Nominal Voltage Rating (AC): 240 V

Plug Type: AU

Nominal Power Rating: 2 W

MPN: Does Not Apply

Colour: Green

Brand: Electron House

Output Voltage Rating (AC): 12 V

Output Voltage Rating (DC): 12 V

Features: Adjustable Output

Country/Region of Manufacture: China

Construction Type: DIY Enclosed Kit

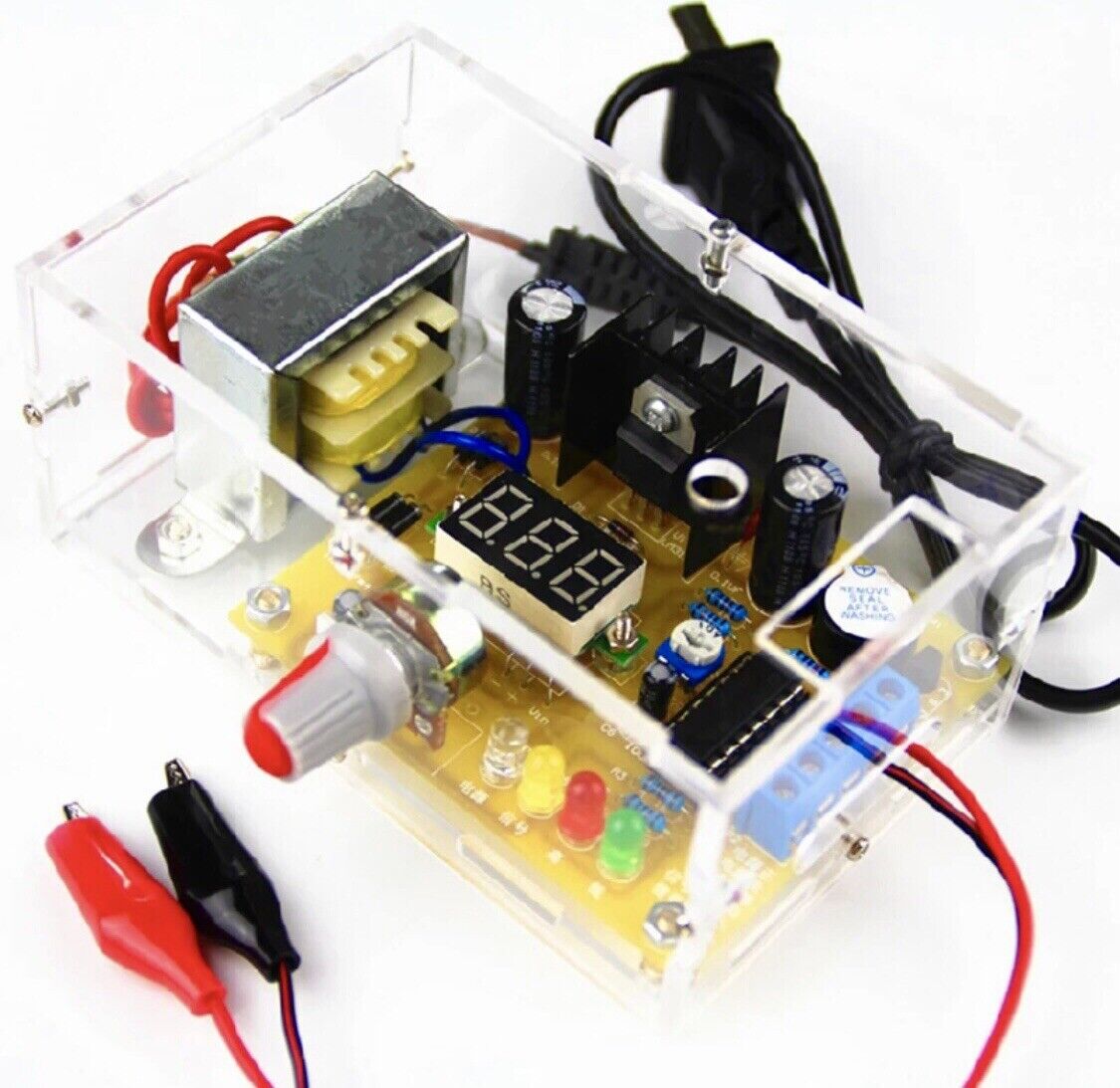

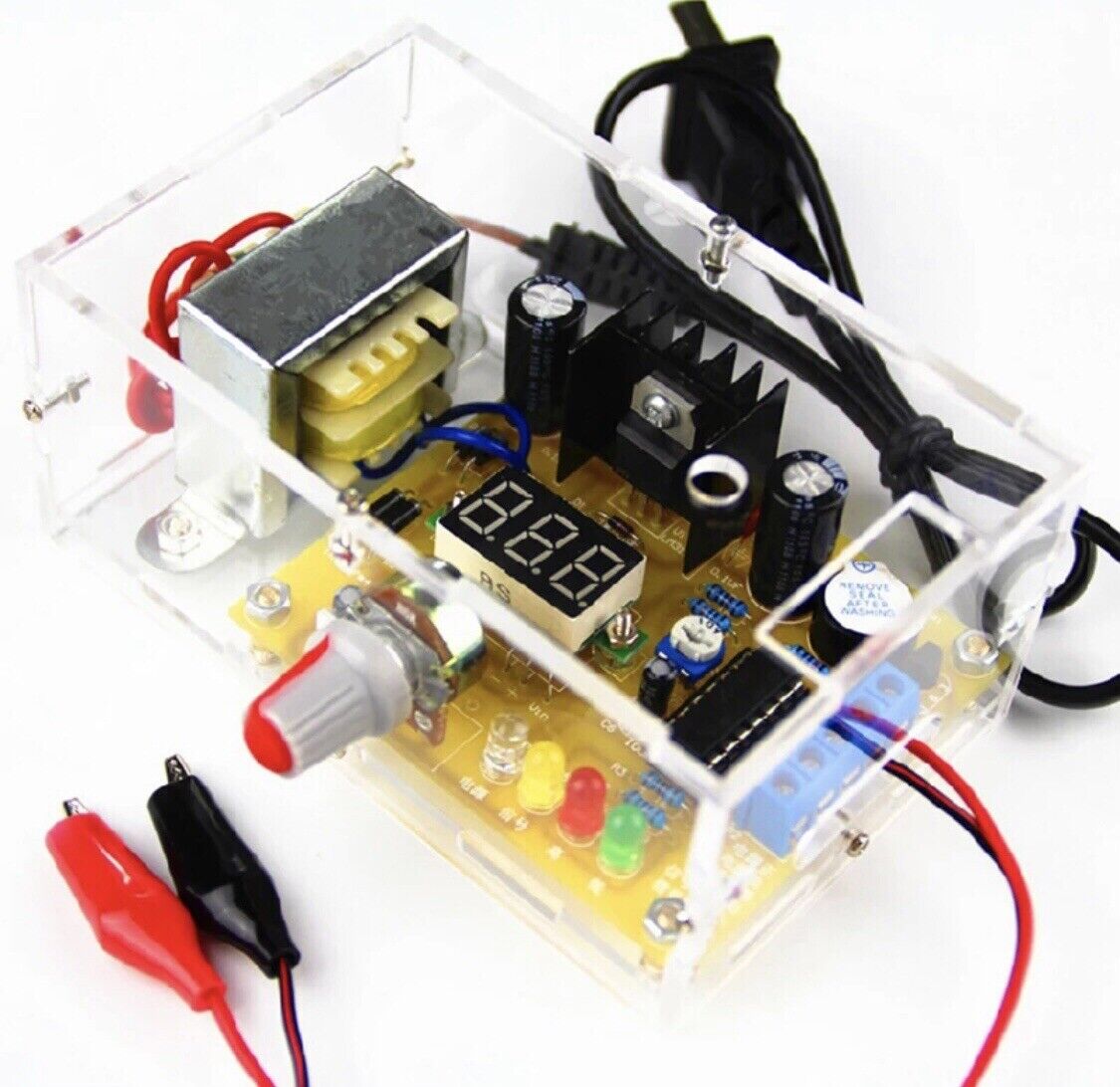

Continuously Adjustable Regulated DC Power Supply DIY Kit LM317 1.25-12V.

All components are brand new, sent with Australia Post Parcel Post tracking number included.

IF YOU REQUIRE ASSEMBLY OF THE KIT PLEASE MESSAGE AND WE WILL BE HAPPY TO HELP

LM317 DIY Voltage Regulated Power Supply Kit Continuous Adjustable / DIY Parts /DC 220V to 1.25V-12.5V Step-down PCB Board LM317

Features:

1. With adjustable signal generator output, it is convenient to provide pulse signal to test circuit.

2. With buzzer, you can test the wire on and off (connect the wire to the power input and signal input, wire pass-buzzer sound) and low frequency signal (put the signal from the signal input, if there is signal, beep Sounder).

3. The product is a loose parts kit, it needs to be soldered and assembled by itself, especially suitable for DIY.

4. Suitable for DIY electronic production, adjustable power supply assembly.

Specification:

Item Type: Voltage Power Supply Board Kit

Input Voltage AC 220V

Plug: AU Plug

Power: 2W

Output Voltage Range: DC 1.25-12V

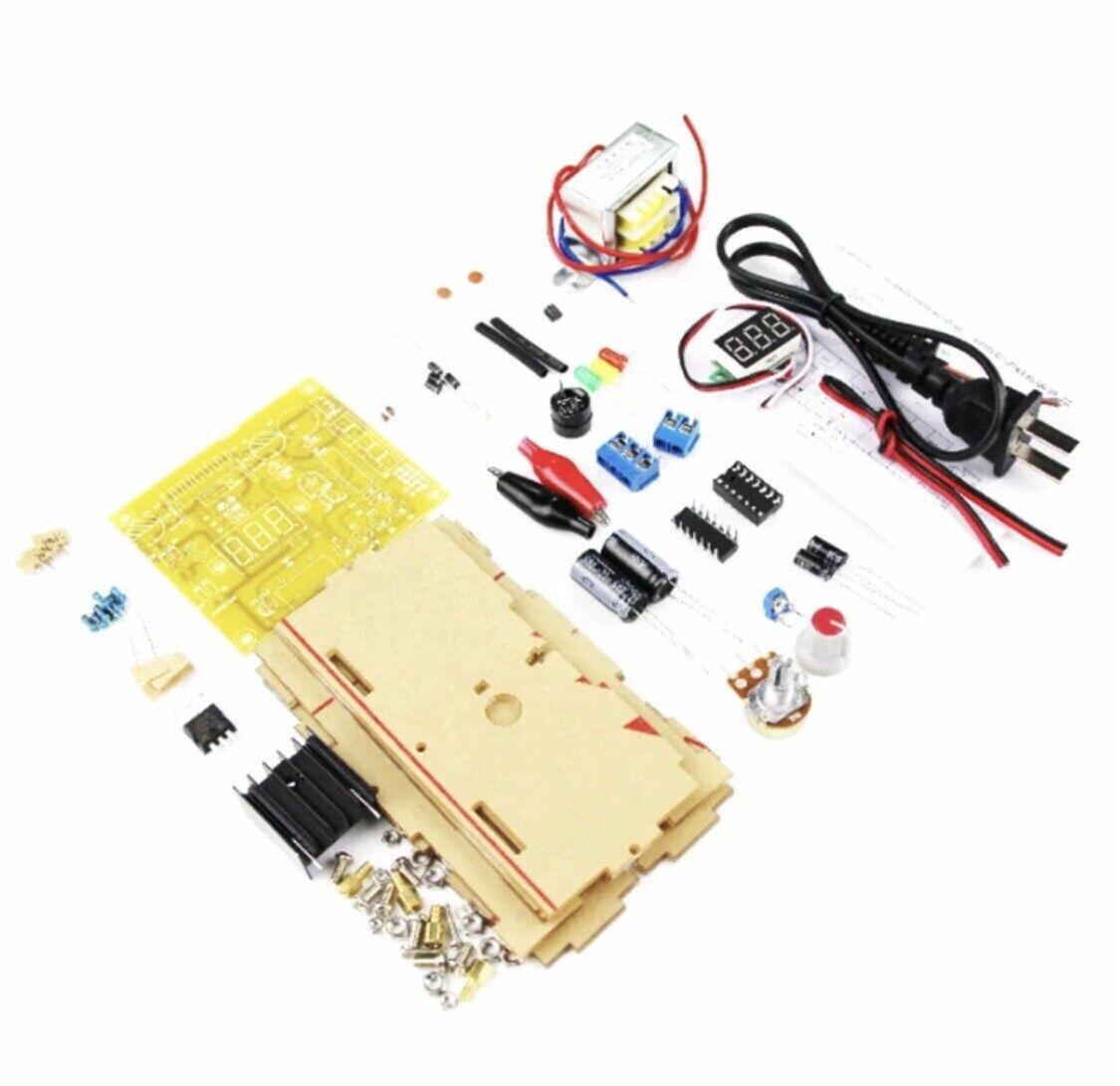

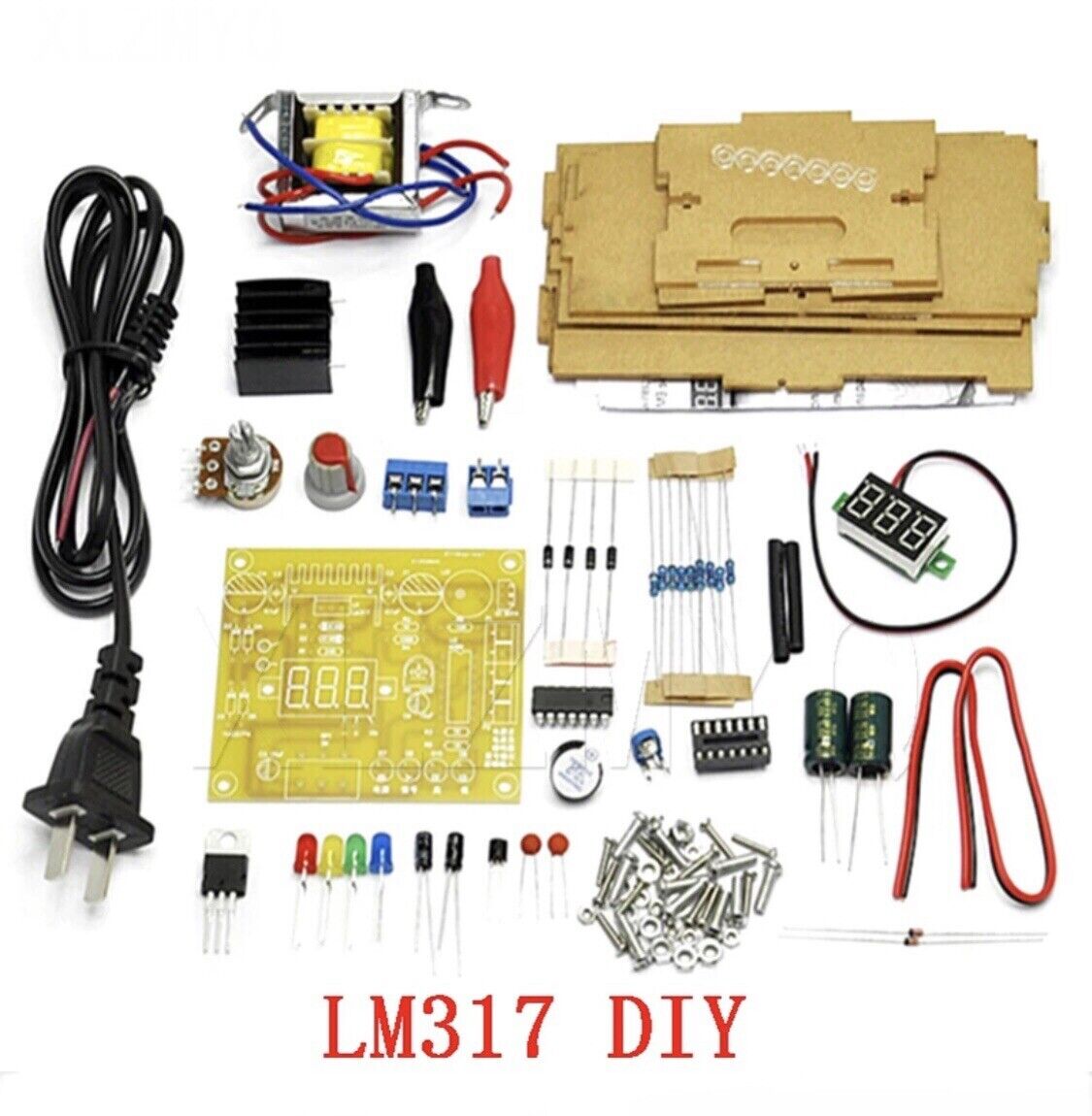

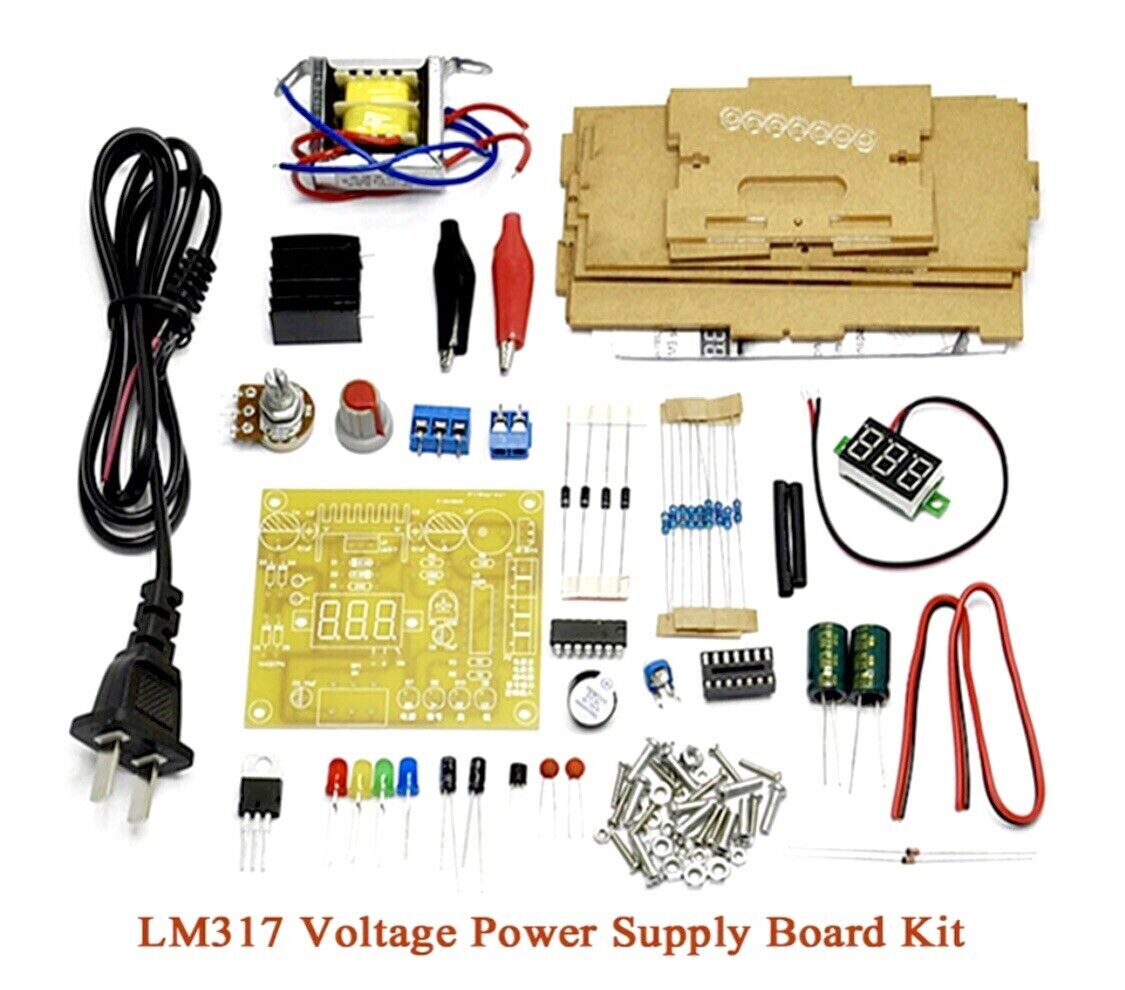

Package List:

21 x Screw

23 x Nut

1 x Buzzer

1 x Flat Pad

4 x Hex Screw

1 x PCB Board

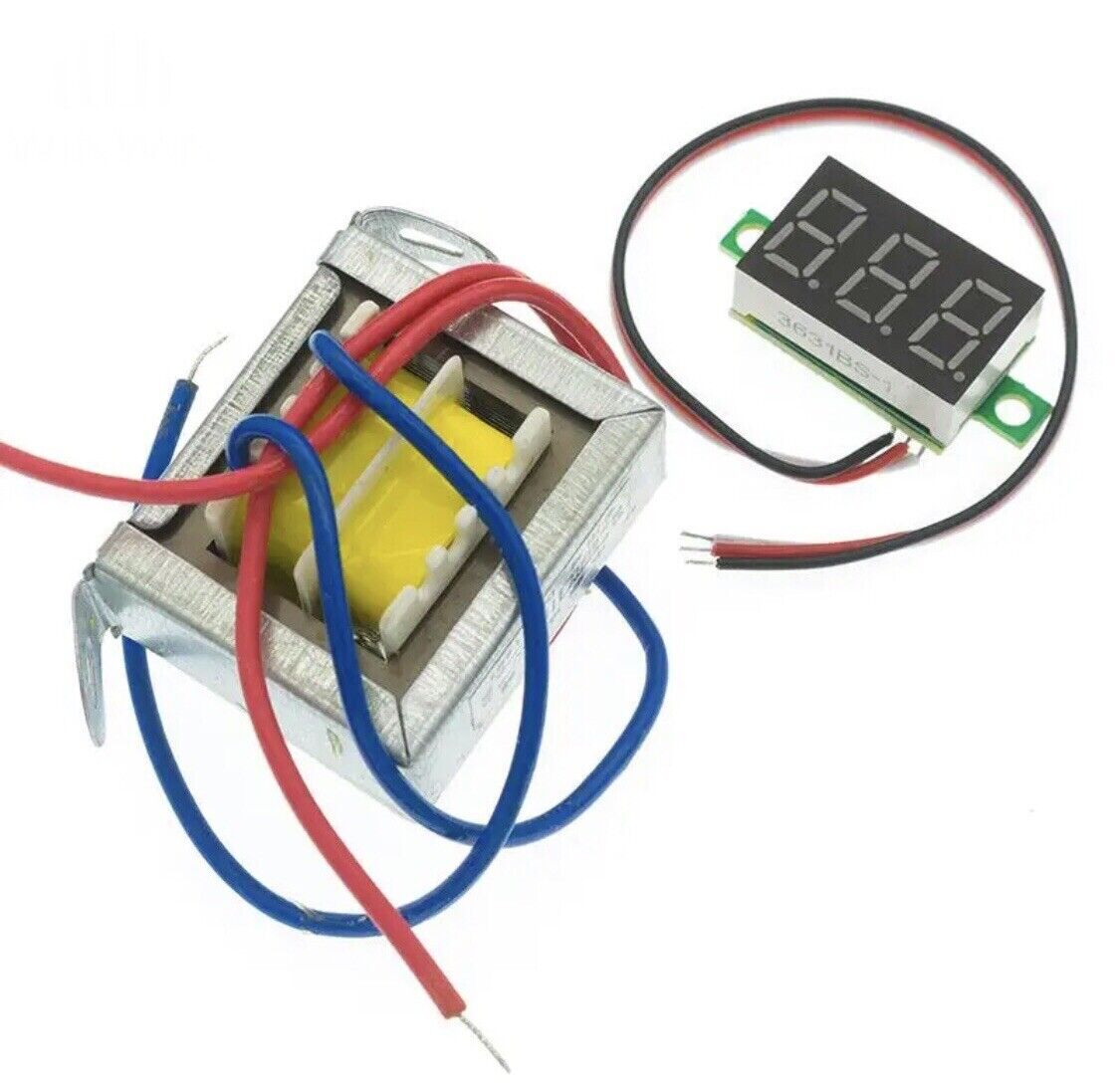

1 x Voltmeter

2 x Thermistor

6 x Resistance

4 x Capacitor

4 x Light-emitting Diode

2 x Crocodile Squeezer

2 x Terminal

1 x IC Holder

1 x IC

2 x Triode

4 x Diode

1 x NTC

1 x Adjustable Resistor

1 x Switch

1 x Switch Cap

1 x Heatsink

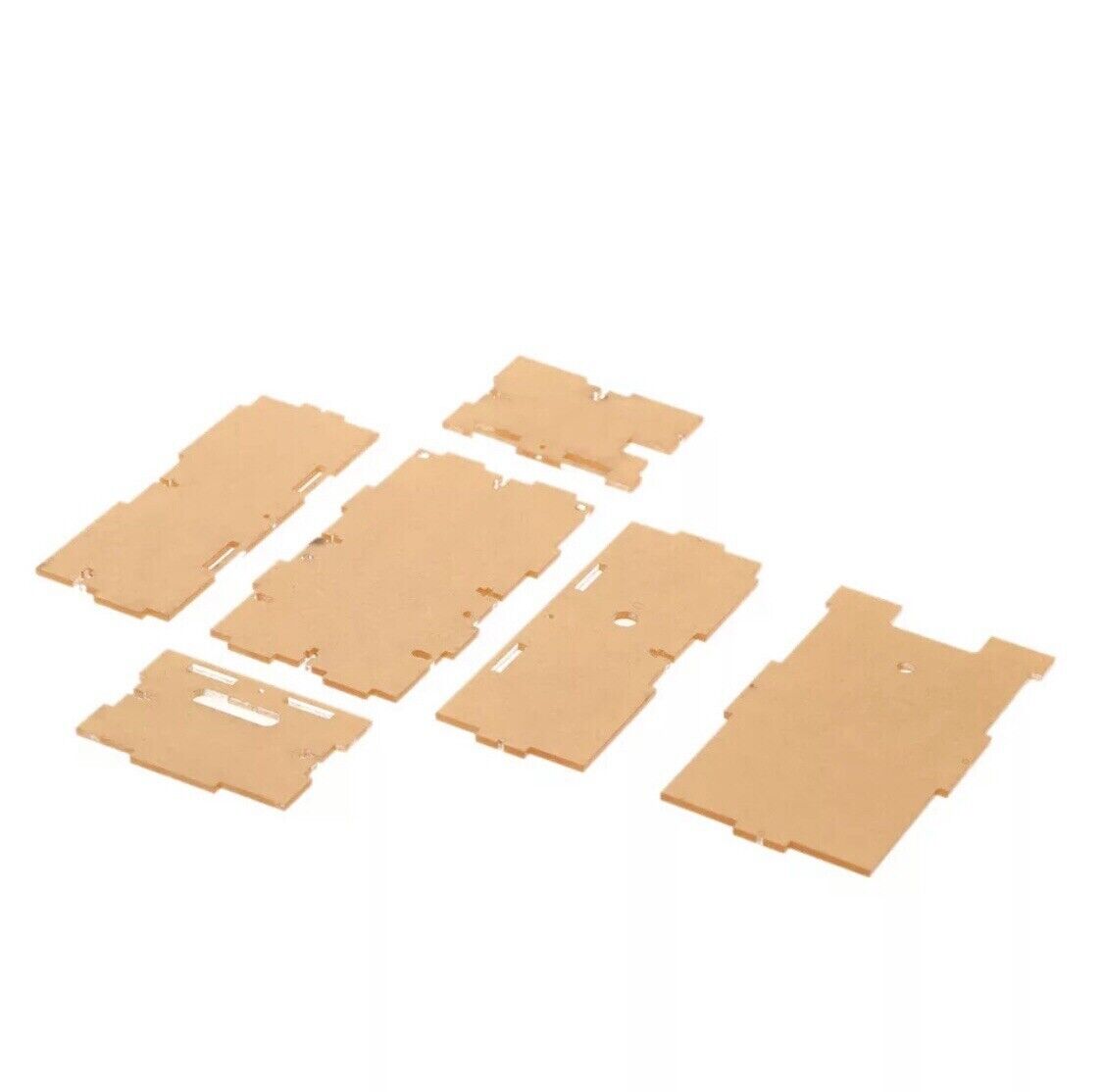

1 x Acrylic Panel Kit

1 x AU Plug

THIS KIT IS FOR TRAINING PURPOSES ONLY

• IF YOU ARE UNSURE ABOUT WORKING WITH 240VAC, DONT BUY THE KIT.

It comes with very basic instructions, but good silkscreen print on the PCB. If you’re experienced in DIY kits, it’s a great little kit.
