JST-SM 2.54mm Kit 2P, 3P, 4 Pin 2.54mm Pitch Inline Connector Set 480Pcs

MPN: Does not apply

Material: Brass,Nylon

Gender: Male & Female

Colour: Black - Silver

Brand: Unbranded

Body Material: Nylon

GTIN: Does Not Apply

Termination Type: Crimp-Solder

Compatible Mounting Style: In-Line

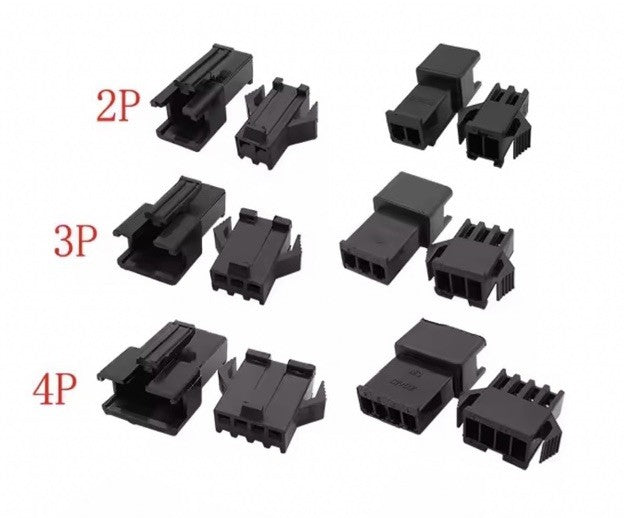

Connector Style: Inline 2 Pin, 3 Pin, 4 Pin

Number of Pins: 2 Pin, 3 Pin, 4 Pin

Model: JST-SM 2.54mm

Contact Material: Brass

Compatible Wire Gauge (AWG): 22-32AWG

Compatible Mounting Type: Wire

Country of Origin: China

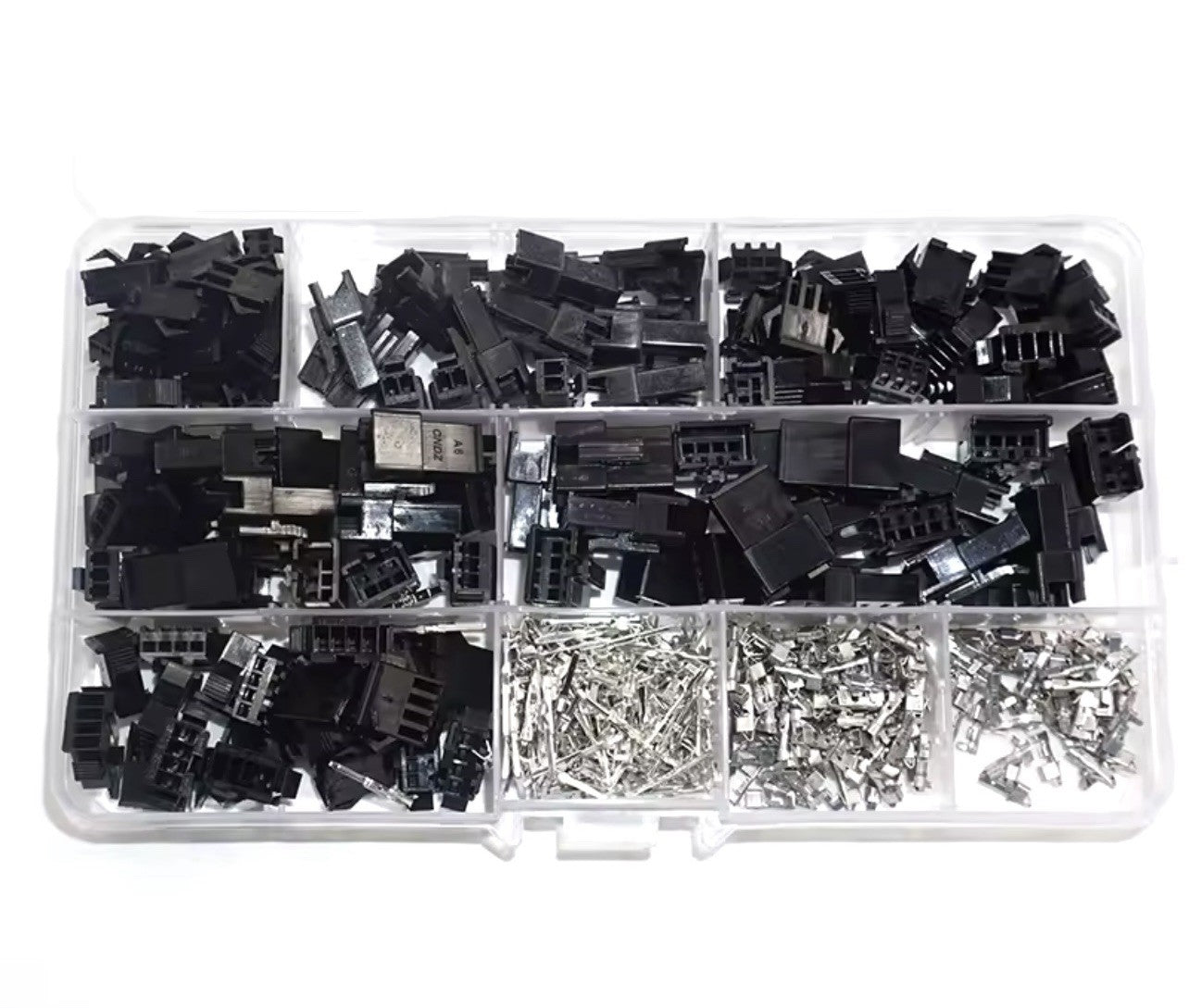

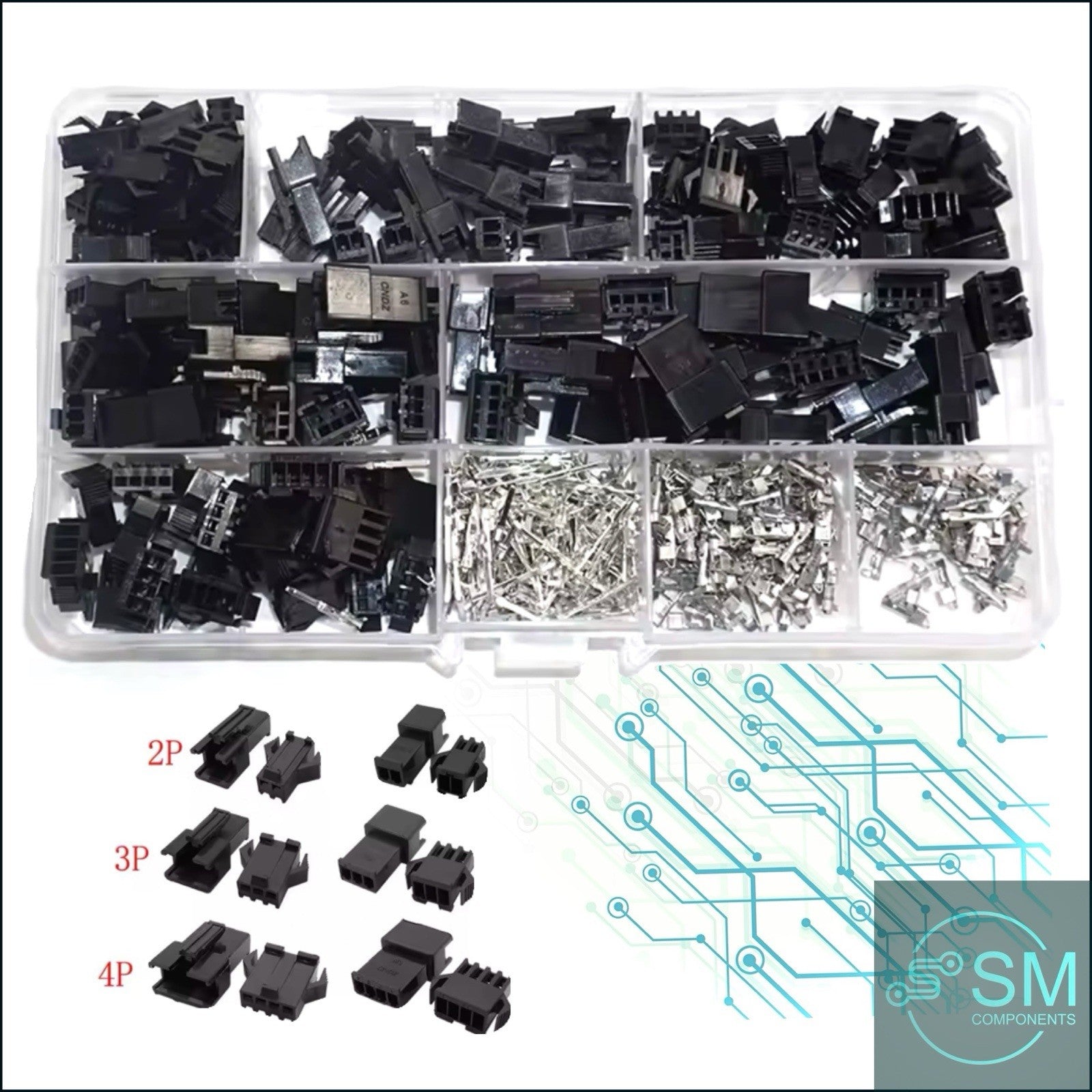

480 Piece JST SM 2.54mm Connector Kit Including Plastic Tidy box.

Sent with Australia Post Parcel Post tracking number included.

Specifications

Pitch: 2.54mm

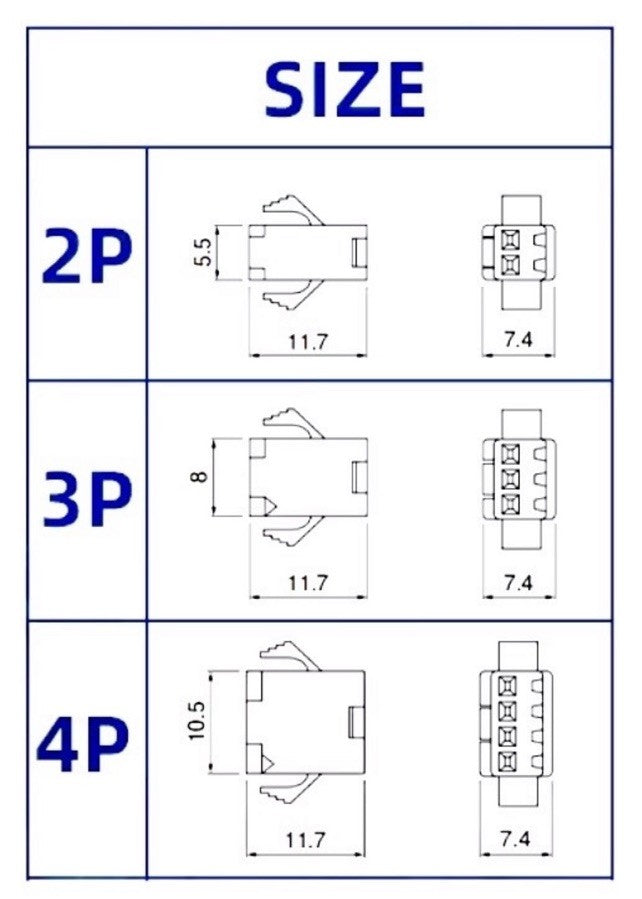

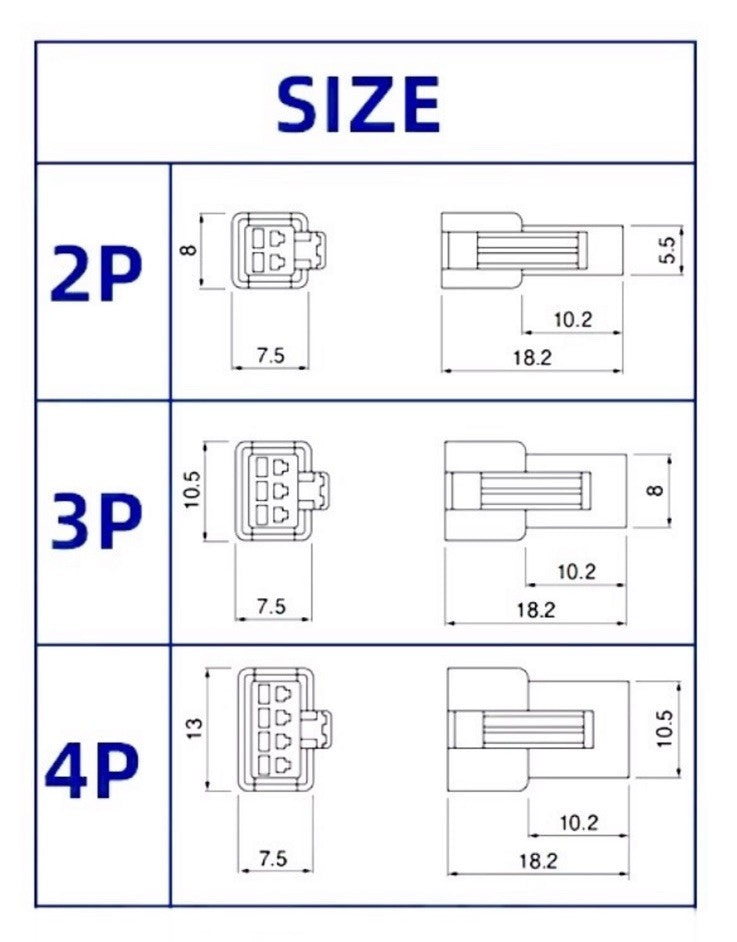

Poles: 2 3 4 Pin

Useable wire range: AWG28#-22#

Voltage rating: 250V AC/DC

Current rating: 3A AC/DC

Wworking temperature: 25 to 85

Withstand voltage: 100OV/min

Contact resistance:less than 0.010hm

Insulation resistance:high than 1000MOhm

Material

Housing: Nylon 66 UL94V-0

Terminal: Phosphor bronze

Contact resistance: less than 0.010hm

Insulation resistance: higher than 1000MOhm

Material

Housing: Nylon 66 UL94V-0

Terminal: Phosphor bronze

colour: Black

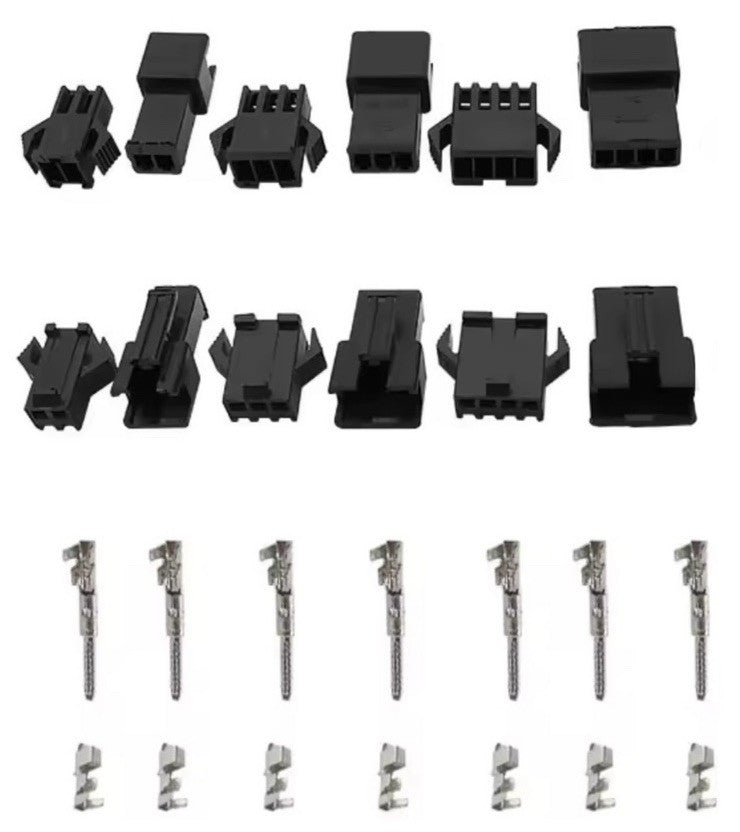

Package Content:

SM-2A 20Pcs SM-2Y 20Pcs

SM-3A 20Pcs SM-3Y 20Pcs

SM-4A 20Pcs SM-4Y 2OPcs

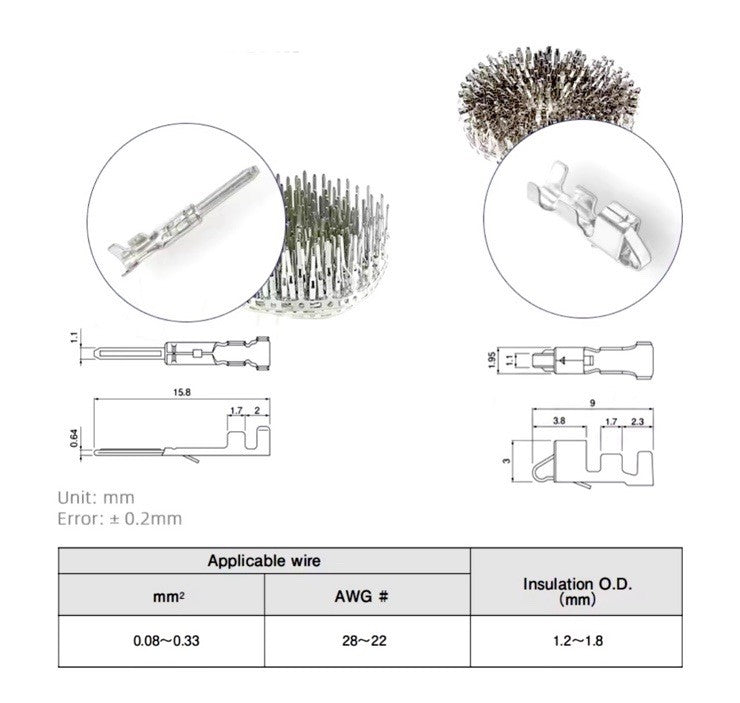

SM-AT 180Pcs

SM-AY 180Pcs

SM Connectors are designed to handle larger loads in drones & addressable leds.

Easy to use: male and female plugs one side is for plugging in the other side for welding, male plugs fit well with female connectors, JST SM connector is easy to install and use.

Wide application: compatible with electrical appliances, cars, robots, lighting, LED strips, toys, PCB control panel, speakers, audio, batteries, toys, household appliances, etc.
