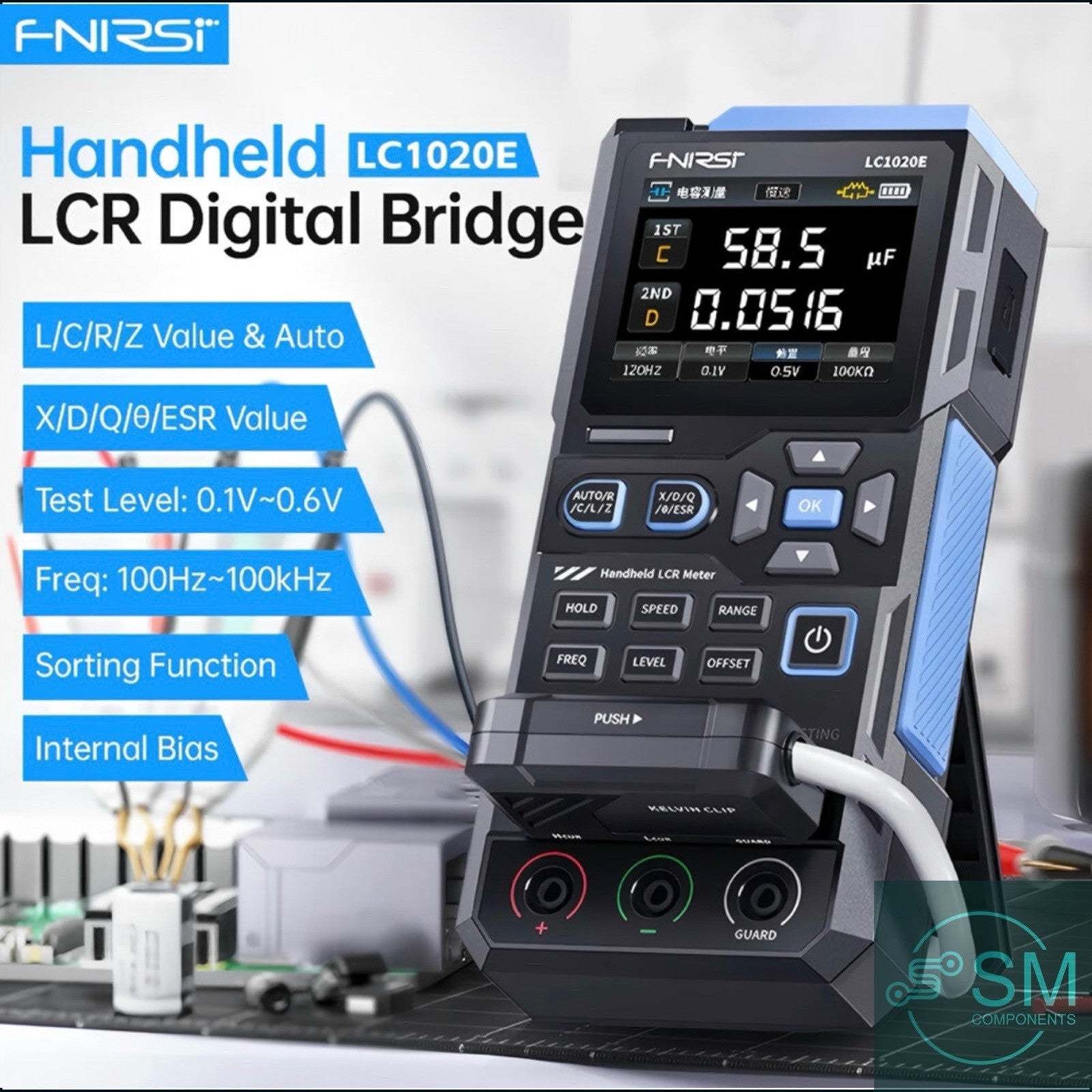

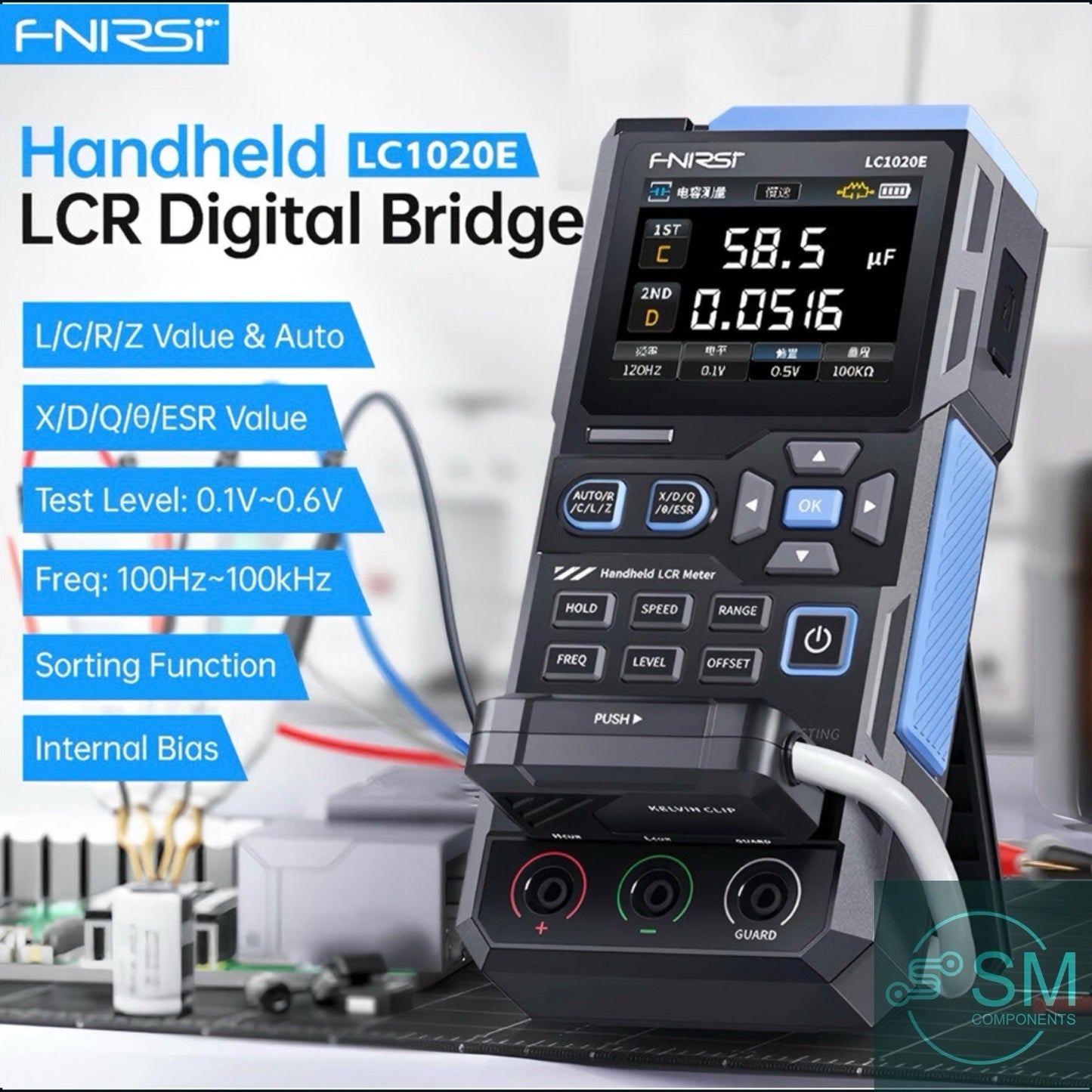

FNIRSI LC1020E High Accuracy LCR Meter Inductance Capacitance Resistance Tester

Product: LCR Meter

Brand: FNIRSI

Form Factor: Handheld

Frequency Range: Up To 100Khz

Basic Accuracy: 0.05%+-

Measurement Functions: L

Model: LC1020e

Output Impedance: 1002

MPN: Does not apply

Country of Origin: China

Resolution: 4.5 Digit Resolution

UPC: Does not apply

Specifications:

Model: LC1020E

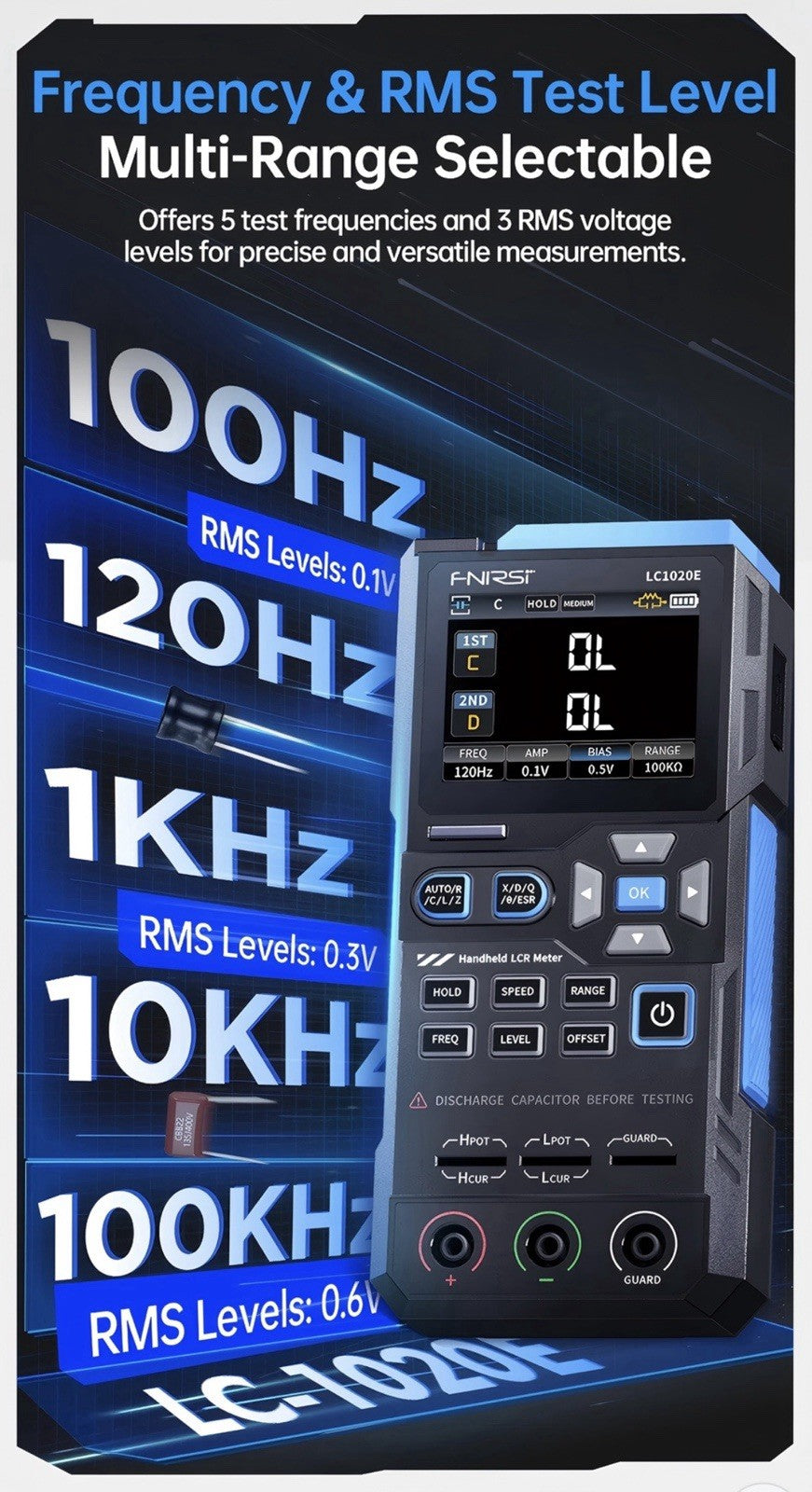

Test Frequency: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz Basic Accuracy: +0.3% Display: 2.8-inch TFT LCD

Display Digits: Main Parameter: 4.5 digits; Secondary Parameter: 4.5 digits

Measurement Parameters: AUTO/R/C/L/Z/X/D/Q/0/ESR

Measurement Range:

Inductance (L): 0-100H

Capacitance (C): 0-100mF

Resistance (R): 0-10MQ

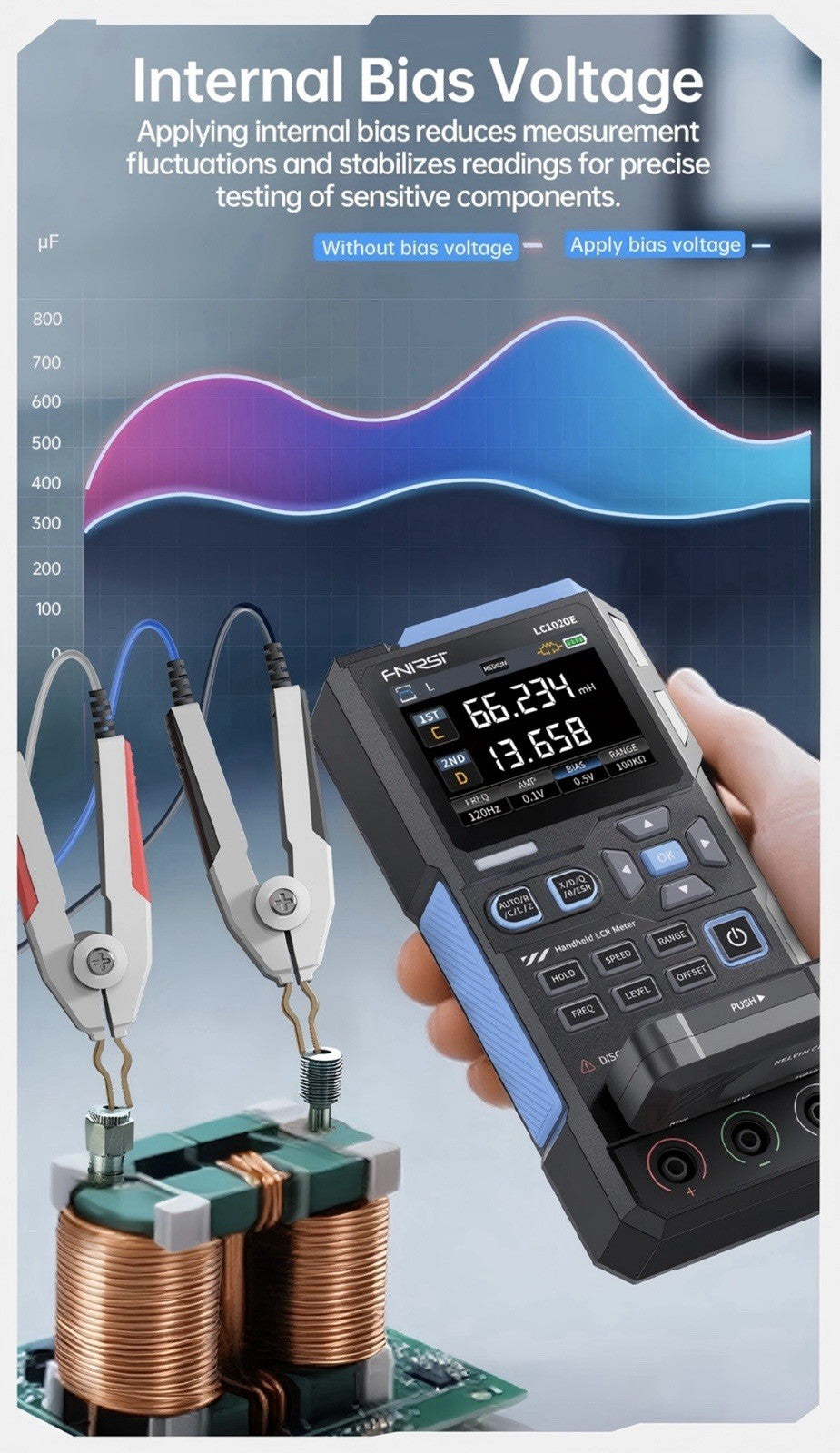

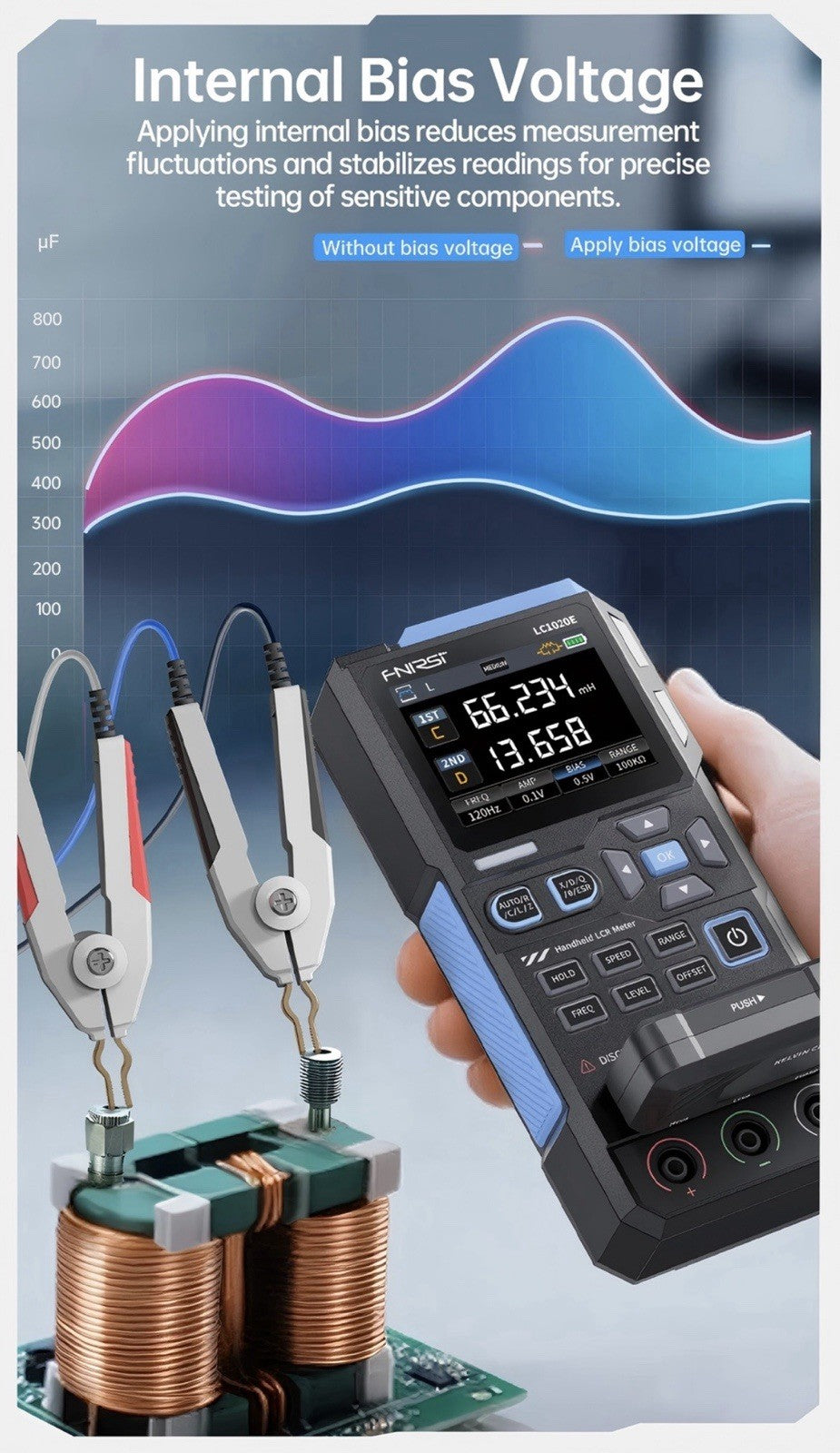

Internal Bias Voltage: 0.0V, 0.5V

Test Level Voltage: 0.1V, 0.3V, 0.6V

Calibration Functions: Open circuit calibration, short circuit calibration

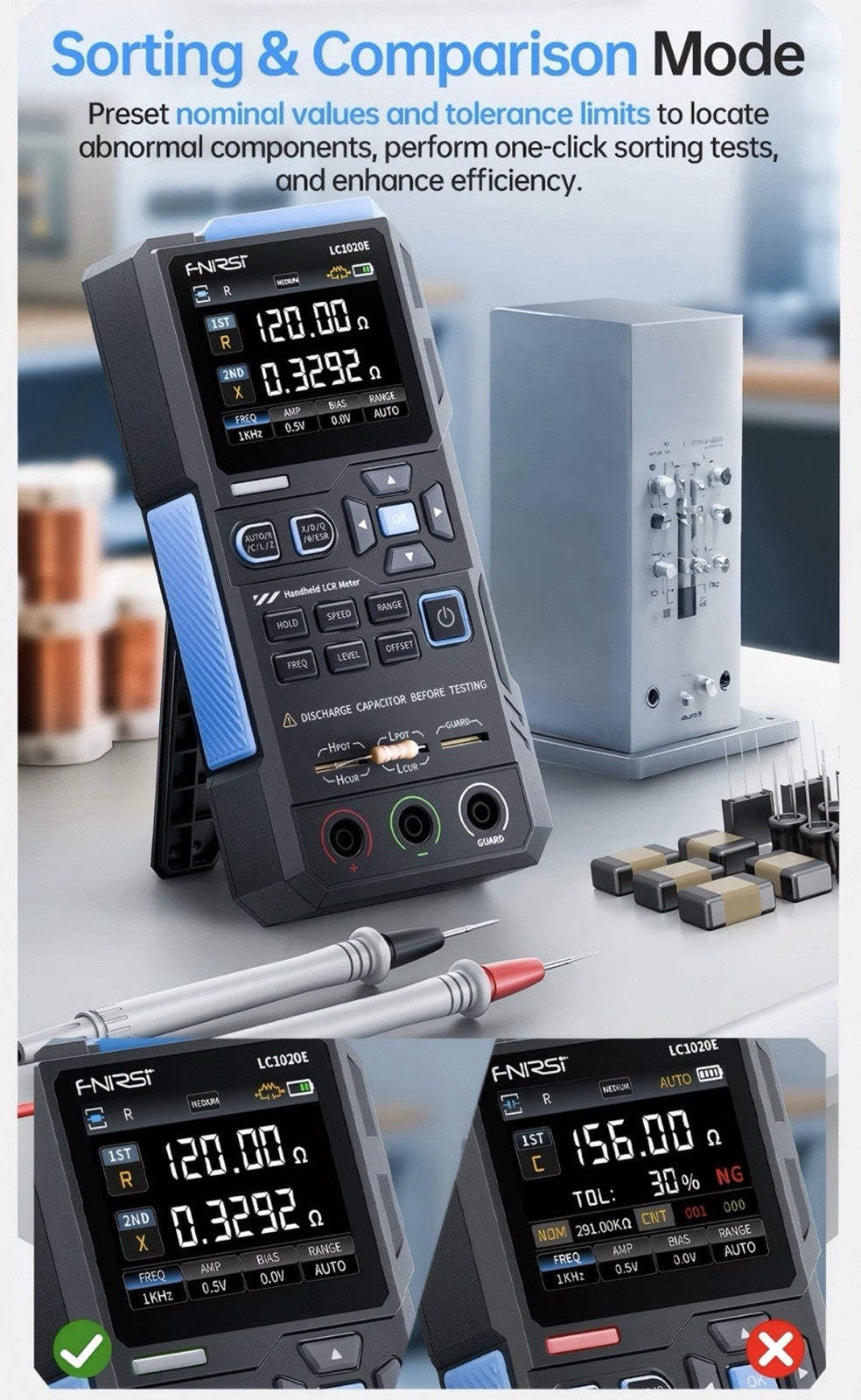

Comparison Function: Relative error calculation with adjustable tolerance range (0.1%-99.9%)

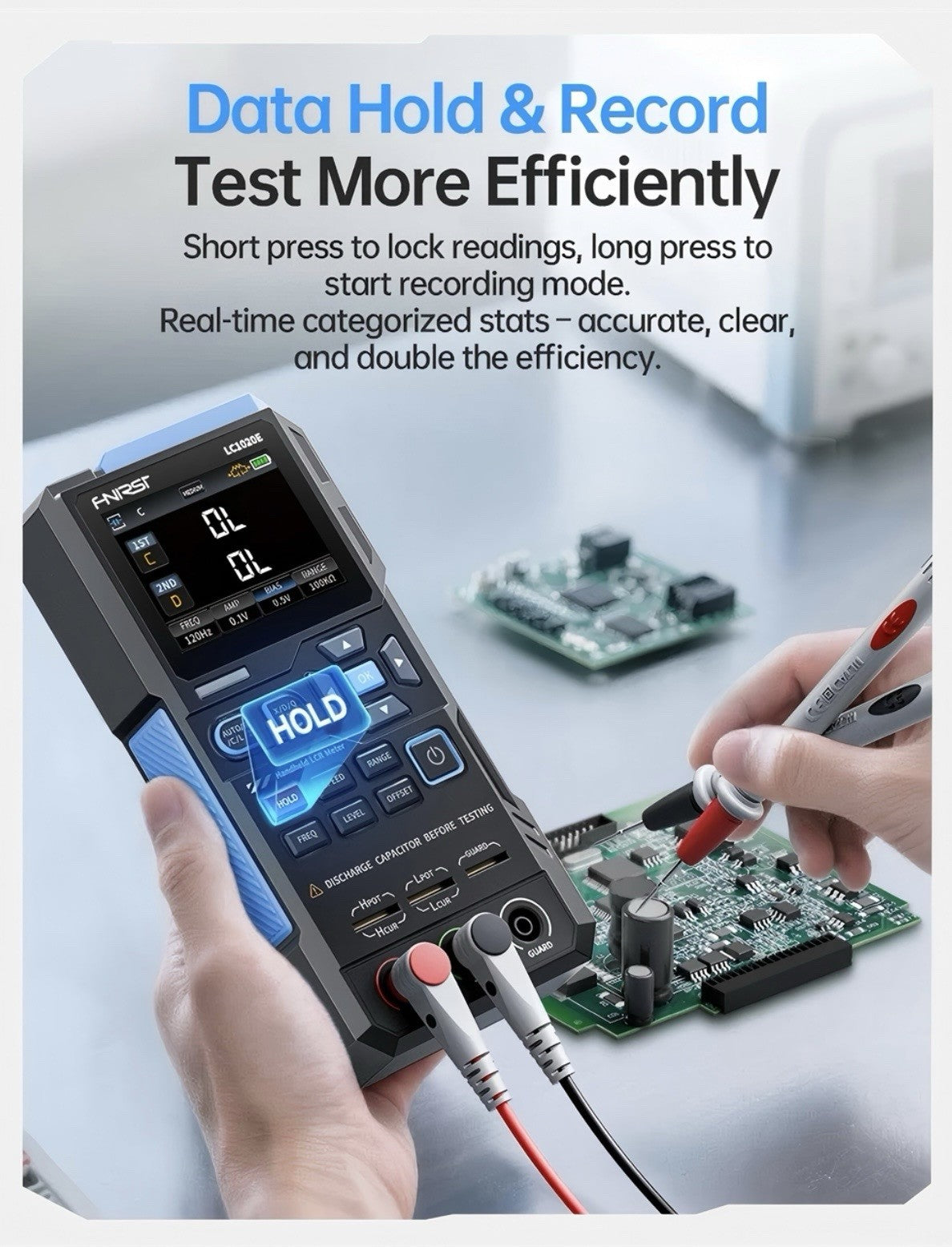

Record Function: Logs measurement success and failure numbers for rapid review

Test Terminal Configuration: Three-terminal, Five-terminal

Output Impedance: 1002

Communication Interface: USB Type-C (Virtual serial port)

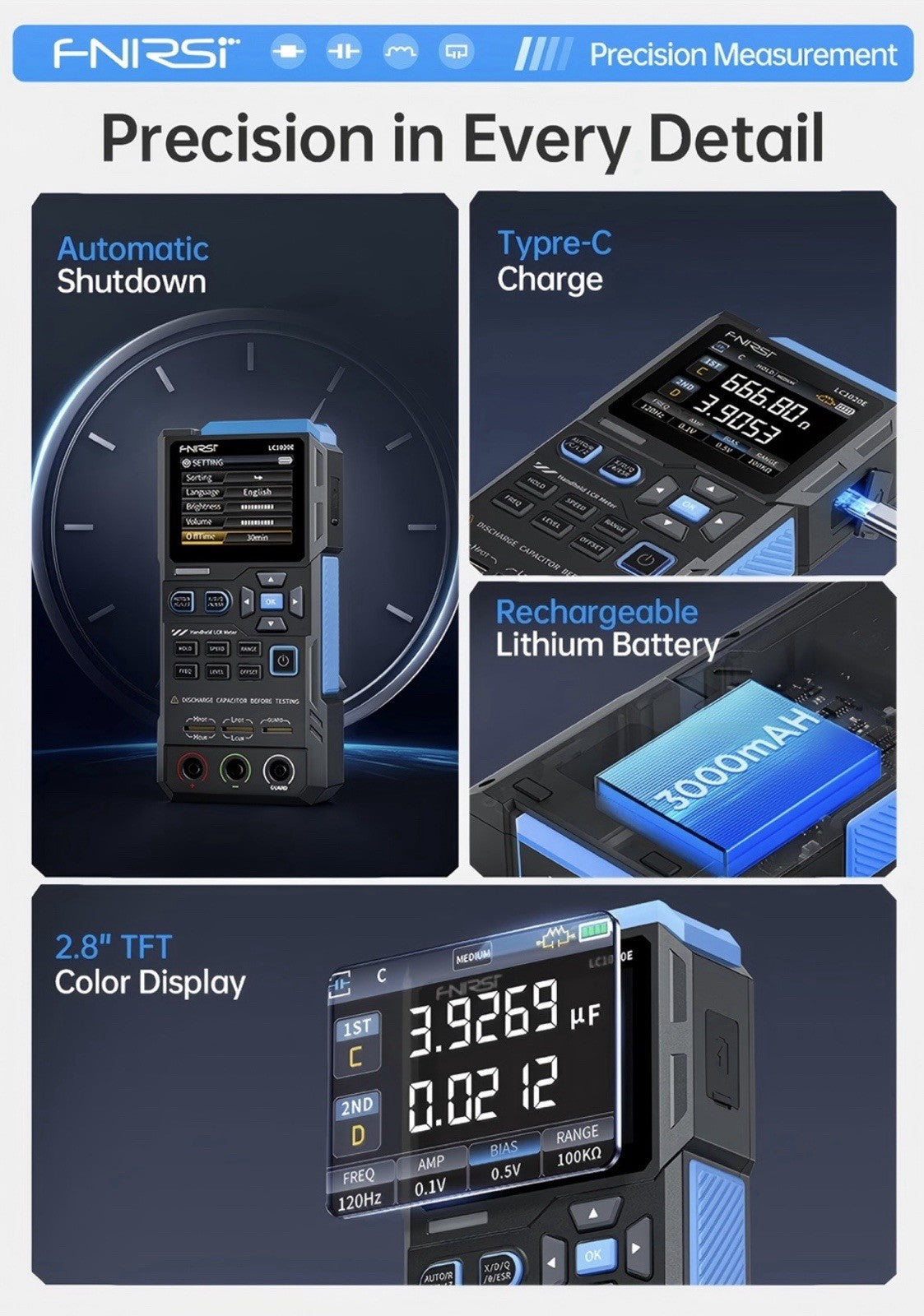

Additional Features: Language settings, screen brightness adjustment, sound settings, auto power-off, calibration settings, system information.

Features:

1. Wide Frequency Adjustment Range

The LC1020E offers frequency settings from 100Hz to 100kHz, enabling versatile testing for components with different frequency-dependent behaviors.

2.Dual-Parameter Display

A 2.8-inch TFT screen showcases both primary and secondary measurement parameters simultaneously, providing users with comprehensive data at a glance.

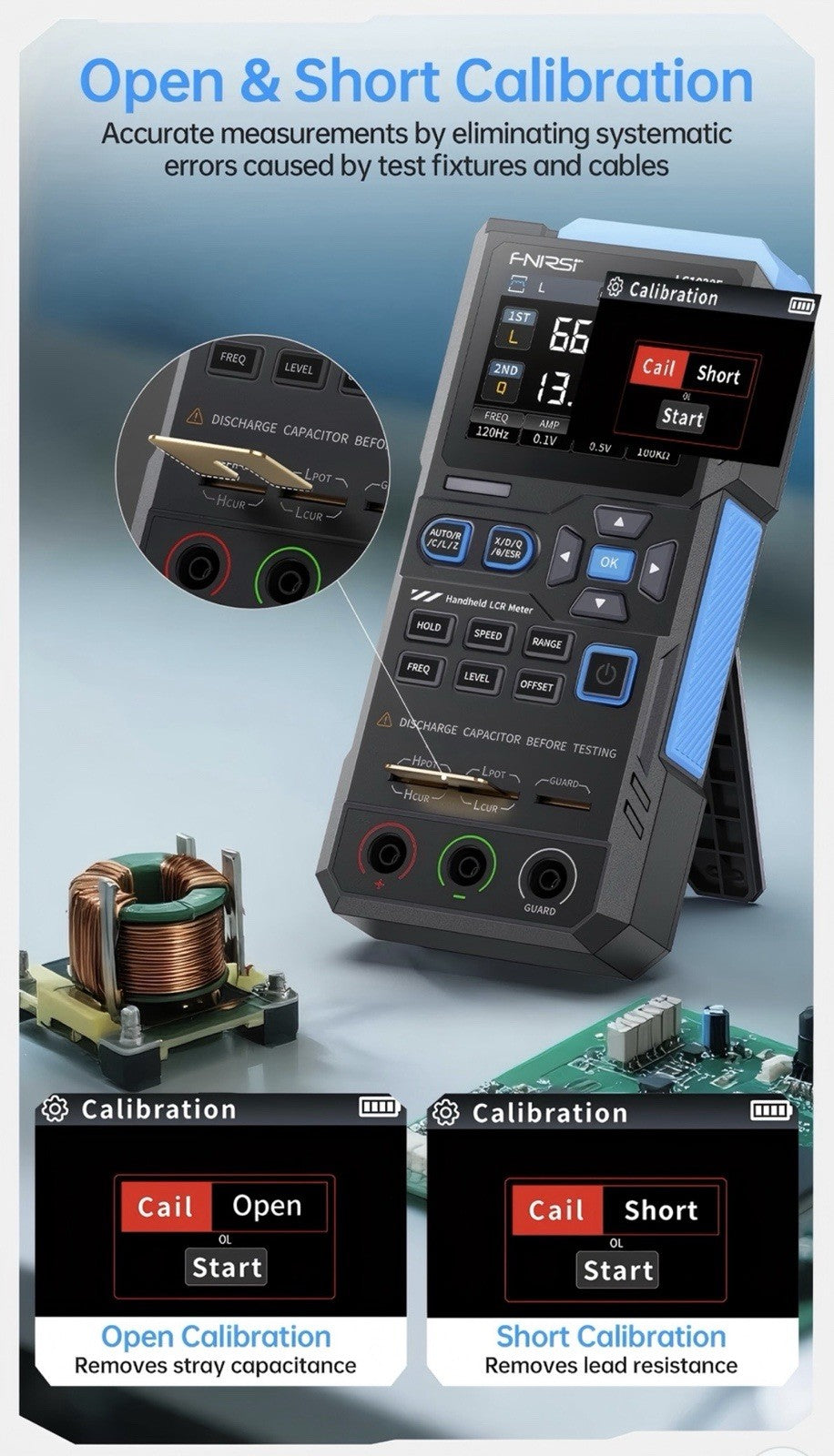

3.Precision Calibration Functions

Integrated open and short circuit calibration ensures highly accurate measurement results, meeting the needs of professionals across industries.

4. Multi-Mode Test Configuration

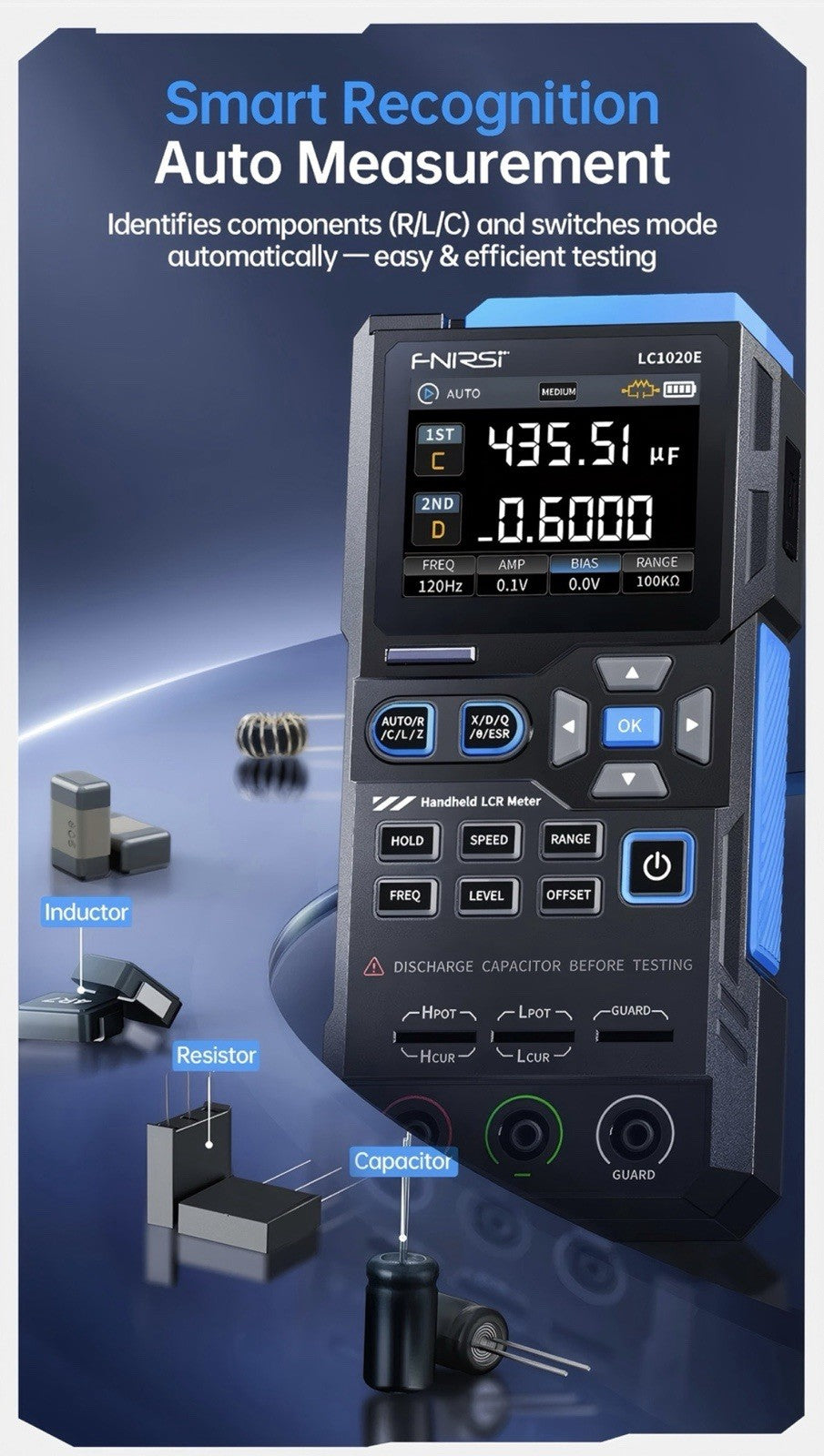

Supports various test modes including AUTO, R/C/L/Z and others, adapting to diverse component types while optimizing operational efficiency.

5.USB Type-C Communication

Equipped with USB Type-C connectivity, the LC1020E simplifies data transfer and communication, streamlining workflows for modern users.

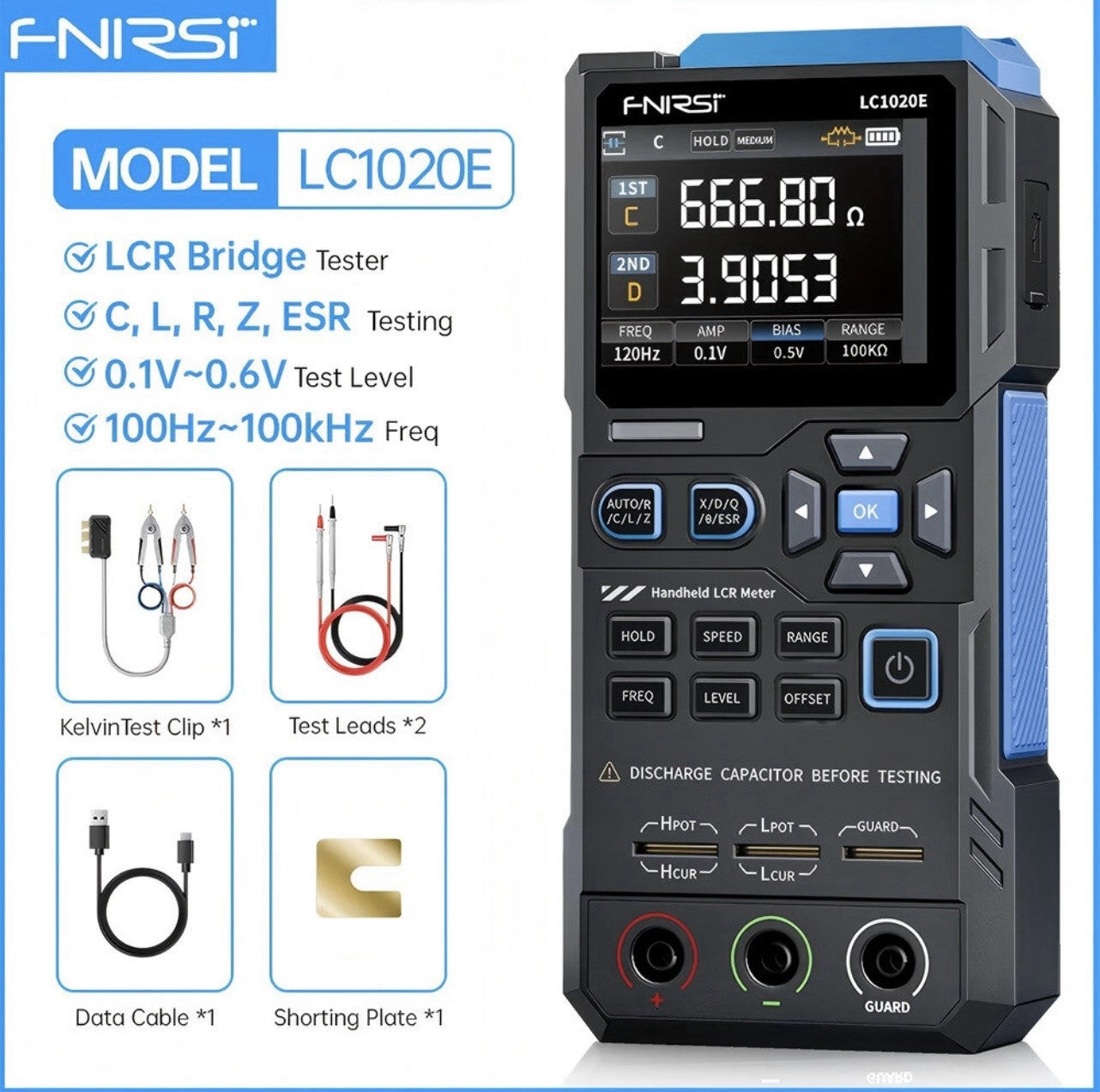

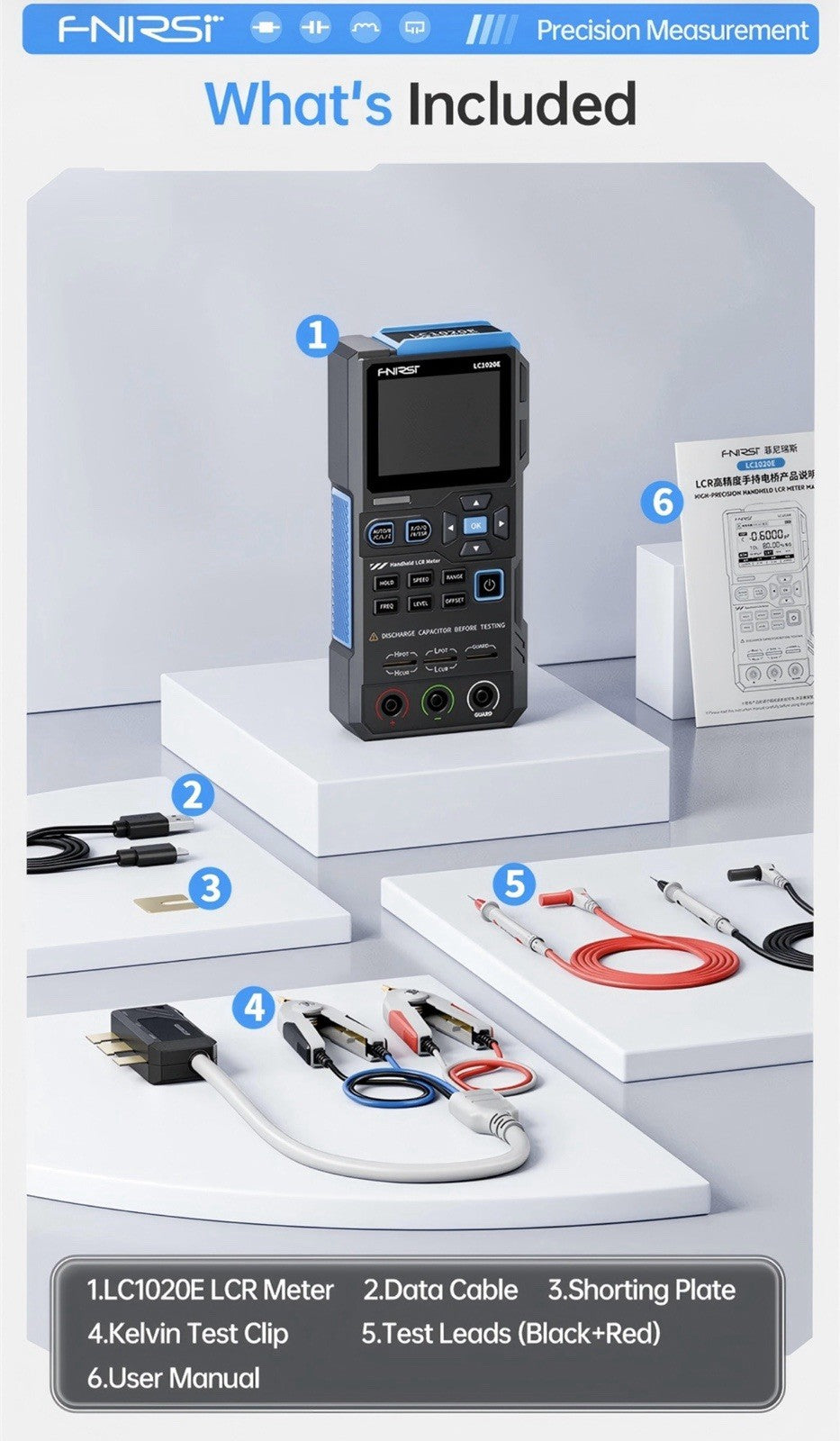

Package Includes

1 × LC1020E LCR Meter

1 x USB Type-C Data Cable

1 x Shorting Plate

1 x Kelvin Test Clip

2 x Test Leads (Black + Red)

1 x User Manual
