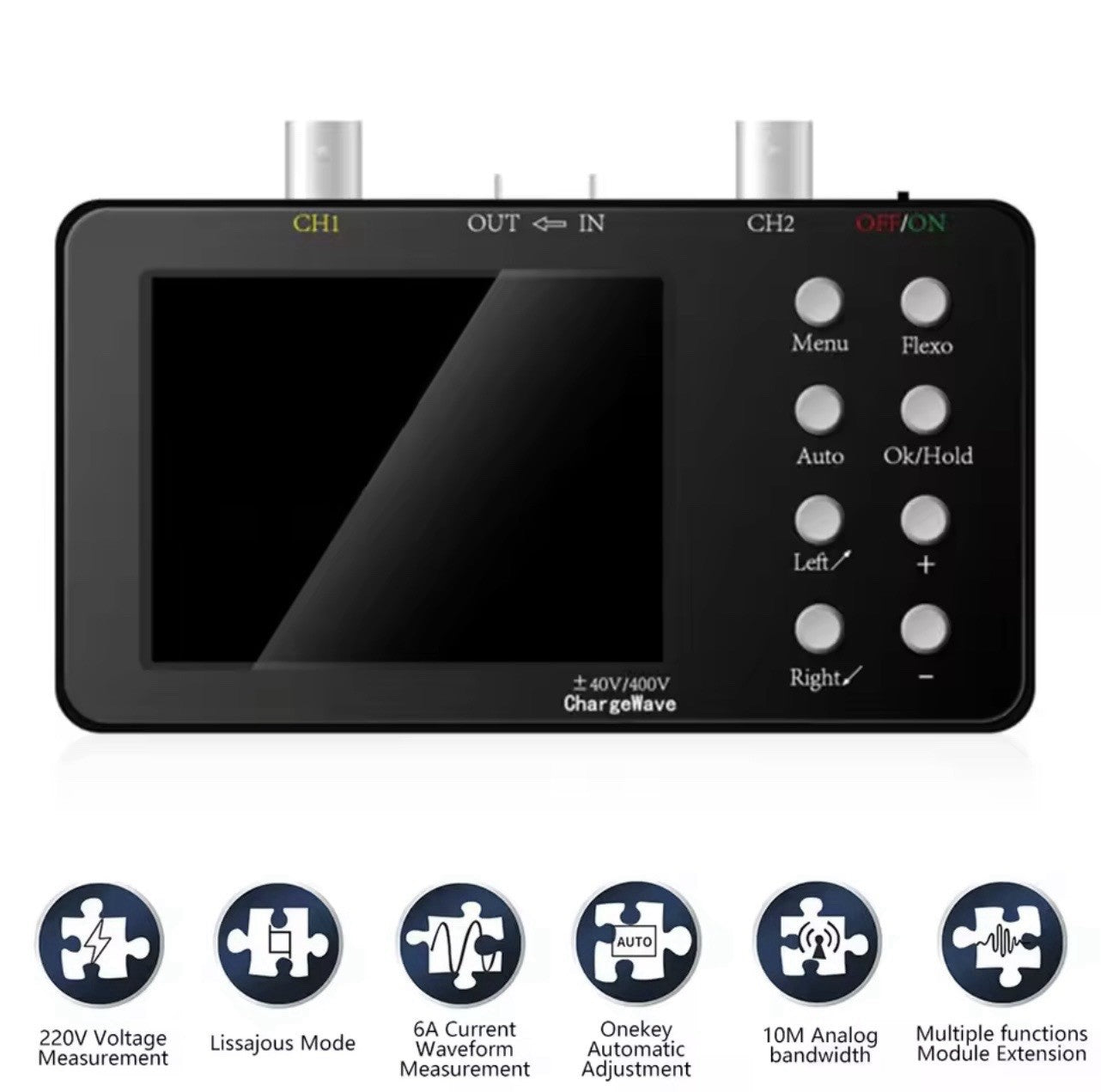

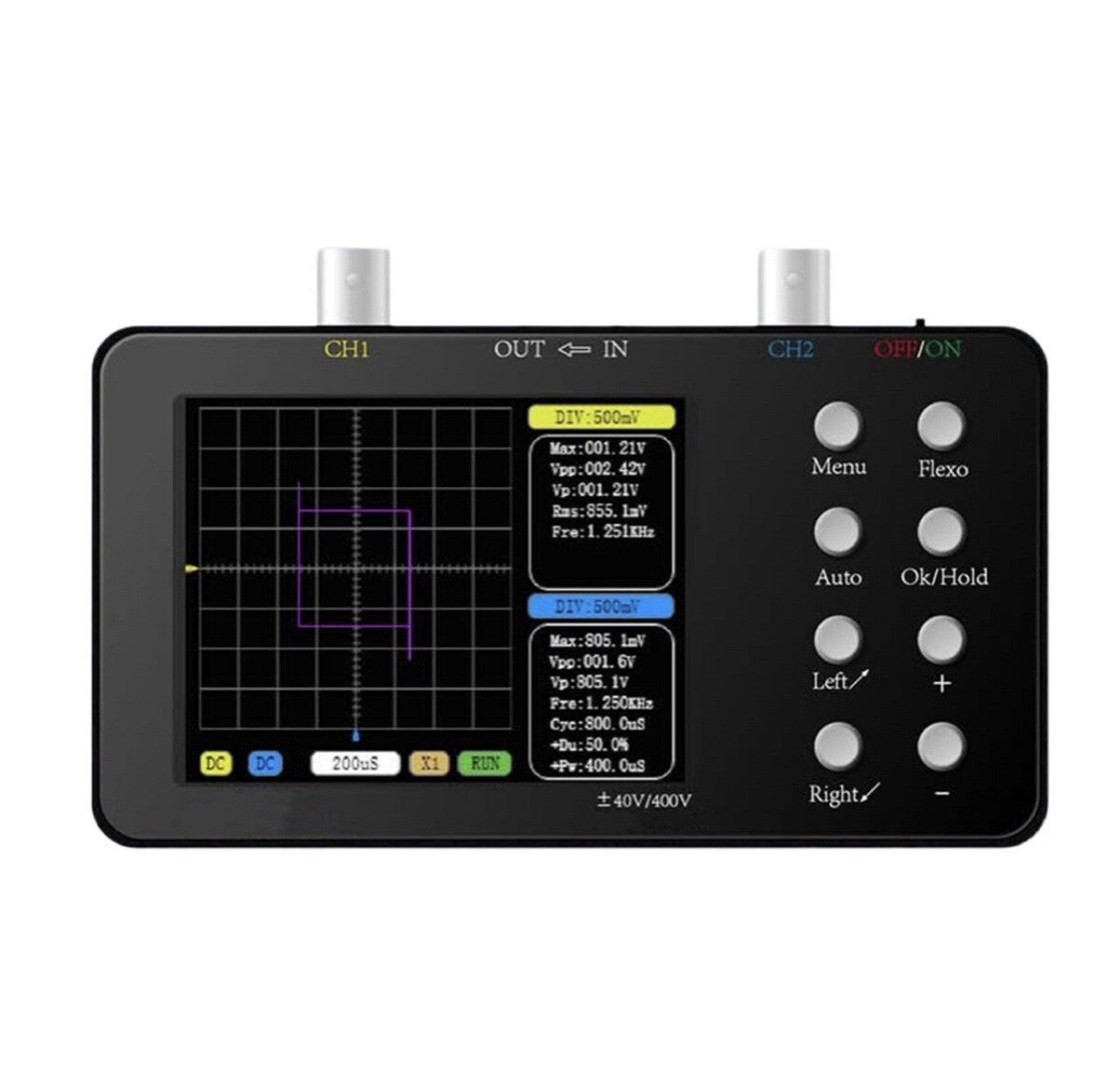

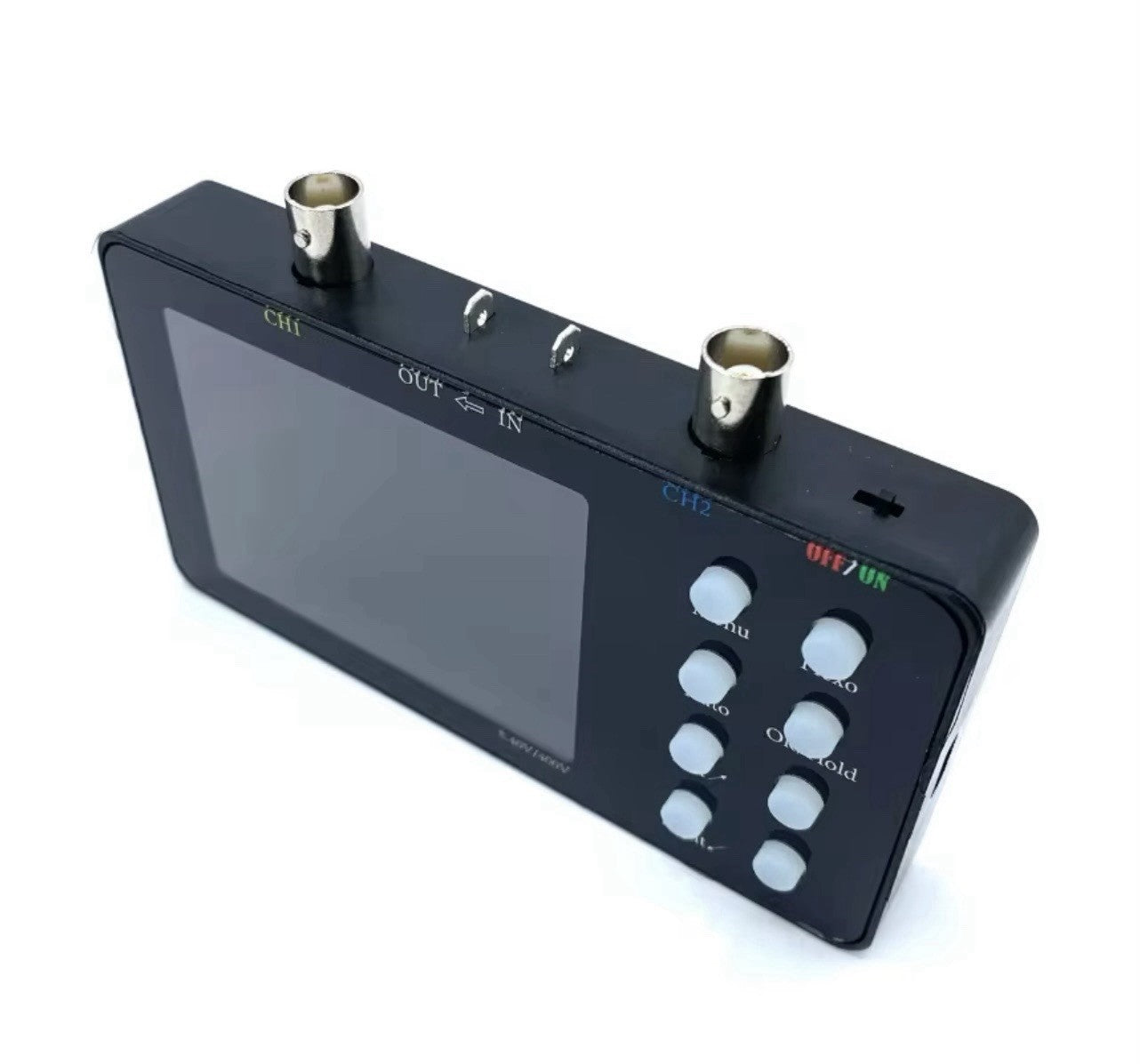

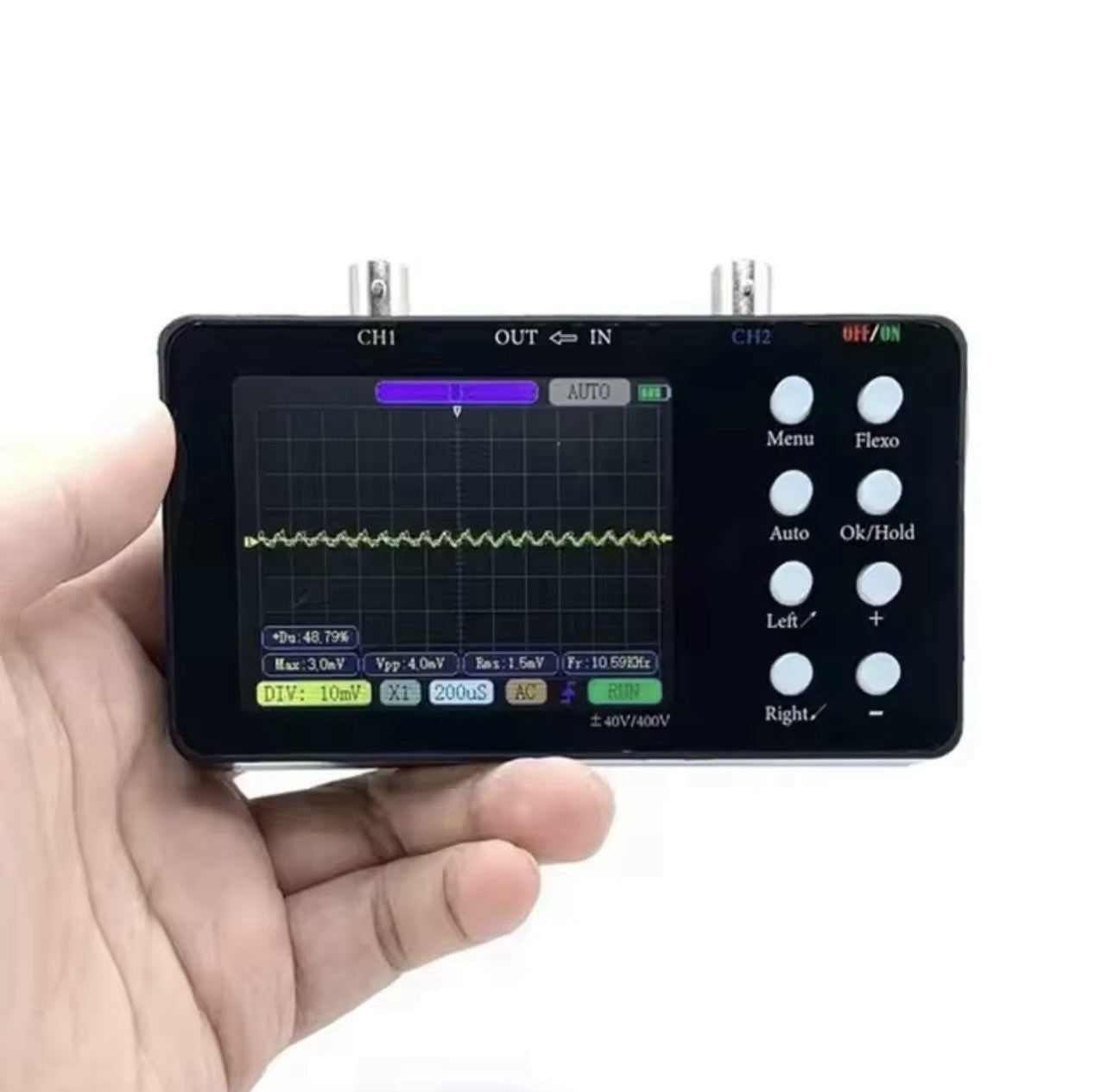

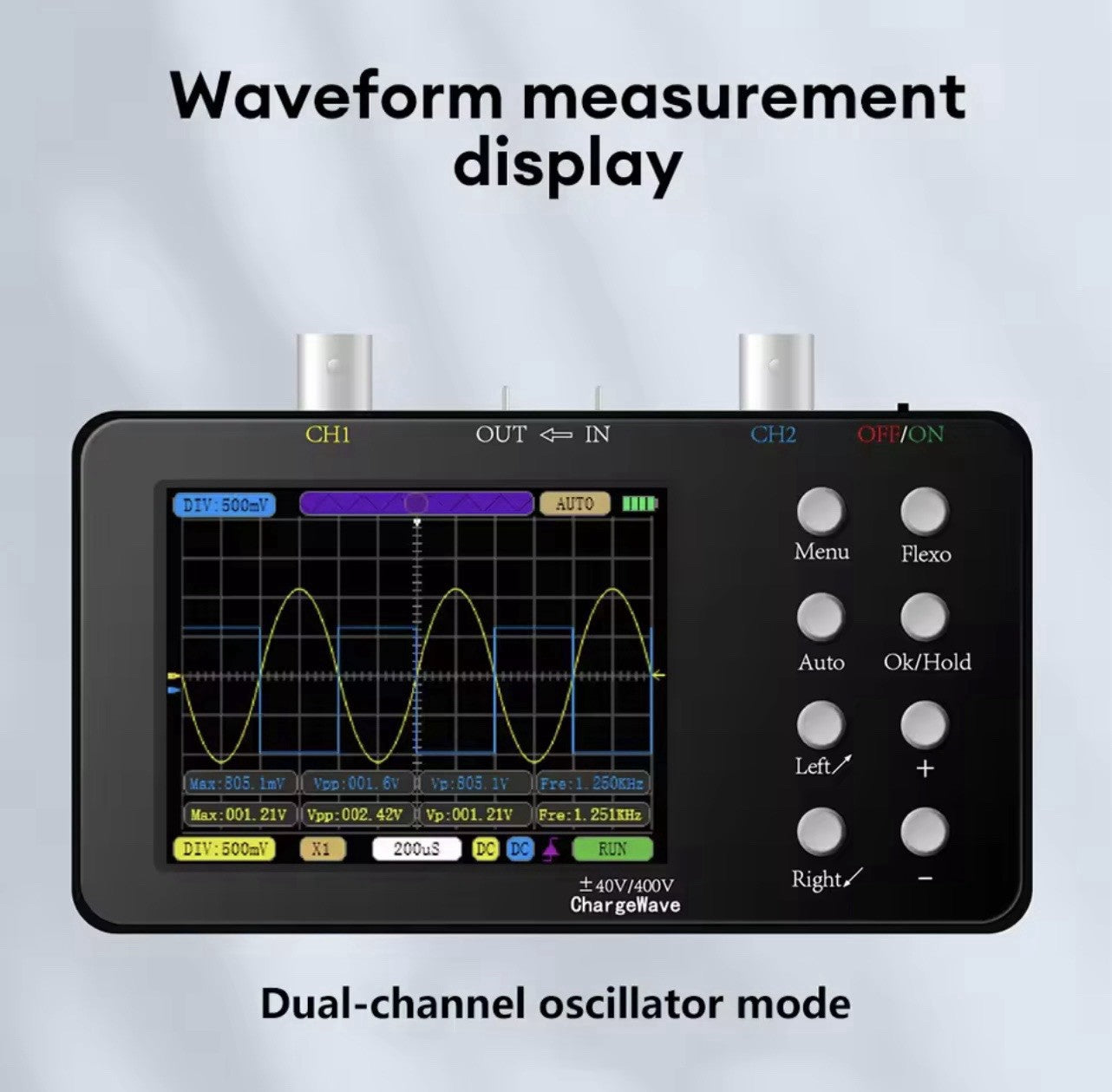

Engineer SCO2 Dual Channel Digital Oscilloscope + Probe + Clips + Charge Cable

Brand: Unbranded

Oscilloscope Type: Digital Oscilloscope

MPN: Does Not Apply

3.2 Inch Handheld Dual Channel Digital Oscilloscope Multimeter Signal Generator 10Mhz Bandwidth 50MSa/s Sampling Rate

Sent with Australia Post Parcel Post tracking number included.

Specification:

Features:

1. 50M sampling rate, actual bandwidth 2Mhz, analog bandwidth 10Mhz

2. Equipped with complete triggering function (single, normal, automatic), suitable for measuring periodic analog signals and non periodic digital signals

3. The maximum measurable voltage is ± 400V

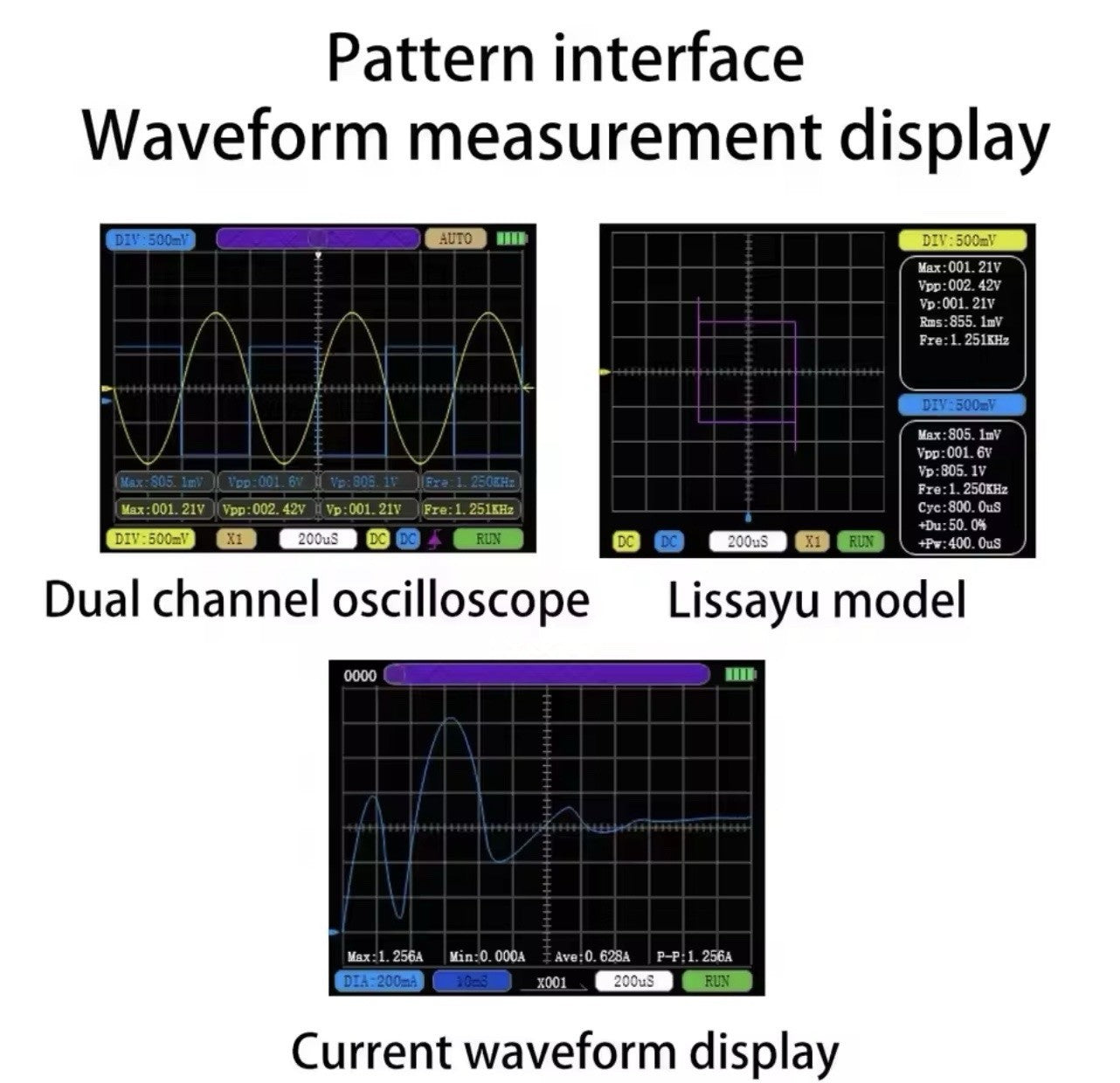

4. Supports one click AUTO function, which can display the measured waveform without complicated adjustments

5. 20K storage depth, supporting waveform compression and unfolding

6. The current waveform is infinitely compressed, with a maximum compression factor of 165 times. It can be compressed arbitrarily to view the curve of current changes

7. Support for high-pressure anti burning function

8. It has rich scalability and supports expanding more functions by using different modules. (Currently, the module is still under development)

9. Support upper computer software. Users can update the system through software and will support FTT in the future,

Applicable scope:

Home appliance repair, mobile phone repair, car repair, electronic DIY, etc.

Specifications:

Sampling rate: 50M/1CH

Number of channels: 2

Analog bandwidth: 10MSa/S (1 CH)

Actual bandwidth: 2MSa/S (1 CH)

Measurement voltage: X1 (± 40V), X10 (± 400V)

Input impedance: 1M Ω

Storage depth: 20KB

Parameter display: 12 types

Current measurement: 0-6A

Minimum accuracy: 2mA

Current sampling rate: 2.4KSa/s

Display: 3.2inch LCD, 320 * 240 resolution

Charging voltage: 5V

Battery capacity: 2500 mA

Continuous working hours: 4.5-6H

Shell size: 120mm * 66mm * 18.5mm

Function expansion:

The scope has a user friendly interface.

a. Hardware: Support expanding more functions through the use of different modules and the USB interface on the oscilloscope. (At present, the module is still in research and development. In the future, audio module, two-way Function generator module, transistor tester module, etc. will be provided.)

Module Function Introduction:

1. Audio module: can display external sound wave waveforms and sound decibels in real-time

2. Two way Function generator module, 0~100KHzPWM output, and two ways 0~10KHz, 17 kinds of function waveform output, amplitude 0~3V adjustable

3. Transistor testing module, supporting on/off, RF infrared, capacitor, resistor, inductor, diode, transistor, and other tests

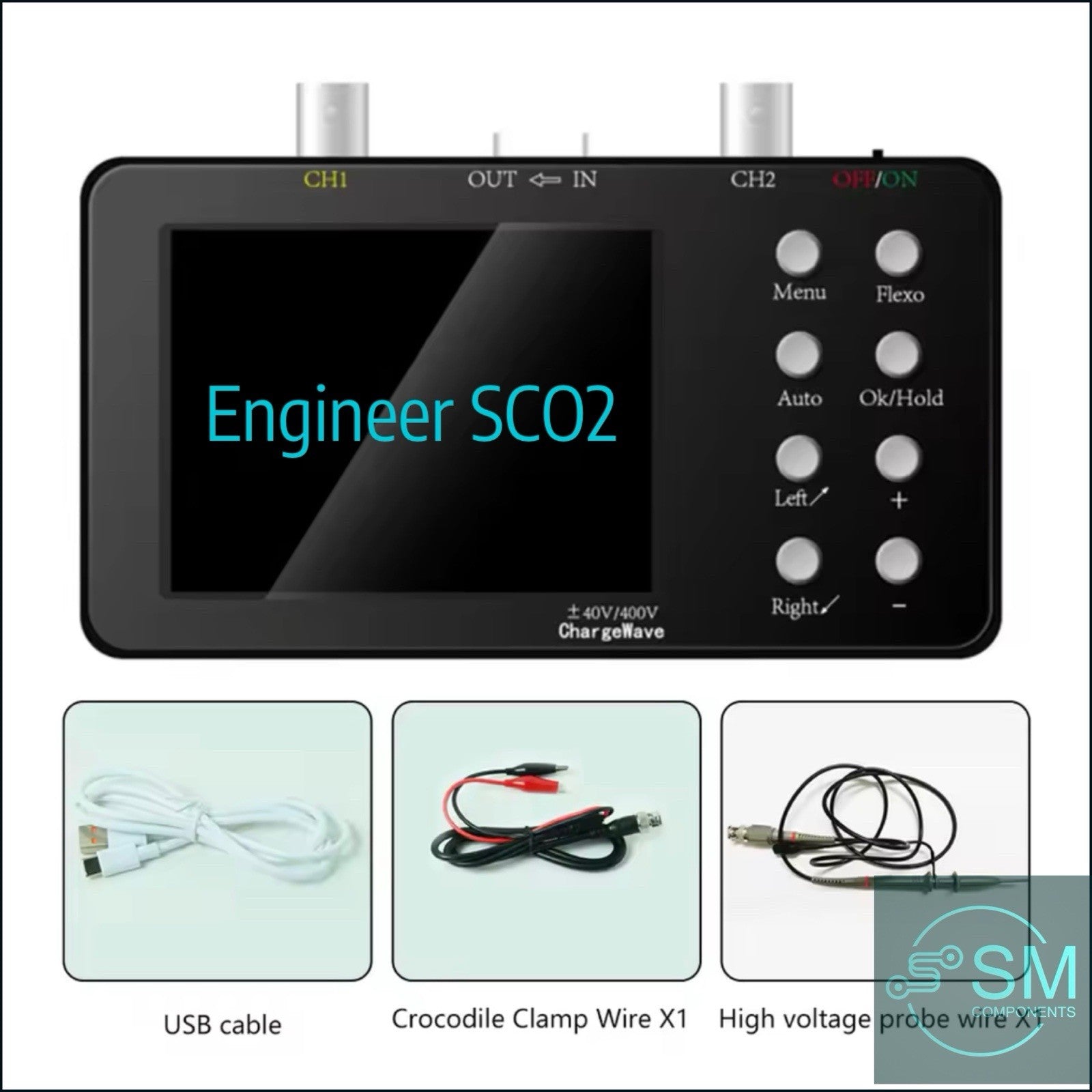

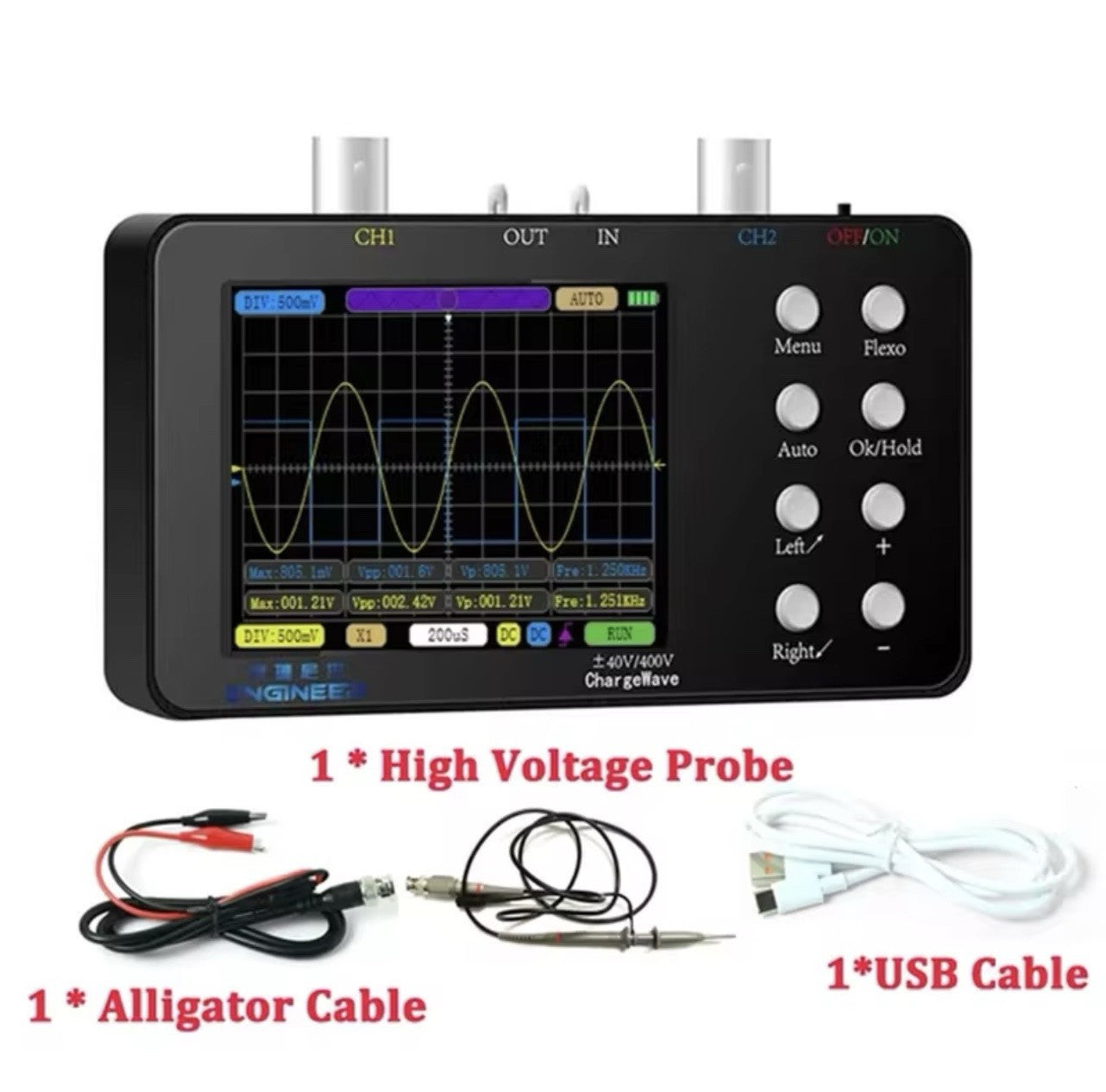

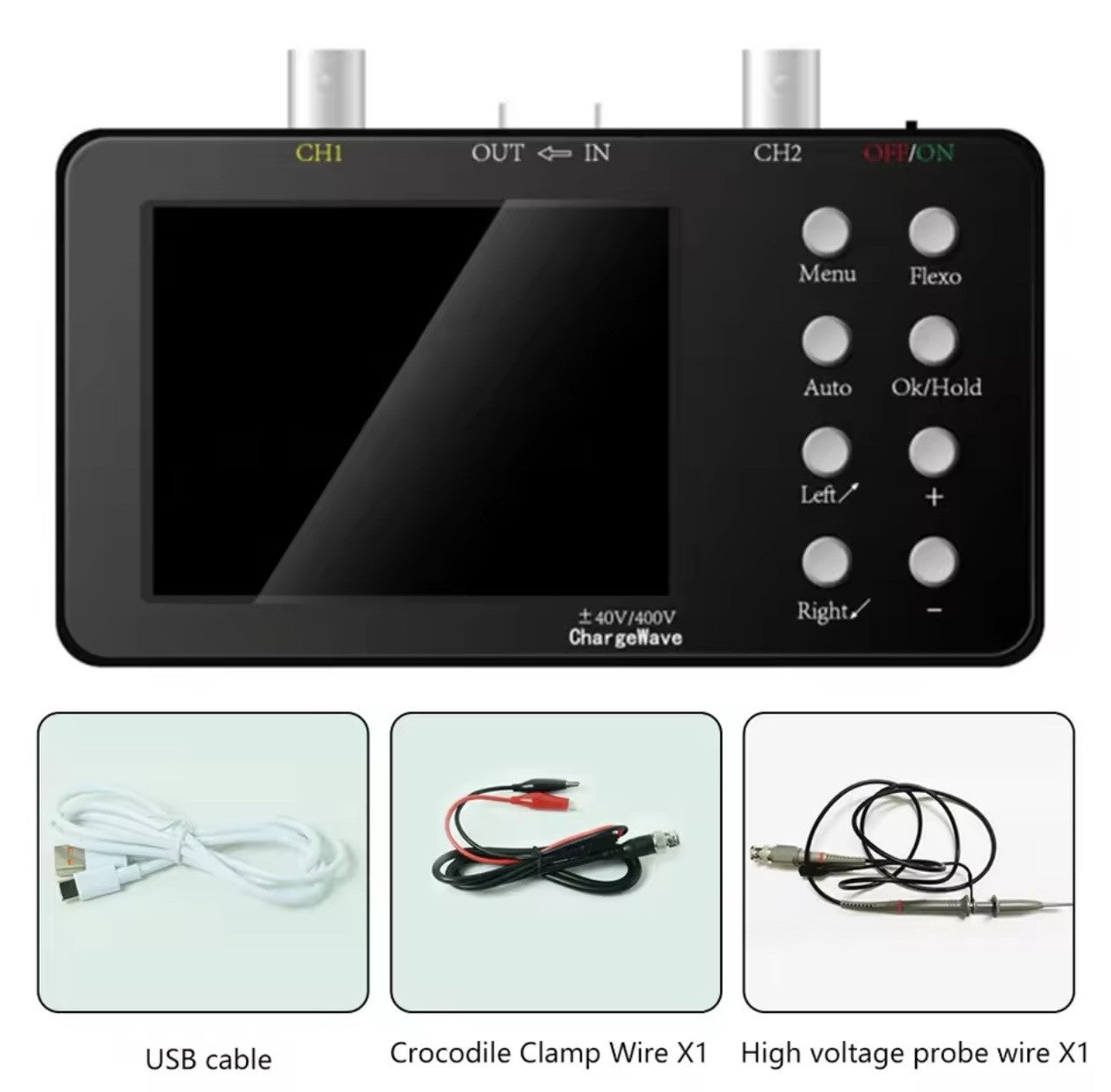

Package included:

1 x Digital Oscilloscope

1 x USB Cable

1 x Alligator Cables

1 x P6100 BNC Probe

1 x User Manual
