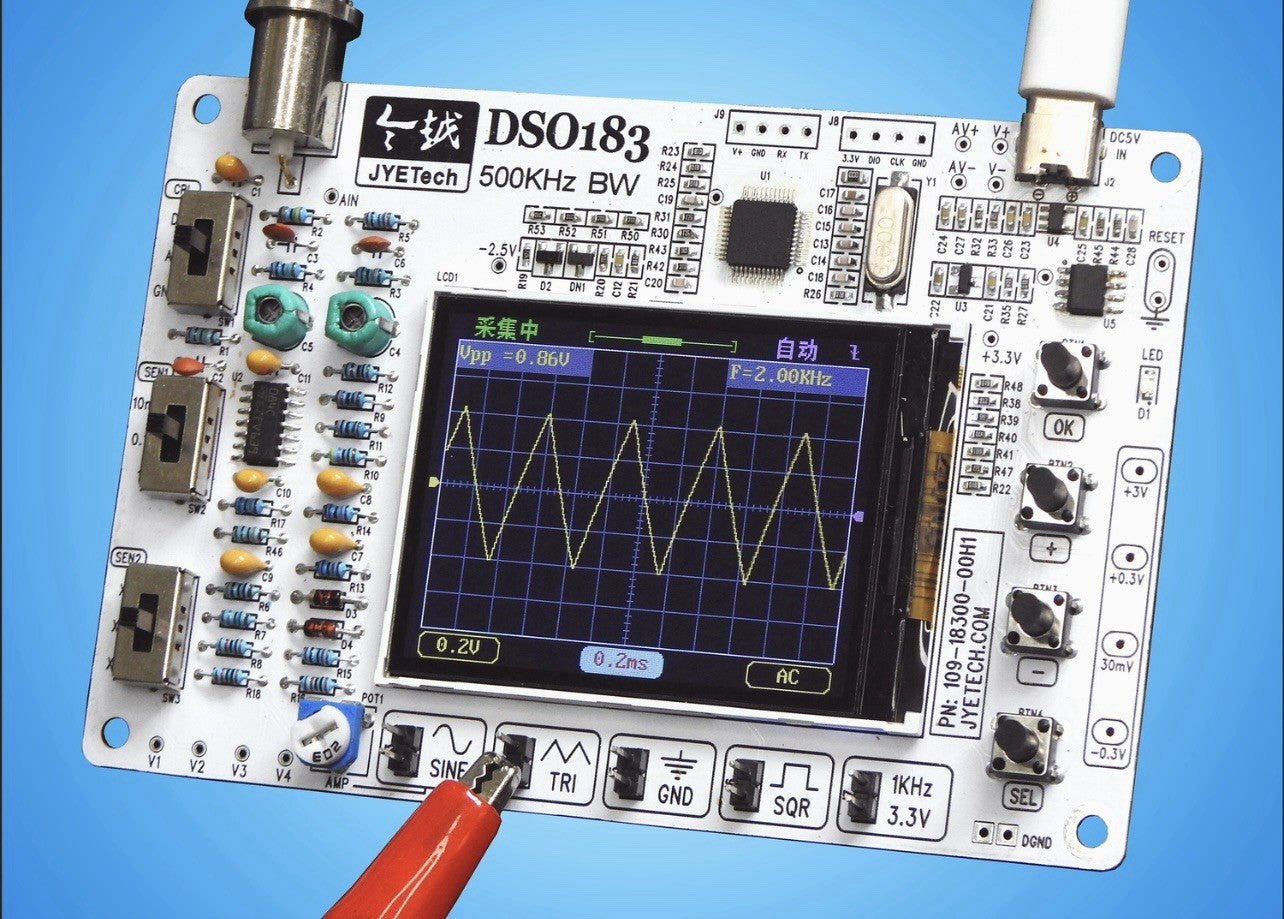

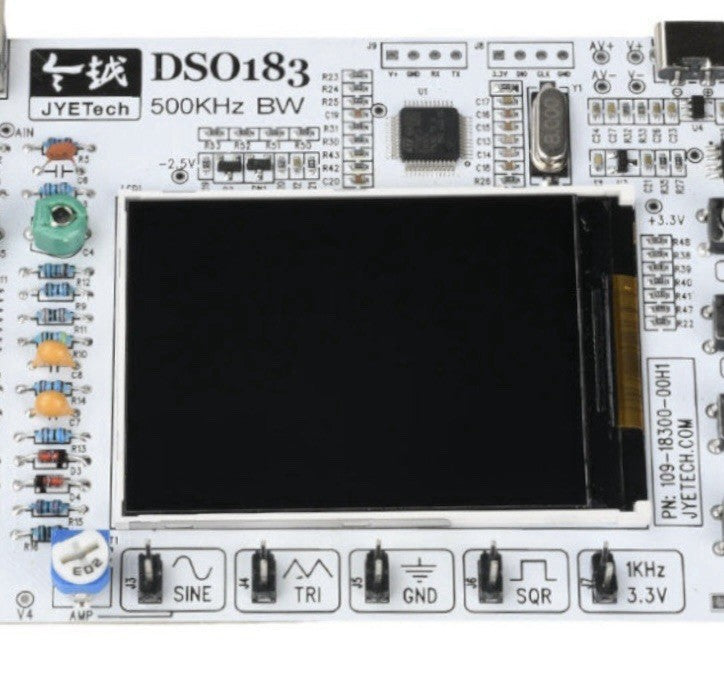

DSO183 2.4" TFT DIY Unassembled Digital Oscilloscope Kit (1.5msps, Probe, Case)

Brand: Genuine JYETECH

Oscilloscope Type: Digital Oscilloscope

Number of Channels: 1

Model: DSO183

MPN: Does Not Apply

Maximum Real-Time Sampling Rate: 1.5 MSa/s

Maximum Bandwidth: 500 KHz

Country/Region of Manufacture: China

DSO183 2.4" TFT DIY Unassembled Digital Oscilloscope Kit (1.5msps, Probe, Case)

Sent with Australia Post Parcel Post.

Specification:

Manufacturer: JYETECH

Model: DSO183

Bandwidth: 500KHz

ADC Precision: 12Bit

Real-time Sampling Rate: 1.5Msps

Waveform Memory Depth: 1024 points

Vertical Sensitivity Range: 10mV/div - 5V/div

Input Impedance: 1MQ

Maximum Input Voltage: 50Vpk

Coupling Modes: DC, AC, GND

Horizontal Base Range: 1us/div - 500s/div

Trigger Modes: Auto, Normal, Single Trigger Edge: 1us/div - 500s/div Waveform Retention Function: Yes

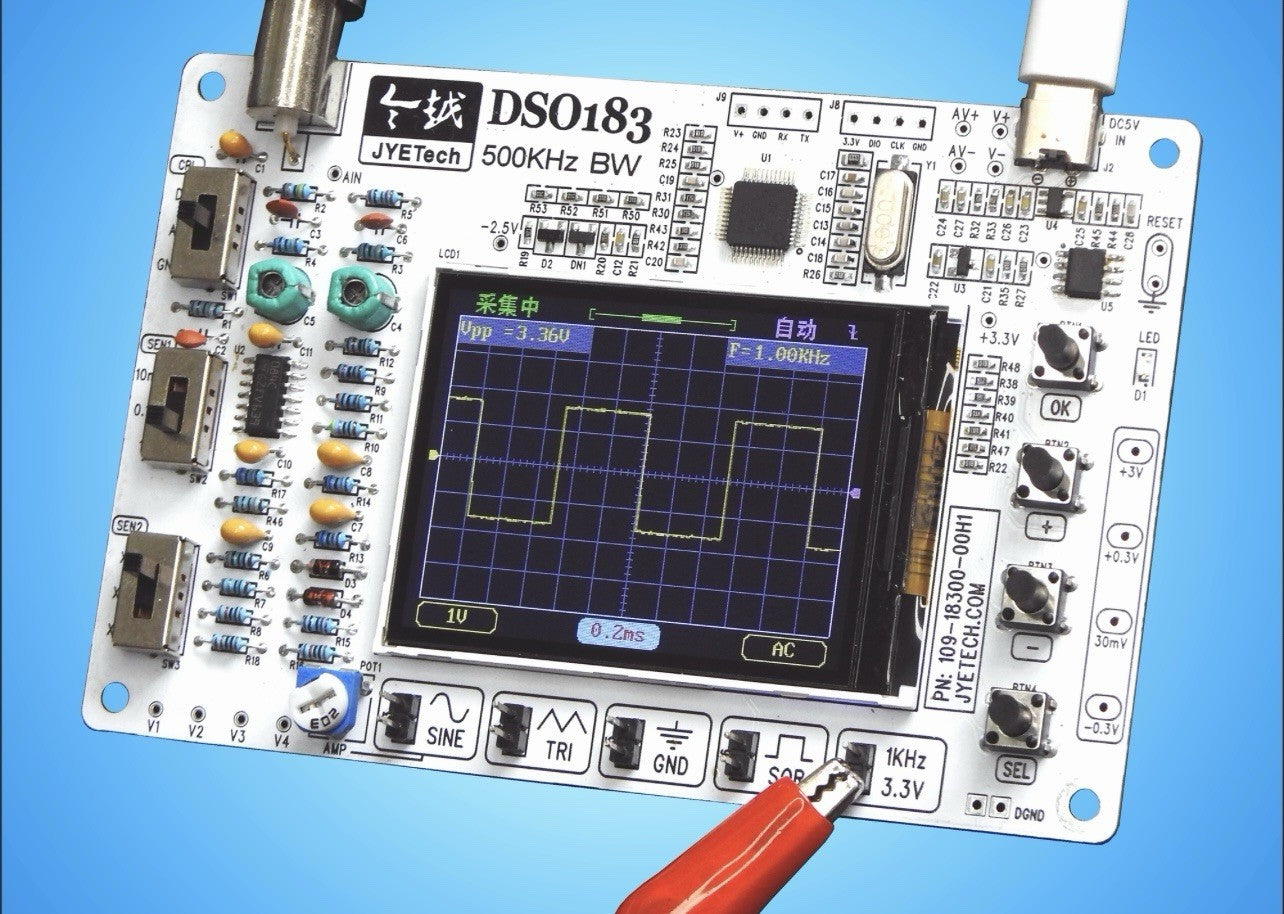

1KHZ/3.3V Test Signal: Yes

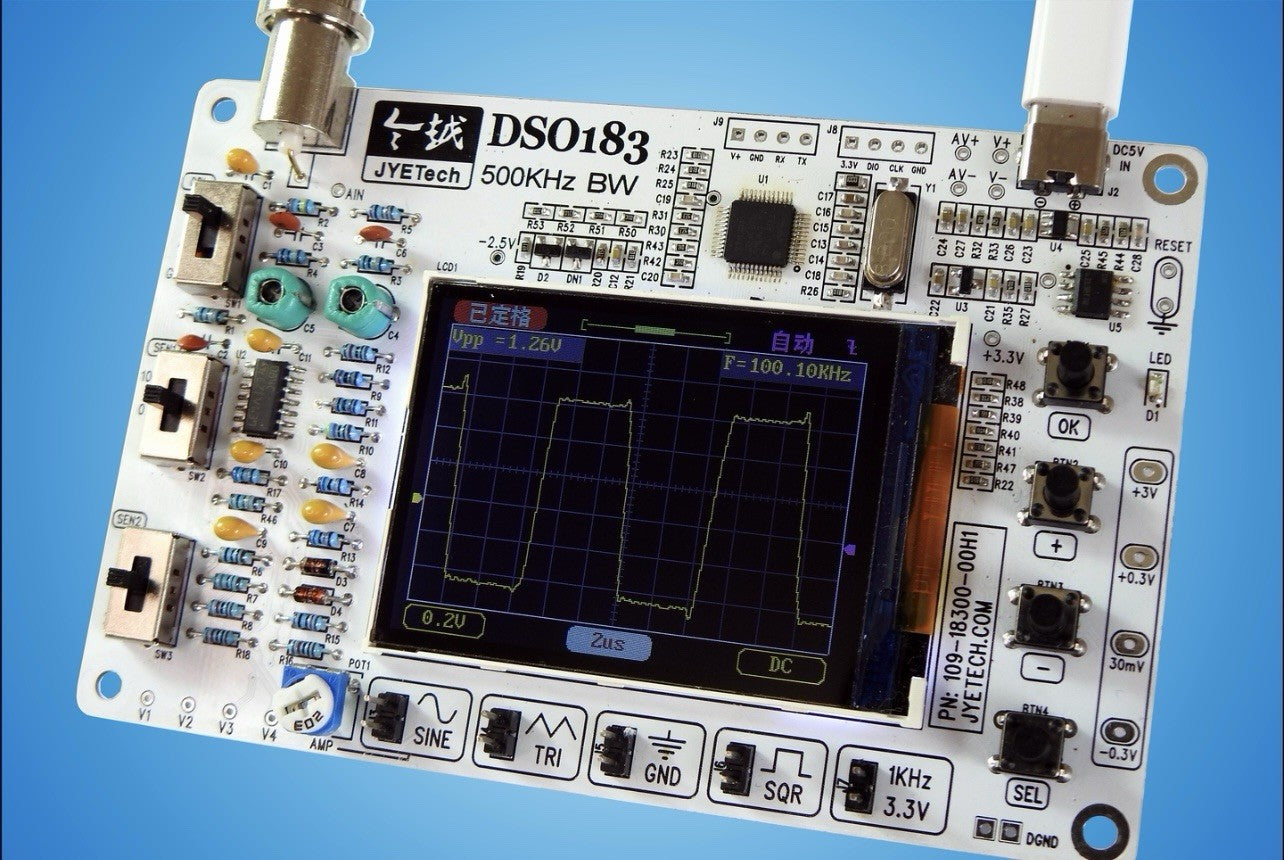

Square Waves Signal Generation: Yes

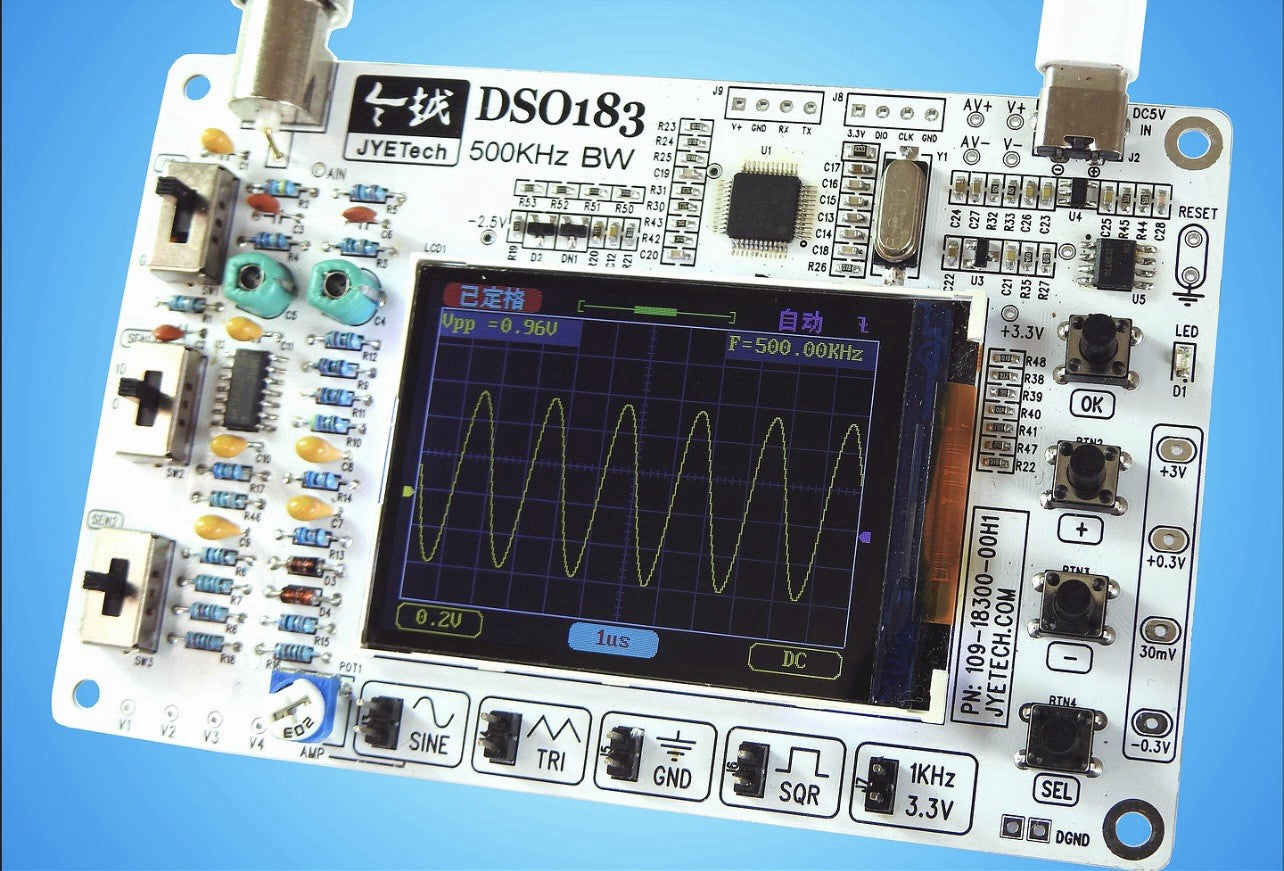

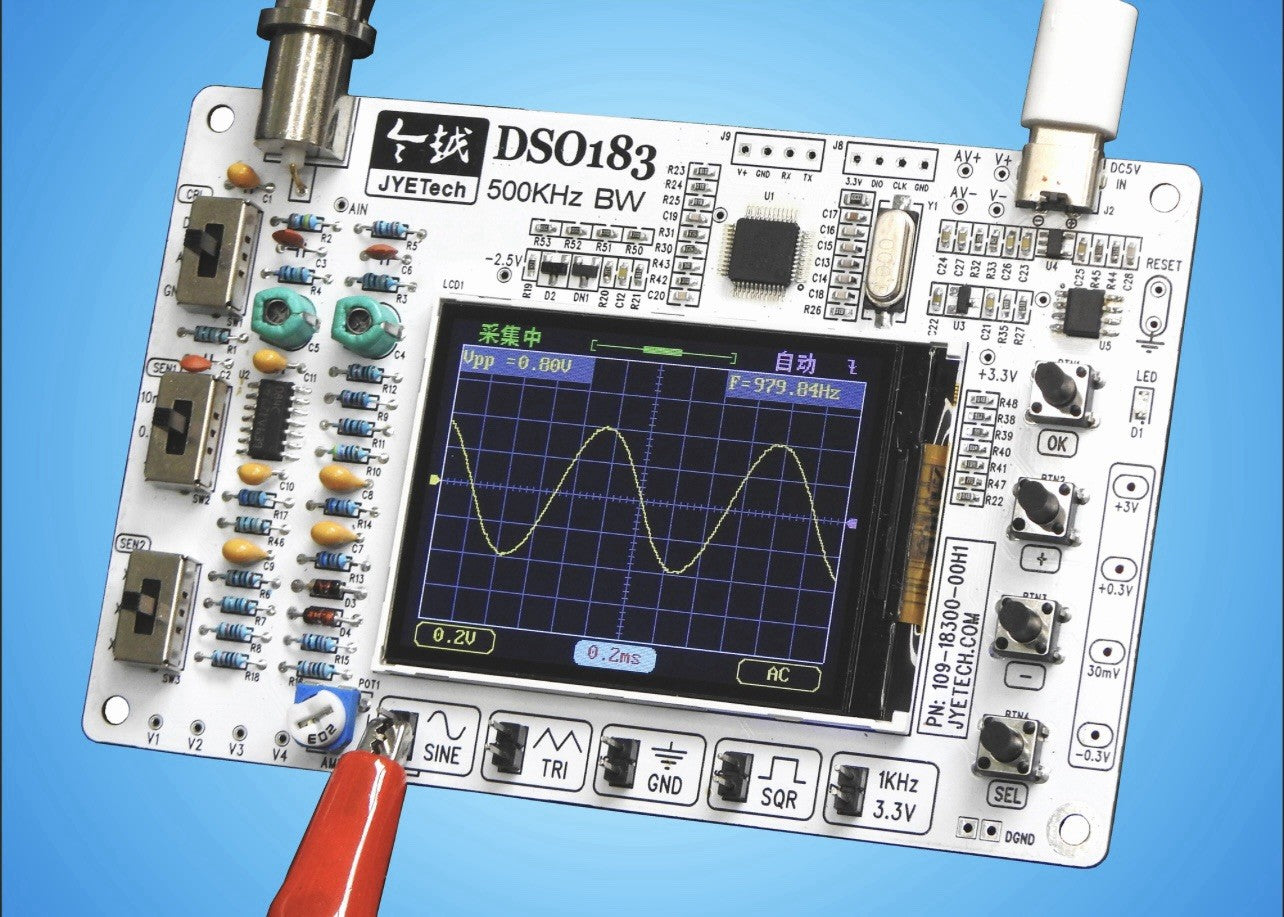

Sine Wave Signal Generation: Yes

Waveform Storage/Output Function: Yes

Waveform Parameter Digital Display: Yes, supports display of maximum value, minimum value, peak value, average value, RMS value, frequency, period, and duty cycle Waveform Retention/Output Function: Yes Power Supply: DC 5V, USB Type-C interface input Power Consumption: < 100mA

Dimensions: 118 × 76 x 12 mm (excluding front panel)

Weight: 45g (excluding front panel and probe cable)

Display Language: English/Chinese optional

• NOTE: This is a DIY kit, you will need to solder and assemble.

Features:

1. Improved Bandwidth: Enhanced from 200 kHz (previous model DSO138) to 500 kHz for reliable signal capturing.

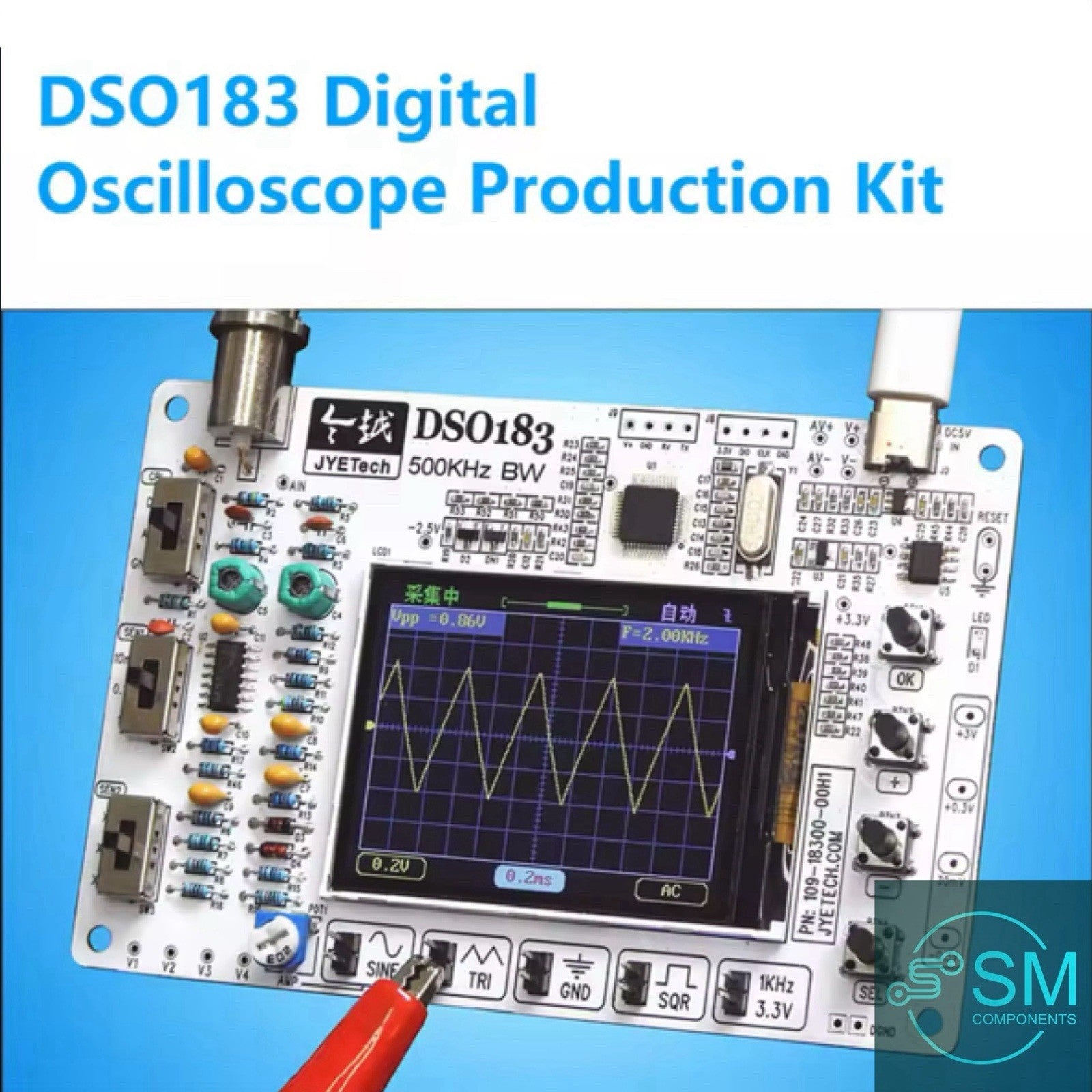

2. Built-in Signal Generator: Includes functionality to generate sine, triangle, and square waves signals for testing purposes.

3. LCD Display: Supports both English and Chinese menus for enhanced usability across different regions.

4. Power Convenience: Operates via USB Type-C input, eliminating the need for additional adapters.

5. Compact and Stable Design: Single-board structure simplifies assembly and reduces the risk of connection issues.

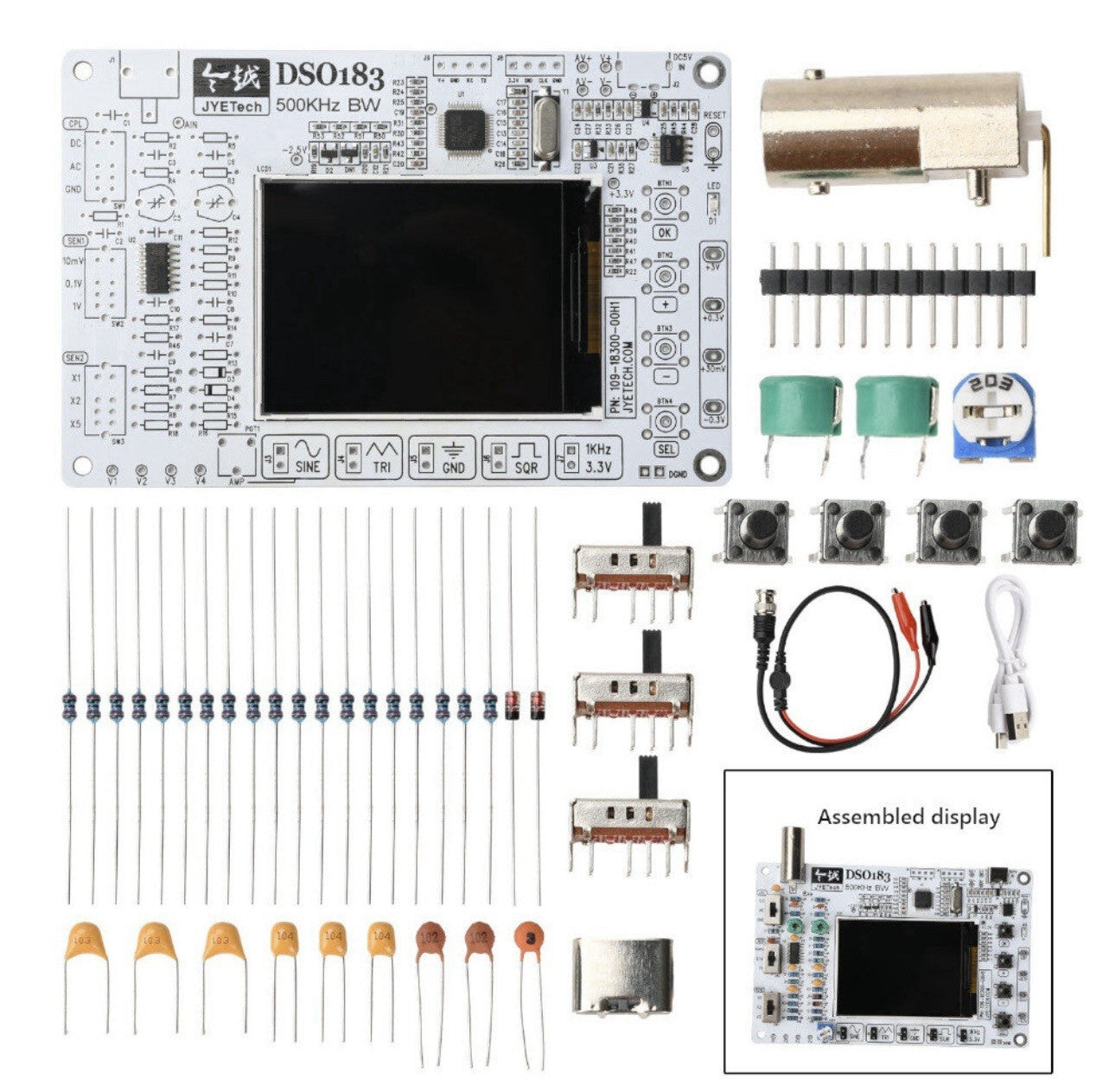

Package Includes:

1x DSO183 Digital Oscilloscope DIY Kit

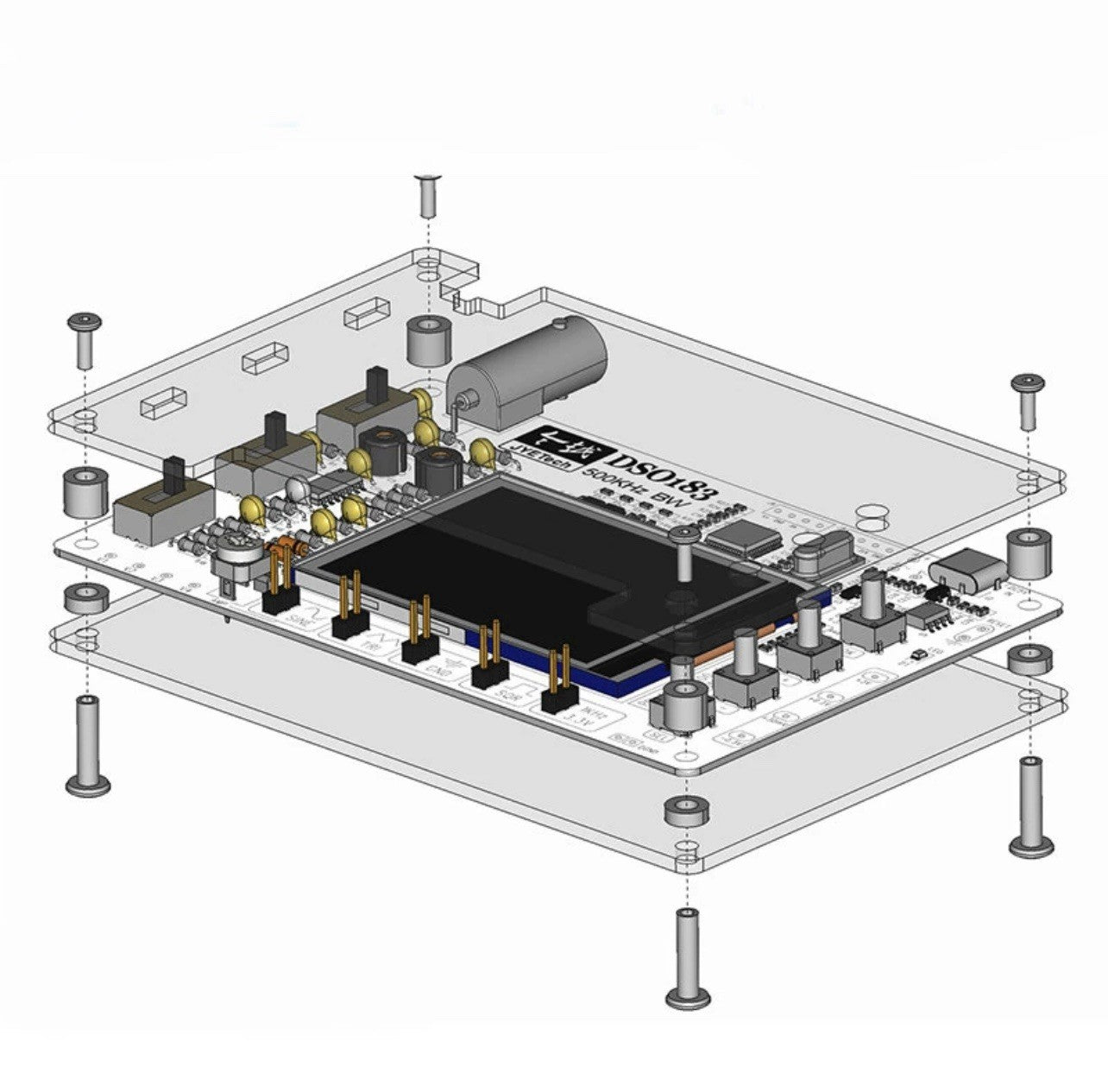

1x Acrylic shell

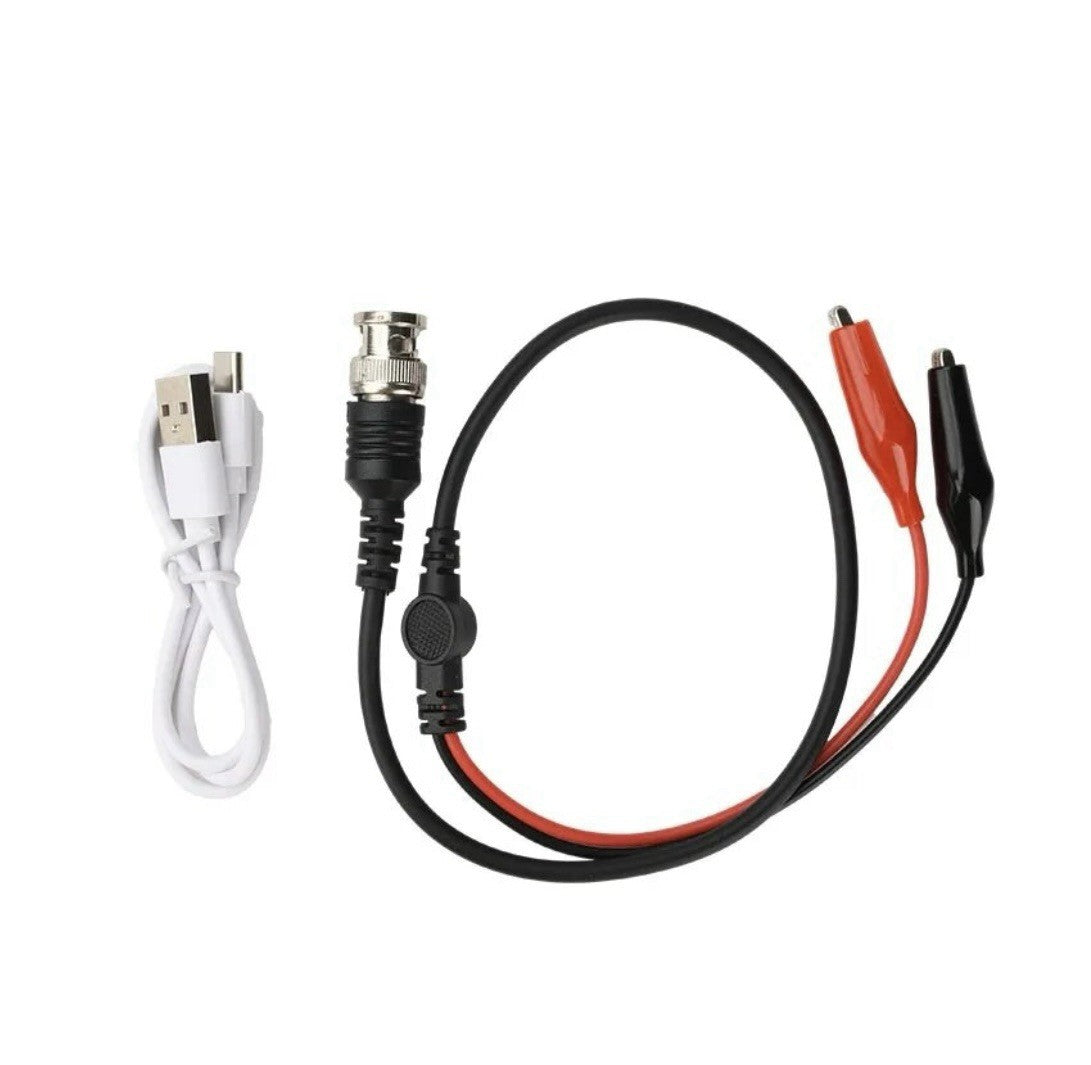

1 x Probe set

1 x USB-C power cable

1 x instruction sheet

Helpful Hint

1. A small amount of electronics knowledge would be required to assemble the kit.

2. All the SMD components have all been installed and tested from the factory, so only a basic Multimeter and soldering iron are required.

3. Please keep in mind that this is a DIY oscilloscope kit, and not a $1.8 million dollar 4 channel KeySight oscilloscope.

What it does do, is teach the fundamentals of soldering electronics, and learning your way around an oscilloscope in its most basic form.

4. Please make sure to follow the tutorial on screen once you have completed the kit. and powered the device. This enables the unit to run a self test and configuration.
