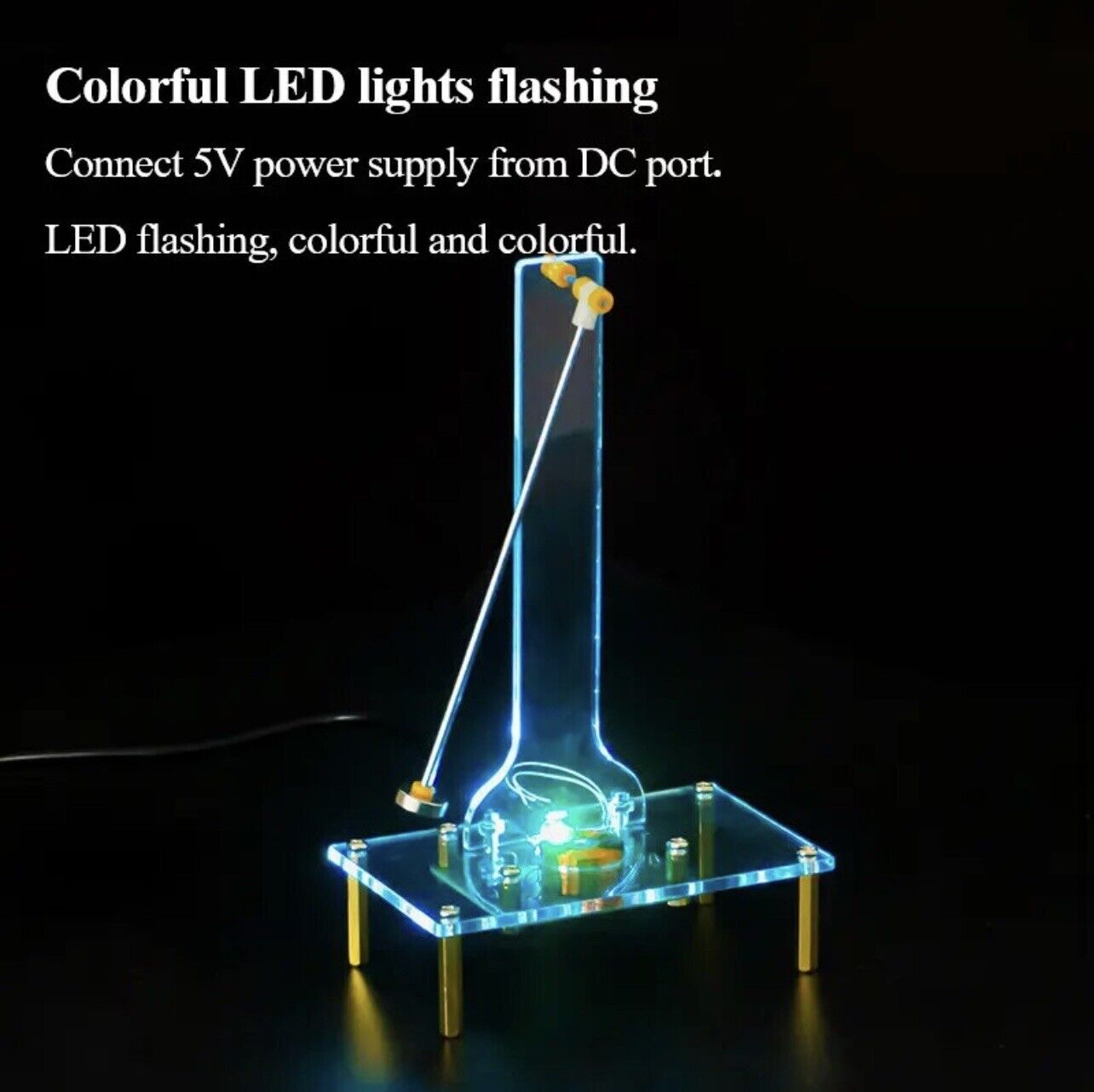

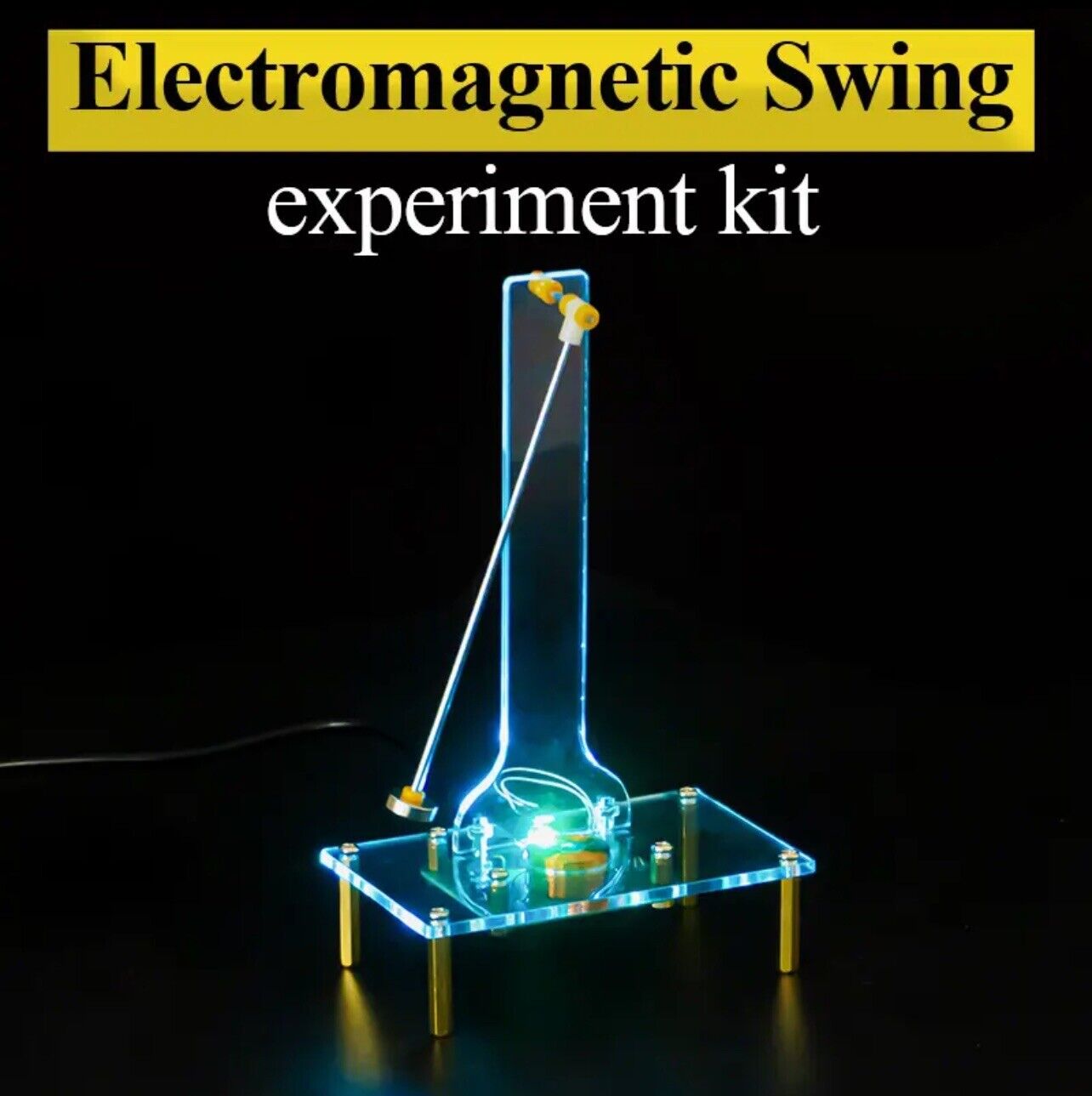

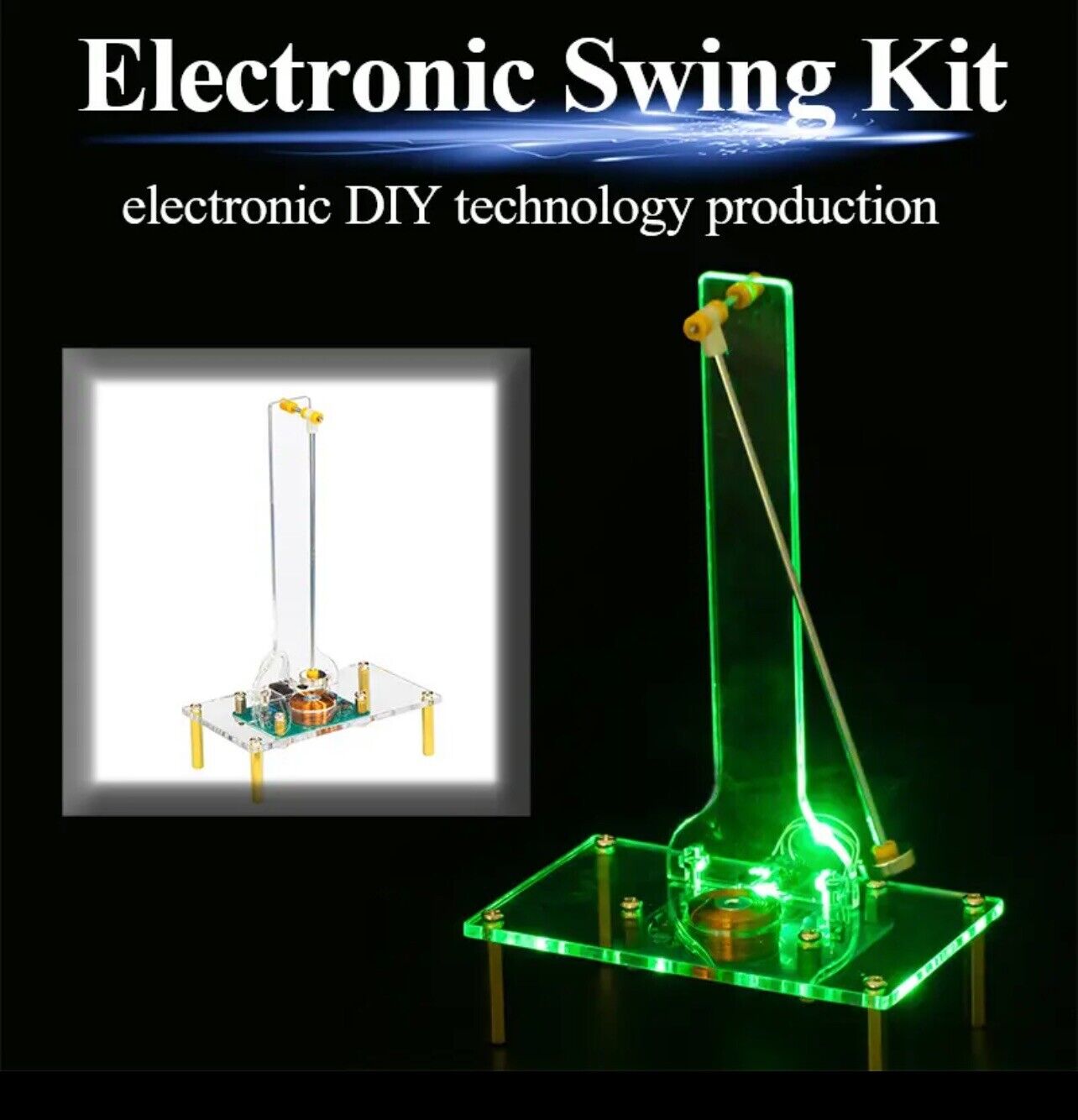

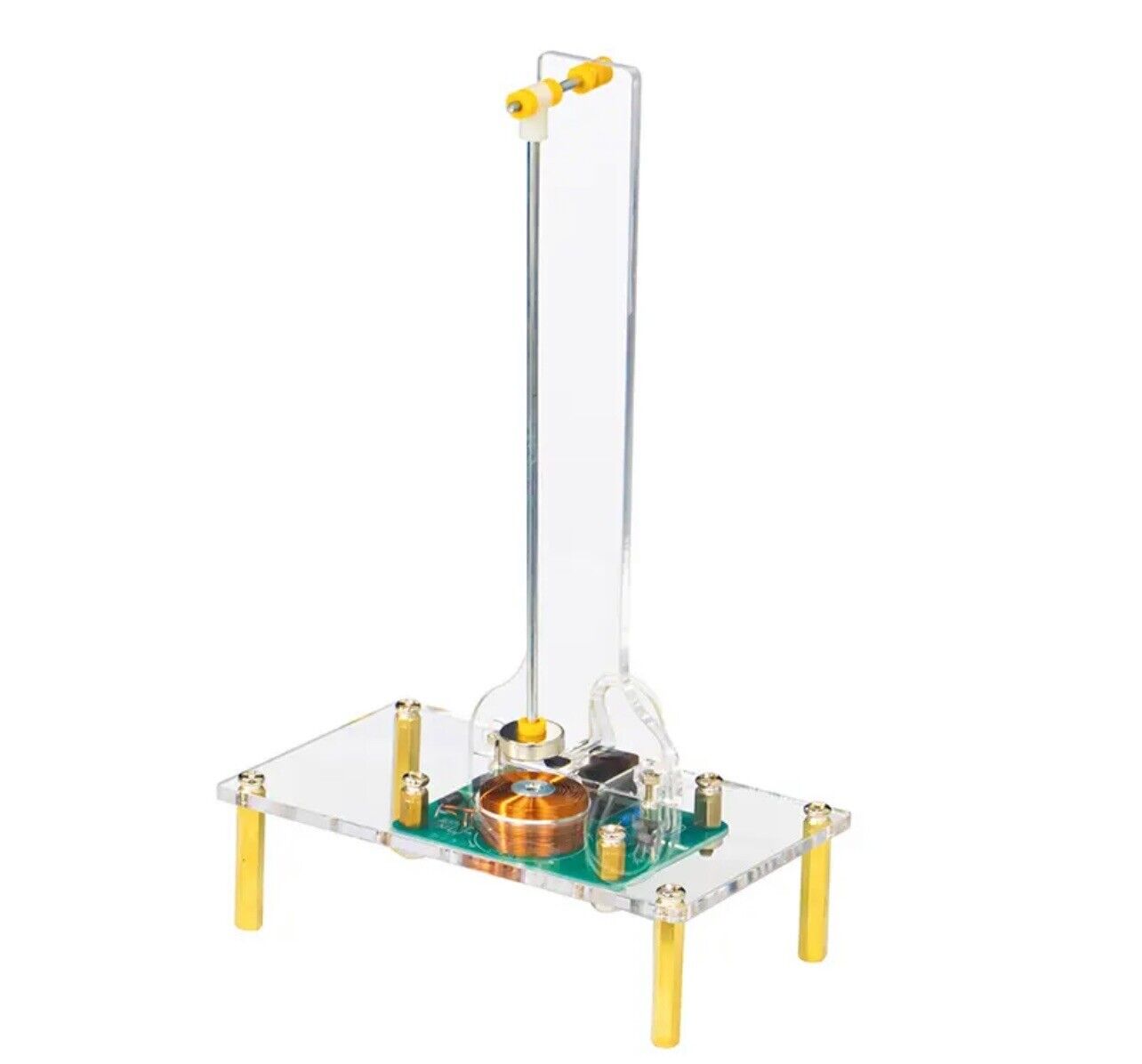

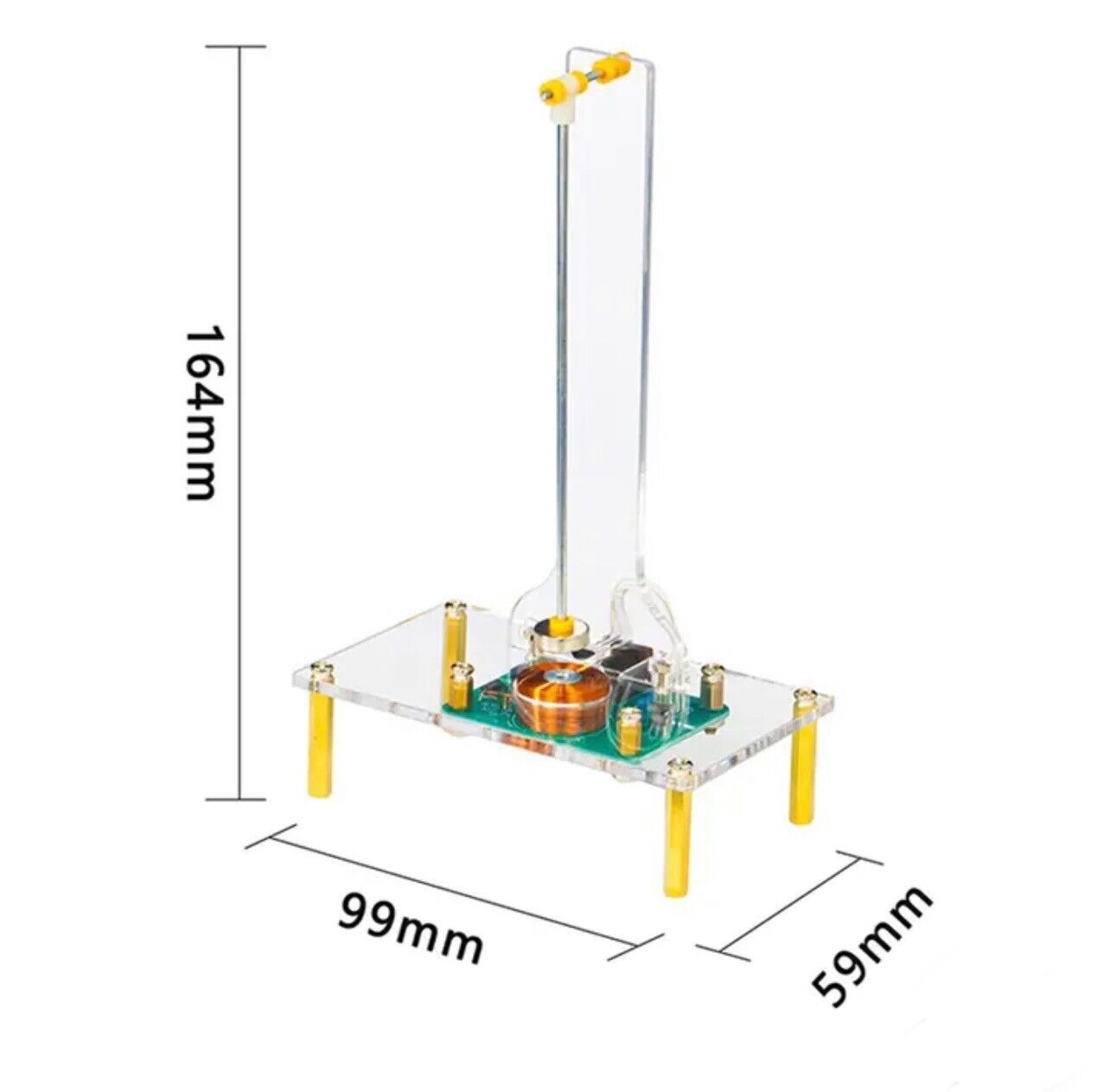

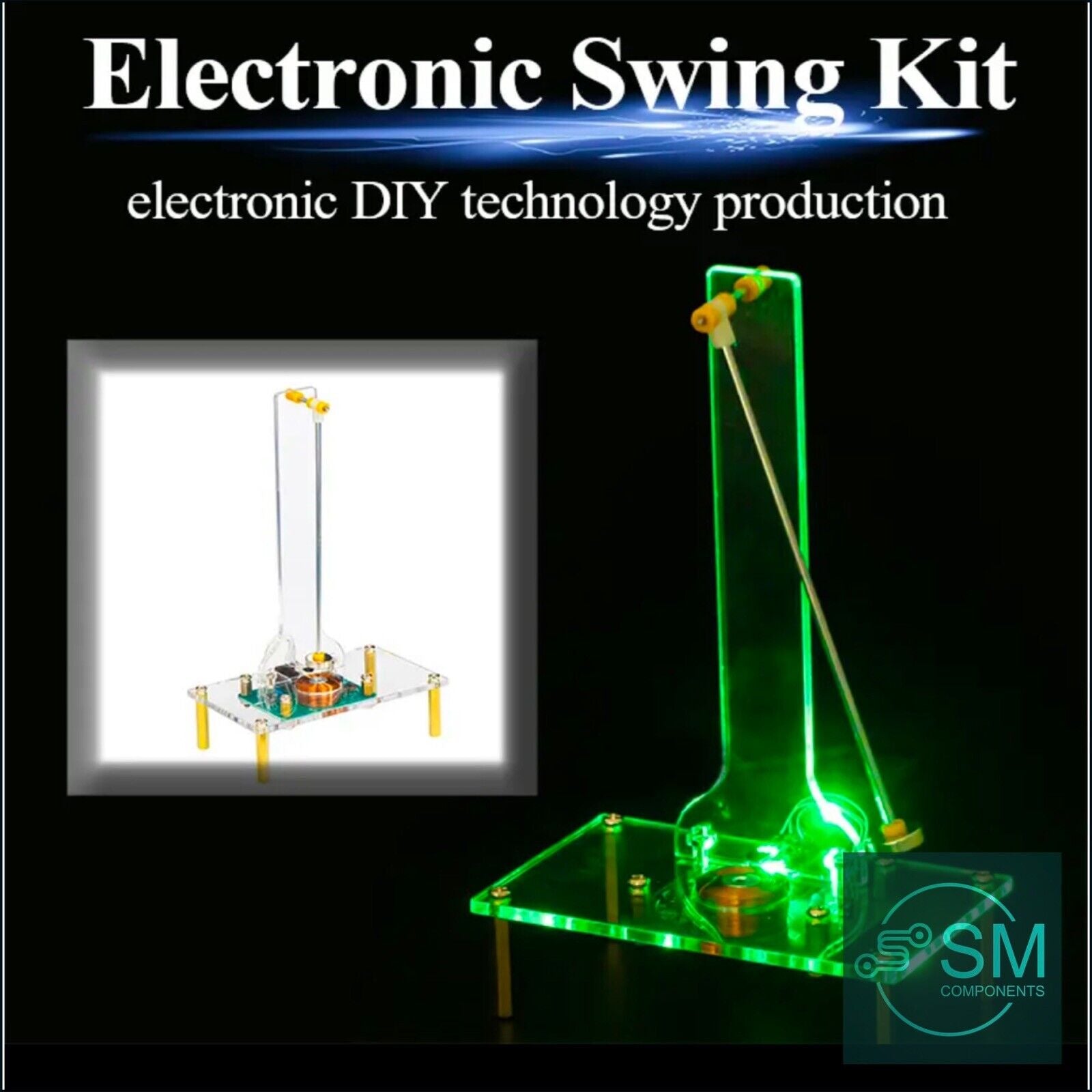

DIY Electronic Swing Kit Electromagnetic Swing Induction Teaching Welding Parts

Brand: Unbranded

Type: DIY Electronic Swing Kit

Marke: DIY Electronic Swing Kit

EAN: Does not apply

Model: TJ-56-678

UPC: Does not apply

MPN: Does not apply

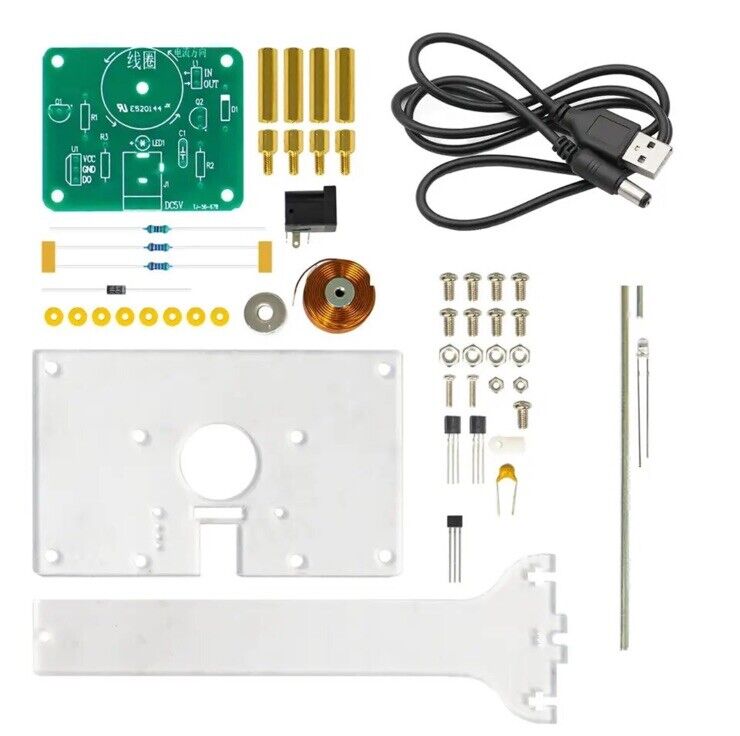

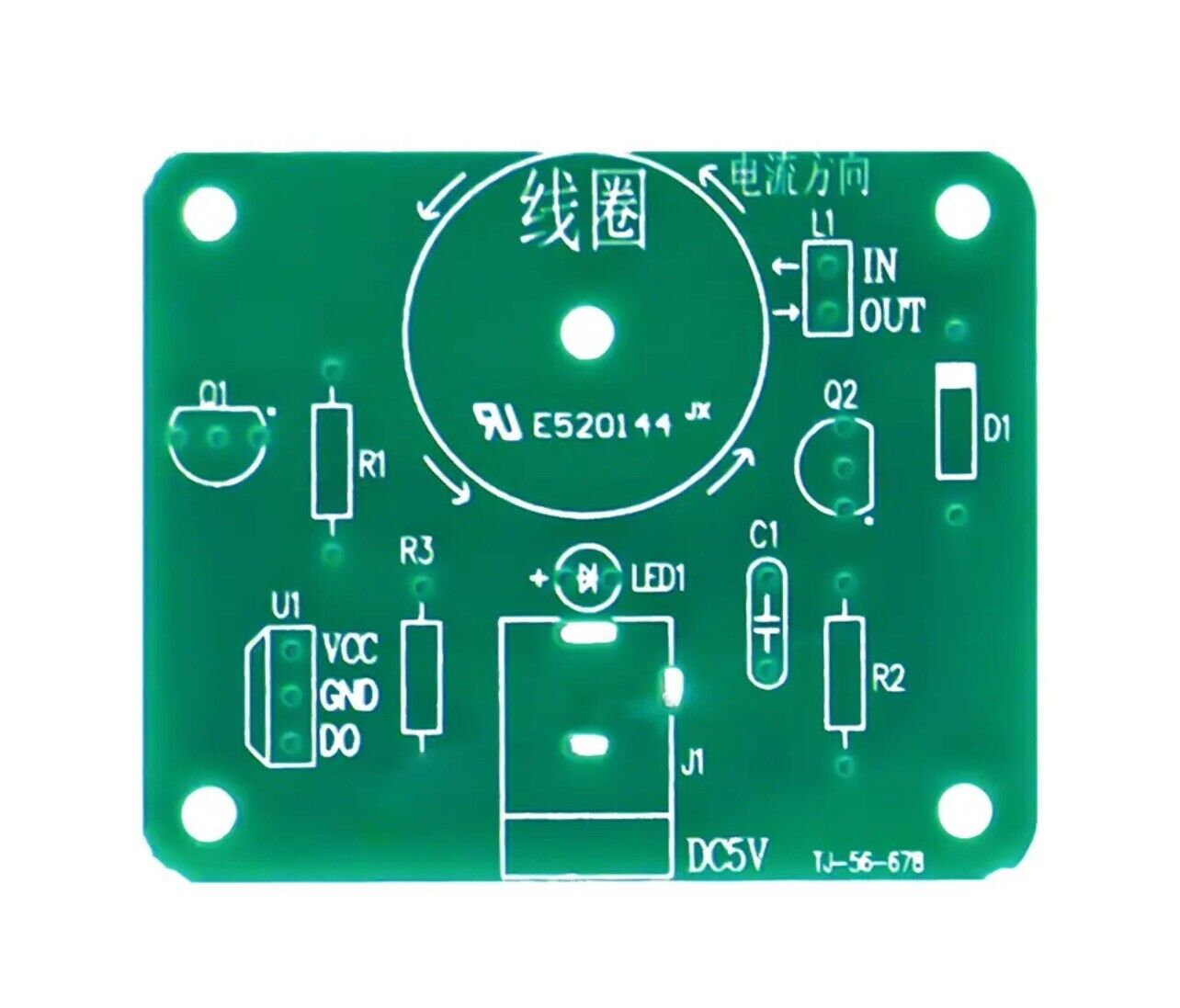

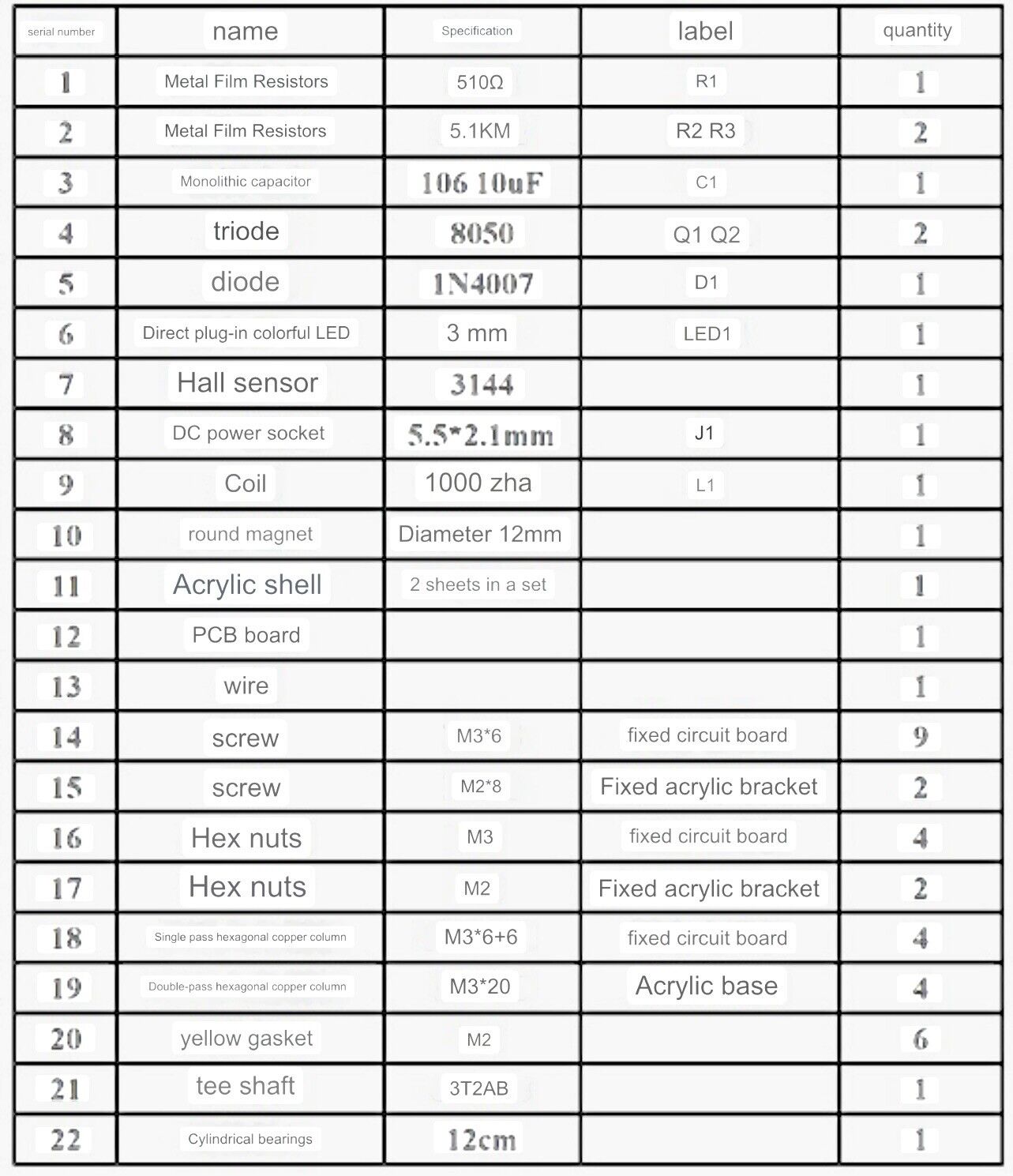

Electromagnetic Swing Experiment Kit Electromagnetic Swing Induction DIY Soldering Assembly Practice Loose Parts

Function Introduction :

Hall sensor is a magnetic field sensor made according to Hall effect.

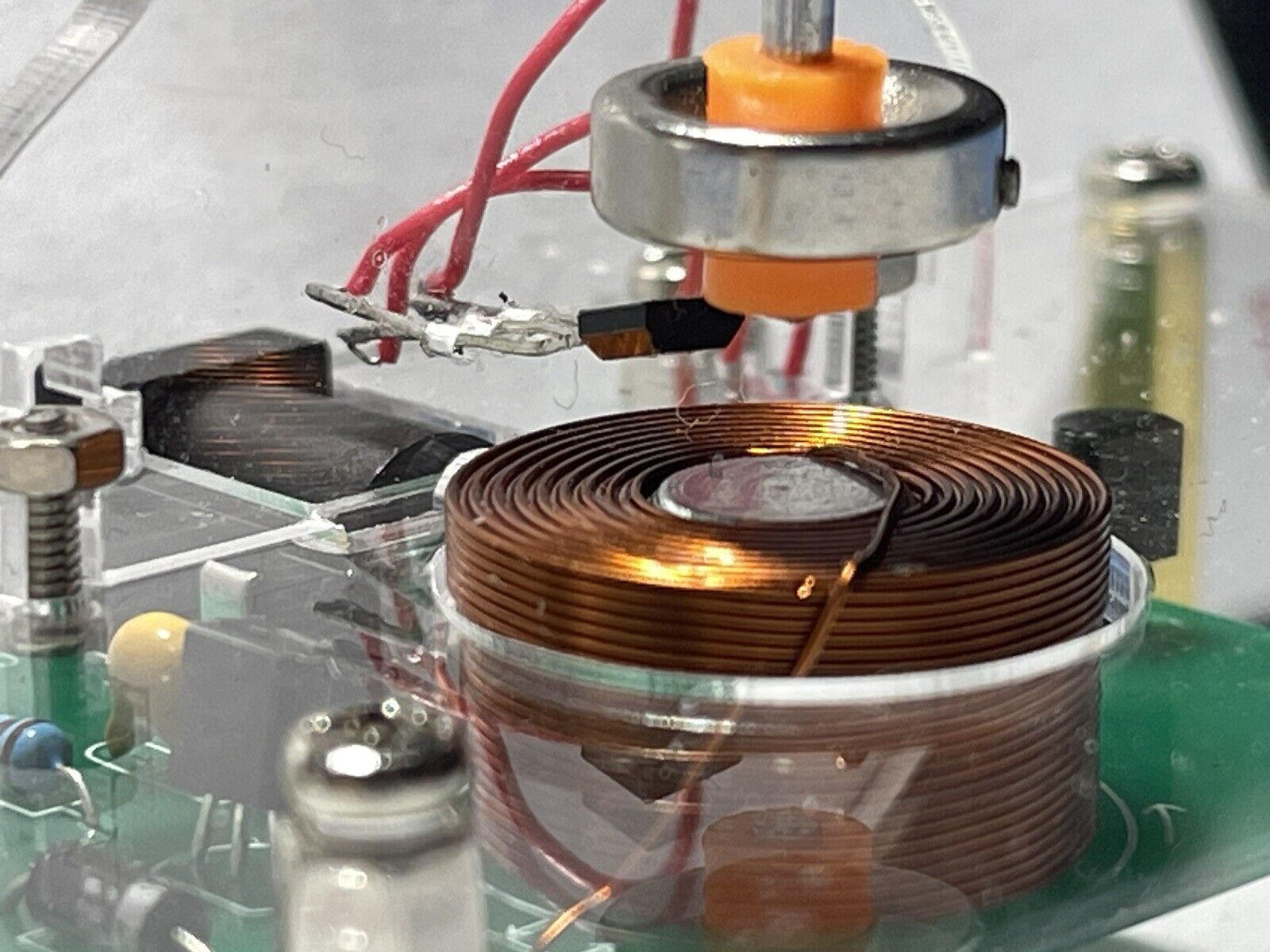

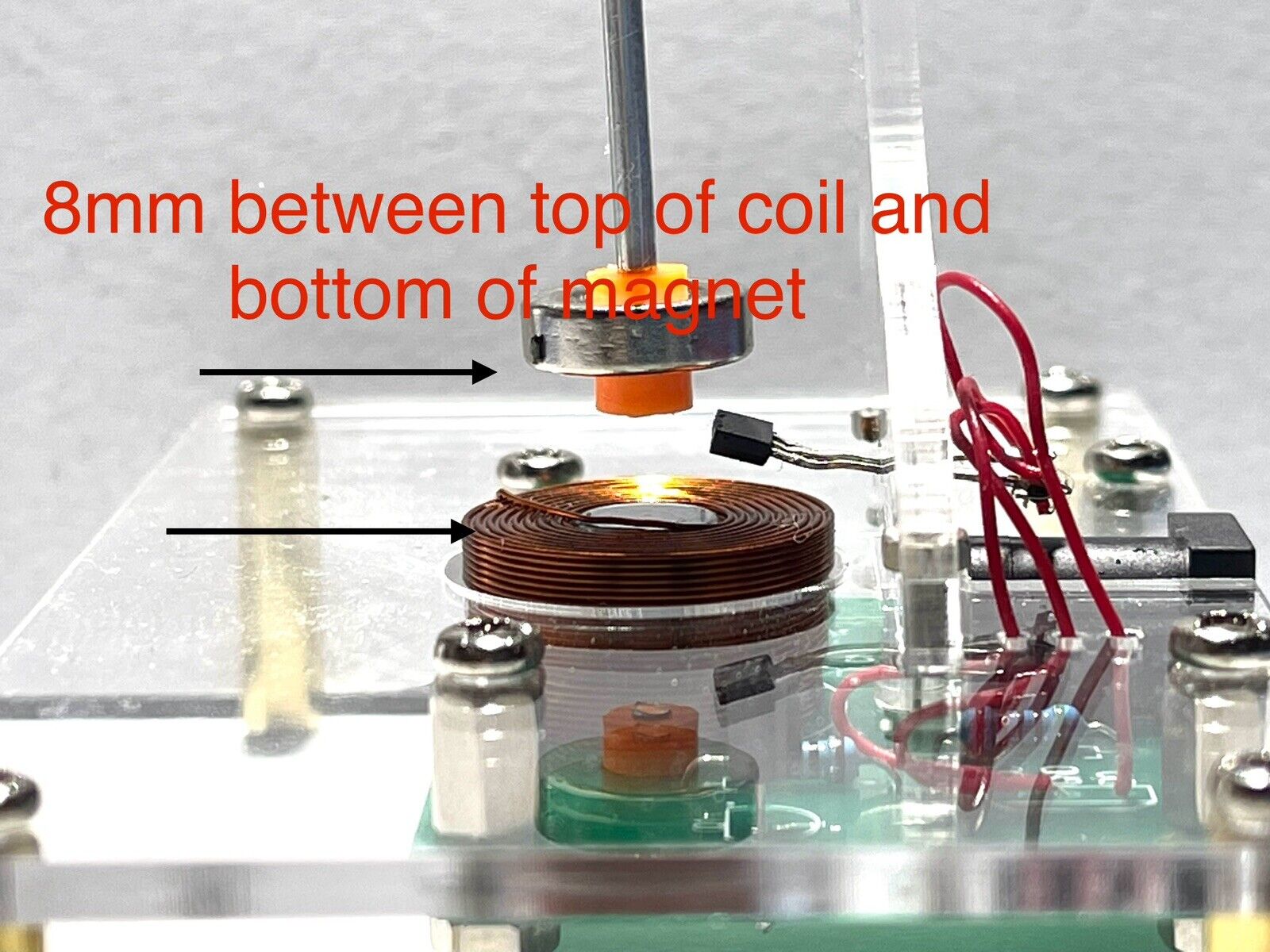

When the magnet is above the Hall sensor, the Hall sensor detects the magnetic field, it will output a low level, the triode Q1 will no longer conduct, the tertiary tube Q2 will conduct, in the conduction process, the current flows through the inductor L1, will produce a magnetic field in L1, the direction of the magnetic field is determined by the direction of the current flow in the coil, following the right-handed helix rule, when the coil's magnetic field and the magnet's magnetic field repel each other, the magnet will be Push away, the magnet is pushed away, the Hall sensor will no longer detect the magnetic field, it will output a high level, Q2 is no longer conductive, and L1 on the residual potential dissipated by D1. Thus repeating, the electronic swing will keep swinging.

Note: It's diy kits. Need to solder by yourself.

Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement.

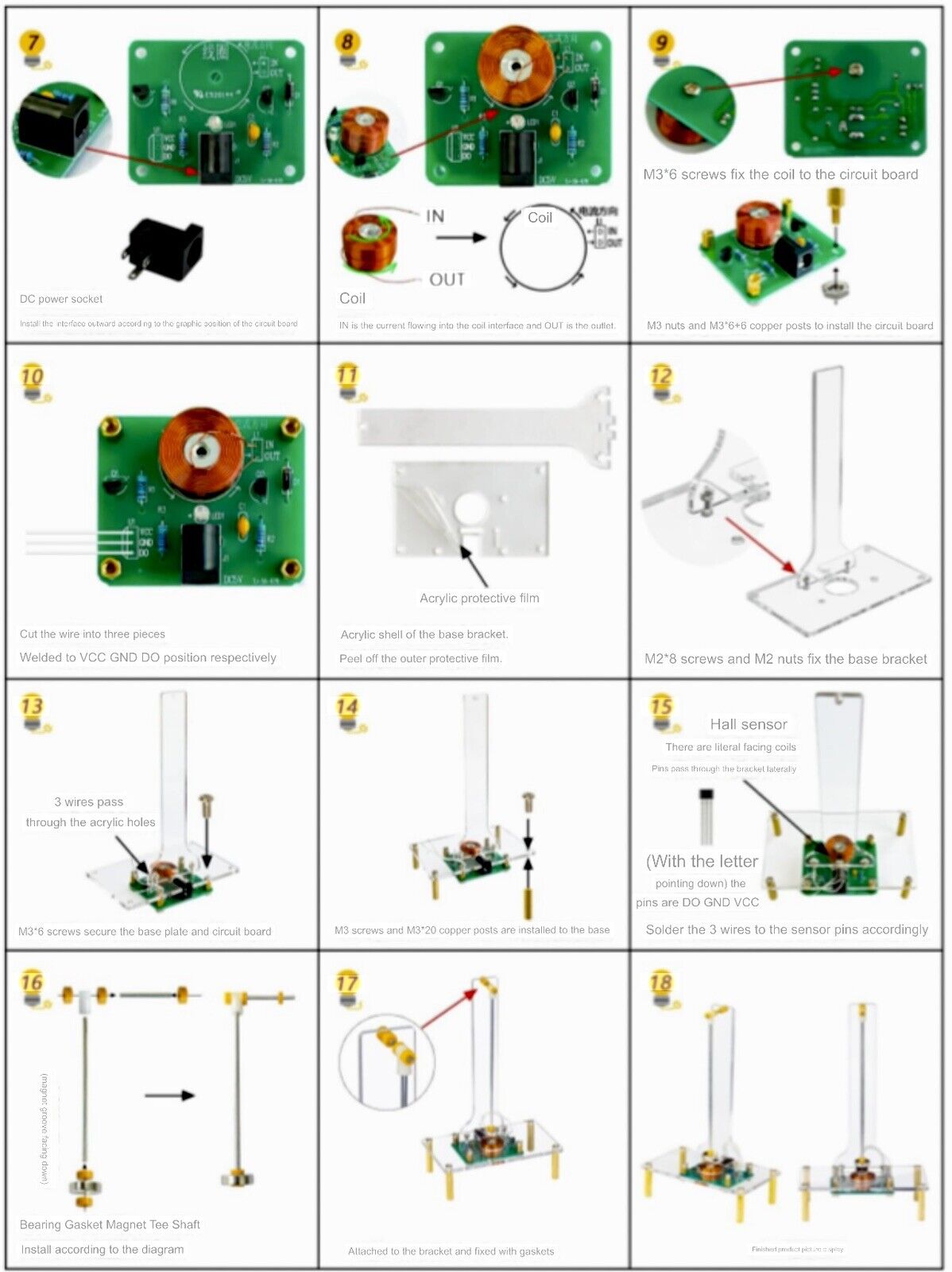

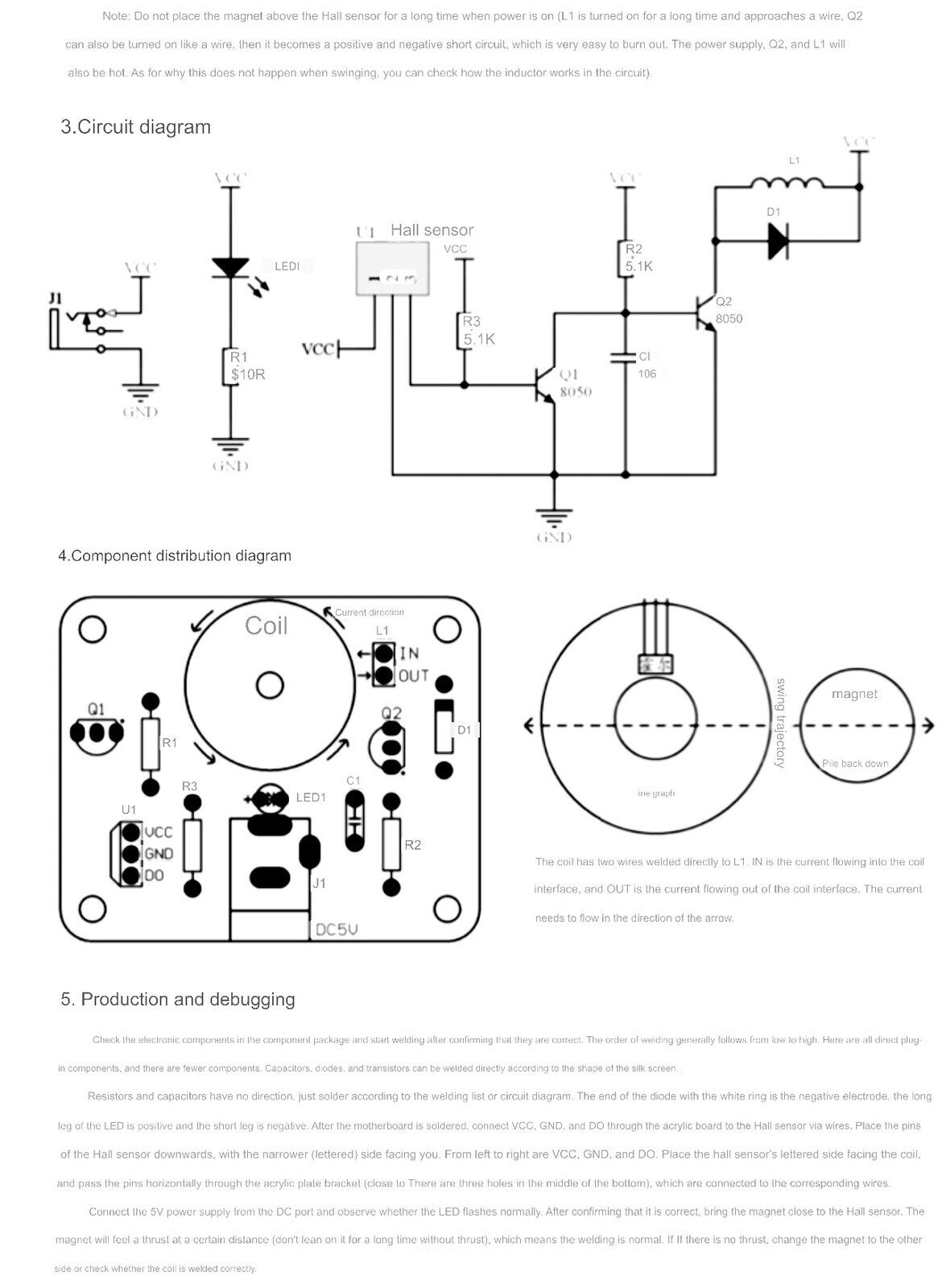

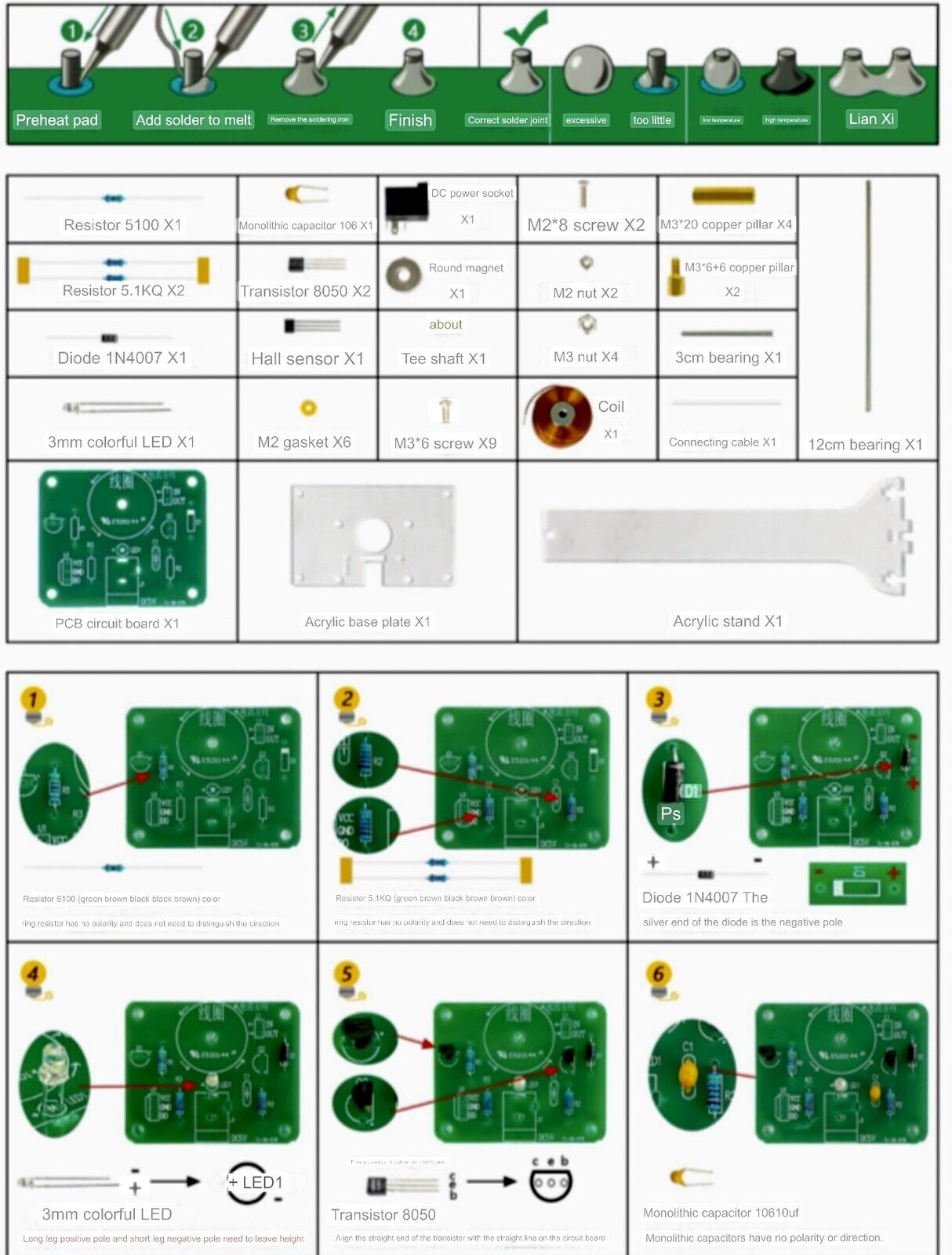

Detailed instructions in photos
