DIY Biaxial 3D Red-Blue Rotating LED Kit POV Creative SMD Soldering Training Kit

Brand: Unbranded/Generic

Type: Dual Rotating LED POV Kit

EAN: Does not apply

UPC: Does not apply

MPN: Does not apply

Year Manufactured: 2022

Country/Region of Manufacture: China

DIY Biaxial 3D Rotating LED Kit POV Creative Soldering Training Kit.



New version of Biaxial 3D Rotating LED kit.

1. Part of rotary plate are using wireless power supply, rotating noise greatly reduced.

2. Display part using bright 0805 monochrome LED, the system power supply voltage is 5V1A, rotating motherboard using STC microcontroller IAP15W4K61S4 control.

3. Clock chip using DS1302 comes with backup battery.

4. Support the remote control to adjust the time.

5. Remote control can switch a variety of display modes, to provide some open source C program, suitable for learning purposes.

6. Using 5V external power supply, matching USB power cable can be connected to 5V power supply such as the computer USB port, mobile phone charger, rechargeable, etc., but also DIY battery power: use four 1.5V dry battery series power supply or use two 3.7 V lithium battery in series!

7. Can send text, pictures, gif animation, calibration time through the host computer, the host computer software supports Chinese and English input. 2 sets of text can store a total of 850 Chinese or English characters! Monochrome text display! Can store 30 pieces of 32 pixels wide * long (10-200 pixels of the white background and black text monochrome image), and a group of up to 20 pictures composed of simple gif animation, using high-performance motor FR370, the speed is high enough to make the display stable.



Size (manual measurement, error 2mm, please understand):



Acrylic plate: 16.2 * 16.2cm

Main control board: 13 * 2.6cm

Side panel: 9.6cm high / 4.8cm high

Finished product reference height: 11cm



Note:



1. This is a DIY kit, you need to have some electronic knowledge and ability. SMD is unsoldered!!

2. The kit has certain difficulty, please buy according to your own situation.

3. Don't comes with TTL serial downloader.

4. The inner ring 16 LED lights display, the outer ring 32 LED lights display

5. Motor speed is high, no shell, please be careful to use!

6. Red light / blue light can be soldered according to personal preferences in the inner and outer ring.





Package includes:

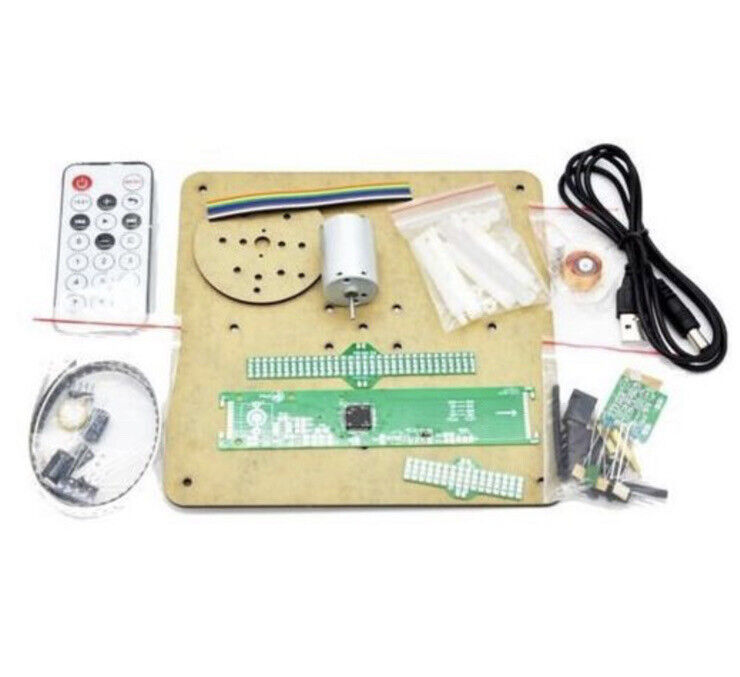

1 x DIY Biaxial 3D Rotating LED Kit

Spare parts: The MCU has been tested and related programs and subtitles have been downloaded before shipment. Other components are welded by the buyer. Both LED lights and resistors are packaged in 0805, which is difficult to solder. Please evaluate the soldering ability and purchase.



The rotating board part adopts wireless power supply mode, and the rotating noise is greatly reduced. The display part adopts bright 0805 monochromatic LED, the system power supply voltage is 5V1A, and the rotating main board is controlled by STC microcontroller IAP15W4K61S4. The clock chip uses a DS1302 with a backup battery, which can be kept for about one year when the power is turned off, and supports the remote controller to adjust the time. The remote control switches multiple display modes and provides some open source C programs, suitable for learning purposes.



It is powered by a 5V external power supply. The supporting USB power cable can be connected to a computer USB port, mobile phone charger, charging treasure, etc. 5V power supply, or it can be self-DIY transformed into battery power supply: use 4 1.5V dry batteries in series or use two 3.7 V lithium battery can be powered in series!
