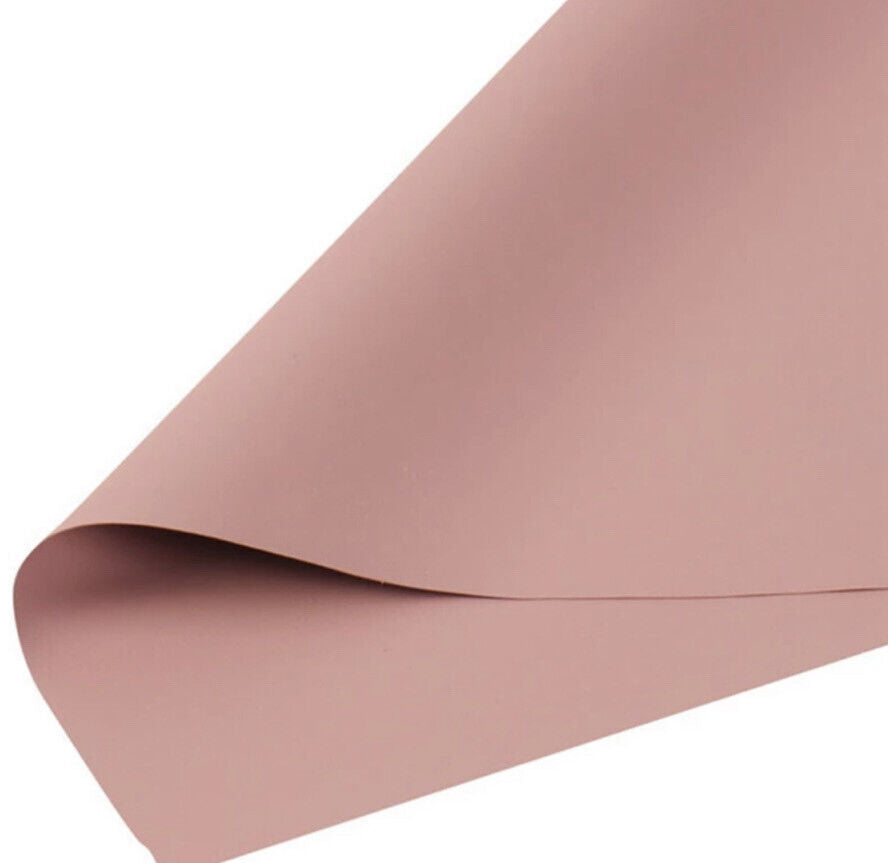

BM-900S Thermal Silicone Coated Fibreglass Pad for Heat Sink IGBT I/C300 X 300mm

Compatible Brand: Unbrand

Modification Description: No

Bundle Description: Yes

Custom Bundle: No

Material: Silicone Fibreglass

MPN: Does not apply

Item Length: 300mm

To Fit: MOSFET,MOSFET, IGBT, POWER TRANSISTOR

Colour: Pink

Brand: Unbrand

Type: Thermal Pad

Power Connection: Sandwich

Manufacturer Warranty: 1 year

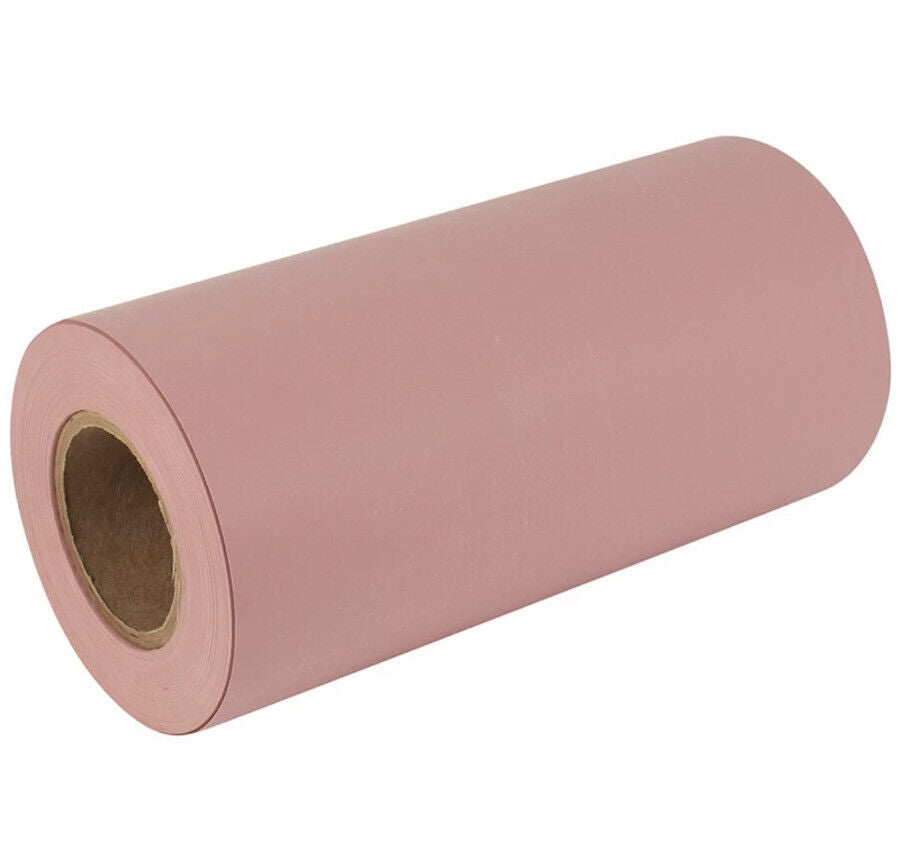

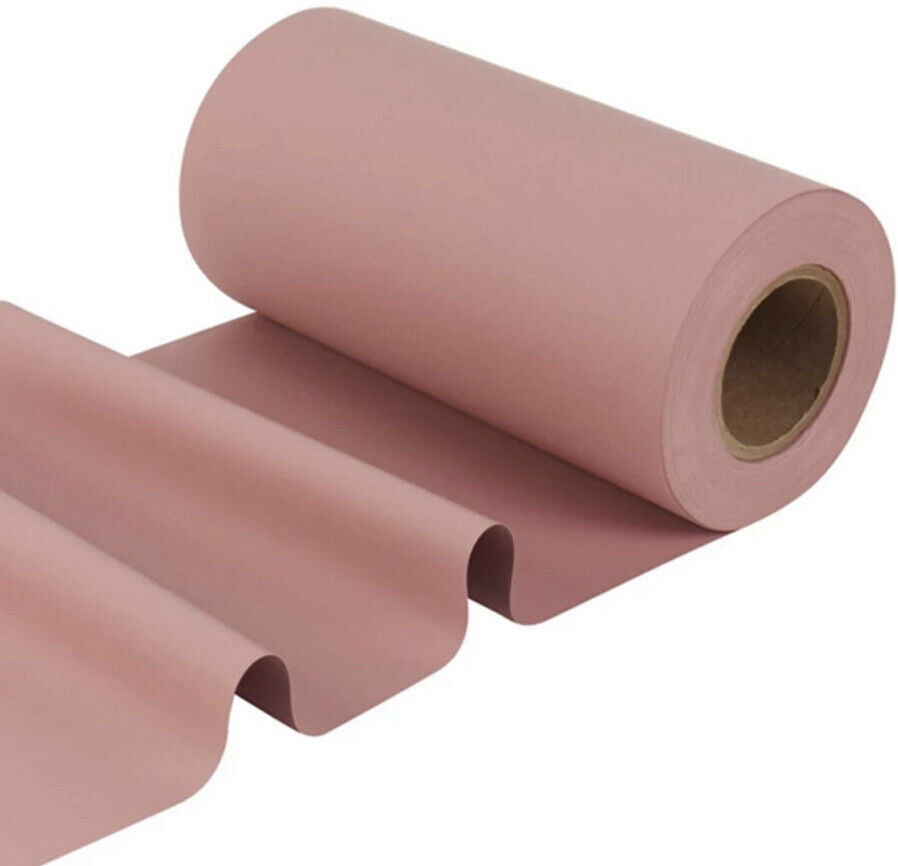

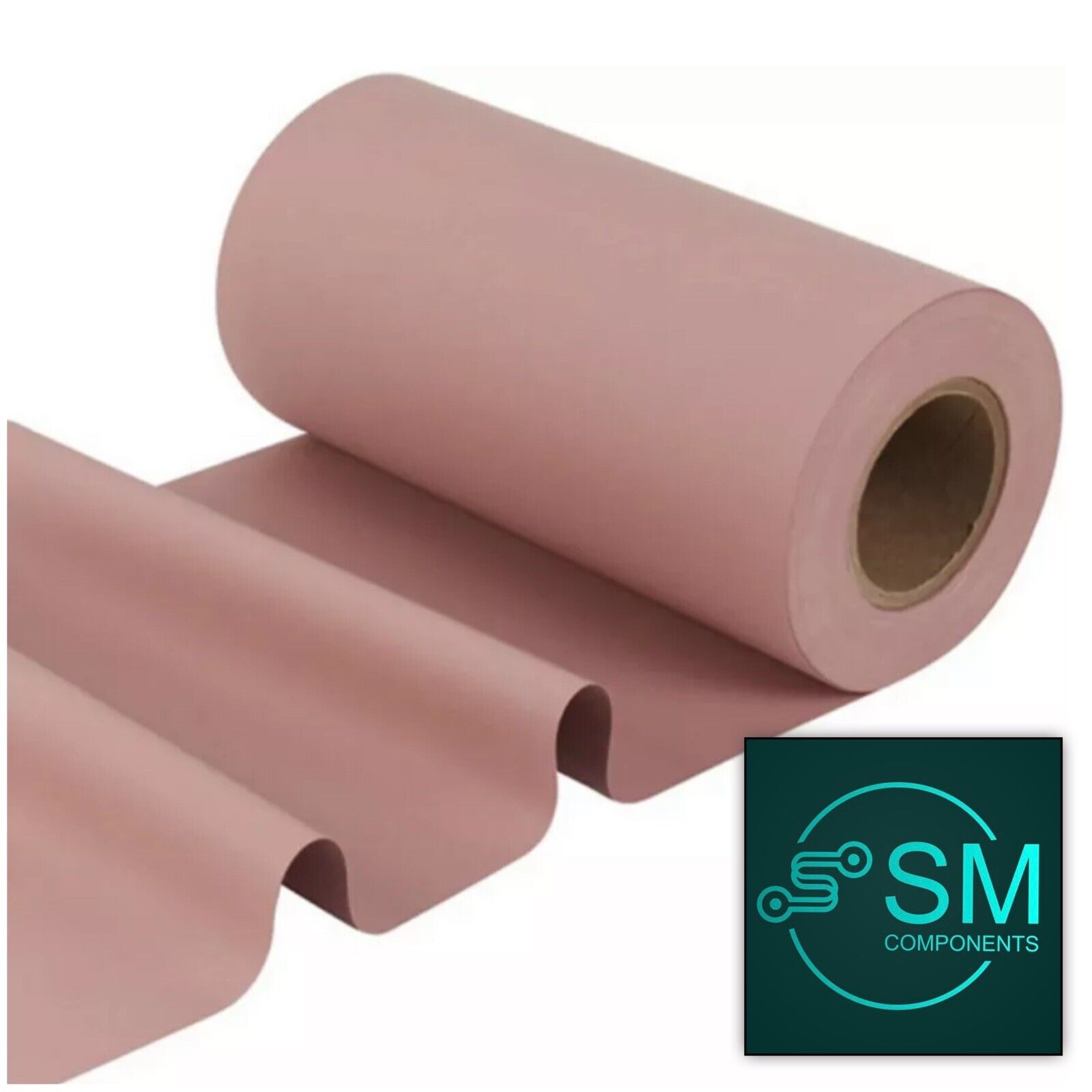

Packaging: Roll

Country/Region of Manufacture: China

Item Width: 300mm

BM-900S Thermal Silicone Coated Fibreglass Pad for Heat Sink IGBT MOSFETS . Condition is "Brand New"sent with Australia Post no tracking.

LISTING IS FOR 1 PIECE 300mm X 300mm

BM 900S Silicone Pad Insulator Fiberglass Silicone Based Thermal Insulating Cloth for Electrical Module

Features:Thermal resistance : 0.49︒C -in2/W (@ 50psi);Low fastening pressure

Hardness(shore A): 75+/-5

Dielectric Breakdown Voltage: 4.5KV

Thermal cloth can effectively reduce the thermal resistance between the electronic component and the radiator. It has good characteristic of electrical insulation, high dielectric strength, good thermal conductivity, high resistance chemical properties, in addition

It can withstand problem of short circuit of high voltage and metal piercing , and is an excellent thermal conductive insulation material to instead of the traditional mica and silicone grease.

Model Number: BM-900S

1.Strong tension resistance,

2.Wear resistance, excellent insulation performance,

3.Non adhesive on surface , thin thickness, suitable for thermal insulation of power devices.

Surface smooth and highly adapted

Application: Large power source and automobile electronic heating module

Motor control, communication equipment

Power semiconductor, IS MOS tube IGBT chip

High voltage , high temperature , high power welding machine etc.

Military, aviation

Heating power device

Other Specifications

Sheet, die-cutting, roll, with adhesive and without adhesive are available

Die cutting and adhesive are available

colour: pink

Material: glass fiber

size: 0.23mm * 300mm * 300mm

Package Contents:

Thermally Conductive Insulator

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
