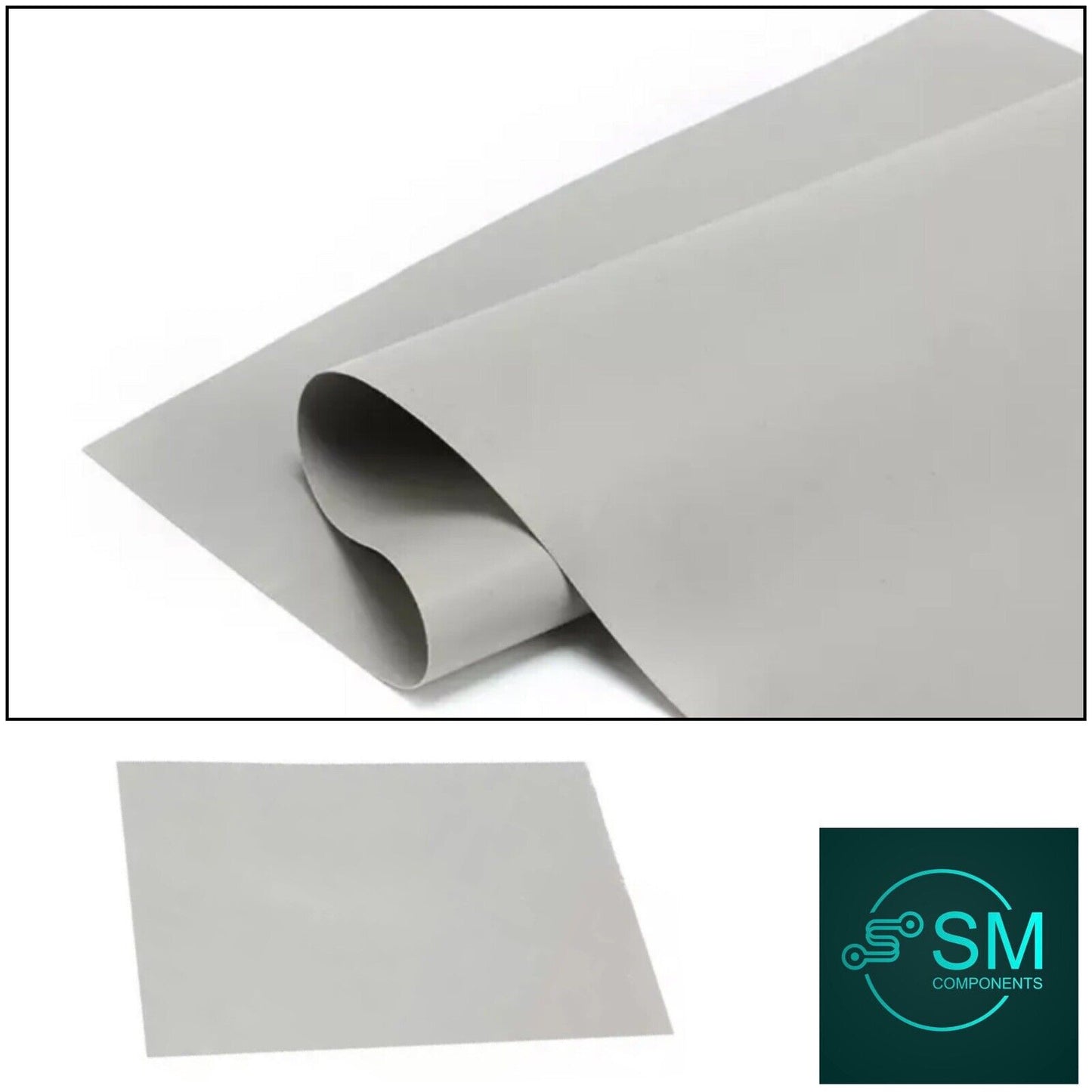

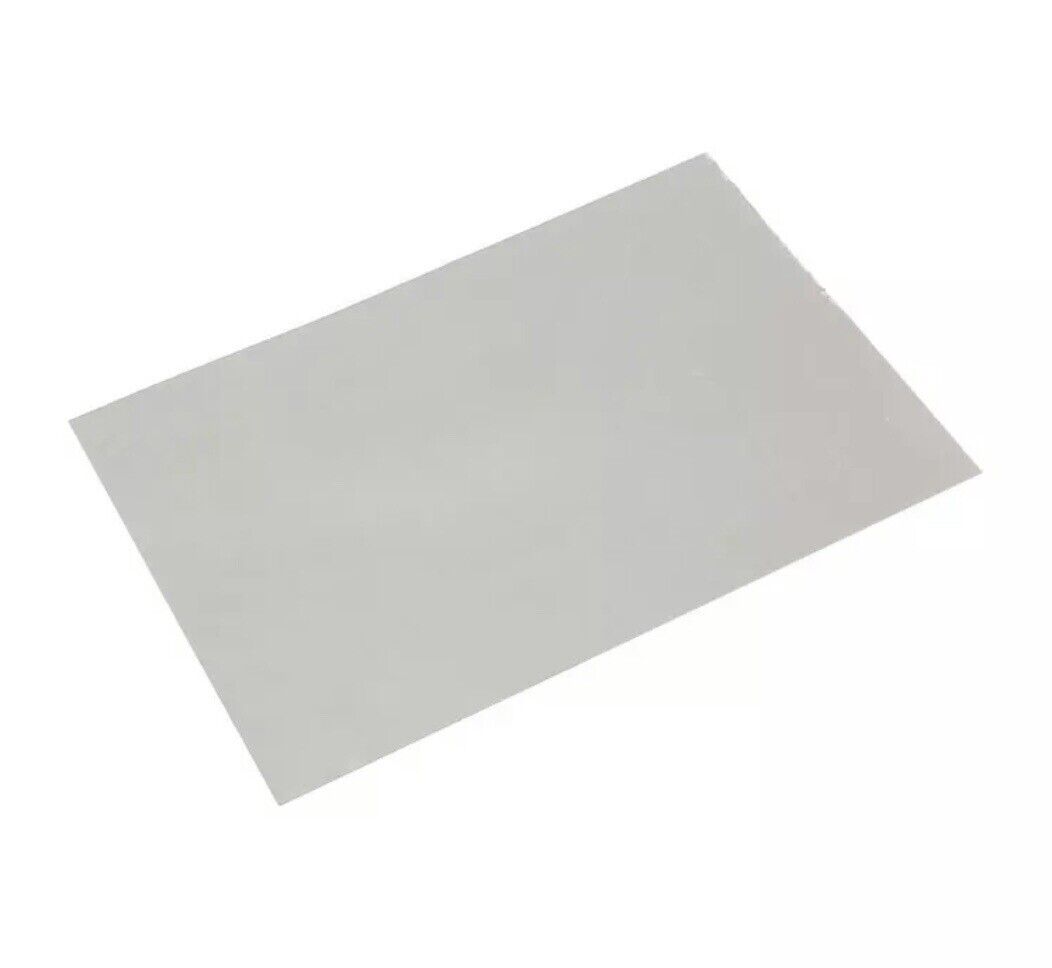

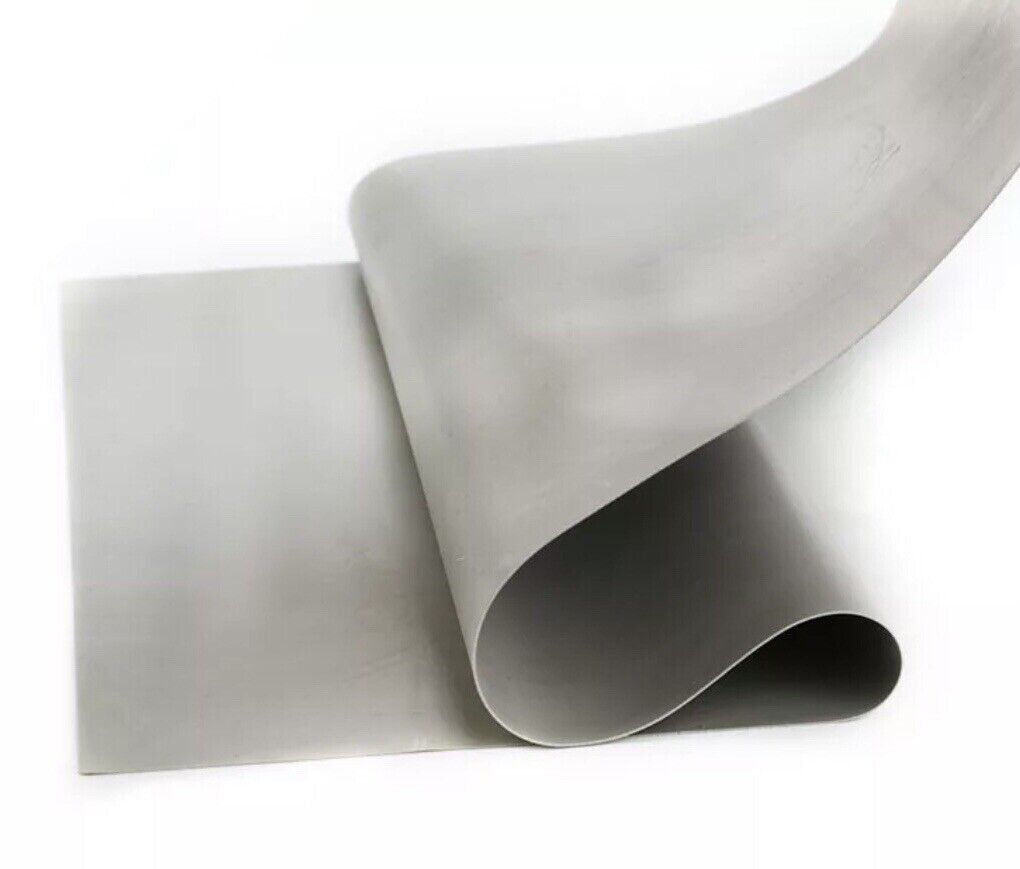

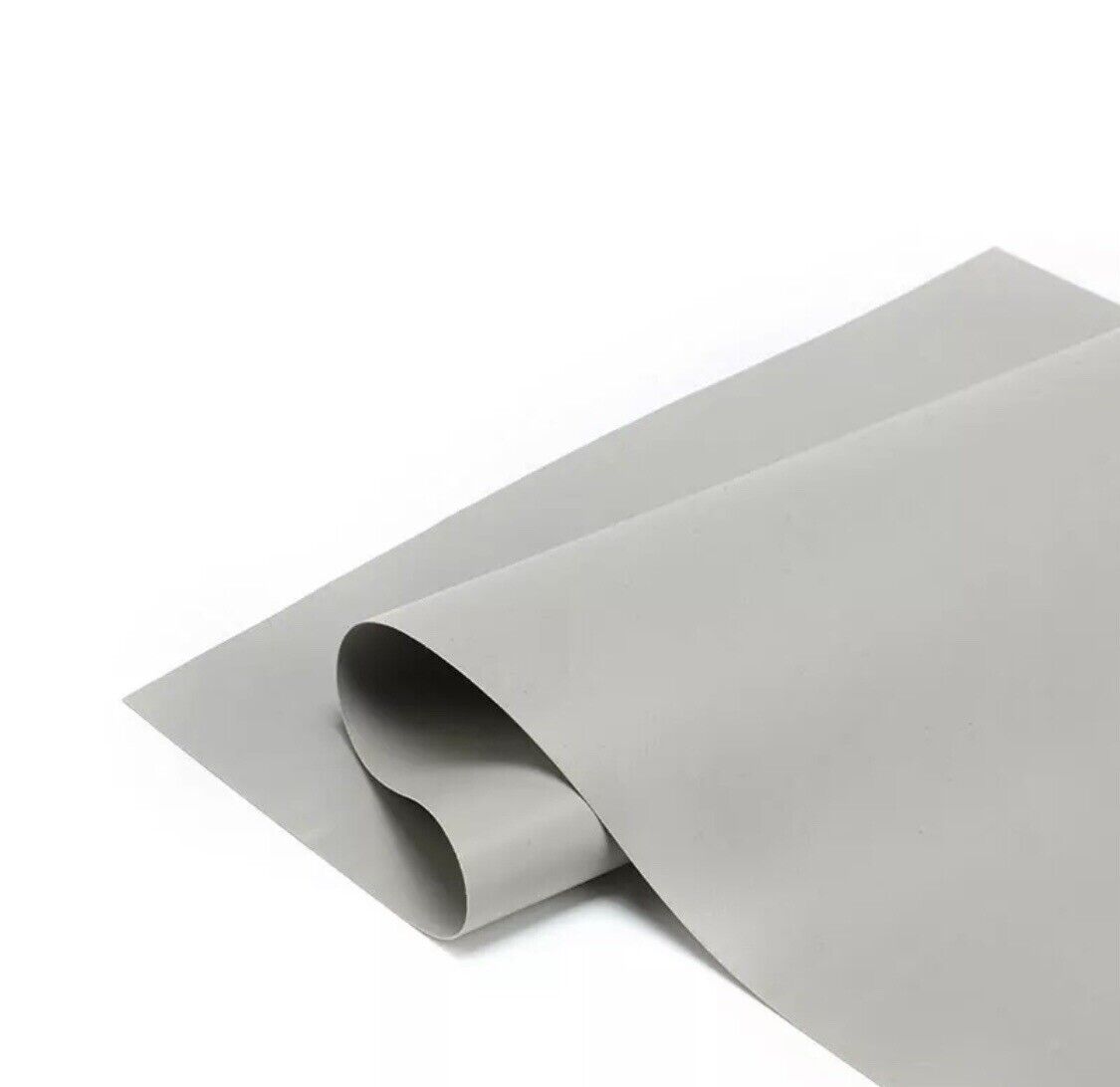

BM-120 Thermal Silicone Coated Fibreglass Pad for Heat Sink IGBT MOS 300 X 330mm

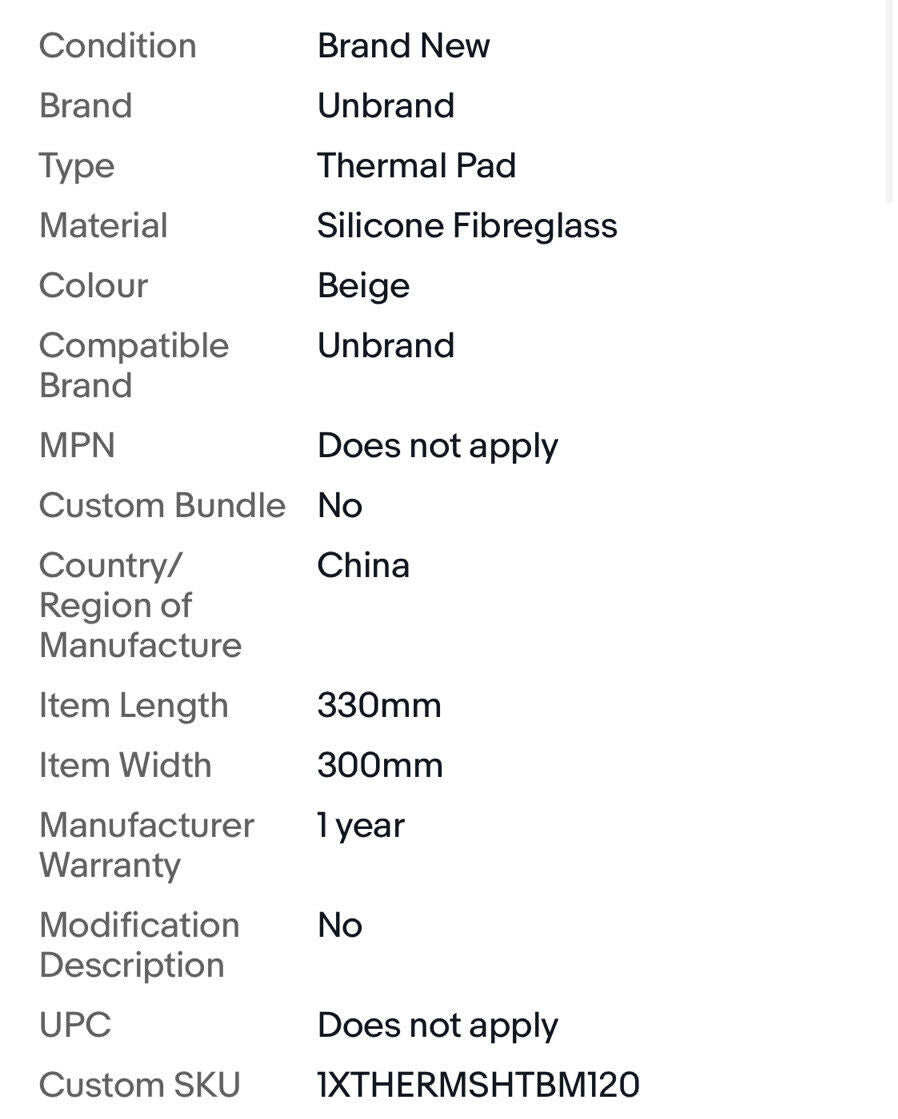

Compatible Brand: Unbrand

Modification Description: No

Bundle Description: Yes

Custom Bundle: No

Material: Silicone Fibreglass

MPN: Does not apply

Item Length: 330mm

Colour: Beige

Brand: Unbrand

Type: Thermal Pad

Manufacturer Warranty: 1 year

Country/Region of Manufacture: China

Item Width: 300mm

BM120 Thermal Silicone Coated Fibreglass Pad for Heat Sink IGBT MOSFETS . Condition is "Brand New"sent with Australia Post no tracking.

Hardness(shore A): 75+/-5

Dielectric Breakdown Voltage: 4.5KV

Thermal Conductivity: 1.0w/m.k

the can effectively reduce the thermal resistance between the electronic component and the radiator. It has good characteristic of electrical insulation, high dielectric strength, good thermal conductivity, high resistance chemical properties, in addition

It can withstand problem of short circuit of high voltage and metal piercing , and is an excellent thermal conductive insulation material to instead of the traditional mica and silicone grease.

Model Number: BM120

Shape: Flat Gasket

Standard or Nonstandard: Standard

1.Dielectric strength high

2.Good thermal conductivity

3.Good toughness, tear resistance

4.Surface soft, no viscosity on surface

5.High voltage insulation performance

6.Strong withstand voltage, wear resistance

7.Thin thickness, suitable for insulation and thermal power device.

Application:

1. , aviation ;

2. Large power source ;

3. Heating power device;

4. Automobile electronic heating module ;

5. Motor control, communication equipment;

6. Power semiconductor, IS MOS tube IGBT chip;

7. High voltage, high temperature, high power welding machine etc.

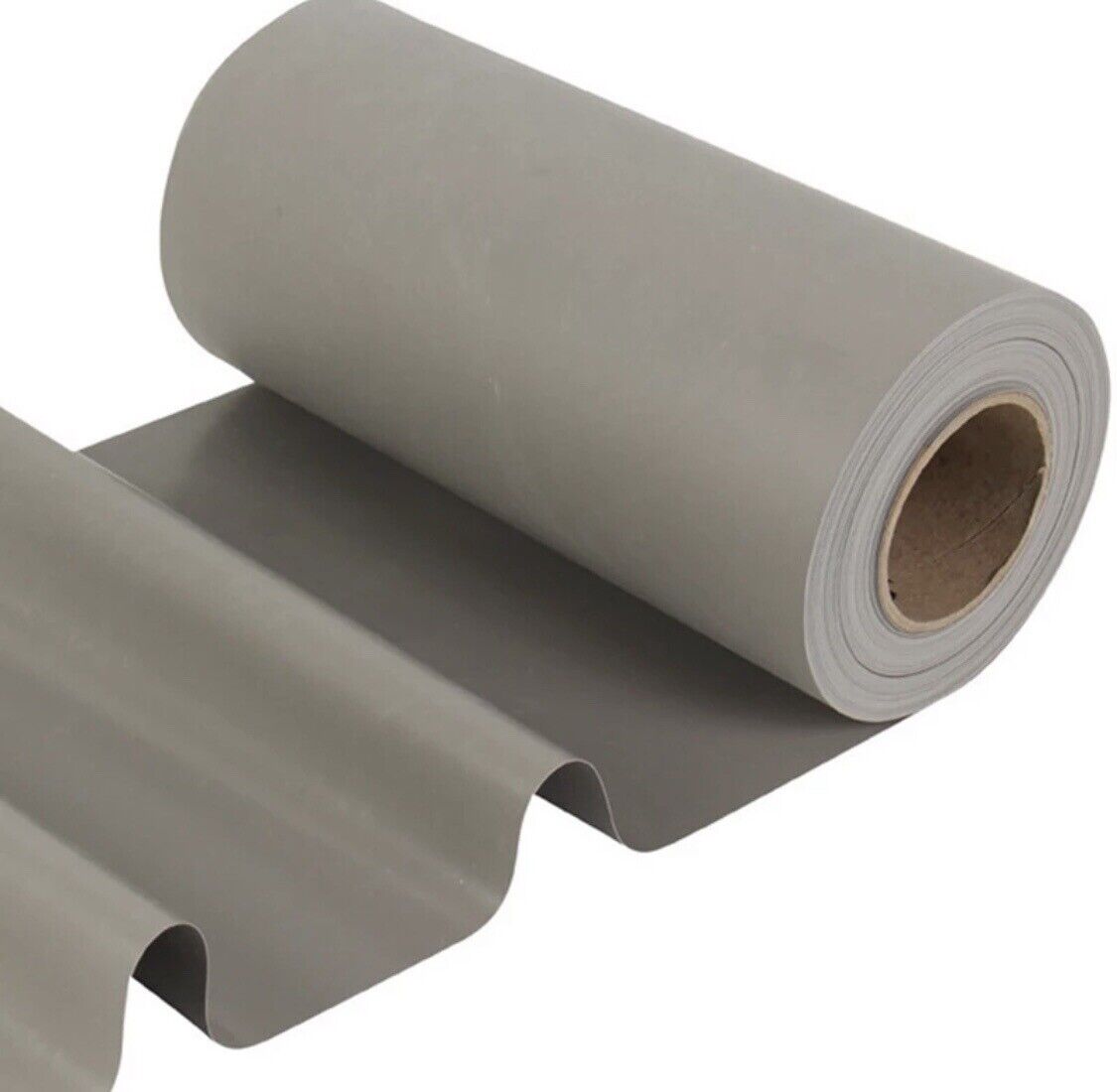

Sheet, die-cutting, roll, with adhesive and without adhesive are available

Property Parameter Table

colour: grey

Material:glass fiber

size:0.3mm*300mm*330mm

Package Contents:

1*Thermal Silicone Pad
