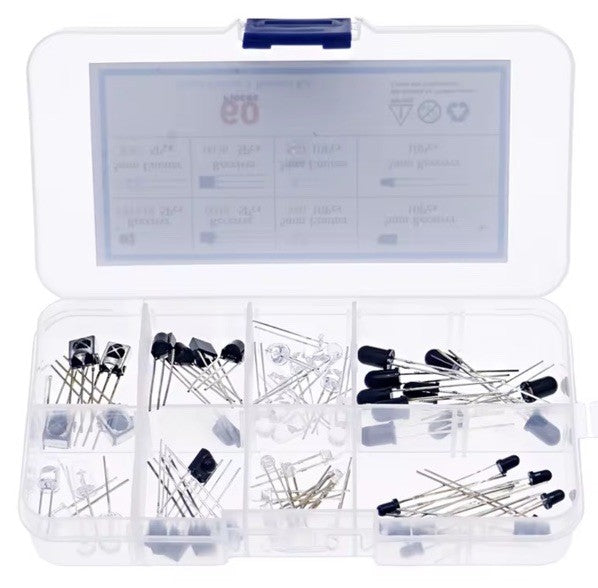

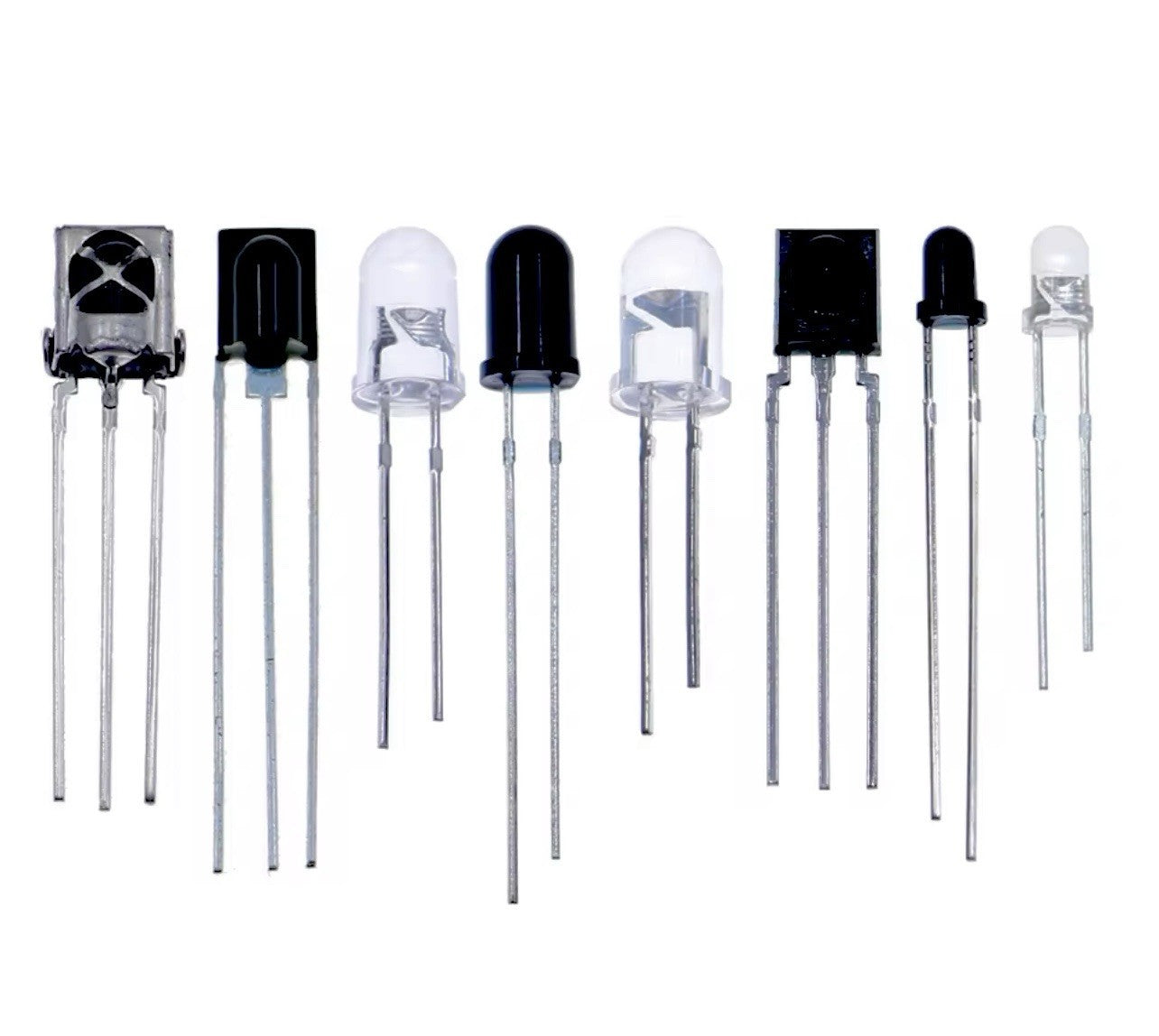

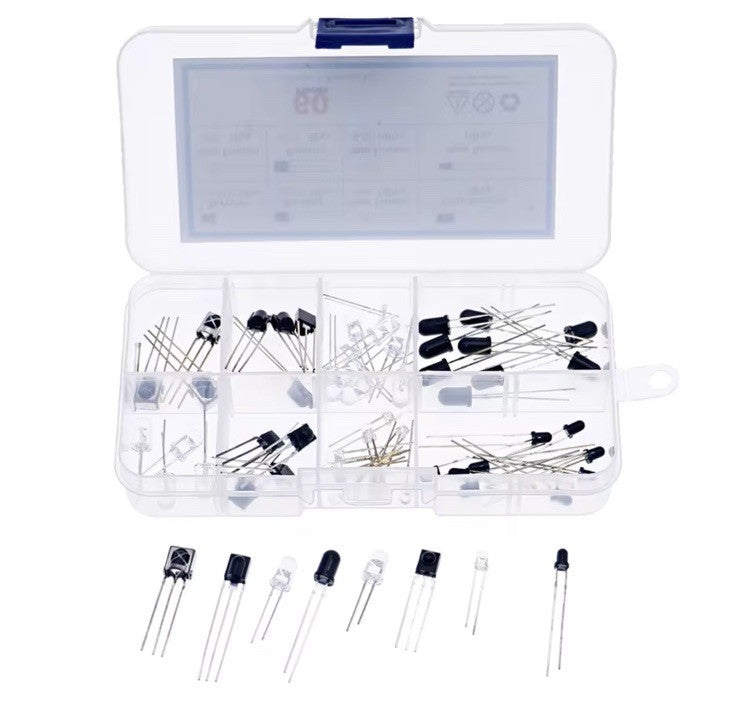

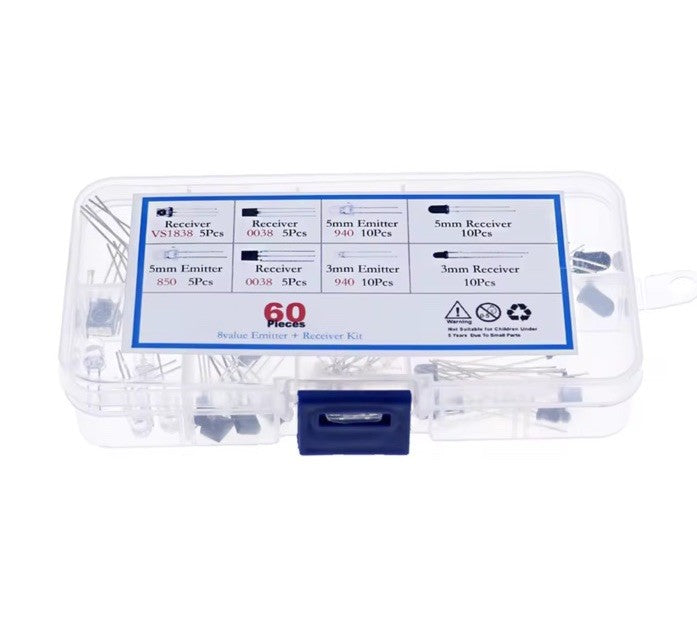

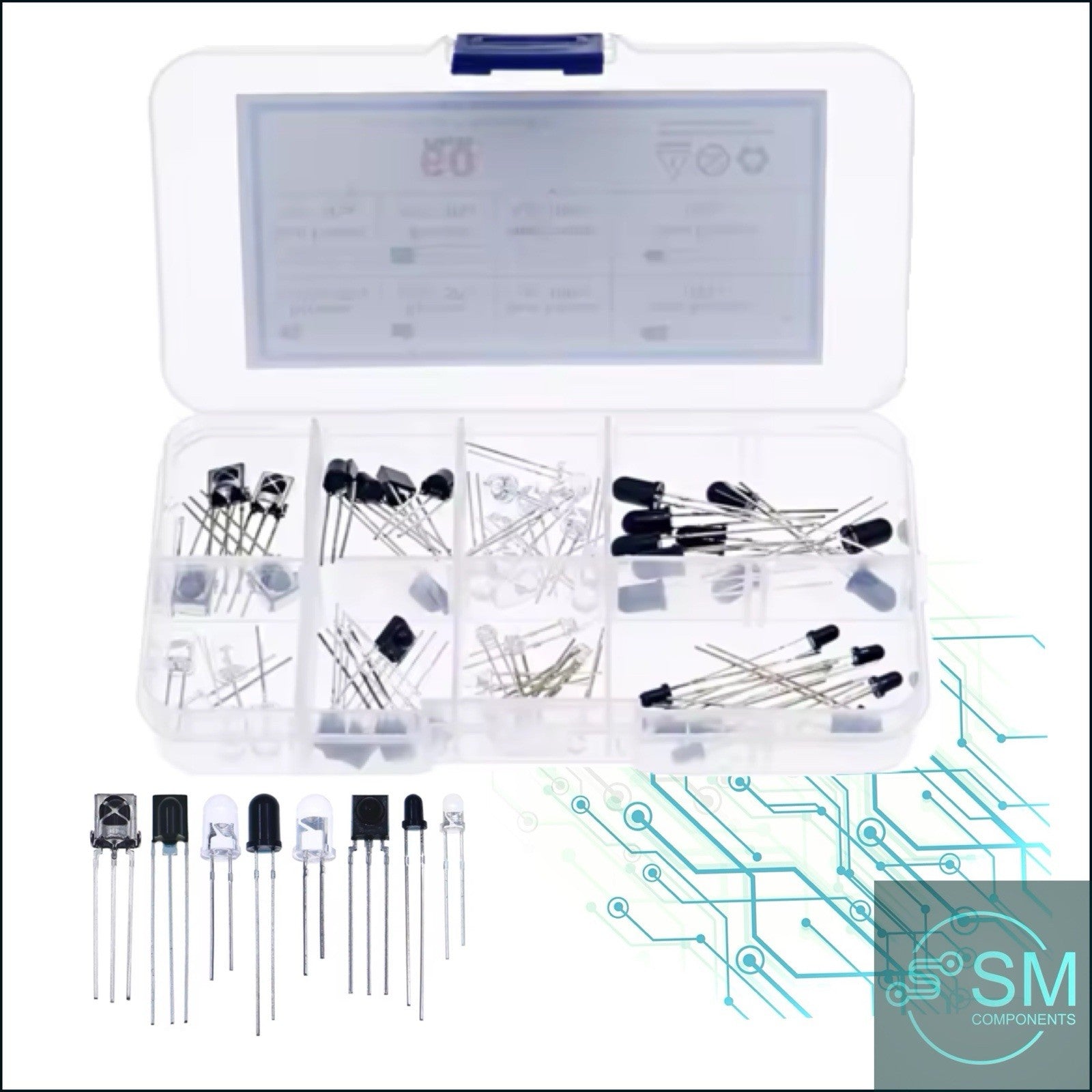

60Pcs IR Infrared Kit 3 & 5mm VS1838 0038 850nm 940nm Receiver & Emitter LED Kit

Mounting Style: Through-Hole

Nominal Current Rating: 20 mA

Configuration: Single

Viewing Angle: 30°

Item Diameter: 3mm & 5mm

Lens Shape: Round & Flat

Lens Surface: Clear & Dark Grey

Nominal Voltage: 1.2V - 5V Component Specific

Package/Case: F3, F5, VS1838, 0038

Forward Current: 20 mA

MPN: Does Not Apply

Wavelength: 850nm - 940nm

Brand: Unbranded

Package Contents: 60 Pieces Including Case

Type: F3-F5 With Bottom Edge

Number of Pins: 2 Pin & 3 Pin

Packaging: Plastic Tidy Case

LED Colour: IR Infrared 850nm 940nm

Number of LEDs: 60 Pieces

Unit Quantity: 60 Pieces

Country of Origin: China

Diameter: 3mm & 5mm

Forward Voltage: 3 V

60pcs 3mm 5mm 850nm 940nm VS1838 IR LED Emitting Diode Assort Kit Transmitter Receiver Infrared Lamp Emitter.

Item is “Brand New” sent with Australia Post Parcel Post including tracking number.

Description:

3mm/5mm 940nm Emitter:

Lens: Clear Lens

Receiving Angle: 45°

Voltage: 1.2V-1.5V

Current: 20mA

Recived Distance: 12M

3mm/5mm 940nm Receiver:

Lens: Black Lens

Receiving Angle: 30°

Current: 20mA

Recived Distance: 12M

VS1838 Receiver:

Lens: Black Lens

Receiving Angle: 70°

Voltage: 3-5V

Frenquecy: 38khz

Recived Distance: 15M

0038 Receiver:

Lens: Black Lens

Receiving Angle: 45°

Voltage: 3-5V

Frenquecy: 38khz

Recived Distance: 15M

5mm 850nm infrared transmitter

Infrared power: 0.3W

Current: 100 mA

Infrared intensity: 250 mW/ Sr

Launch Angle :45 degrees

Voltage: 1.3 - 1.5 V

Wave length: 850 nm

General purpose IR Infrared 3mm, 5mm 2 Pin & 3 Pin Emitter & Receiver LEDs, ideal for all diy electronics projects.
