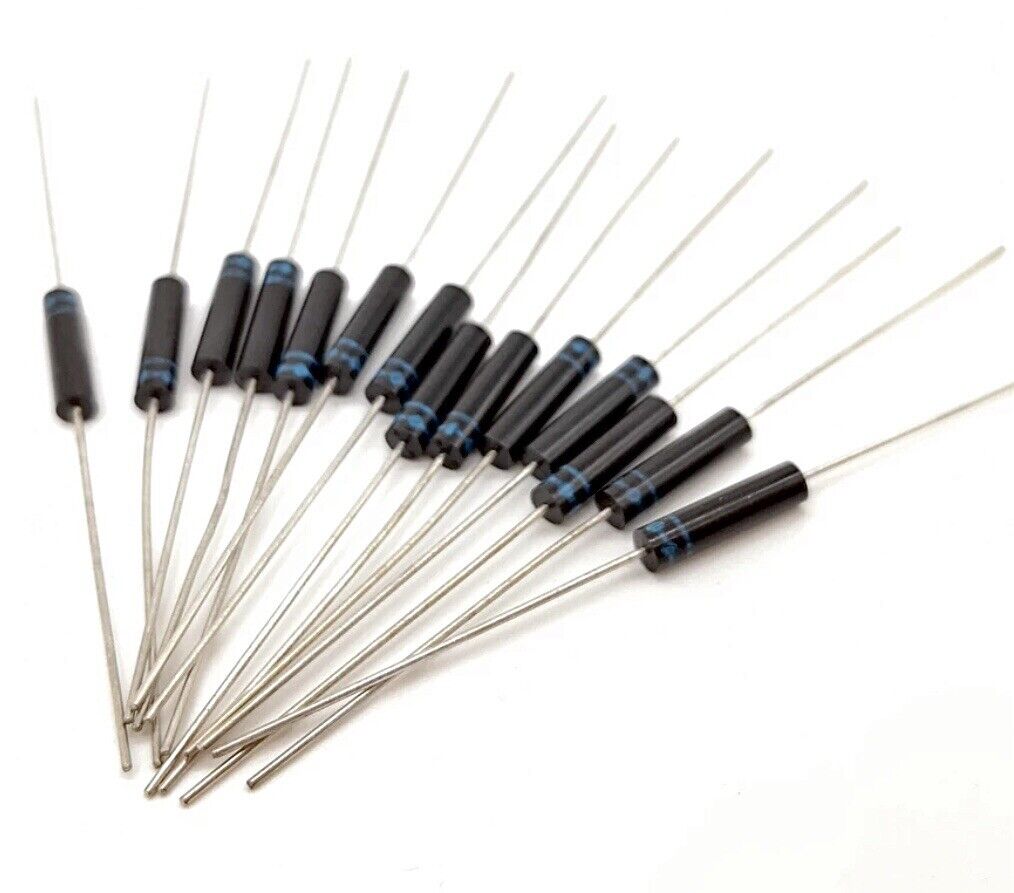

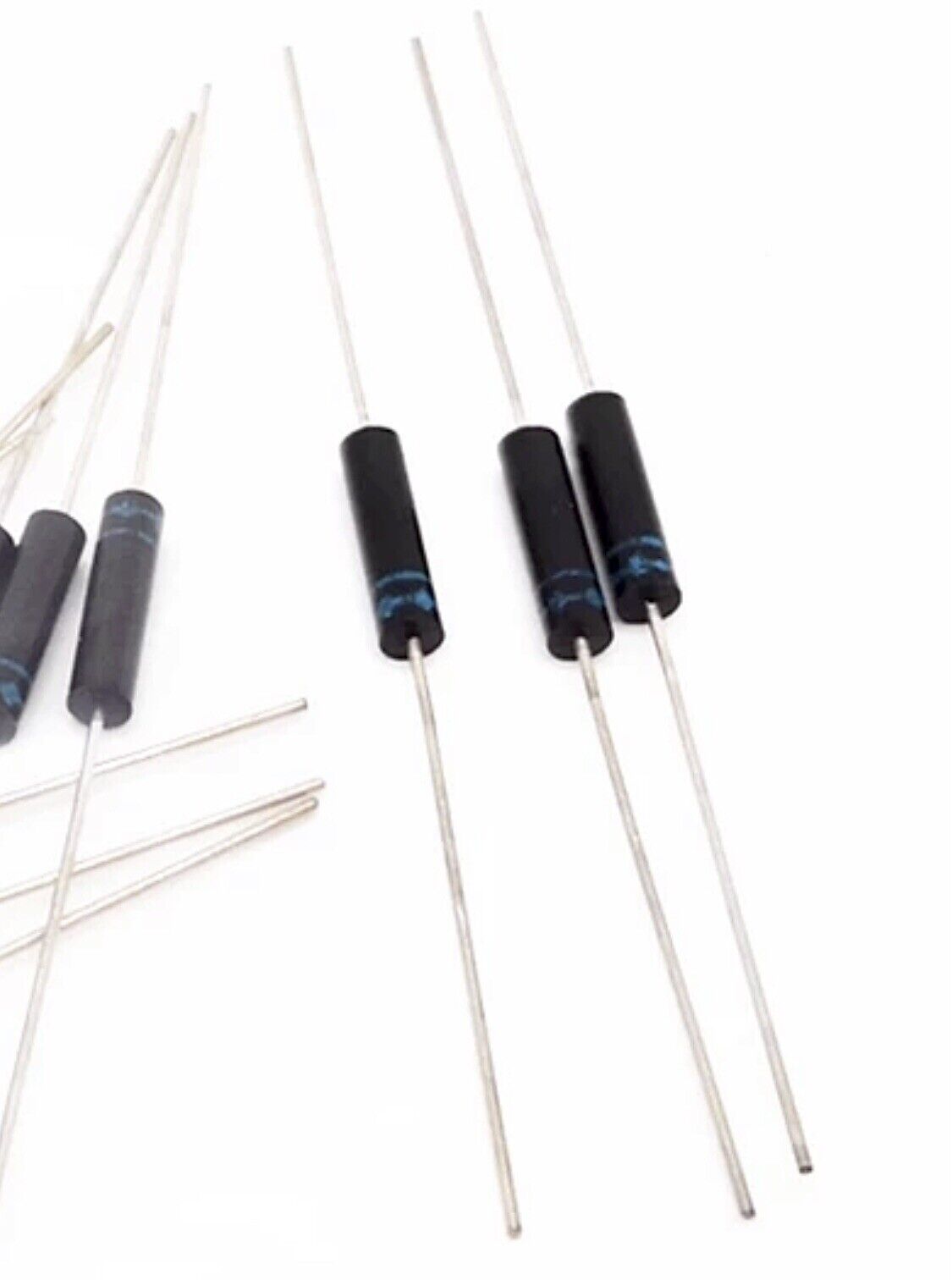

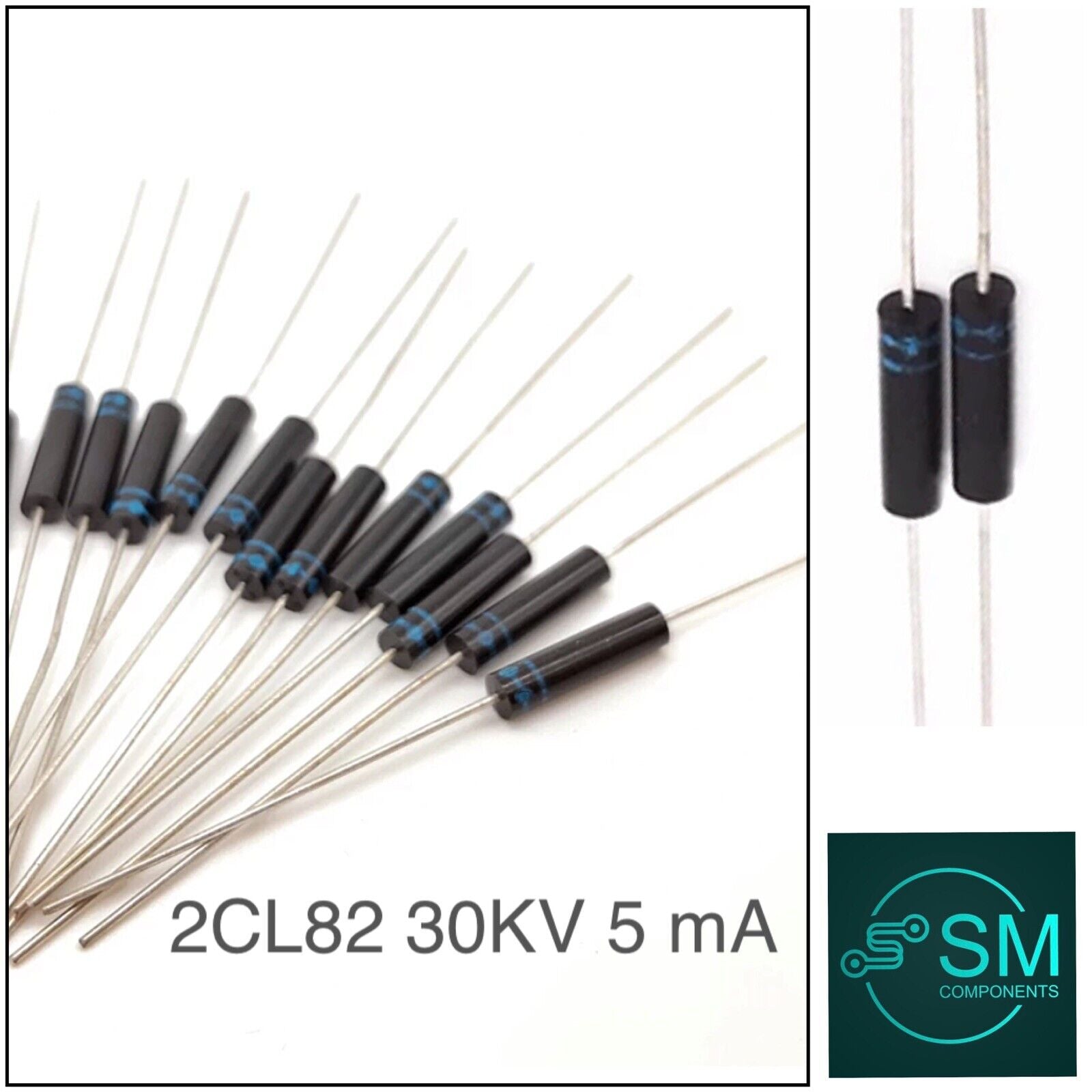

5PCS High Voltage Diode 2CL82 5mA 30kV High Frequency Silicon

Mounting Style: PCB Mount

Material: Silicone

Item Length: 12.0mm

Minimum Operating Temperature: -40 °C

Brand: Ronglan

Type: High Voltage Silicon Diode

Maximum Diode Capacitance: 1pF

Diode Configuration: Single

Item Height: 3.0mm

Number of Pins: 2

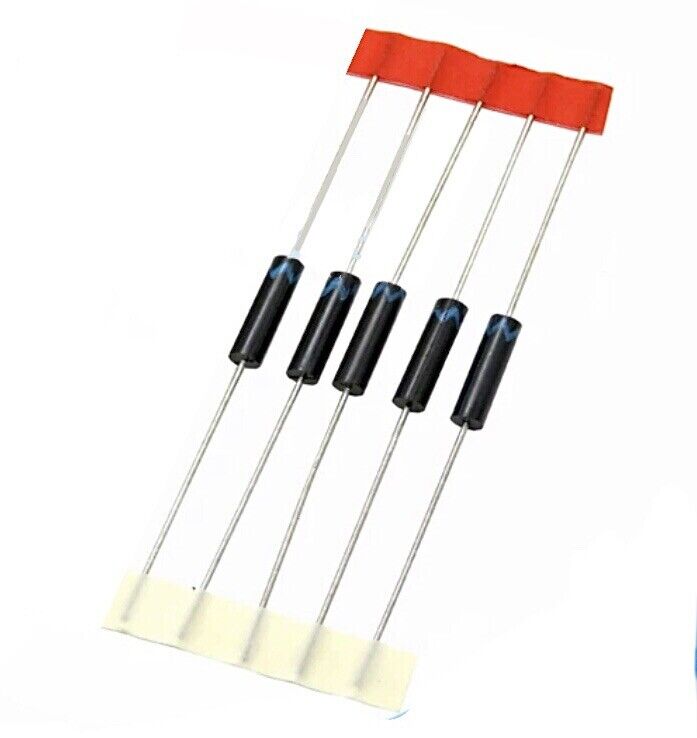

Packaging: Tape & Antistatic Bag

Maximum Continuous Current: 5mA

Maximum Operating Temperature: 70 °C

Country/Region of Manufacture: China

5PCS High Voltage Diode 2CL82 5mA 30kV High Frequency Silicon.

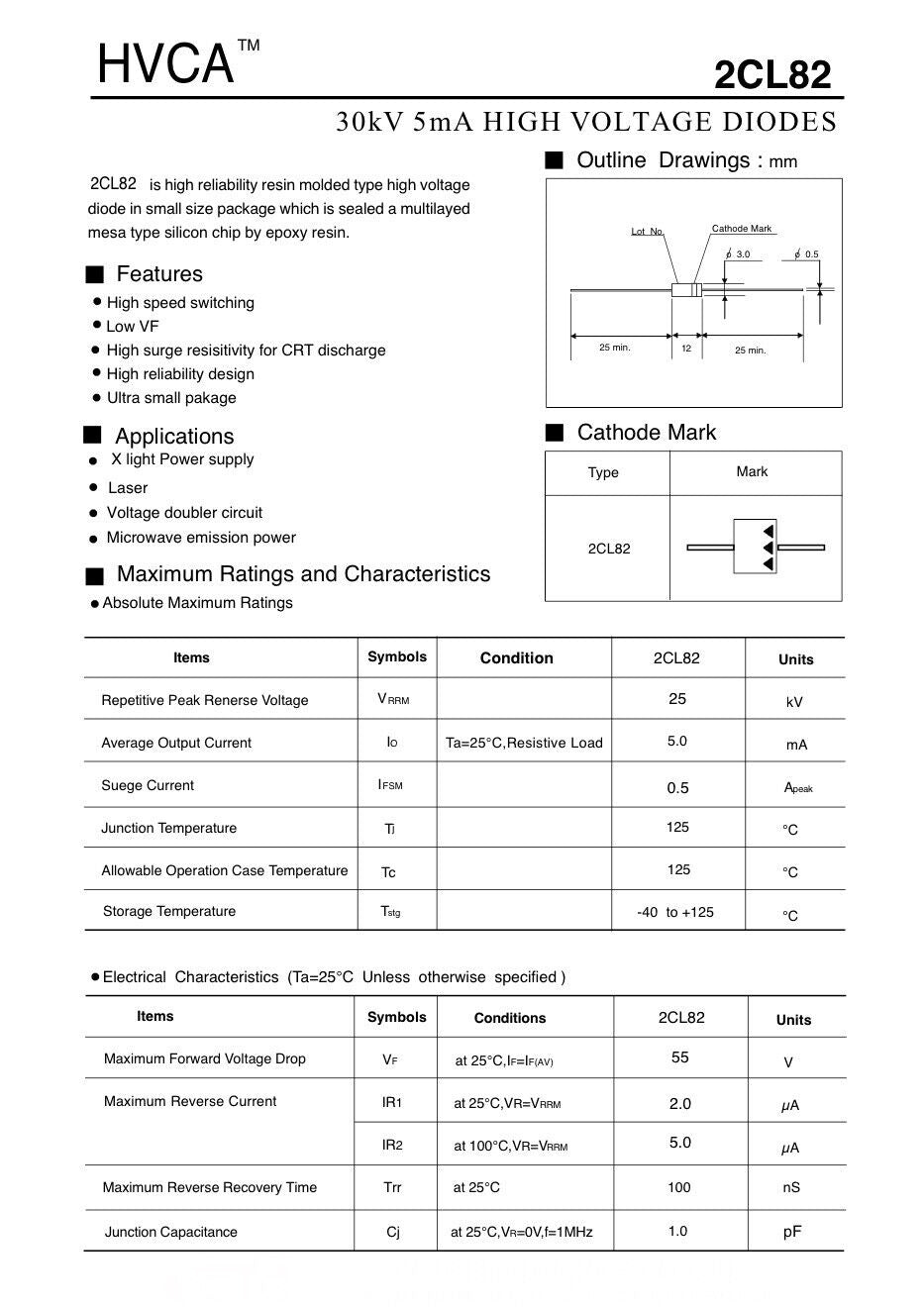

2CL82 Parameters Table Datasheet in Photos

Model Type: 2CL82

Manufacturer: RONGLAN

Repetitive peak reverse voltage VRRM 30kV

Average Forward Current IF(AV) 5.0mA

Surge non repetitive forward current IFSM: 0.5A

Peak forward voltage IF= 10 (mA) VFM 55V

Reverse DC CurrentVR= VRRM(kV) IRTa = 25 - 2uA

Reverse recovery time Trr: 100nS

Reverse DC CurrentVR= VRRM(kV) IRToil =100 - 5uA

PN junction capacitance Cj. 1.0pF

Operating temperature Tj -40 ~ 125

Storage Temperature Tstg -40 ~ 125

Dimensions Shape Size: (Unit: mm)

Leads: 27.0mm

Diode: 3.0mm diameter x 12mm length
