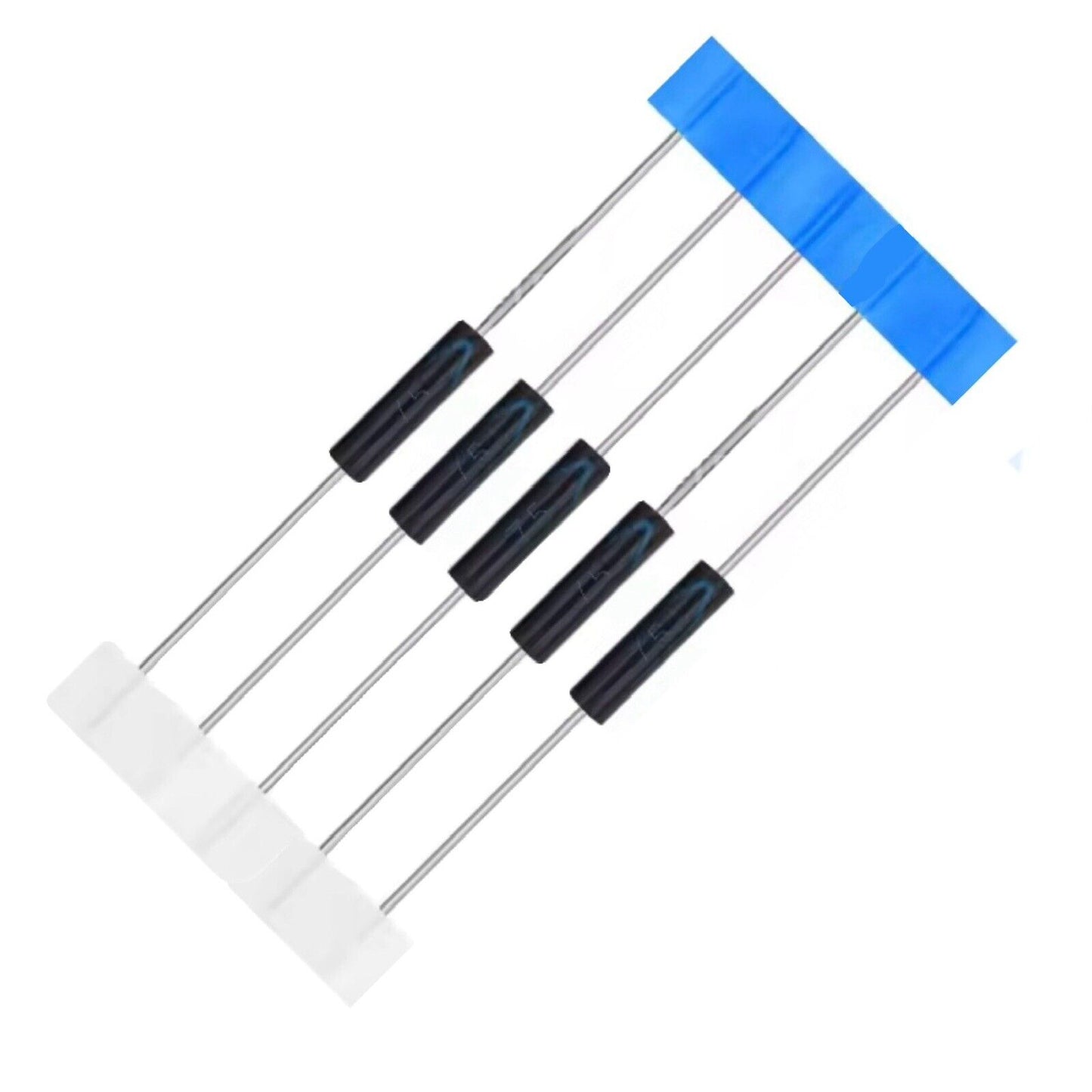

5PCS High Voltage Diode 2CL20KV 20mA 20kV High Frequency Silicon Rectifier Diode

Mounting Style: PCB Mount

Number of Phases: 1

Peak Forward Voltage: 40kv

Material: Silicone

Item Length: 16mm Body 27mm Legs

Minimum Operating Temperature: -40 °C

Brand: Tianjin Semiconductors

Type: High Voltage Silicon Diode

Diode Configuration: Series

Item Height: 3.0mm

Number of Pins: 2

Packaging: Tape & Antistatic Bag

Maximum Continuous Current: 5mA

Reverse Current: 5 µA

Maximum Operating Temperature: 100 °C

Country/Region of Manufacture: China

UPC: Does not apply

5PCS High Voltage Diode 2CL20-20 20mA 20kV High Frequency Silicon.

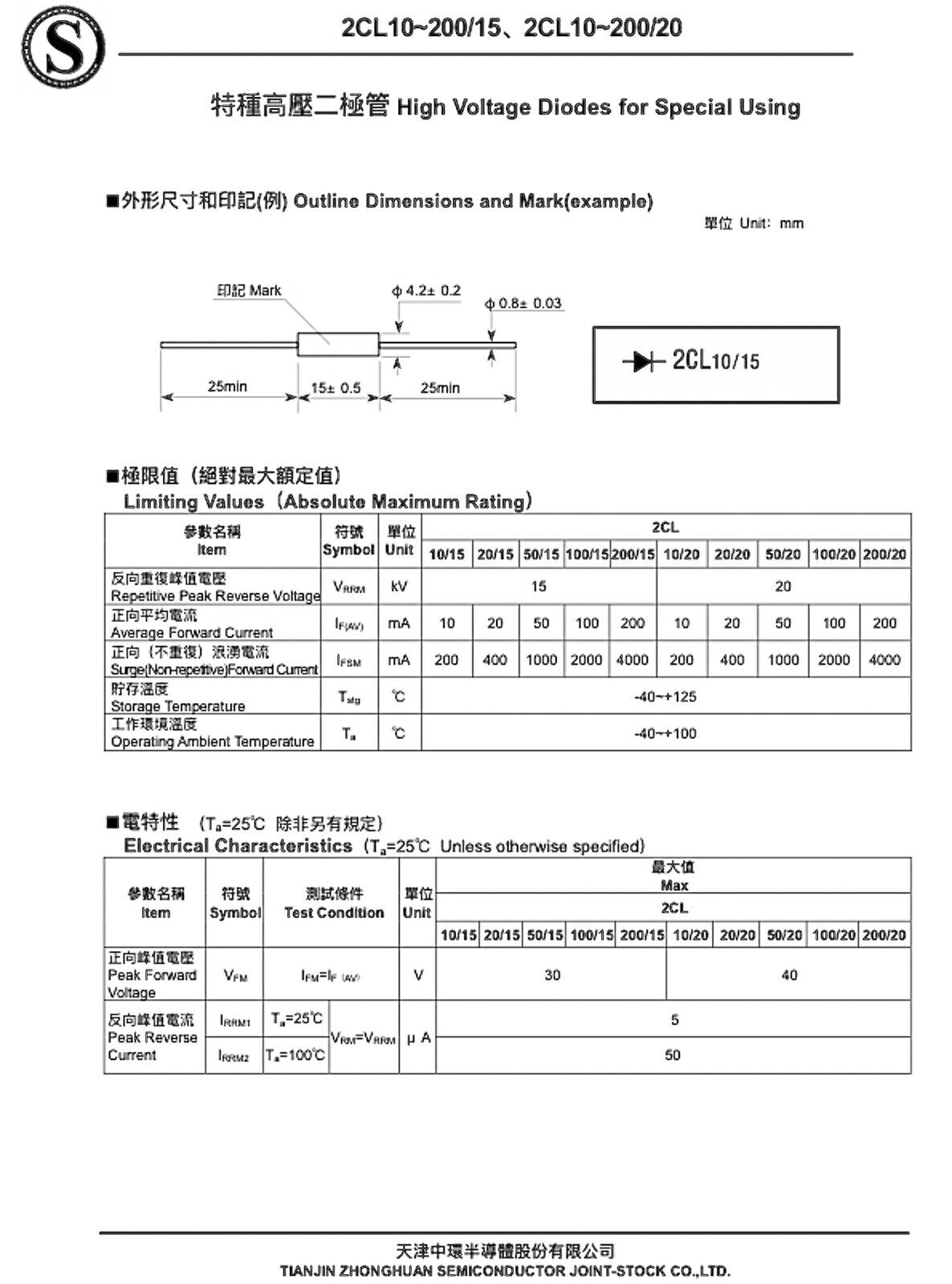

2CL20-20 Parameters Table Datasheet in Photos

Model Type: 2CL20-20

Manufacturer: Tianjin Semiconductors

Repetitive peak reverse voltage VRRM 20kV

Average Forward Current IF(AV) 20.0mA

Surge non repetitive forward current IFSM: 0.2A

Peak forward voltage IF= 10 (mA) VFM 55V

Reverse DC CurrentVR= VRRM(kV) IRTa = 40- 5uA

Reverse recovery time Trr: 100nS

Reverse DC CurrentVR= VRRM(kV) IRToil =100 - 5uA

PN junction capacitance Cj. 1.0pF

Operating temperature Tj -40 ~ 100

Storage Temperature Tstg -40 ~ 100

Dimensions Shape Size: (Unit: mm)

Leads: 27.0mm

Diode: 3.0mm diameter x 16mm length
