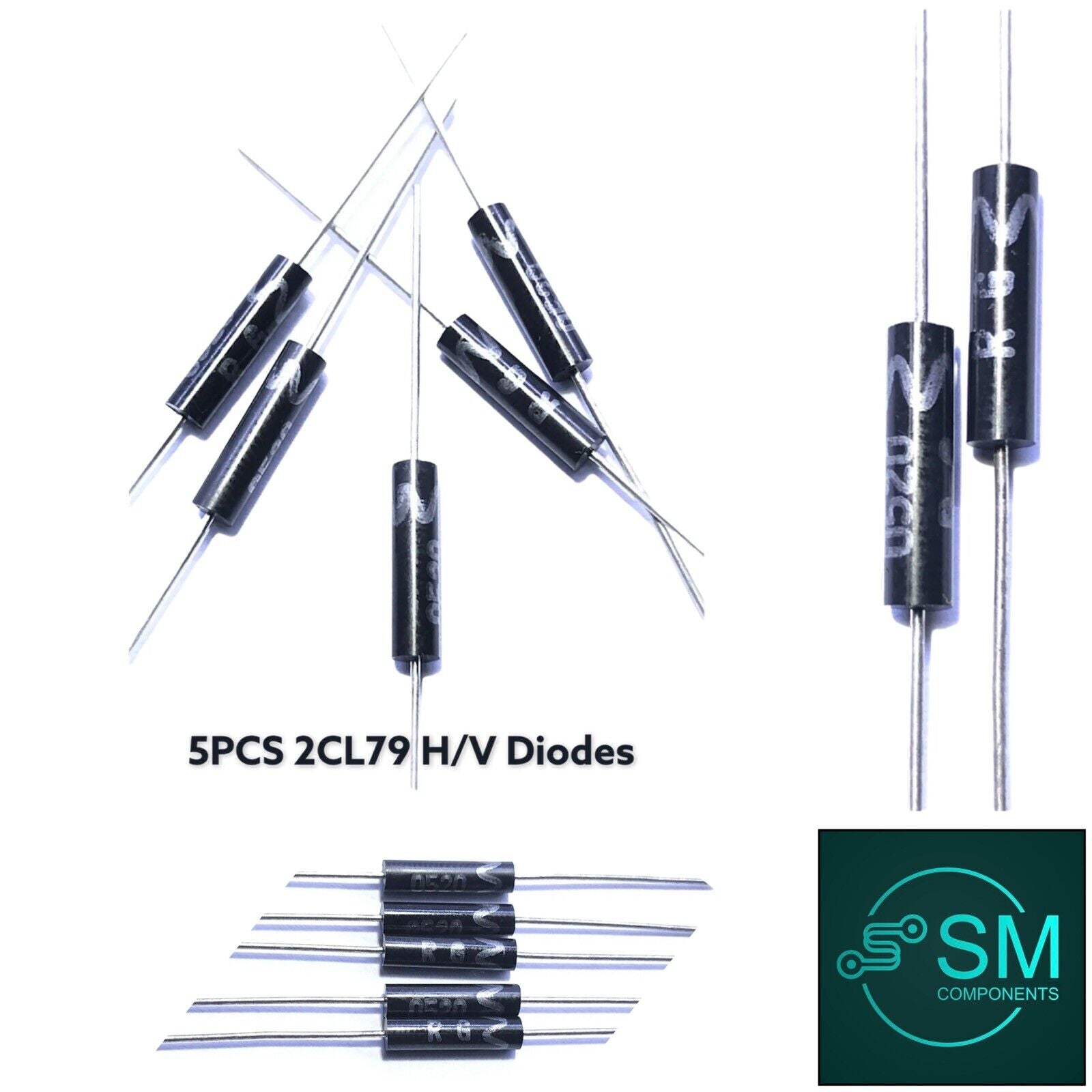

5pcs 2CL79 5mA 25kV 100nS High Voltage Diode HV Rectifier DIY Voltage Doubler

Mounting Style: Through-Hole

MPN: Does not apply

Item Length: 63mm

Minimum Operating Temperature: -40 °C

Brand: Unbranded

Series: 2CL

Type: High Voltage Rectifier

Model: 2CL79

Number of Pins: 2

Packaging: Bag

Polarity: Plus

Maximum Operating Temperature: 150 °C

Country/Region of Manufacture: China

Item Width: 3 mm

5pcs 2CL79 5mA 25kV 100nS High Voltage Diode HV Rectifier.

Condition is brand new. Shipped with Australia Post Regular Letter, NO TRACKING NUMBER.

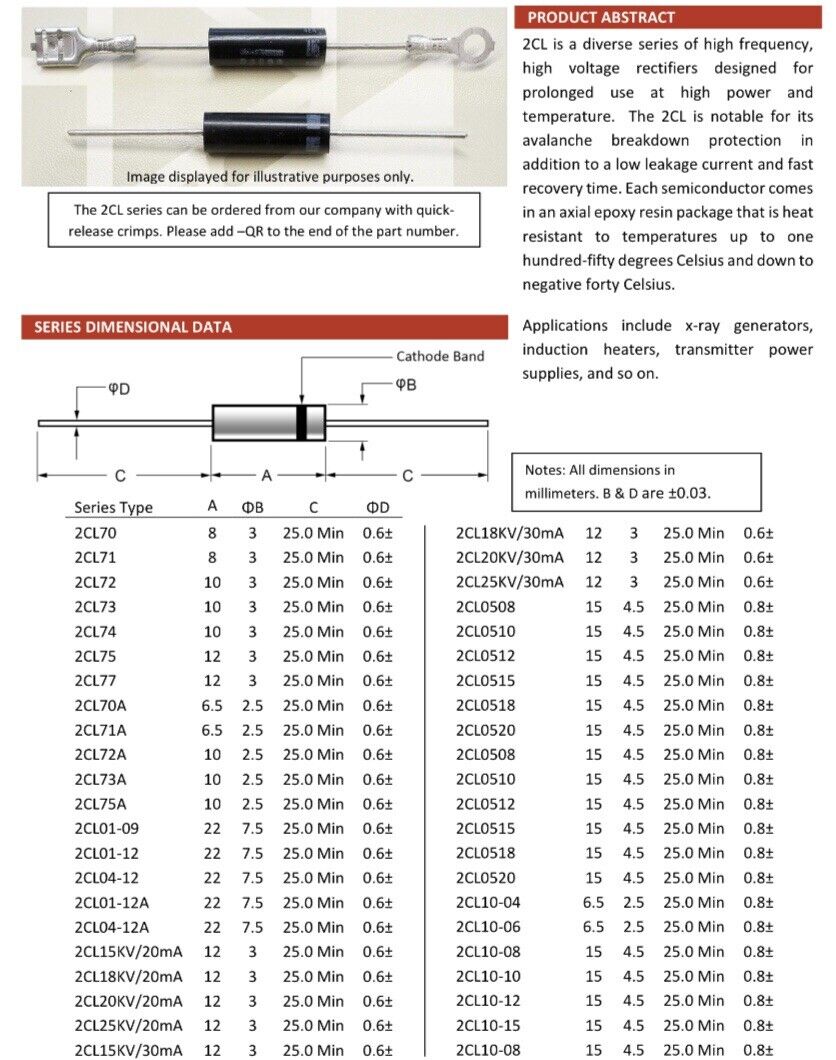

2CL is a diverse series of high frequency, high voltage rectifiers designed for prolonged use at high power and temperature. The 2CL is notable for its avalanche breakdown protection in addition to a low leakage current and fast recovery time. Each semiconductor comes in an axial epoxy resin package that is heat resistant to temperatures up to one hundred-fifty degrees Celsius and down to negative forty Celsius.Applications include x-ray generators, induction heaters, transmitter power supplies, and so.
