500W DCDC Adjustable CV/CC Constant Current Step Up Boost Converter DIY

Mounting Style: Chassis Mount

Nominal Voltage Rating (DC): Input Voltage 8.5-48VDC

Nominal Current Rating: 15A Max

Nominal Power Rating: 500 W

UPC: Does not apply

Item Depth: 36mm (3.6cm)

Minimum Operating Temperature: -40 °C

Installation Area: Indoor

Colour: White PCB

Brand: Unbranded

Type: Boost Converter

EAN: Does not apply

Efficiency: Up To 96%

Item Height: 13mm (1.3cm)

Output Voltage Rating (DC): 10-50VDC

Maximum Operating Temperature: 85 °C

Country/Region of Manufacture: China

Construction Type: Open Frame

Item Width: 70mm (7cm)

DC-DC 500W Adjustable CV/CC Constant Current Step Up Boost Converter AU Stock.

Shipping with Australia Post Regular Letter No Tracking Number Included.

Tracking options are available.

Description

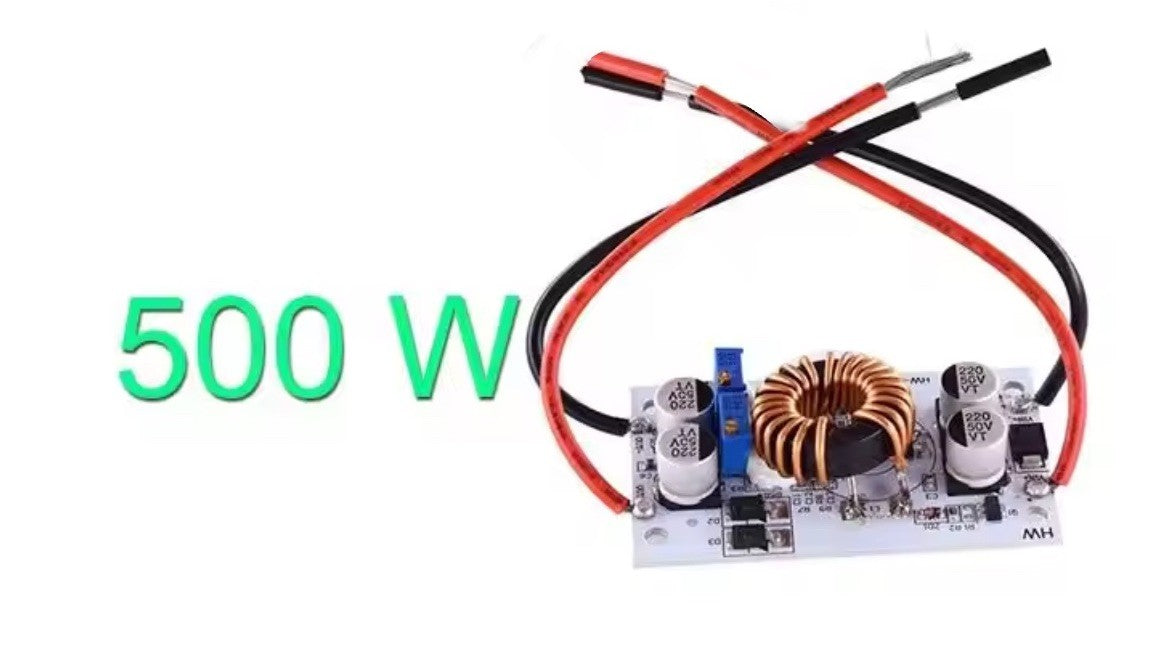

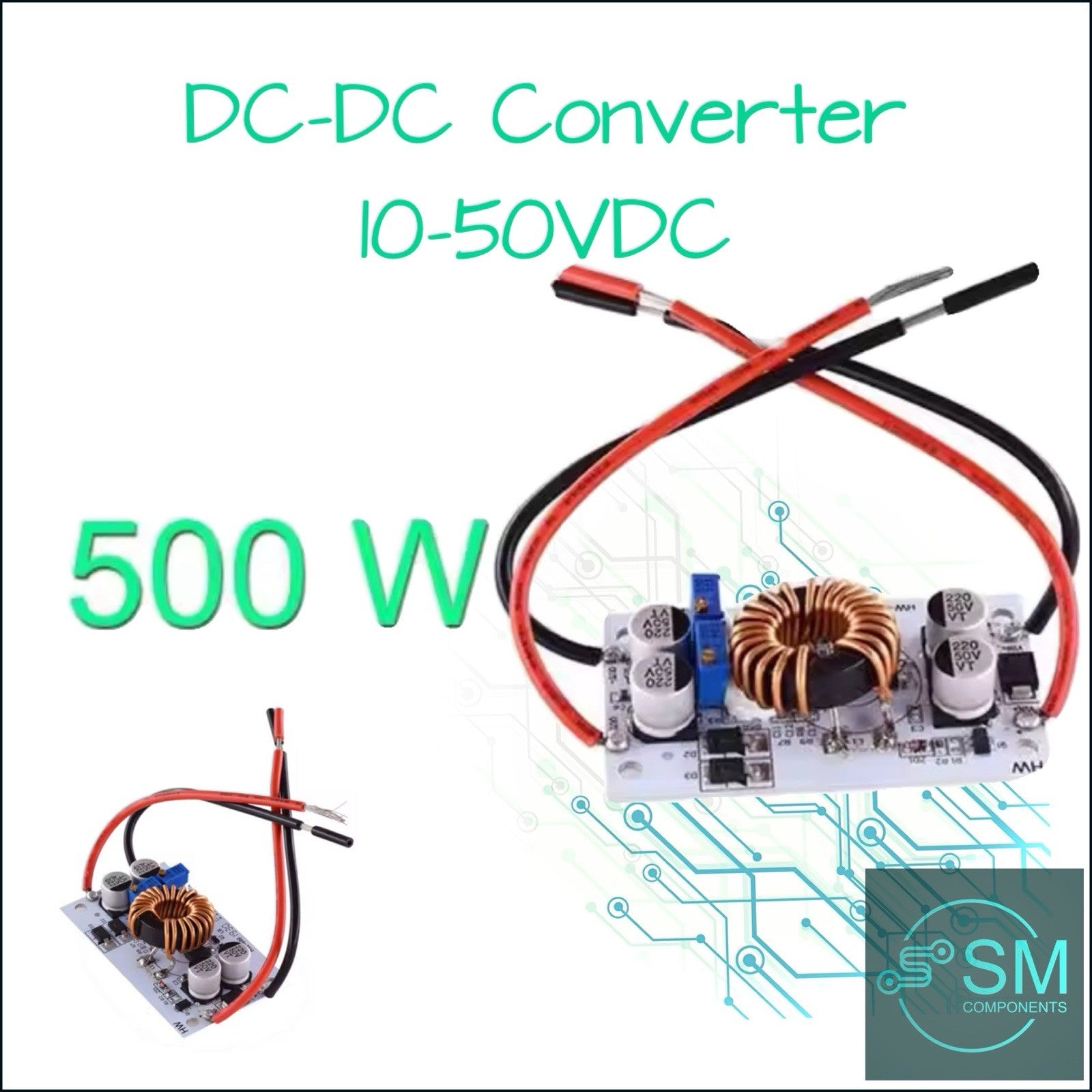

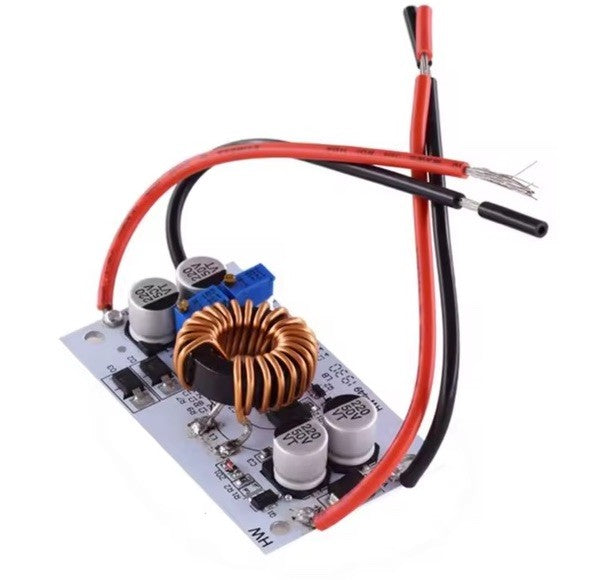

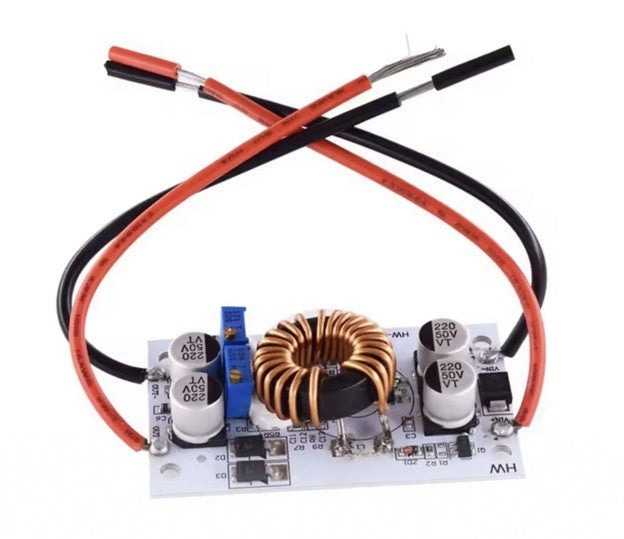

Module Name: 500W Booster Constant Voltage Constant Current Module

Specification:

Module name: 500W boost constant current module

Module nature: Non-isolated boost module (BOOST)

Input voltage: DC8.5V-48V

Input current: 15A (MAX) over 8A, please strengthen heat dissipation, otherwise it may be damaged

Quiet working current: 10mA (when 12V rises to 2OV, the higher the output voltage, the higher the quiescent current will increase)

Output voltage: 10-5OV continuously adjustable

Output current: 10A MAX (related to the input and output pressure difference, the greater the pressure difference, the smaller the output current, if the output current exceeds 5A, add a heat sink or fan for heat dissipation)

Constant current range: 0.2-10A

Output power: = input voltage*10A,

such as: input 12V*15A=180W, input 24V*15A=360W, Input 36V*10A=36OW, input 48V*10A=480W.,.

If you need more power, you can use two modules in parallel.

For example, if the output is 10A, you can use two modules in parallel and adjust the current of each module to 5A.

Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)

Working frequency: 150KHz

Conversion efficiency: up to 96% (efficiency is related to input, output voltage, current, and pressure difference)

Overcurrent protection: Yes (output over 10A, automatic protection, there is a certain range of error. The protection mode is to stop the boost, the output still has voltage)

Input reverse connection protection: Yes, (less than 5A, if you need more reverse connection current, please connect a diode in series with the input)

Product application:

DIY a regulated power supply, input 12V, output can be adjusted from 12-50V.

To supply power to your electronic equipment, you can set the output value according to your system voltage.

As a car power supply, it can power your laptop, PDA or various digital products.

DIY a high-power laptop mobile power supply: equipped with a large-capacity 12V lithium battery pack, so that your books can be bright wherever you go.

The solar panel is stabilized.

Charge storage batteries, lithium batteries, etc.

DIY a high-power laptop mobile power supply: equipped with a large-capacity 12V lithium battery pack, so that your books can be bright wherever you go.

The solar panel is stabilized.

Charge storage batteries, lithium batteries, etc.

Precautions:

Do not adjust the current in a short-circuit method. The circuit structure of the boost module cannot be adjusted in a short-circuit method. Please make sure that the output voltage is greater than the input voltage; when large current output, please ensure good heat dissipation; when the load is large, the module must first be connected to the input Voltage, then connect the load.

Package:

1 × 500W 10A Step Up Power Supply
