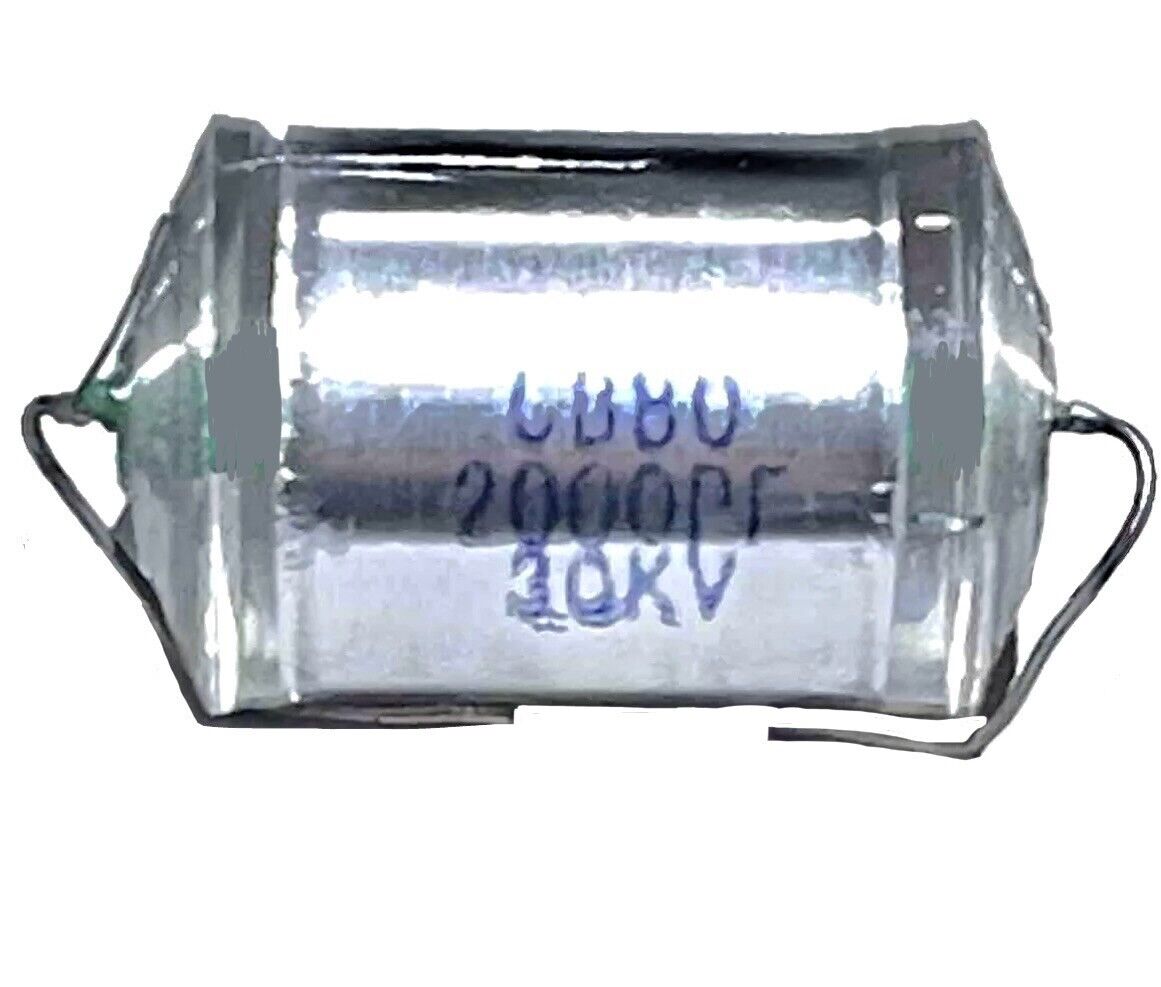

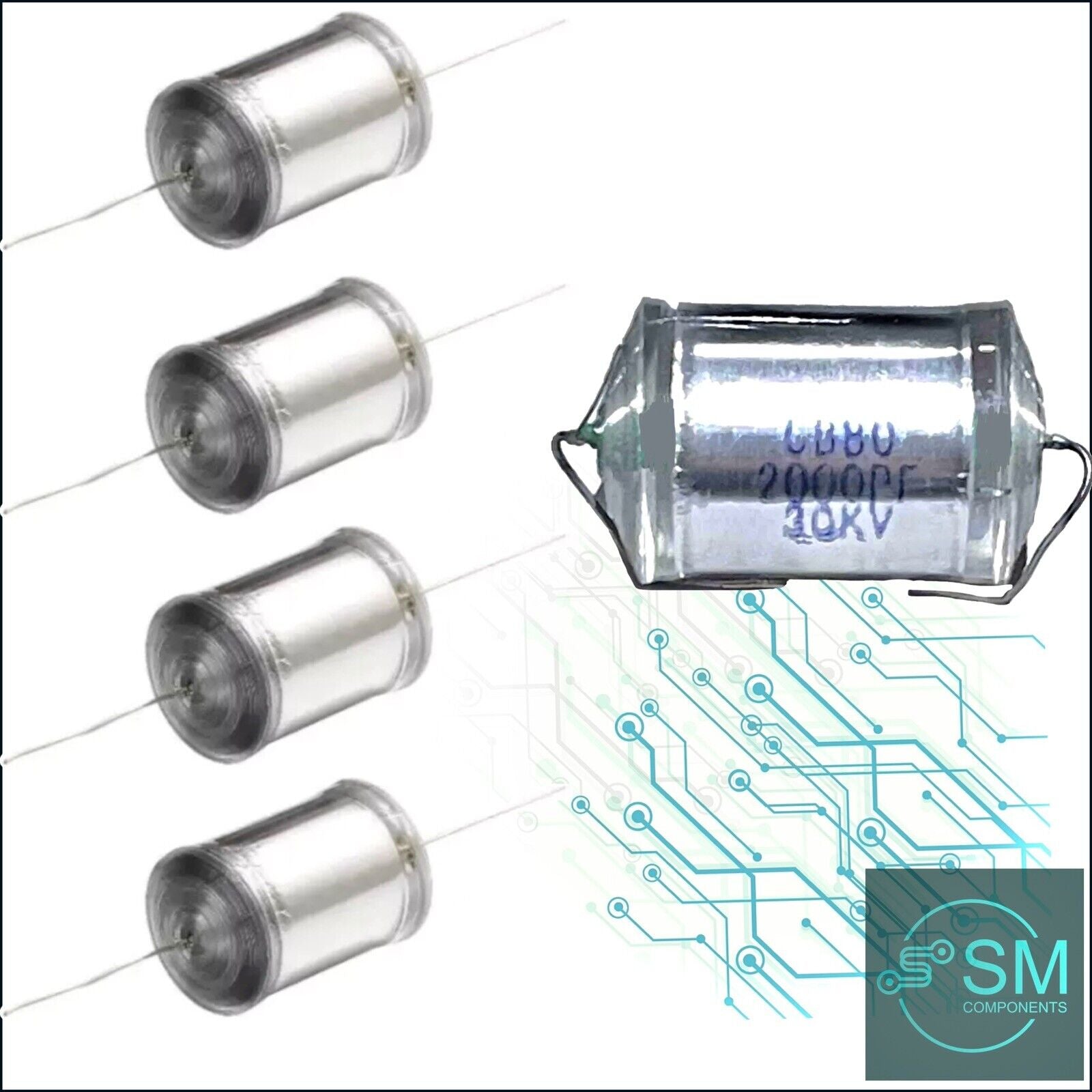

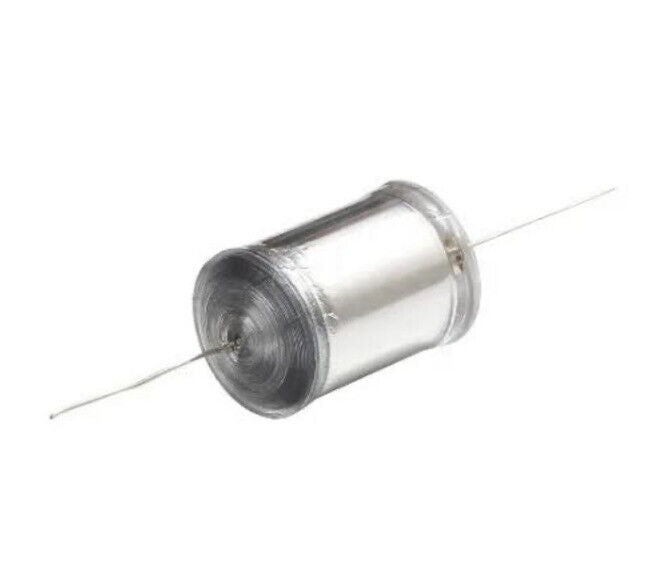

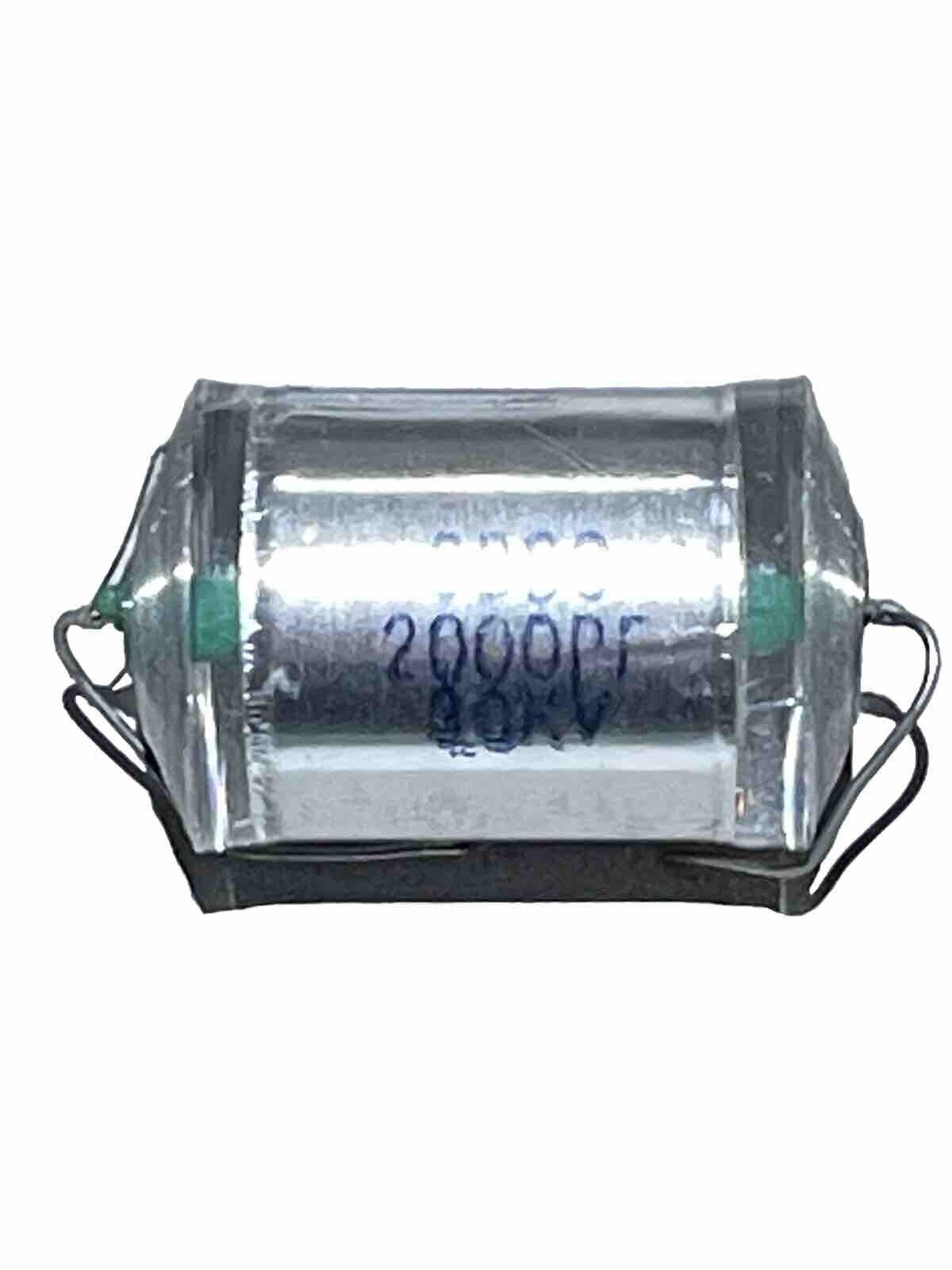

5 X Polystyrene Film High Voltage Capacitors CB80 30KV 2000PF Marx HV Doubler
5 X Polystyrene Film High Voltage Capacitors CB80 30KV 2000PF Marx HV Doubler
Couldn't load pickup availability
Mounting Style: Stand Alone
Shape: Cylinder
Termination Style: Axial
Item Diameter: 28 mm
Capacitance Rating: 2 nF
Material: Carbon Steel,Polyester
Item Length: 40 mm Body
Minimum Operating Temperature: -25 °C
Brand: Unbranded
Series: CB
Type: Film Capacitor
Capacitor Construction: Polystyrene Film
Tolerance Rating: ±5 %
Packaging: Box
Maximum Operating Temperature: 55 °C
Country/Region of Manufacture: China
Maximum Operating Voltage: 30,000 Volts
5 x PCS Polystyrene Film High Voltage Capacitor CB80 30KV 2000PF Marx HV Ham Audio.
Sent with Australia Post Parcel Post tracking number included.
Rated Voltage: 30kV DC
Test Voltage: 36kV DC
Capacitance: 2000pF (2nF)
Capacitance Tolerance: ± 5%
Insulation Resistance: ≥ 2 × 1011Ω
Operating Temperature: -10 - +55 °C (14 - 131 °F)
Storage Temperature: -10 - +55 °C (14 - 131 °F)
Dimensions: Φ28mm x 40mm (Φ1.15×1.6inches)
Terminals: Axial Lead
Durability: +55 °C, applied UR 96h; 24h after recovery Capacitance change: ΔC / C ≤ ± (2.5% + 2PF) Insulation resistance: not less than 50% of the prescribed
Applications The product is screws, nuts leads to non-sealed foil structure, Resistant to high voltage, small size and other characteristics. Suitable for electronic Device for filtering, DC pulse voltage doubler circuit, Marx Generator etc., a wide Pan used electrostatic dust, spray and power systems, the Products subject to immersing in pure mineral oil does not contain aromatic The use of an insulating material such as rubber or silicone.
