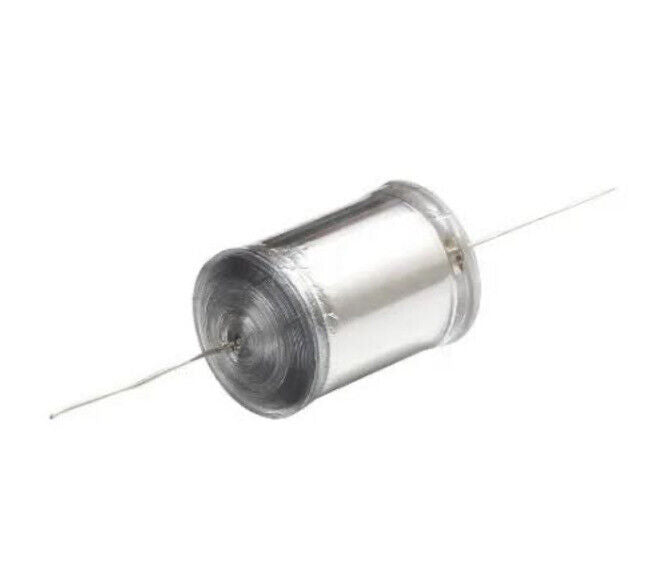

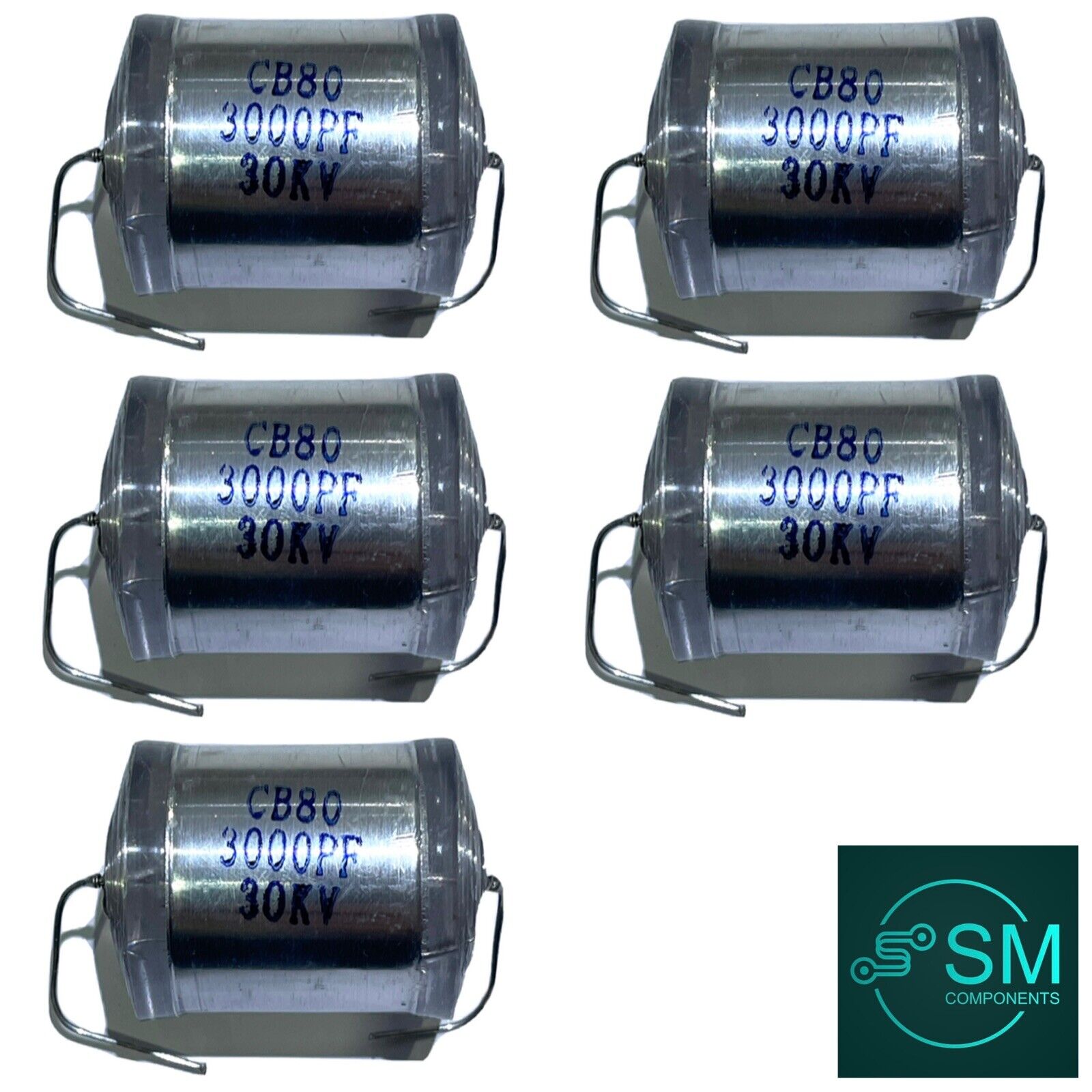

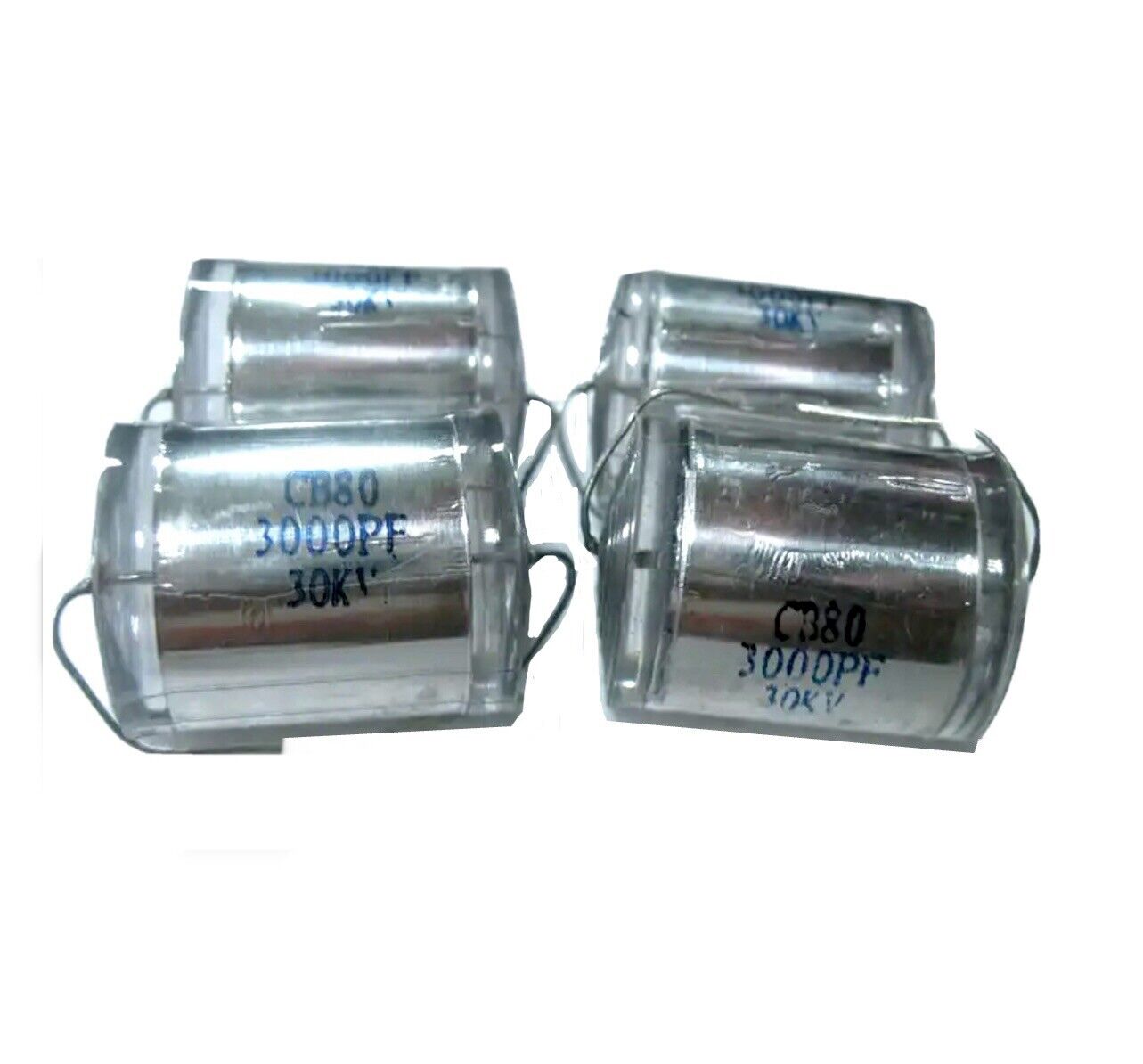

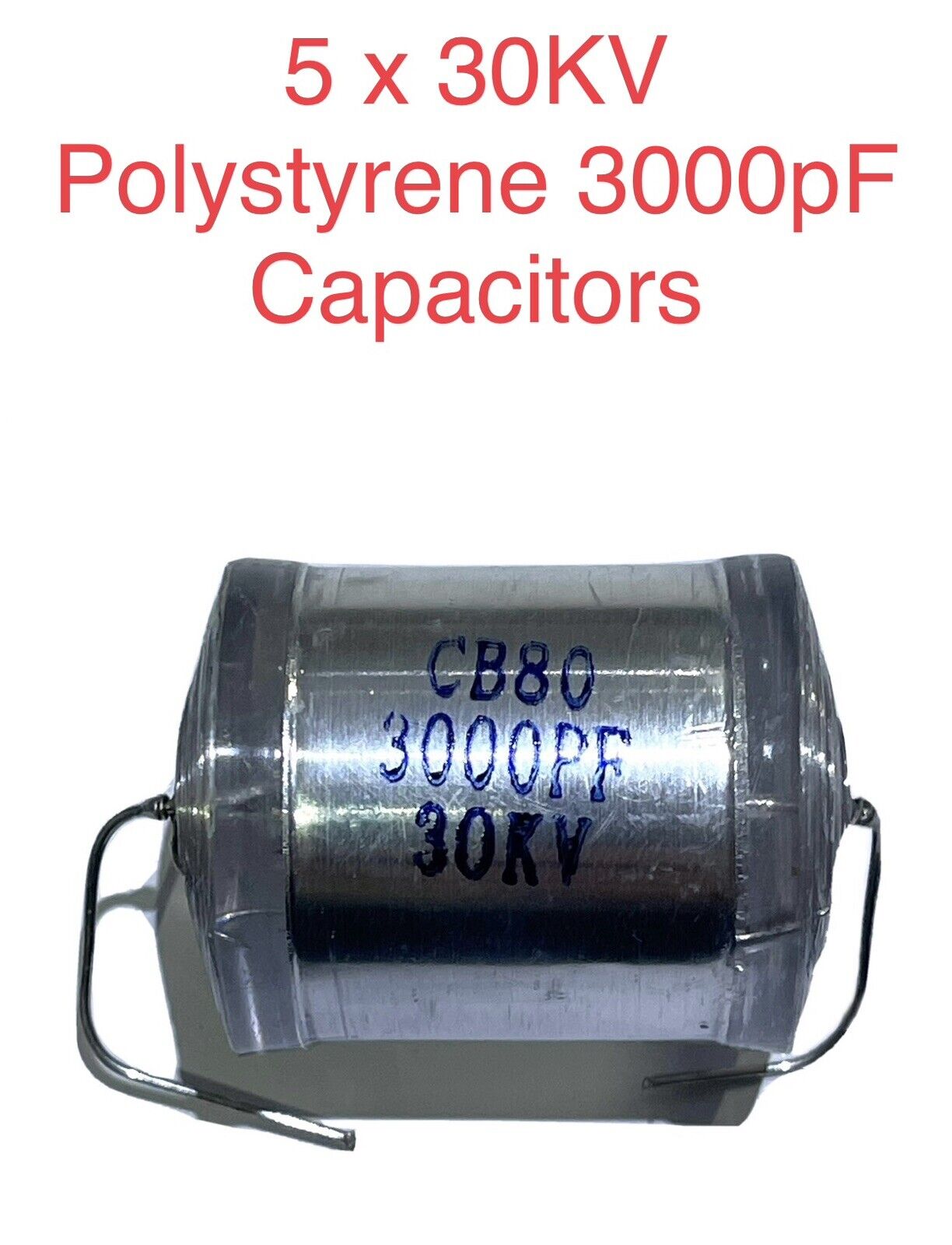

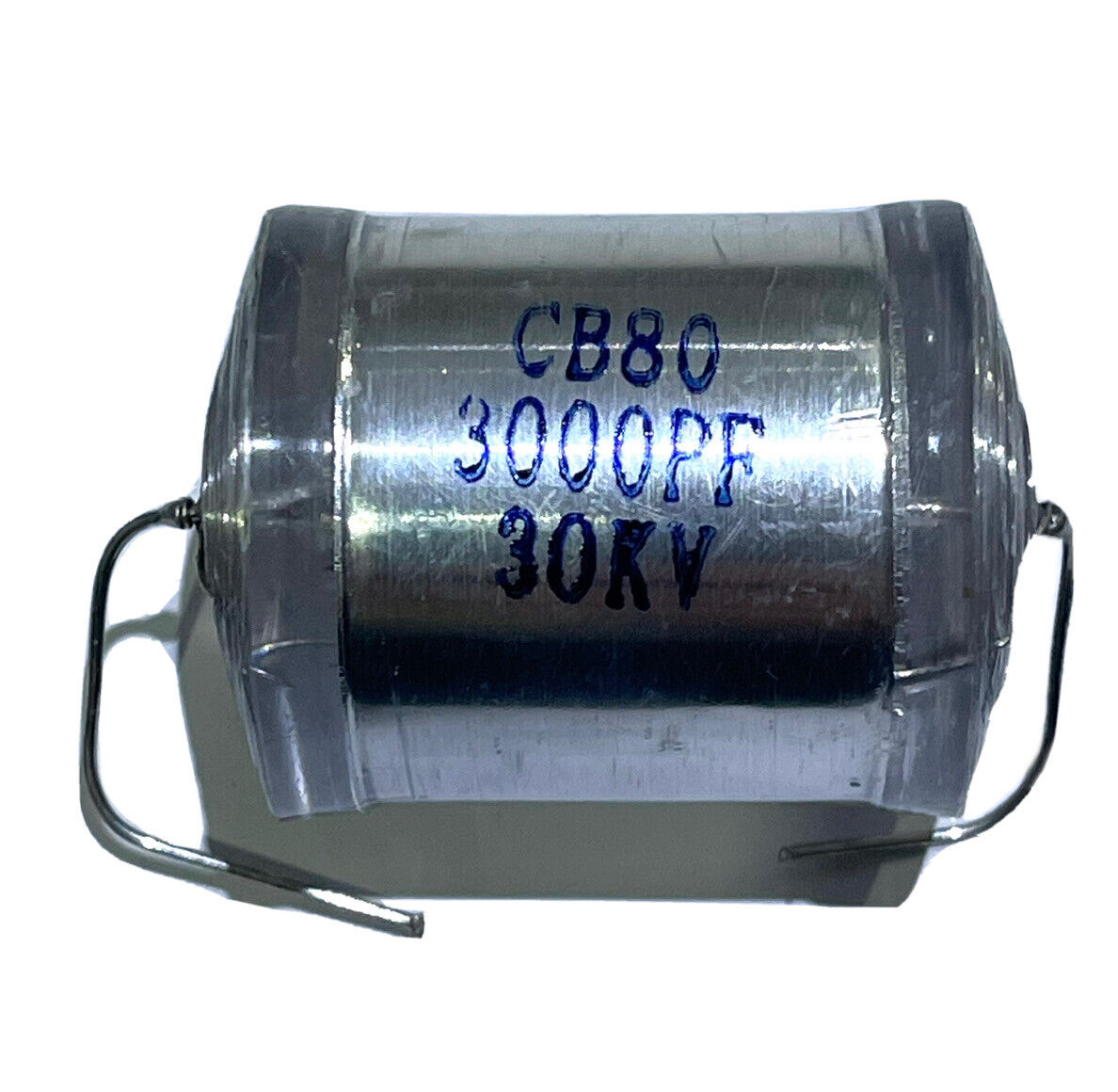

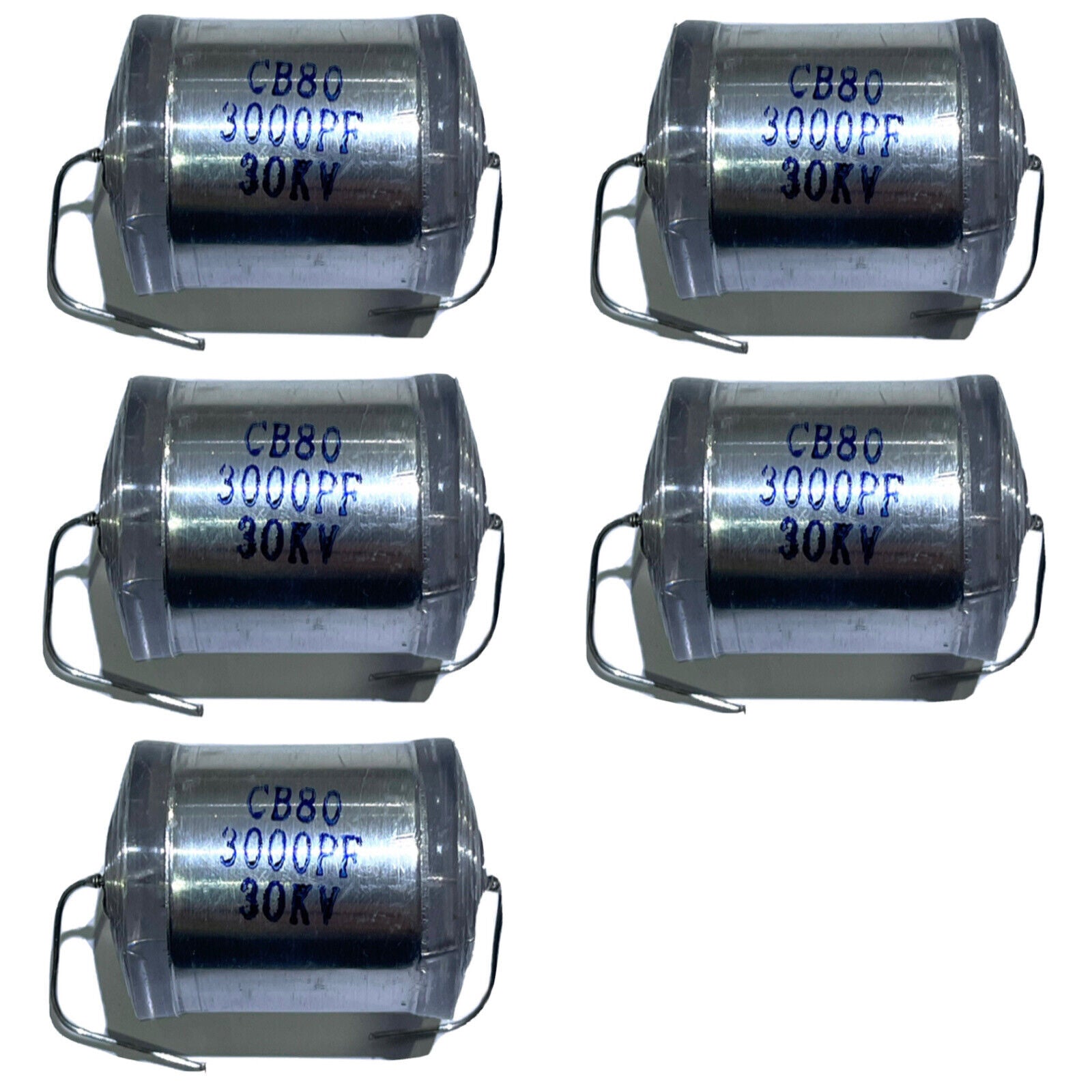

5 X PCS Polystyrene Film High Voltage Capacitor CB80 30KV 3000PF Marx HV Doubler

Mounting Style: Stand Alone

Shape: Cylinder

Termination Style: Axial

Capacitance Rating: 3 nF

Material: Polyester,Carbon Steel

Minimum Operating Temperature: -25 °C

Brand: Unbranded

Series: CB

Type: Film Capacitor

Capacitor Construction: Polystyrene Film

Tolerance Rating: ±5 %

Packaging: Box

Maximum Operating Temperature: 55 °C

Country/Region of Manufacture: China

Maximum Operating Voltage: 30,000 Volts

5 x PCS Polystyrene Film High Voltage Capacitor CB80 30KV 3000PF Marx HV Ham Audio.

Sent with Australia Post Parcel Post tracking number included.

Rated Voltage: 30kV DC

Test Voltage: 36kV DC

Capacitance: 3000pF (3nF)

Capacitance Tolerance: ± 5%

Insulation Resistance: ≥ 2 × 1011Ω

Operating Temperature: -10 - +55 °C (14 - 131 °F)

Storage Temperature: -10 - +55 °C (14 - 131 °F)

Dimensions: Φ32 × 40mm(Φ1.28 × 1.6inches)

Terminals: Axial Lead

Durability: +55 °C, applied UR 96h; 24h after recovery Capacitance change: ΔC / C ≤ ± (2.5% + 3PF) Insulation resistance: not less than 50% of the prescribed

Applications The product is screws, nuts leads to non-sealed foil structure, Resistant to high voltage, small size and other characteristics. Suitable for electronic Device for filtering, DC pulse voltage doubler circuit, Marx Generator etc., a wide Pan used electrostatic dust, spray and power systems, the Products subject to immersing in pure mineral oil does not contain aromatic The use of an insulating material such as rubber or silicone.
