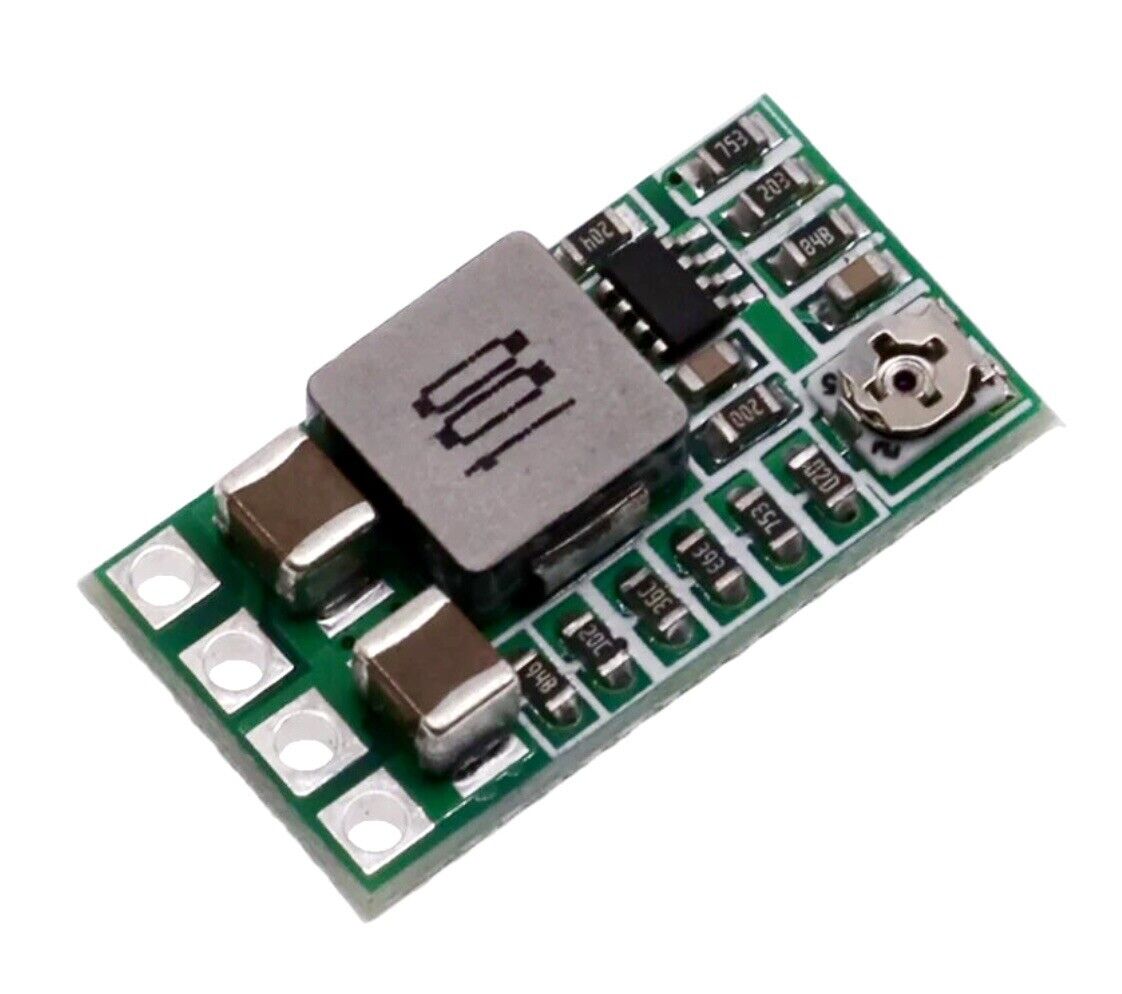

5 X Mini DC 12-24V To 5V 3A Step Down Power Supply Module Voltage Buck Converter

Nominal Voltage Rating (DC): 24 V

Mounting Style: Stand Alone

Nominal Current Rating: 2.1A Constant-3A Peak

Plug Type: Solder Pads

Ripple & Noise: 20 mV

Nominal Power Rating: 15 W

MPN: Does Not Apply

Minimum Operating Temperature: -40 °C

Installation Area: Indoor

Colour: Green

Brand: Unbranded

Type: Buck Converter

Efficiency: 97 %

Maximum Operating Temperature (Nominal): +90°C

Output Voltage Rating (DC): 24 V

Item Height: 0.45cm 4.5mm

Inrush Current Rating: 3 A

Maximum Operating Temperature: 90 °C

Country/Region of Manufacture: China

Construction Type: Open Frame

Output Voltage: Fixed-1.8V, 2.5V, 3.3V, 5V, 9V, 12V, & Adjustable

5 X Mini DC-DC 12-24V To 5V 3A Step Down Power Supply Module Voltage Buck Converter

Sent with Australia Post regular Letter no tracking number included.

Tracked options available.

• The maximum output current 3A, long-running 2.1A, sufficient margin.

• The new design, circuit design does not require electrolytic capacitors and tantalum capacitors (electrolytic capacitor life is short, tantalum risk of explosion). Now with the use of high-end large-size solid ceramic capacitor circuit (MCC) 2 Ke.

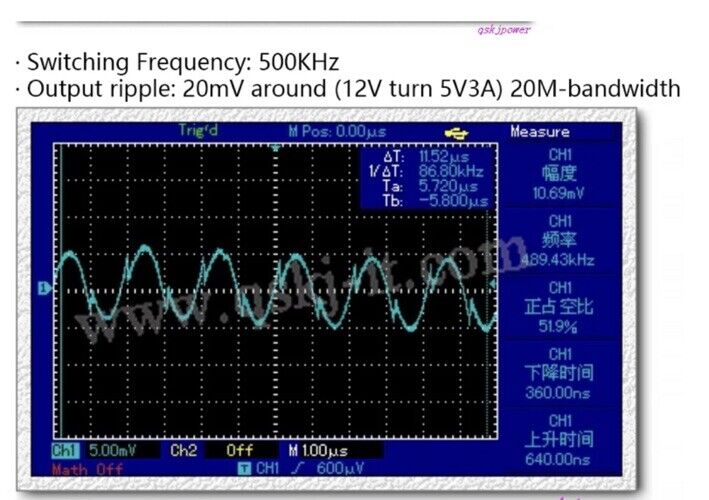

• The new program uses synchronous rectification circuit conversion efficiency is very high, in turn 5V 0.7A 6.5V when efficiency up to 97.5%, 12V turn 5V 1A, they also reached 94%, unlike some peers efficiency is only 60-70% . (Efficiency test removed the input reverse polarity protection diode and fuse drop).

• Big shielded inductor current, low resistance, to maximize conversion efficiency. Reduce heat.

• Ultra-small size: 20.2(L)*10.7 (W)*4.4(H)mm, the whole network to a minimum.

• Ultra-low quiescent current, quiescent current of 0.85mA.

Connected to the car battery without adding switches can be connected to the cigarette lighter line or the ACC power cable line.

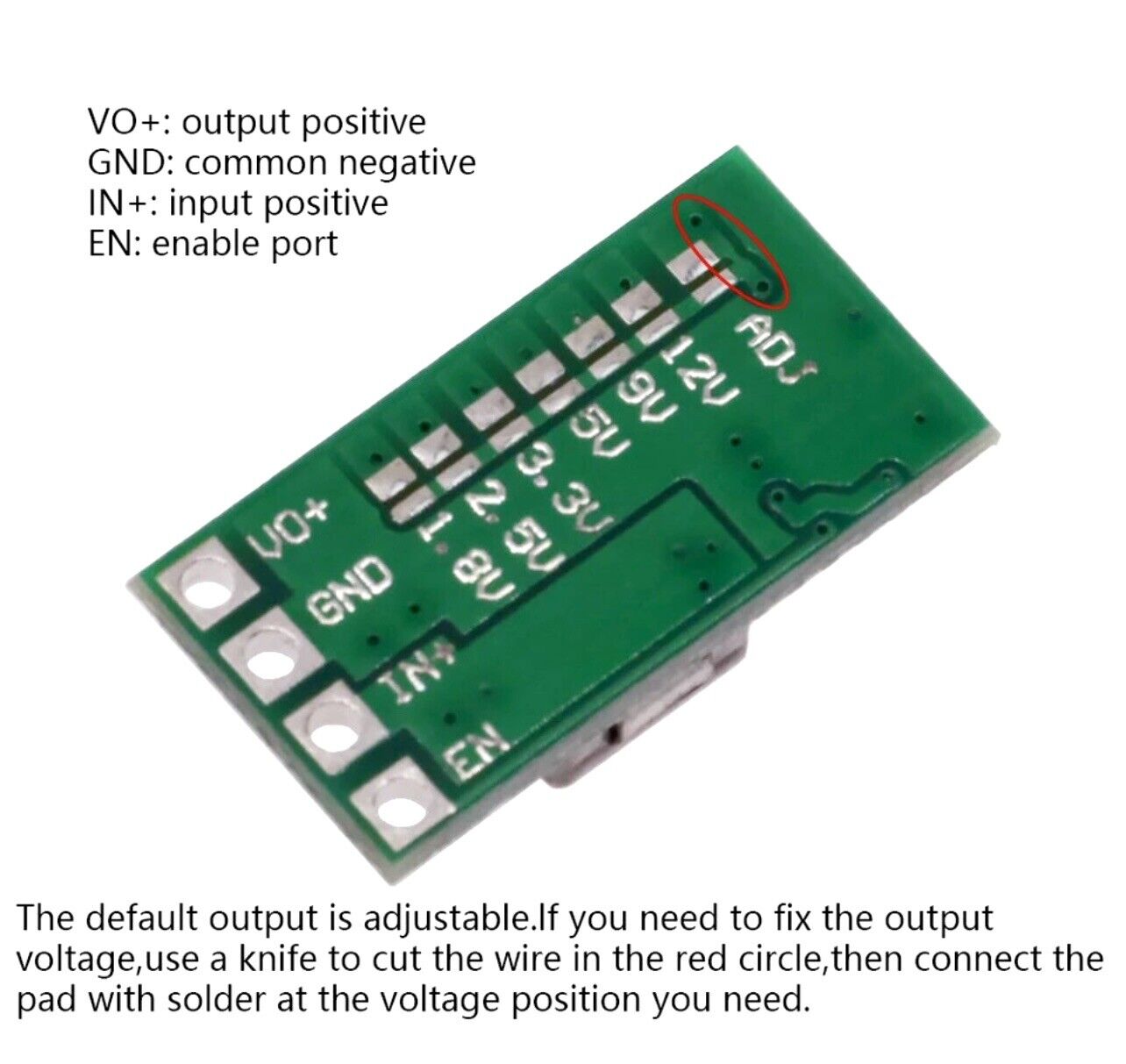

• Output Integrated adjustable and fixed voltage, fixed output does not need customization, direct can be very voltage, potentiometer can adjust, versatility is very strong on the board under the spot welding.

• Integration enabled port, default mode of operation, low close, bring convenience to control.

• 78 series can be used to replace linear regulators, such as 78057812, and so on.

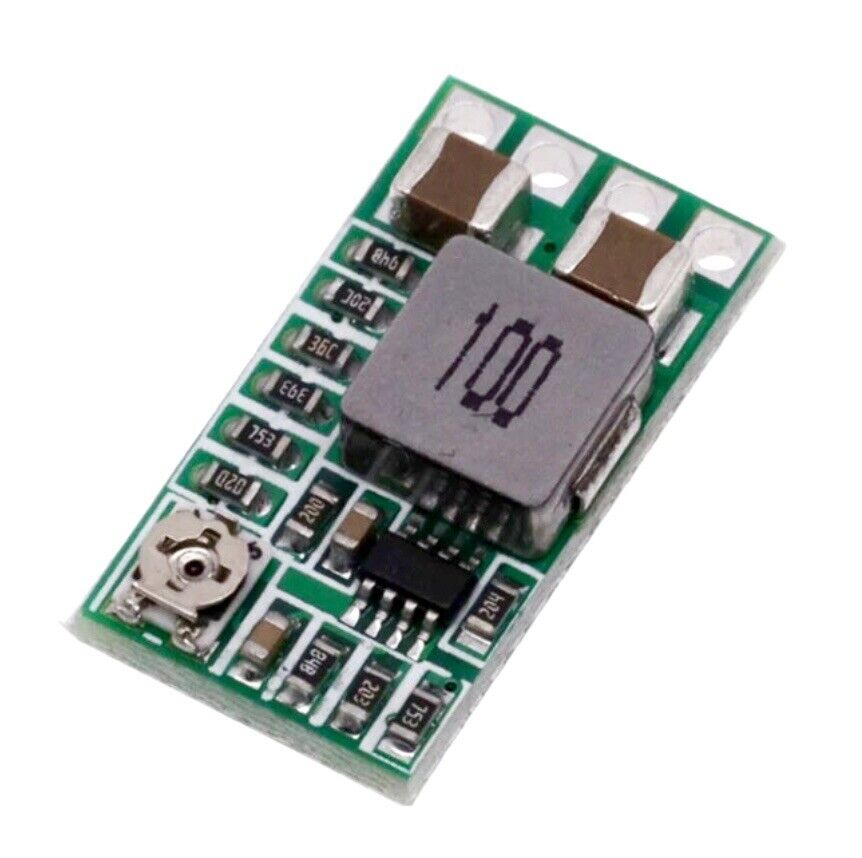

QS-1205CME-3A power module

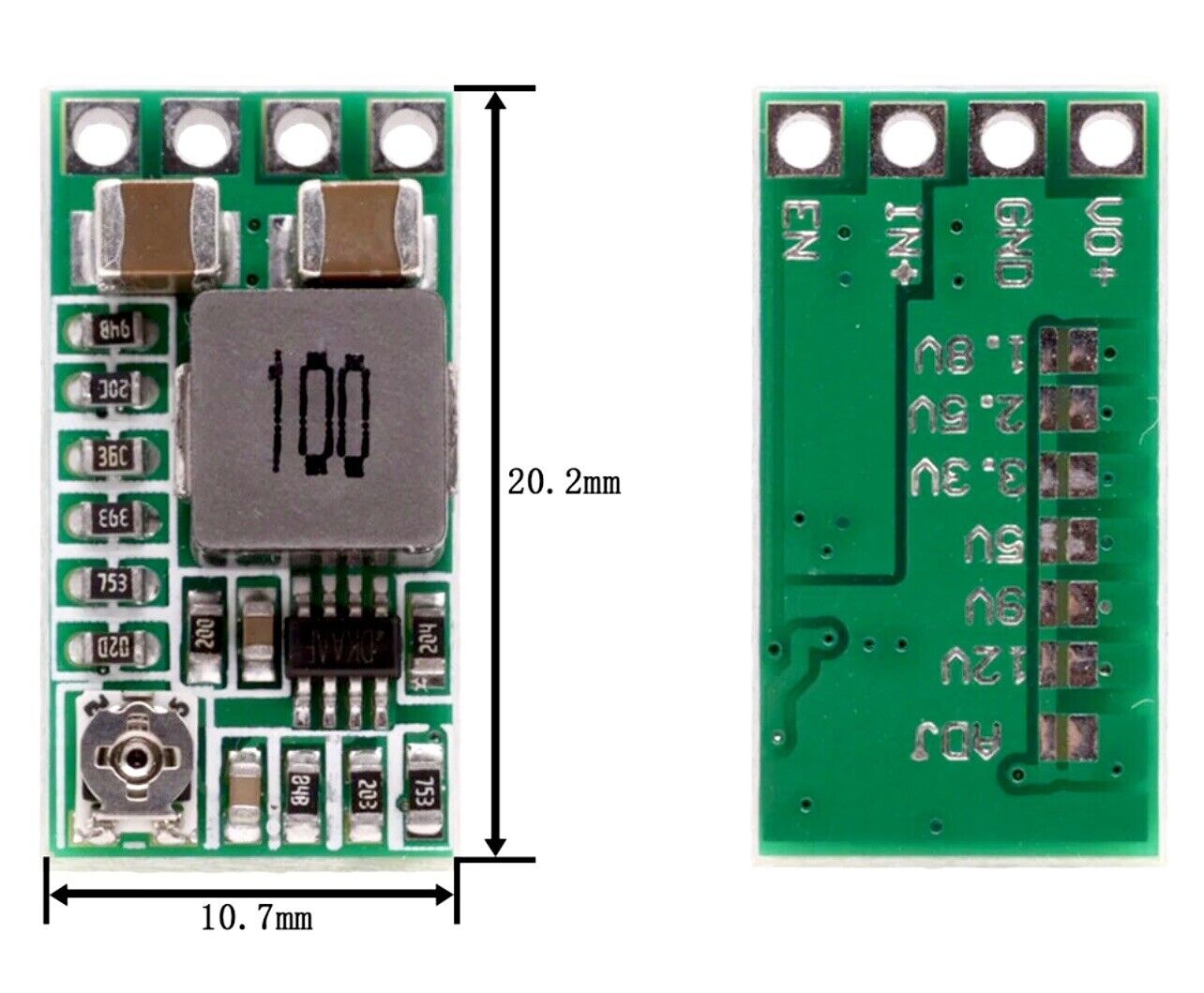

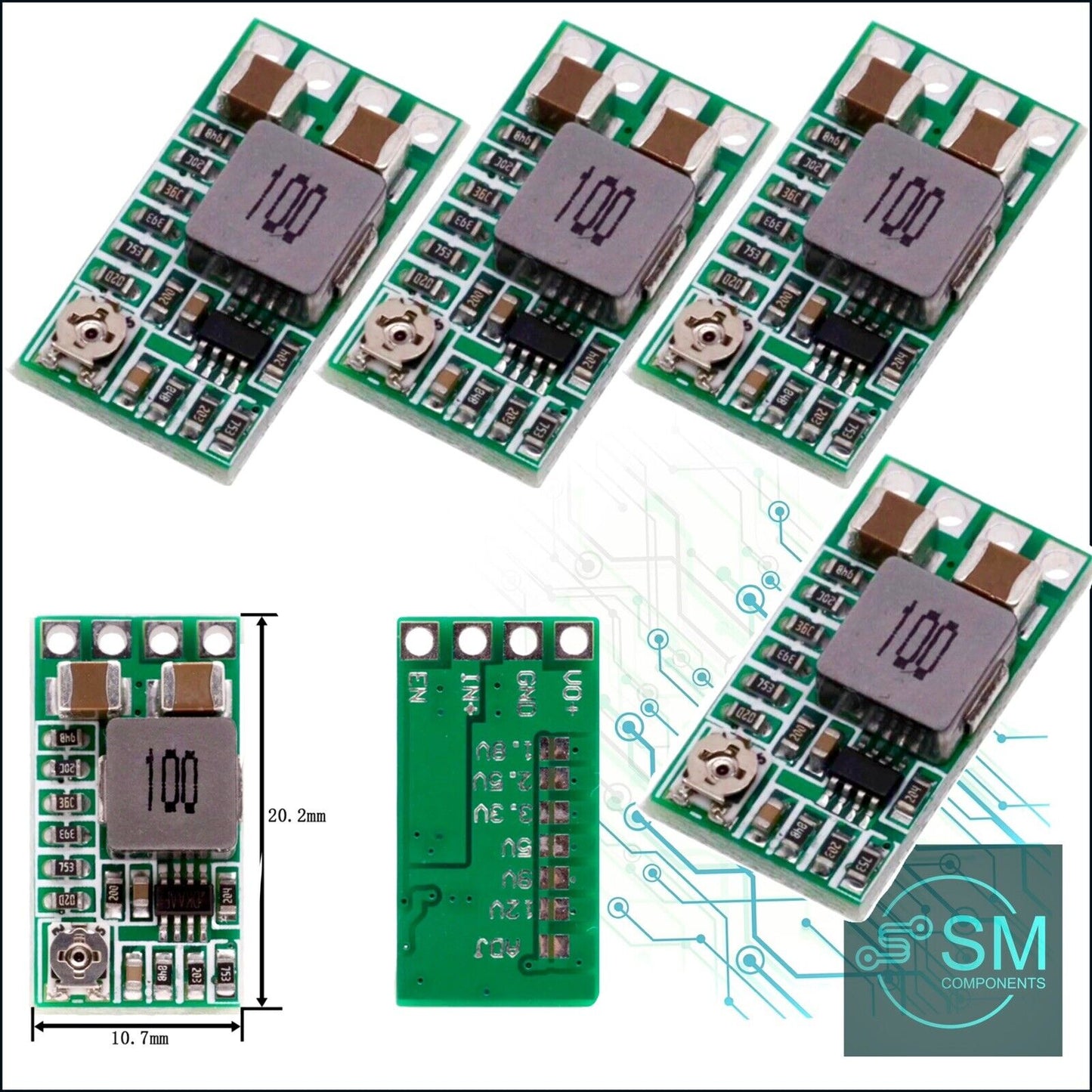

Size: 20.2(L)*10.7(W)*4.4(H)mm

Module Properties: non-isolated step-down module (BUCK) synchronous rectifier.

• Input voltage: DC 4.5-24V(Use to leave a margin, generally about 20V. When the input is 24V, an electrolytic capacitor of more than

100uF can be connected in parallel at the input and output to avoid burning the board.)

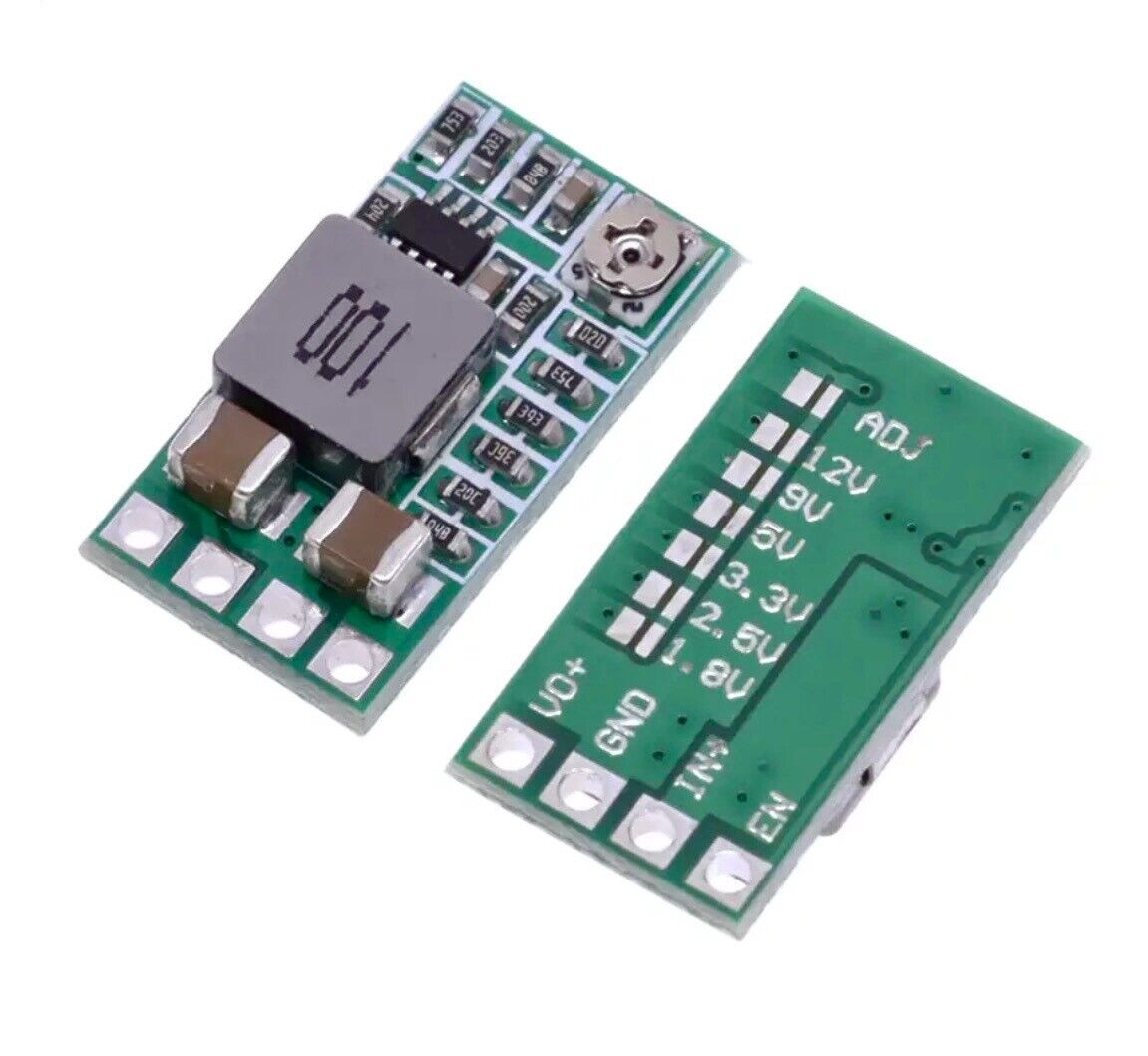

• Output voltage: integrated adjustable and fixed output, the back can choose a fixed output voltage

• Adjustable range (0.8-17V), fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)

• Output Current: 3A (Please note that full cooling), the actual test input 12V 1.5A output less heat without special treatment.

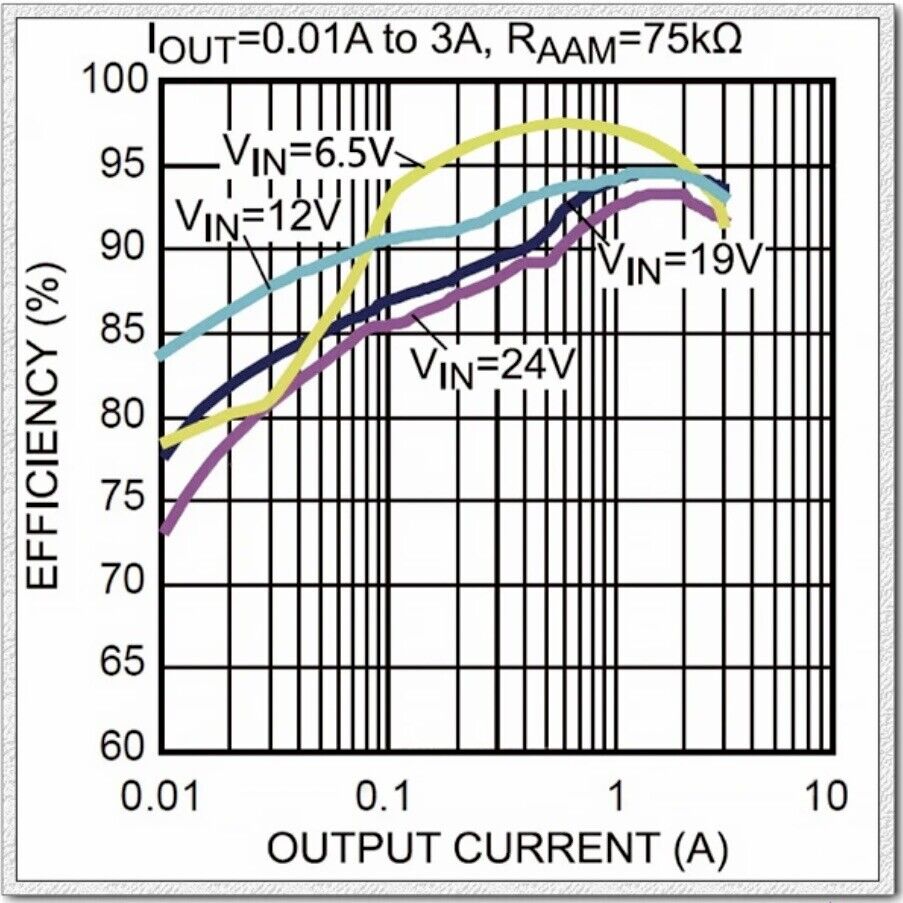

• Conversion efficiency: 97.5% (6.5 turn 5V 0.7A)
