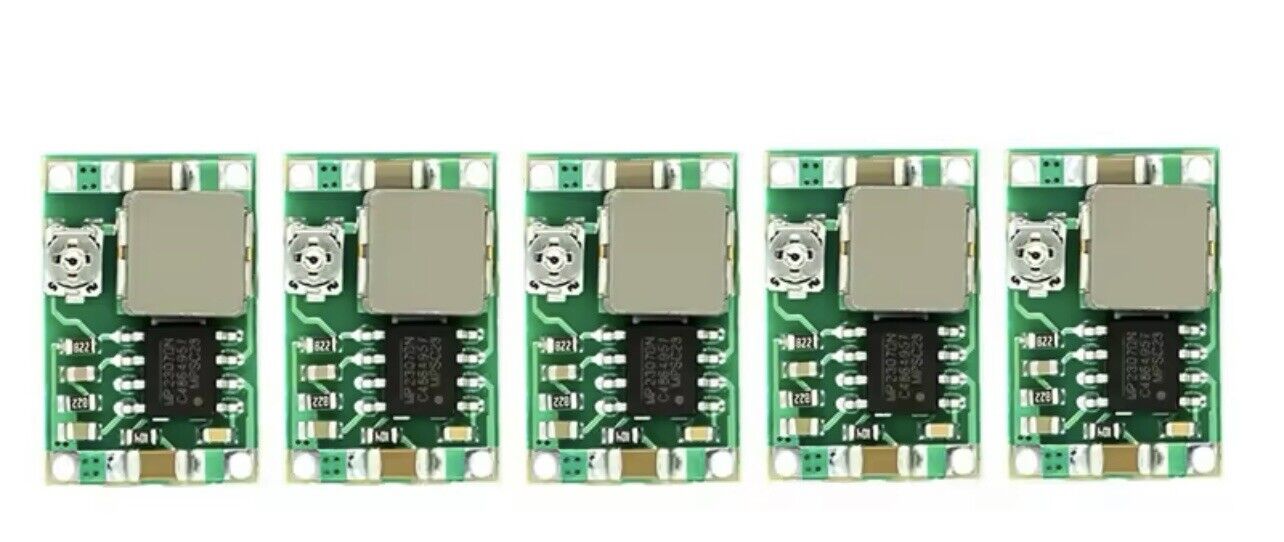

5 X Mini-360 Buck DC-DC Converter Step Down Module 4.75-23V to 1-17V R/C Drones

Brand: Unbranded

Mounting Style: Stand Alone

Type: Step Down (Buck) Voltage Regulator

Nominal Current Rating: 3A Max

Plug Type: Solder Pads

Current Conversion: DC to DC

Output Voltage Rating (DC): 1V - 17V

MPN: Generic

Country/Region of Manufacture: China

Colour: Green

UPC: DoesNotApply

5 x 3A MINI360 DC-DC STEP DOWN CONVERTER VOLT REGULATOR MINI 360 RC Airplane Module 4.75V-23V Power

Supply Converter Module

Features:

1. Compact Design: The Mini360 RC airplane module features a small and compact design that makes it suitable for use in various electronic devices.

2. High Performance: With its synchronous rectification technology and high conversion efficiency of up to 96%, this step down module provides reliable and stable power output.

3. Wide Input Voltage Range: This power supply module board is compatible with input voltages ranging from 4.75V to 23V, providing flexibility and convenience for different applications.

4. Multiple Output Voltages: The step-down power supply converter module can be adjusted to output voltages ranging from 10V to 17V, making it versatile and suitable for various electronic projects.

5. Versatile Applications: This step-down buck converter module is suitable for various applications, including remote control aircraft, DIY mobile power supplies, and car power supplies.

Specification:

Origin: Mainland China

Mini360 model power supply step-down module DC DC ultra-small power supply module car power supply super LM2596

Application areas:

1. DC-DC buck module for airplane model (support 25-55 polymer lithium battery).

2. DIY mobile power.

3. Vehicle power supply, communication equipment power supply, a variety of demanding requirements for the size and weight of the occasion.

Product parameters:

Model name: Mini-360 (ultra-small volume DC-DC

synchronous rectifier buck module)

Nature of the module: the abundance of isolated buck

Rectification mode: synchronous rectification

Input voltage: 4.75V-23V

Output voltage: 1V-17V

Output current: peak 3A, long time 1.8A

Conversion efficiency: 96% (maximum)

Switching frequency: 340KHZ

Output ripple: 30m V (at no load)

Load Adjustment Rate: 0.5%

Voltage adjustment rate: 2.5%

Operating temperature: -40°C to +85°C

Product size: 17*11*4mm

The use of integrated molding power inductor and synchronous rectifier control chip, smaller size, higher efficiency.
