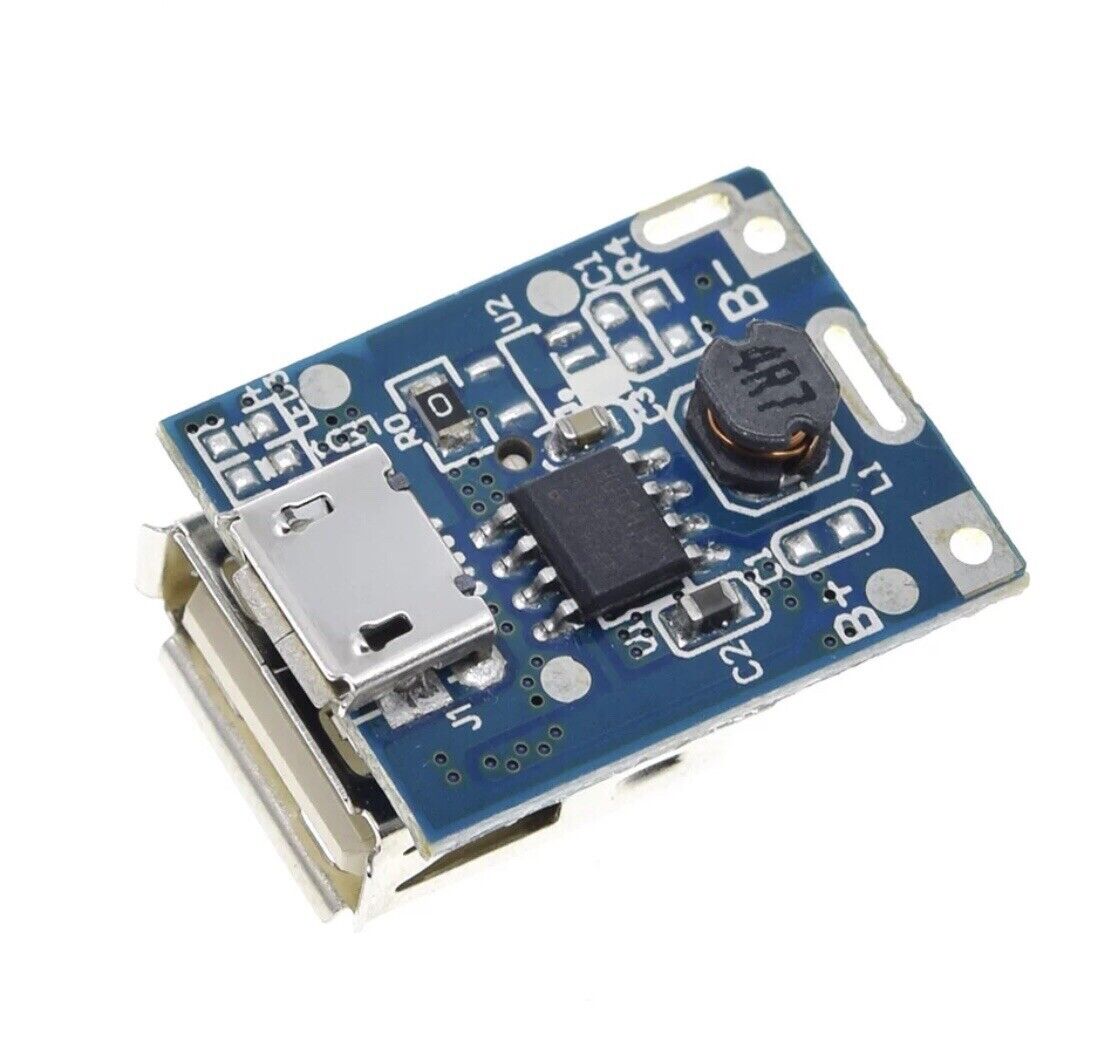

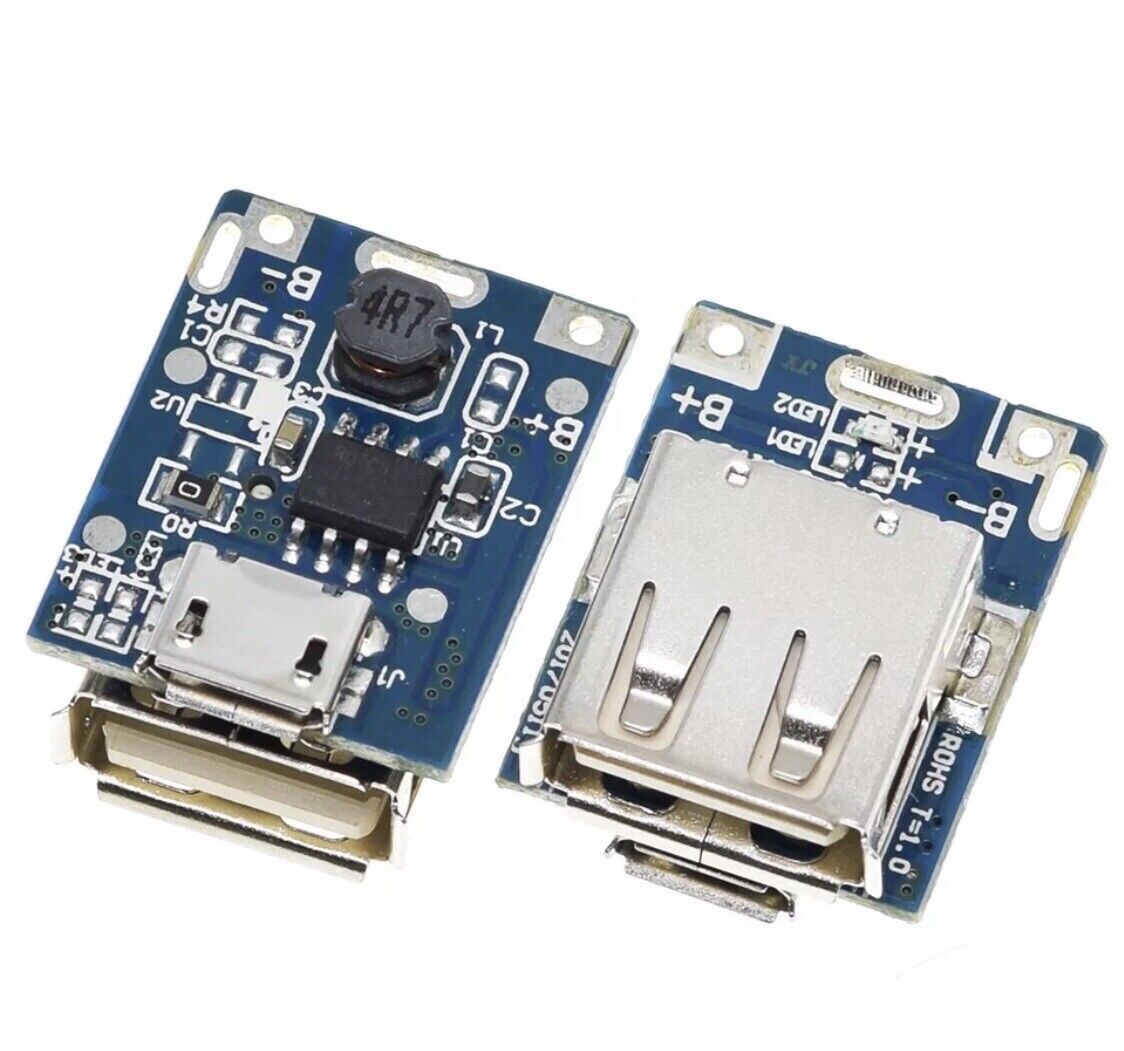

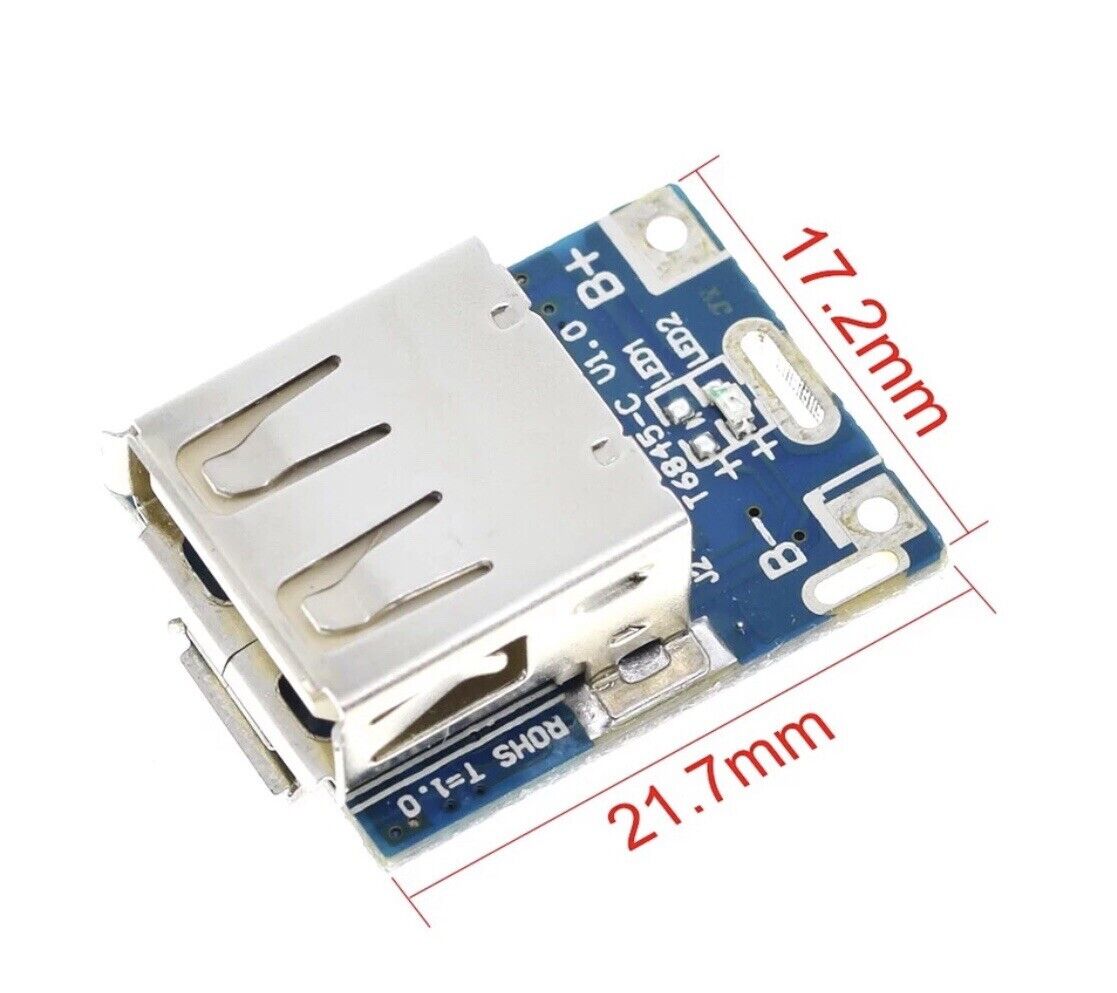

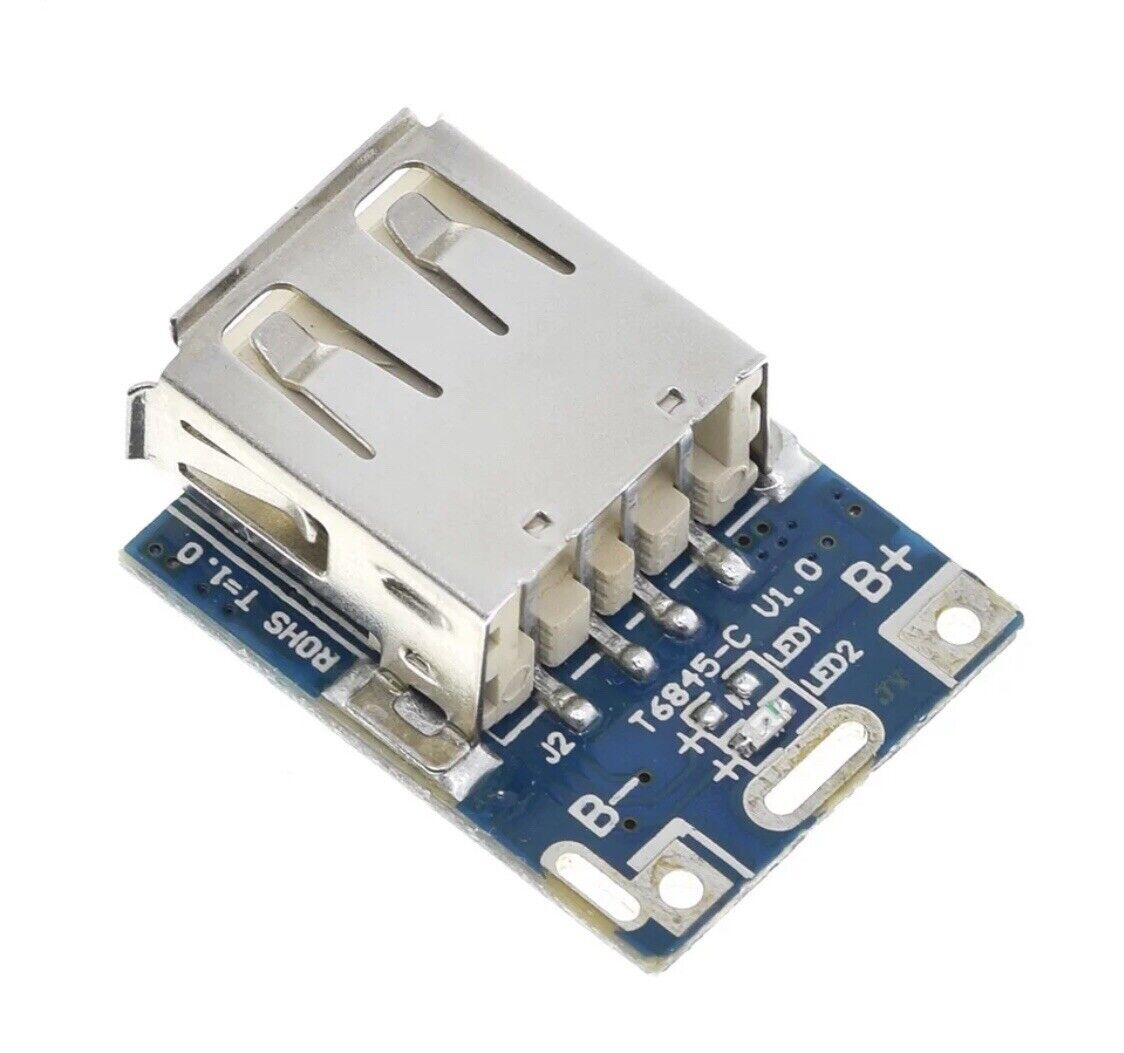

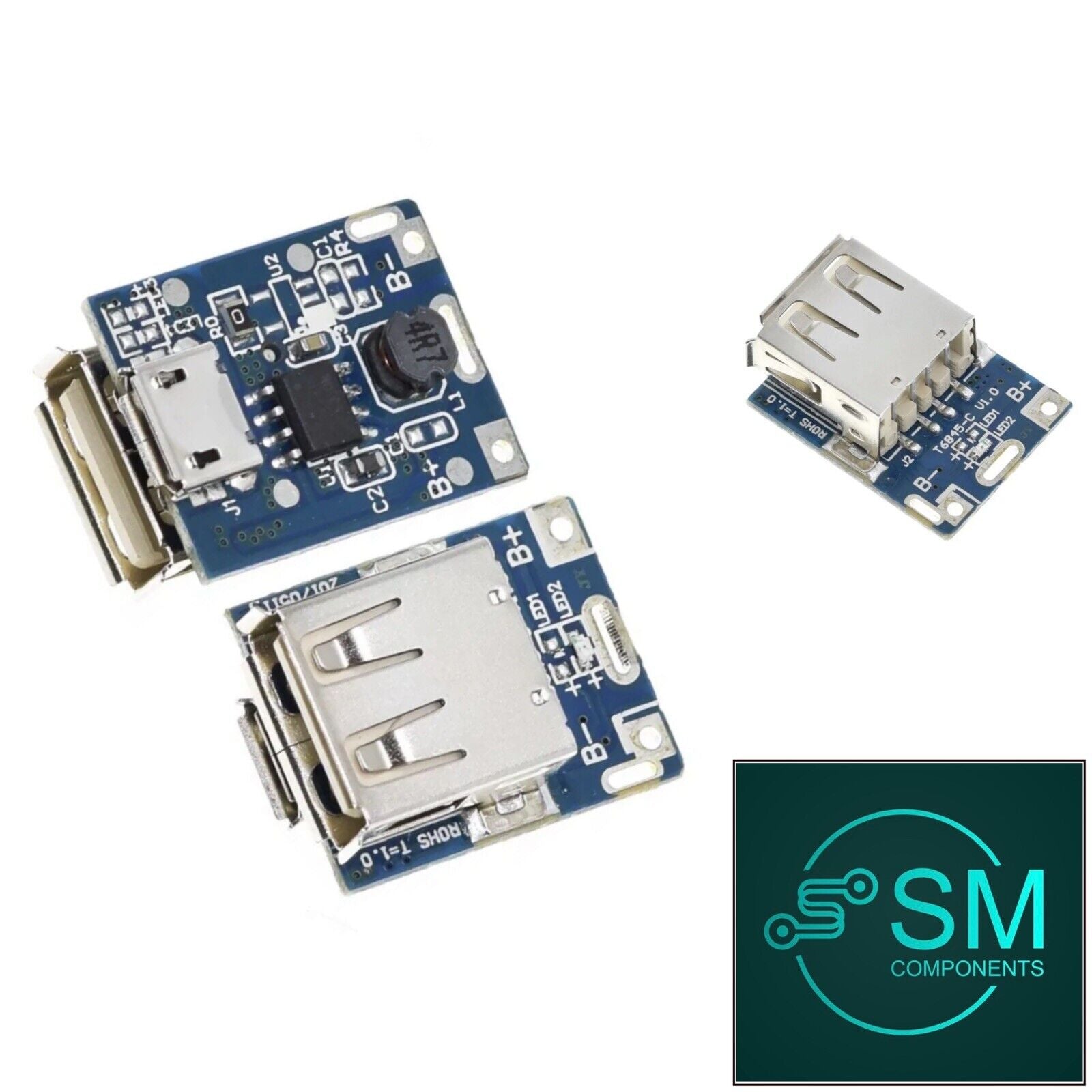

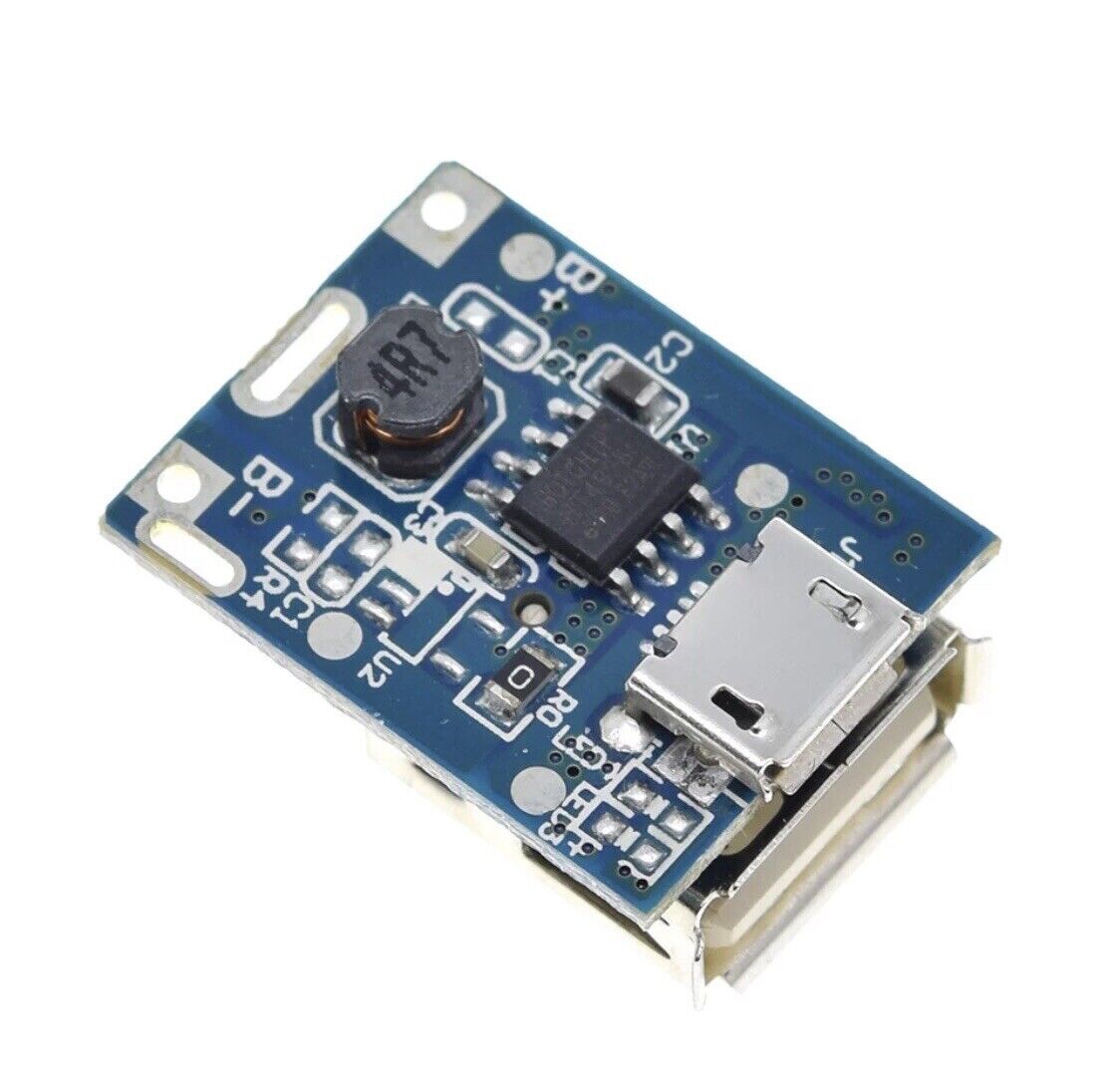

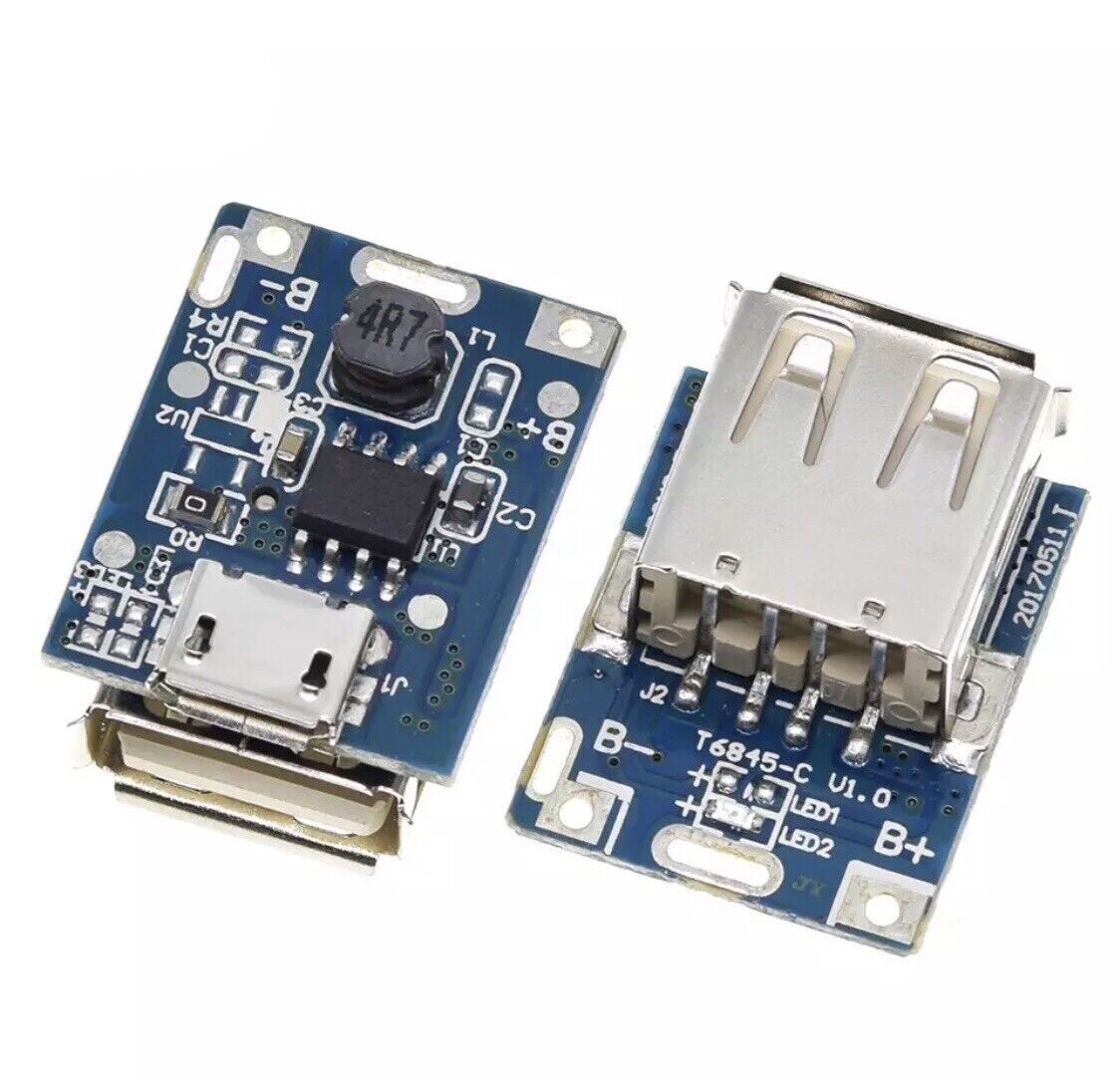

3PCS Step Up Power Supply Module 5V 1A Boost Battery USB Charge Protection

Nominal Voltage Rating (DC): 2 V

Nominal Current Rating: 1 A

Plug Type: Micro B Charge- USB A Output

Discharge Efficiency: 85% (input 3.7V

Output Current: Z is 1A

BAT Discharge Termination Voltage: 2.9V

Input Voltage: 3.7V~5.5V

MPN: Does not apply

Brand: Unbranded

Charging Current: Z 1A

Output Voltage Rating (AC): 5 V

Output Voltage Rating (DC): 5 V

Inrush Current Rating: 1 A

Output Voltage: 5V

3 pieces Step Up Power Supply Module 5V 1A Boost Battery USB Charge Protection. Condition is "Brand New".

Product Introduction:

1.Input Voltage: 3.7V~5.5V

2.Charging Current: 1A(max)

3.Output Current: 1A(max)

4.Output voltage: 5V

5.BAT Discharging Stop Voltage: 2.9V

6.Discharging Efficiency: 85%(input 3.7V output 5V/1A)

Features:

1.Charging and discharging indication

2.Internally installed charging and discharging power MOS

3.Preset 4.2V charging voltage, precision ±1%

4.Max 8uA standby current

5.Integration charging management and discharging management

6.Intelligent temperature control and overtemperature protection

7.Integration output overvoltage protection,short coircuit protection,overload protection

8.Integration overcharging and overdischarging protection

9.Support trickle mode and zero voltage charging

When charging :red light flashing;

Full charged :red light light for a long time.
