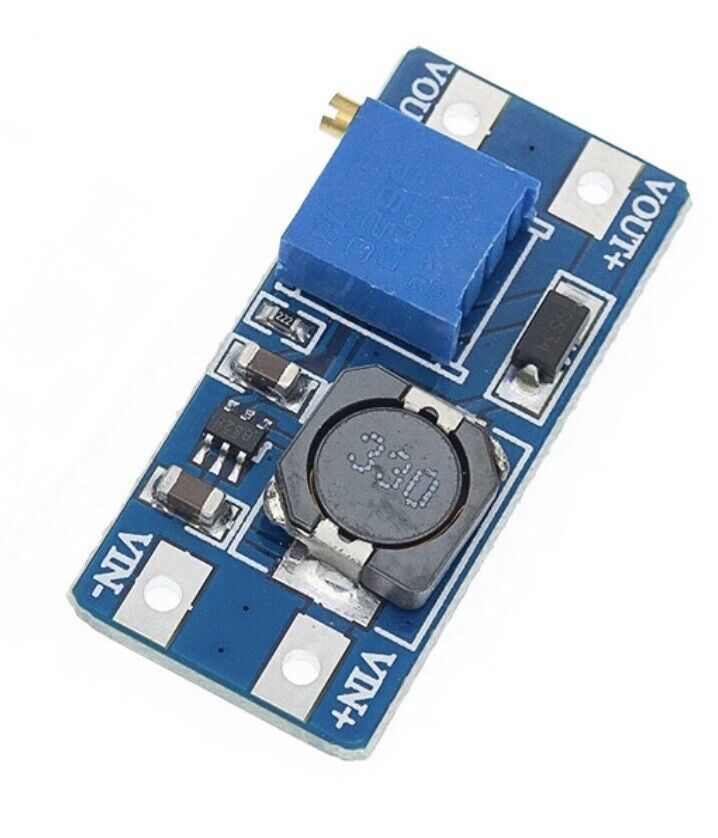

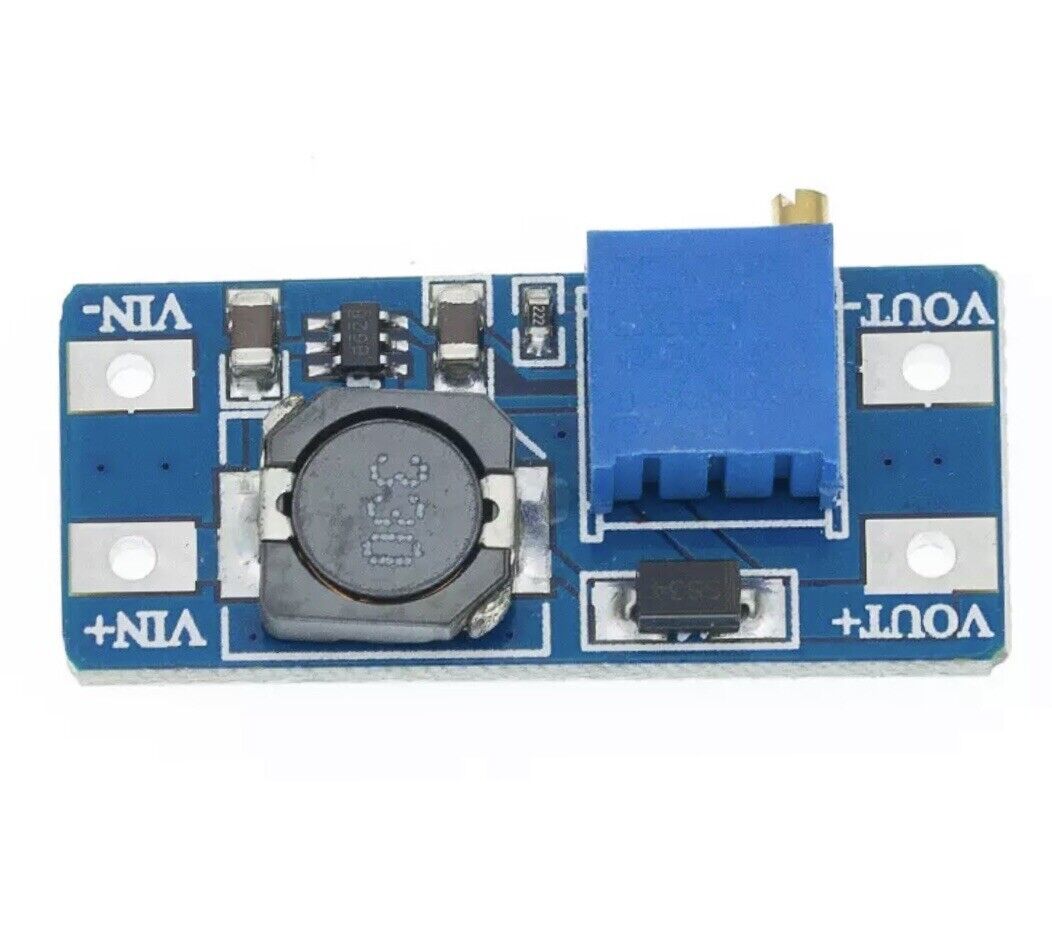

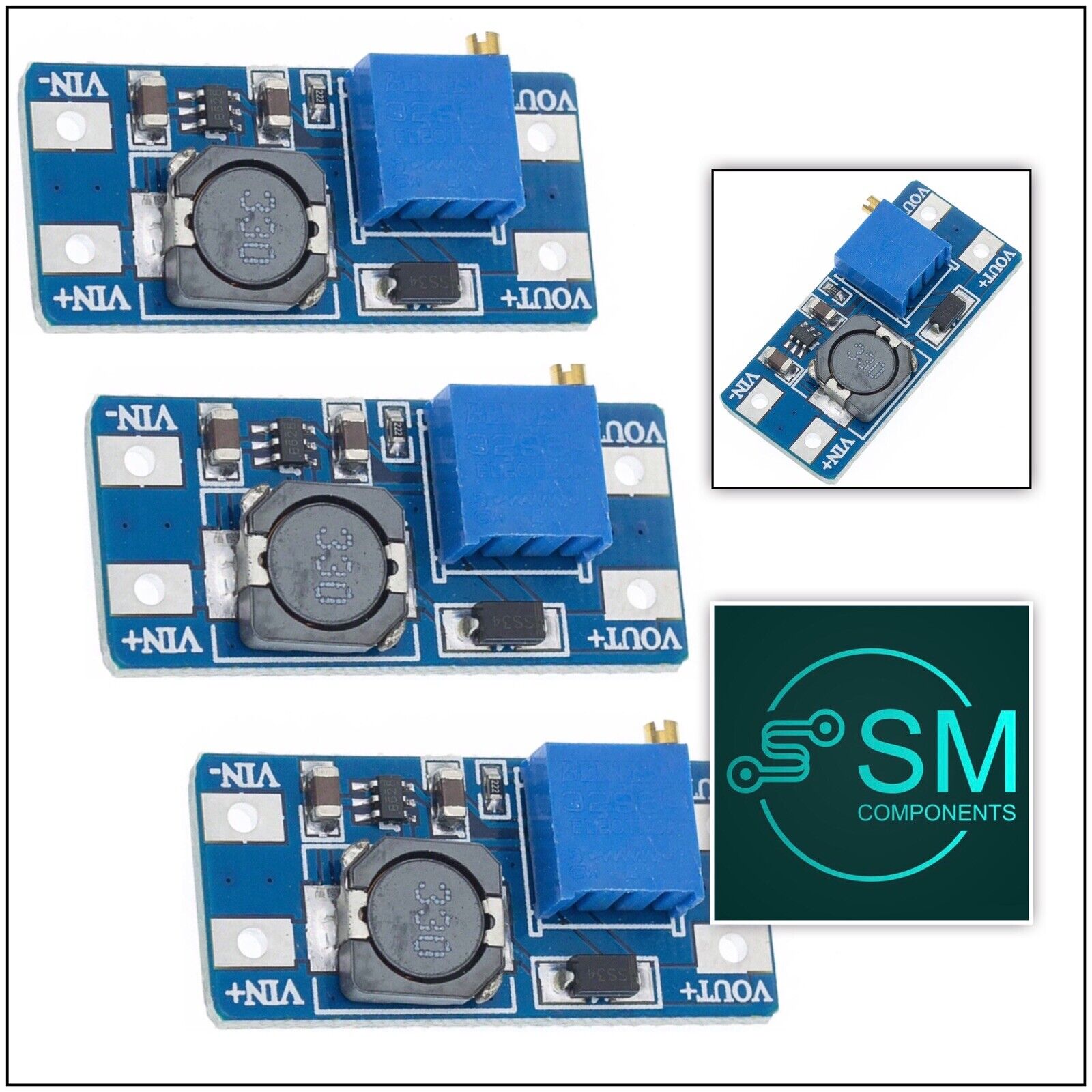

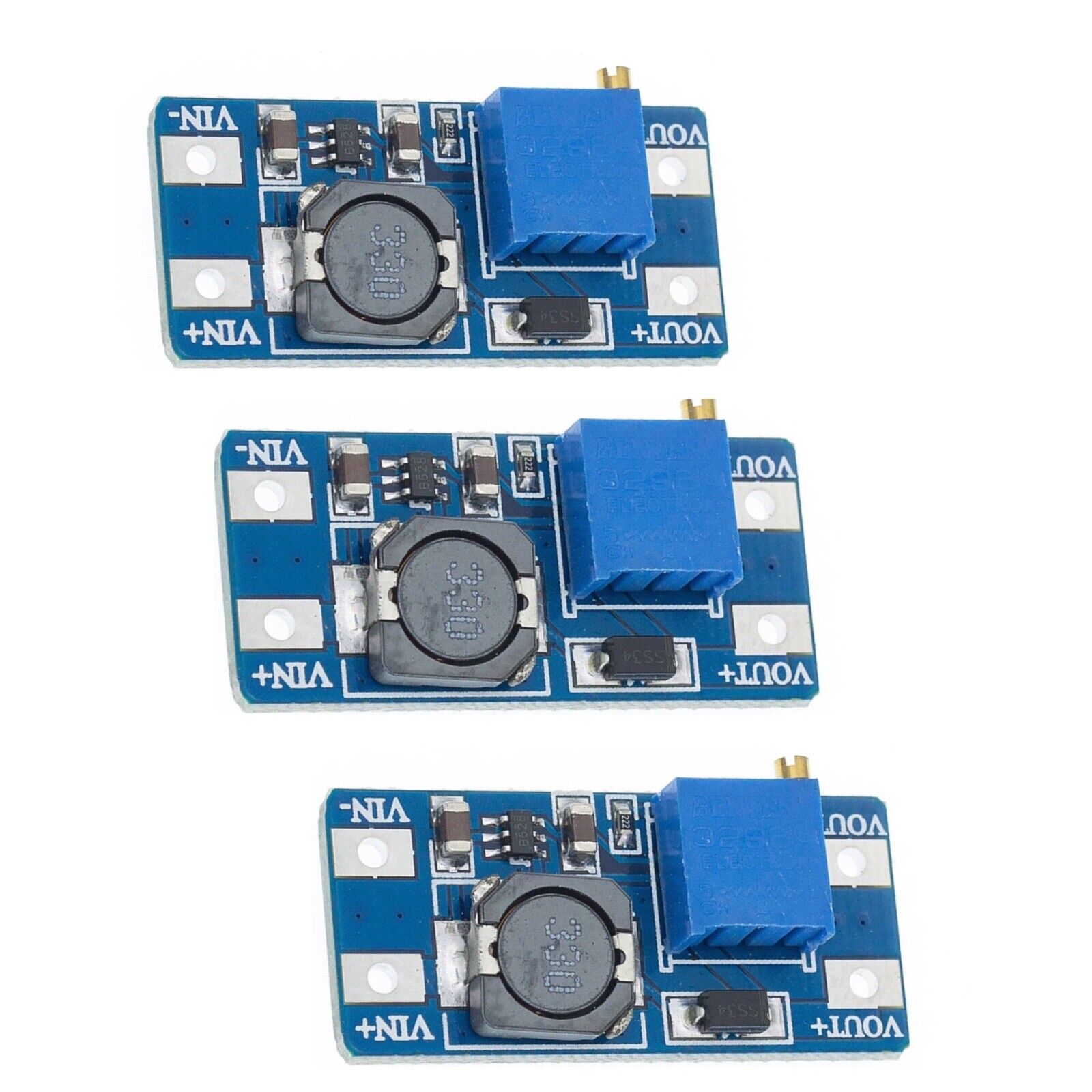

3PCS MT3608 2A Max DC-DC Step Up Power Module Boost Power Module 3-5V to 24V DIY

Nominal Voltage Rating (DC): 15V

Nominal Current Rating: 2 A

Plug Type: Micro USB

Current Conversion: DC to DC

MPN: Does Not Apply

Minimum Operating Temperature: -55 °C

Colour: Blue

Brand: Unbranded

Series: MT3608

Type: Step Up Boost Converter

Current Type: DC

Output Voltage Rating (AC): 24 V

Efficiency: 95%

Maximum Operating Temperature (Nominal): +85°C

Output Voltage Rating (DC): 24 V

Inrush Current Rating: 2 A

Maximum Operating Temperature: 85 °C

Country/Region of Manufacture: China

Output Voltage: 24 -28 Volts Max

MT3608 2A Max DC-DC Step Up Power Module Booster Power Module 3-5V to 5V/9V/12V/24V Adjustable Booster For Arduino. Condition is BRAND NEW, sent with Australia Post regular letter no tracking.

MT3608 Micro:

2A Adjustable Booster Board DC-DC Step-up Module

Description:

The whole network smallest adjustable boost module can be easily installed in a variety of small equipment.

The module supports MicroUSB input, a USB charger or mobile power supply can easily get to it 9V, 12V, 15V, 18V, 24V, easy to use.

Wide input and output voltage, high conversion efficiency.

Maximum output current: 2A (recommended for use within 1A)

Input voltage: 2 v ~ 24 v

Maximum output voltage:> 28 v (recommended for use within 26V)

Efficiency:> 93%

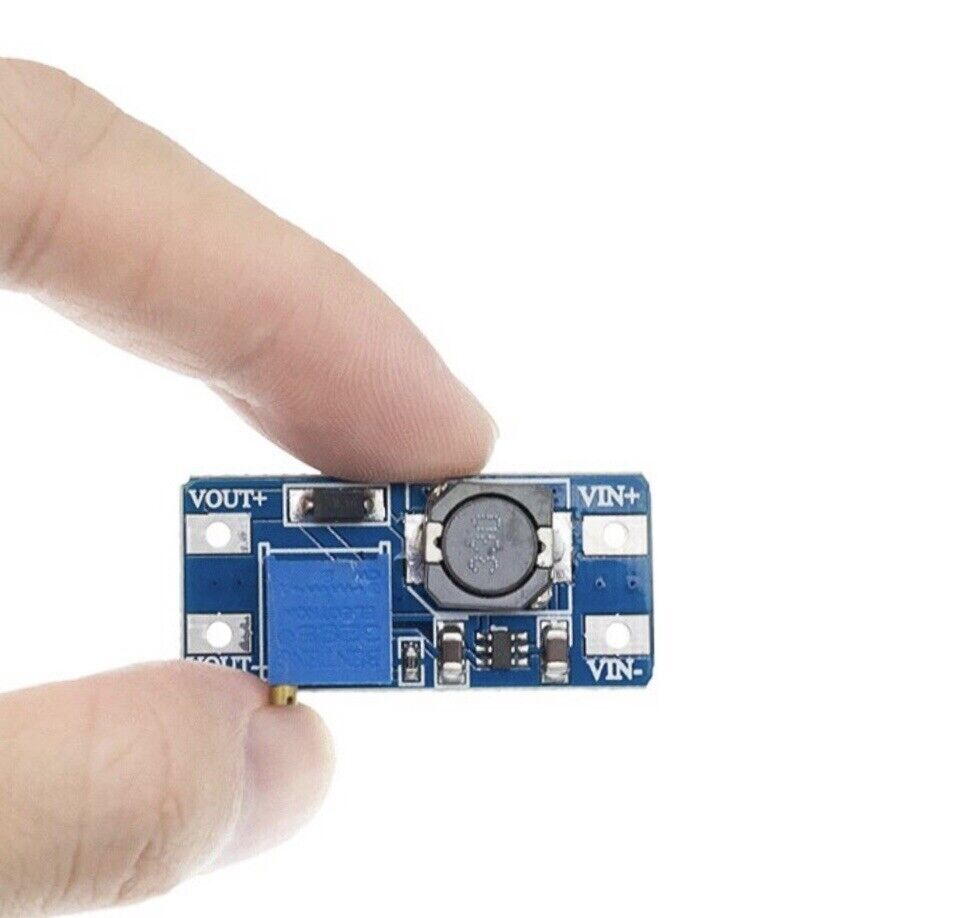

Size: 30mm * 17mm * 14mm (L * W * H)

This module is a step-up module, the output voltage is greater than the input voltage.

Peak current output current does not exceed 2A.

18650 Micro:

Charge module- Linear charging.

Current- 1A adjustable.

Charge precision- 1.5%.

Input voltage- 4.5V-5.5V.

Full charge voltage- 4.2V.

Led indicator- red is charging Green is full charged.

Input interface- micro USB.

Work temperature- -10° to +85°.

Inversed polarity- NO.

Size- small to 25X19X10mm.

NOTE:

1. Ampere meter can only be connected to 5v input end of the module.

2. It is better that the charging current is 37% of the battery capacity. If you charge to the battery of 1000mAH, current of 400 is enough.

3. The connection wire should not be too thick.

4. Make sure the connect point is good.

5. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is protection function, auto-substract the charging current to avoid burn damage to chip.

6. NO Reveral polarity.

Description:

The whole network smallest adjustable boost module can be easily installed in a variety of small equipment.

The module supports MicroUSB input, a USB charger or mobile power supply can easily get to it 9V, 12V, 15V, 18V, 24V, easy to use.

Wide input and output voltage, high conversion efficiency.

Maximum output current: 2A (recommended for use within 1A)

Input voltage: 2 v ~ 24 v

Maximum output voltage:> 28 v (recommended for use within 26V)

Efficiency:> 93%

Size: 30mm * 17mm * 14mm (L * W * H)

This module is a step-up module, the output voltage is greater than the input voltage.

Peak current output current does not exceed 2A.
