3PCS LM2596S 3A DC-DC Power Supply Step Down Buck Voltage Converter DIY Module

Nominal Voltage Rating (DC): 3V-40V

Mounting Style: Stand Alone

Nominal Current Rating: 2A (maximum 3A)

MPN: LM2596 Voltage Regulator Module

Item Depth: 2.1 cm

Minimum Operating Temperature: -10 °C

Brand: Generic

Type: Voltage Regulator

Output Voltage Rating (AC): N/A

Output Voltage Rating (DC): 3V-40V

Inrush Current Rating: 3 A

Maximum Operating Temperature: 55 °C

Country/Region of Manufacture: China

Construction Type: Open Frame

Item Width: 4.4 cm

3PCS LM2596S 3A DC-DC Power Supply Step Down Buck Voltage Converter DIY Module.

Parameters:

Input Voltage: DC 3 -40 V

Output Voltage: DC 1.5 - 35 V

Output Current: 3A(MAX) It is recommended to use under 2A (NOTE: When using high power, add a heat sink to the power supply chip)

Load adjust ratio: +/-0.5%

Voltage adjust ratio: +/-2.5%

Transferring efficiency: 92% Max(the higher output voltage, the higher efficiency)

ON/OFF frequency: 150KHz

Output ripple: 200mV

Module feature: buck and non-isolated

Rectification method: non-synchronous rectification

Fuction:

1.Built in over-temperature protection function

2.Built in current limit function

3.Built in output short-circuit protection function

How to use

1.Access the power supply ( 3 -40 V), the power indicator light, the module is working properly.

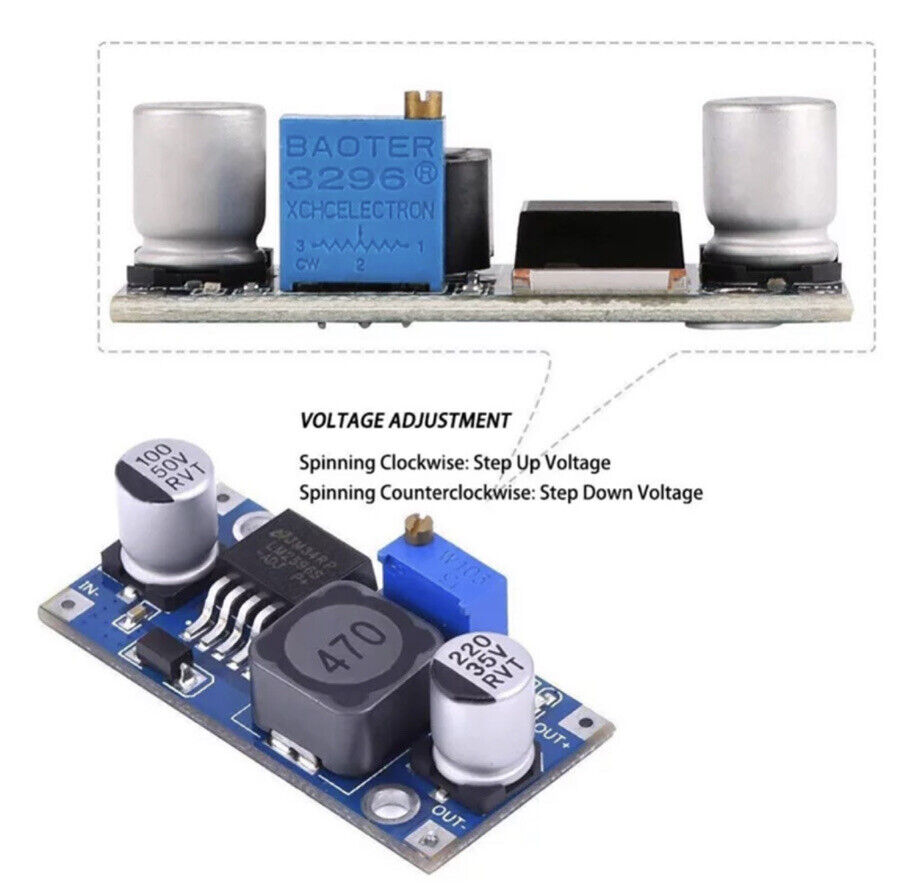

2.Adjust the blue potentiometer knob (usually clockwise rotation boost, counterclockwise rotation Step-down) and monitor the output voltage with a multimeter to reach the required voltage.

3.A customer reflects the module output voltage can not be adjusted, always equal to the input voltage. When you encounter this problem, please first counterclockwise rotation potentiometer 10 laps above, and then use the module can be normal adjustment of the voltage.

Package includes:

2 Pieces LM2596 Module boards

Note:

This is a buck module. The input voltage must be higher than the output voltage.

The input and output interface can not be reversed.

Keep it under 2.5 A and use the heat sink when working for long hours.
