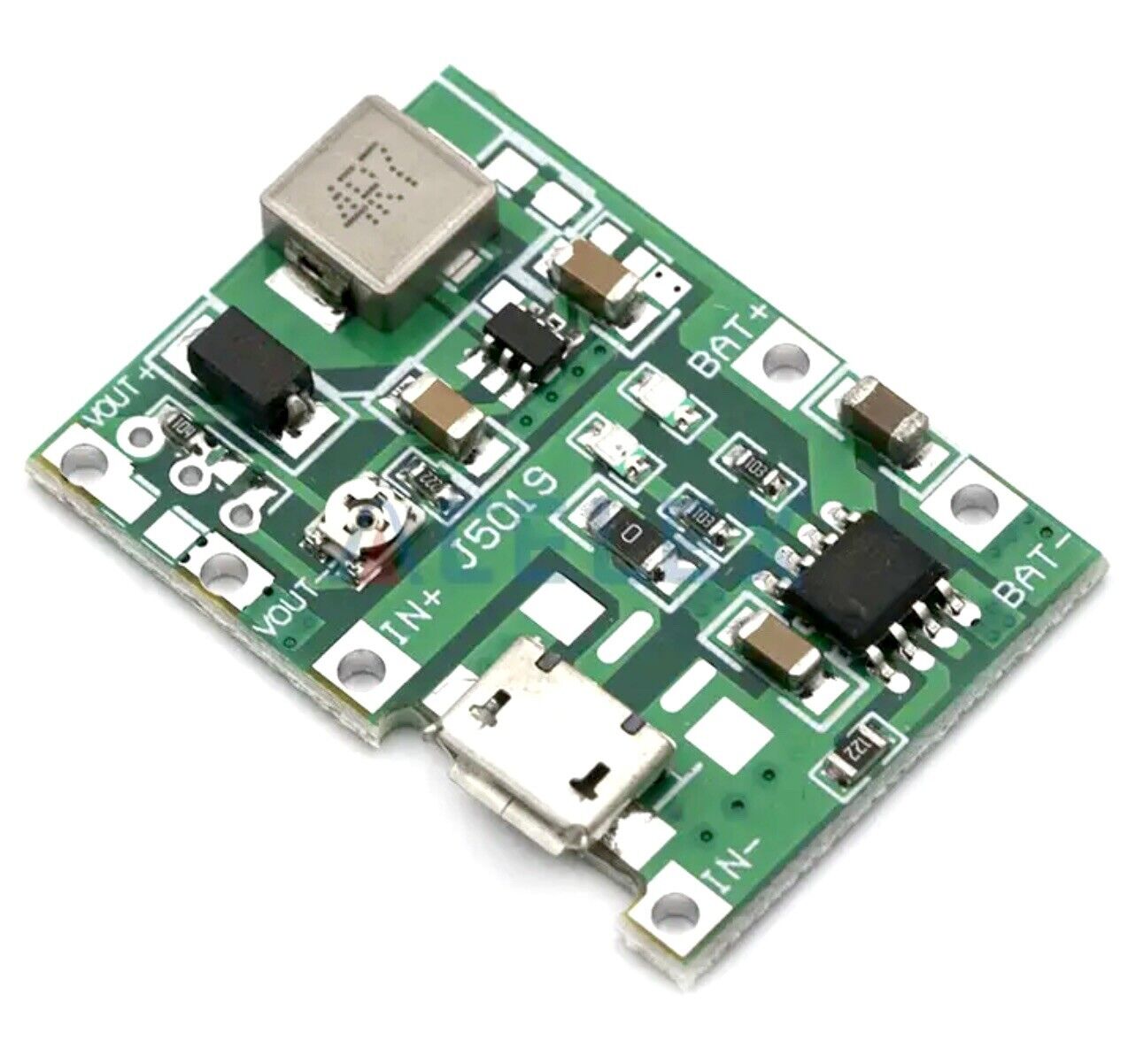

3PCS Lithium Battery Boost J5019 Charging & Protection TP4056 Module Micro USB

Mounting Style: Stand Alone

Nominal Voltage Rating (DC): Input Voltage 4.5V - 8V

Nominal Current Rating: 2 A

Plug Type: Micro-USB

Minimum Operating Temperature: -20 °C

Colour: Green

Installation Area: Indoor/Outdoor

Brand: Unbranded

Type: BMS - Boost Module

Efficiency: Up To 93.7%

Item Height: 33.5 mm

Output Voltage Rating (DC): 4.7V - 27V

Inrush Current Rating: 2 A

Maximum Operating Temperature: 85 °C

Features: Adjustable Output,DC Input Capable

Construction Type: Open Frame

Country/Region of Manufacture: China

Item Width: 23.7 mm

Protection Properties: Discharge Protection,Low Voltage Protection,Overcharge Protection,Overvoltage Protection

UPC: Does not apply

3PCS Lithium Battery Boost J5019 Charging & Protection TP4056 Module Micro USB. Sent with Australia Post Regular Letter.

Features:

100% Brand New and High Quality

Can be used for multimeter, converted to lithium battery charging

For example: VIN+Port input 5V solar panels, BAT+port can output 4.2V to charger 3.7V 18650 battery

Note: The OUT+Port can output an adjustable voltage.

Specifications:

Input voltage: 4.5-8V DC

Output voltage: 4.3-27V DC (Continuously adjustable)

Charging voltage: 4.2V DC

Charging current: Max. 1A

Discharging current: Max. 2A

Size: 3.3x2.3cm/1.3x0.91"

Quantity: 3 x Pcs

Note:

Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

No Retail Package

Package Contents:

3 x Step Up Boost Module
