3mm LED 1200pcs + 200pcs Resistors Light Emitting Diodes 24 Colours Red Cyan…

Mounting Style: Through-Hole

Nominal Current Rating: 20mA Max

Configuration: Single

Viewing Angle: 30° - 110°

Item Diameter: 3 mm

Lens Shape: Round

Lens Surface: Clear, Diffused, Coloured Diffused

Nominal Voltage: 2.0 - 3.2V

Forward Current: 20 mA

Package/Case: F3

MPN: Does Not Apply

Wavelength: Various

Brand: SM Components

Series: F3

Power Dissipation: 60 mW

Type: Single Chip LED

Number of Pins: 2

Packaging: Box

LED Colour: Multicoloured

Number of LEDs: 1200

Country/Region of Manufacture: China

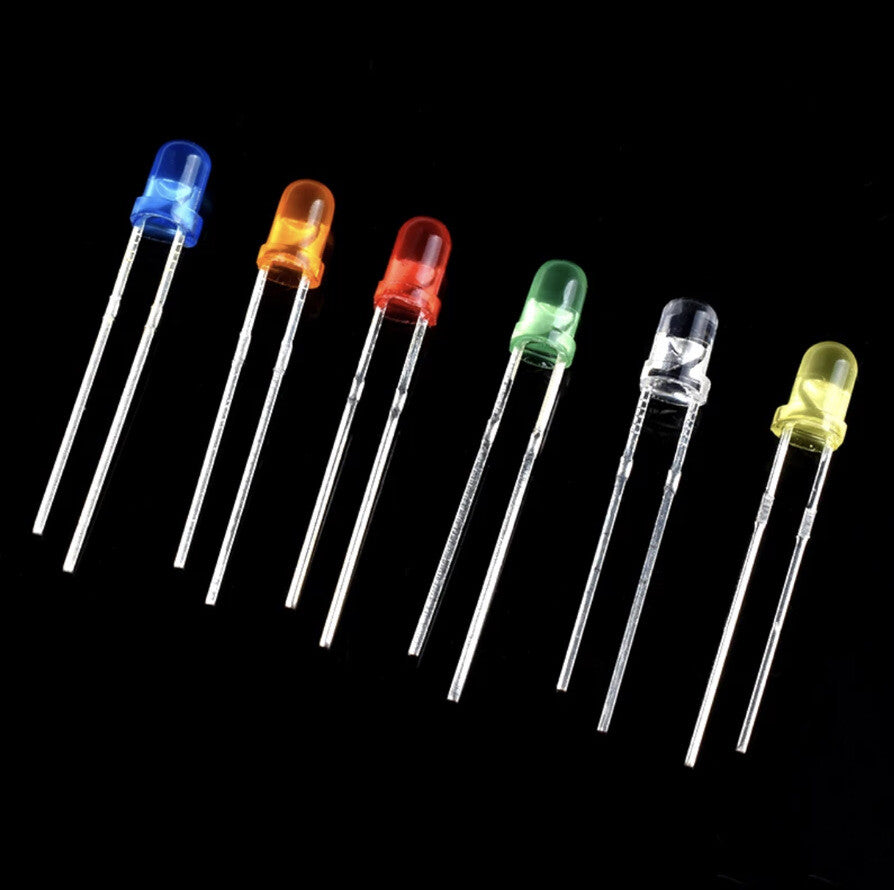

1200 Pieces 24 Types 3mm LED Light Emitting Diodes Round lens Red Green Blue Etc Assortment Kit Including 200 Pieces 1/4 Watt Metal Film Resistors.

Sent with Australia Post Parcel post tracking number included.

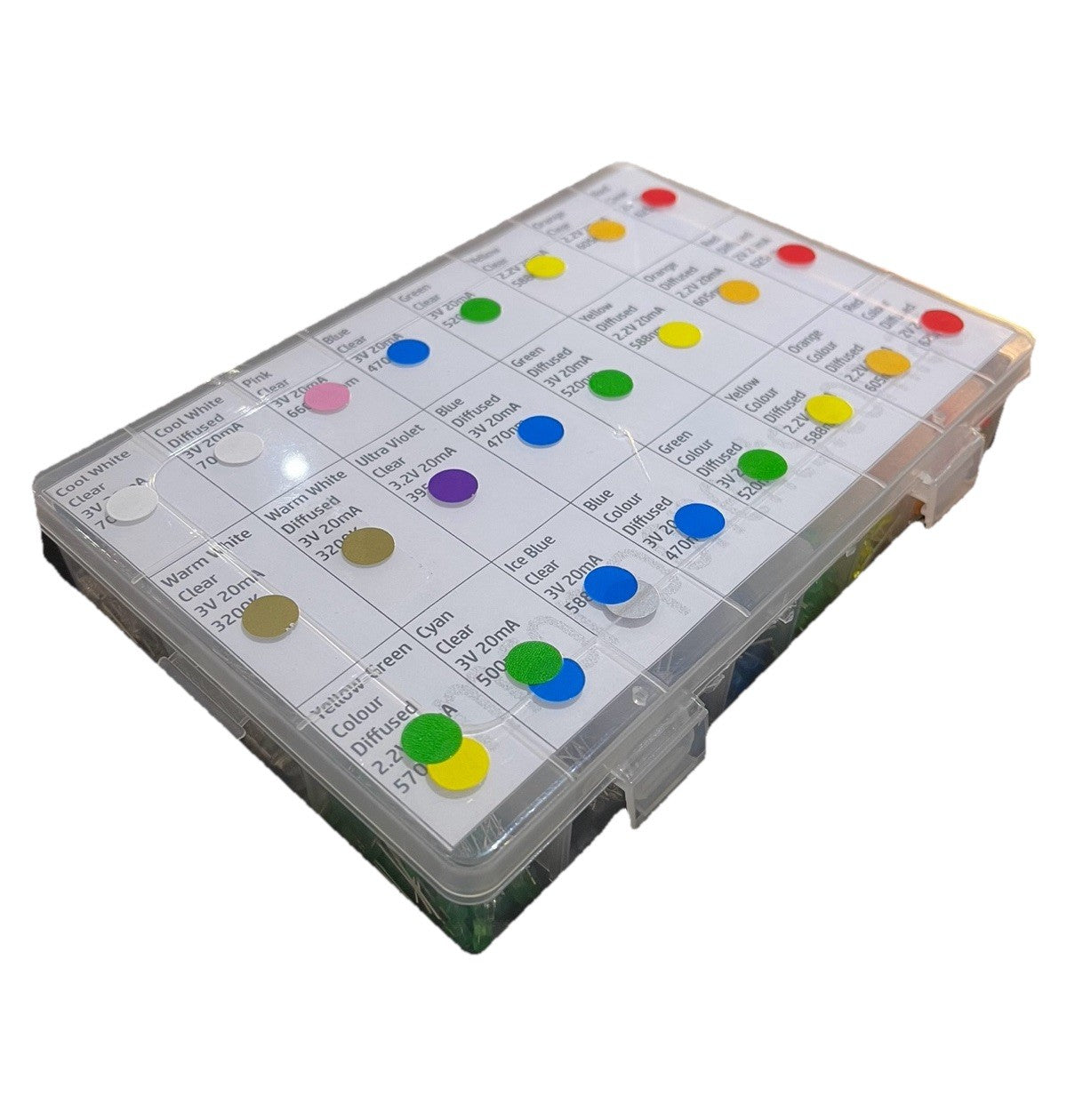

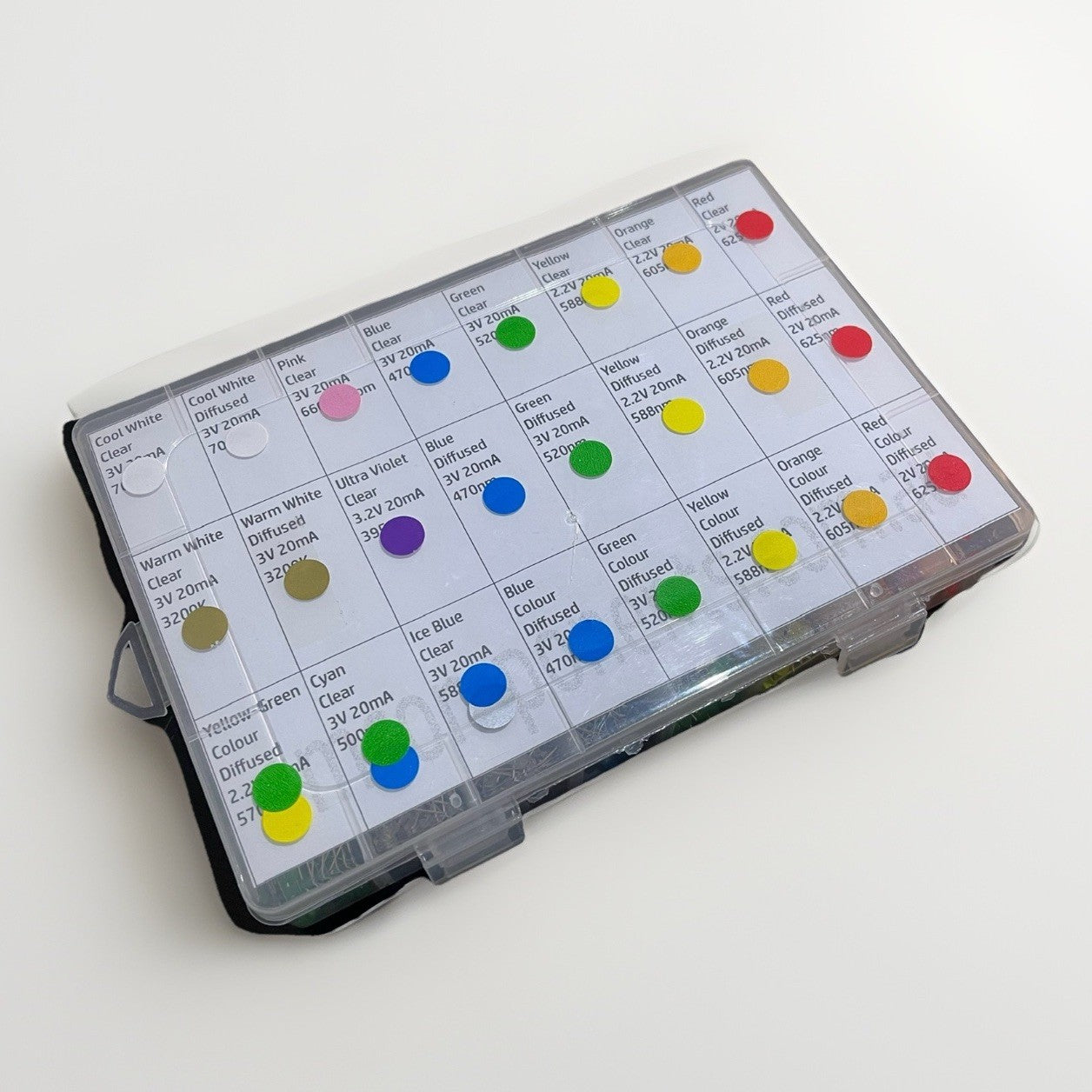

24 colour combinations + 200 resistors

Red to red - coloured diffused

(2V 625nm)

Orange to orange - coloured diffused

(2.2V -605nm)

Yellow to yellow - coloured diffused

(2.2V 588nm)

Green to green - coloured diffused

(3.0V 520nm)

Blue to blue - coloured diffused

(3.0V 470nm)

Green to yellow green - coloured diffused

(2.2V 570nm)

Clear diffused to red - (2.0V 625nm)

Clear diffused to orange - (2.2V 605nm)

Clear diffused to yellow - (2.2V 588nm)

Clear diffused to green - (3.0V 520nm)

Clear diffused to blue - (3.0V 470nm)

Clear diffused to warm white - (3.0V 3200K)

Clear diffused to cool white - (3.0V 7000K)

Clear to orange (2.2V 605nm)

Clear to ice blue (3.0V 488nm)

Clear to cool white (3.0V 7000K)

Clear to red (2.0V 625nm)

Clear to yellow (2.2V 588nm)

Clear to blue. (3.0V 470nm)

Clear to warm white (3.0V 3200K)

Clear to green (3.0V 520nm)

Clear to magenta (3.0V 650 comb nm)

Clear to cyan (3.0V 500nm)

Clear to ultra violet (3.2V 395nm)

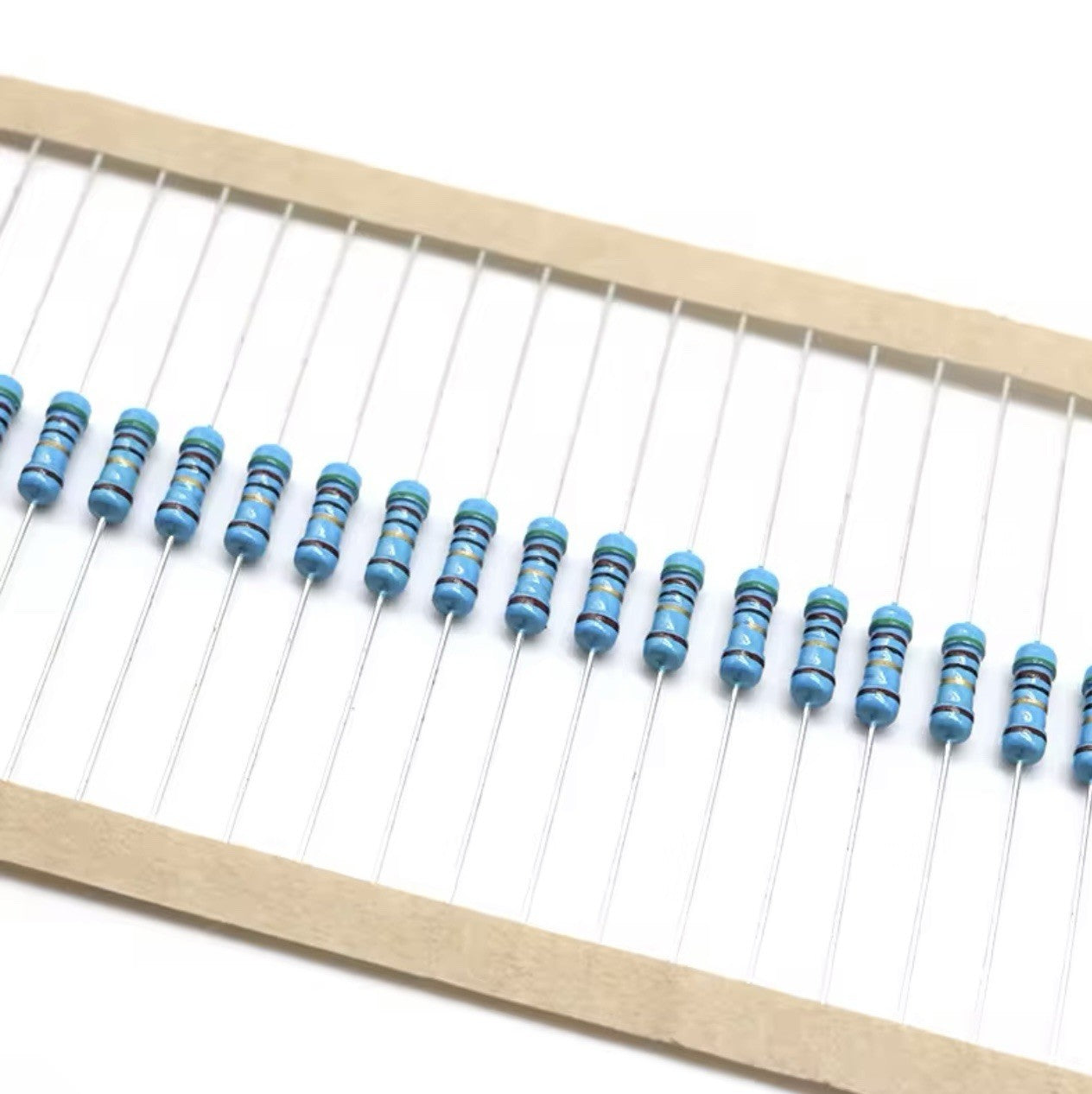

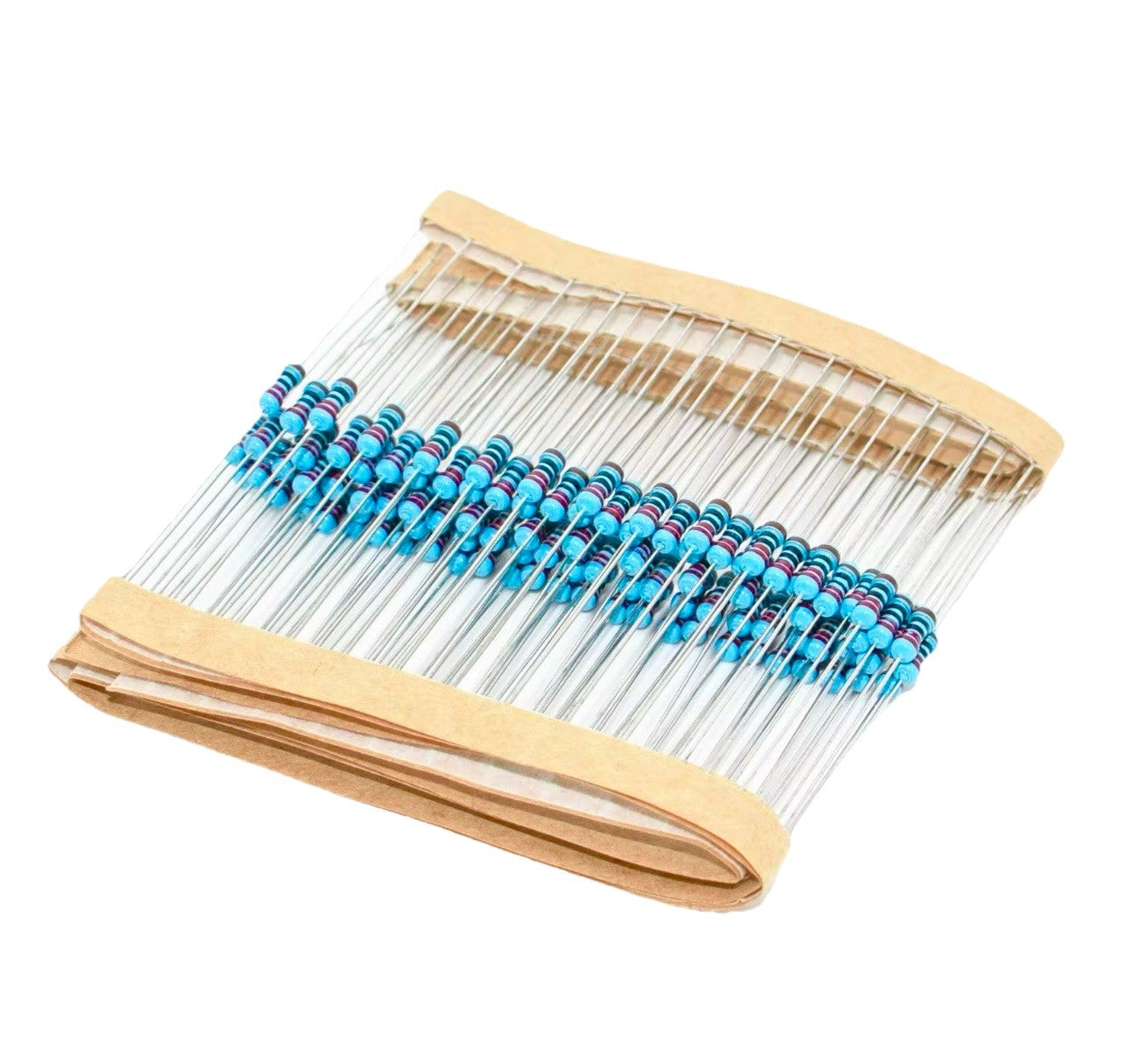

Resistor values:

50 x pieces x 150 Ω 3-5V

50 x pieces x 390 Ω 5-6V

50 x pieces x 560 Ω 6-9V

50 x pieces x 750 Ω 9-12V

The value to voltage shown is only a guideline,

please calculate your needed value.

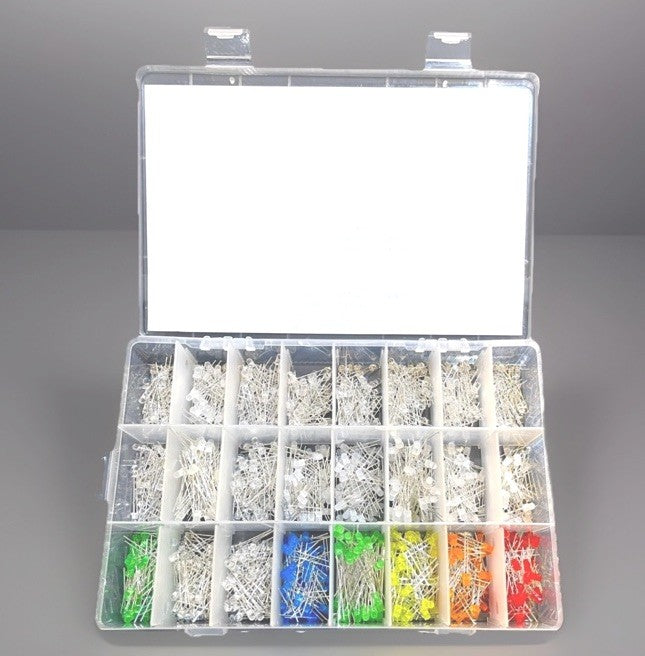

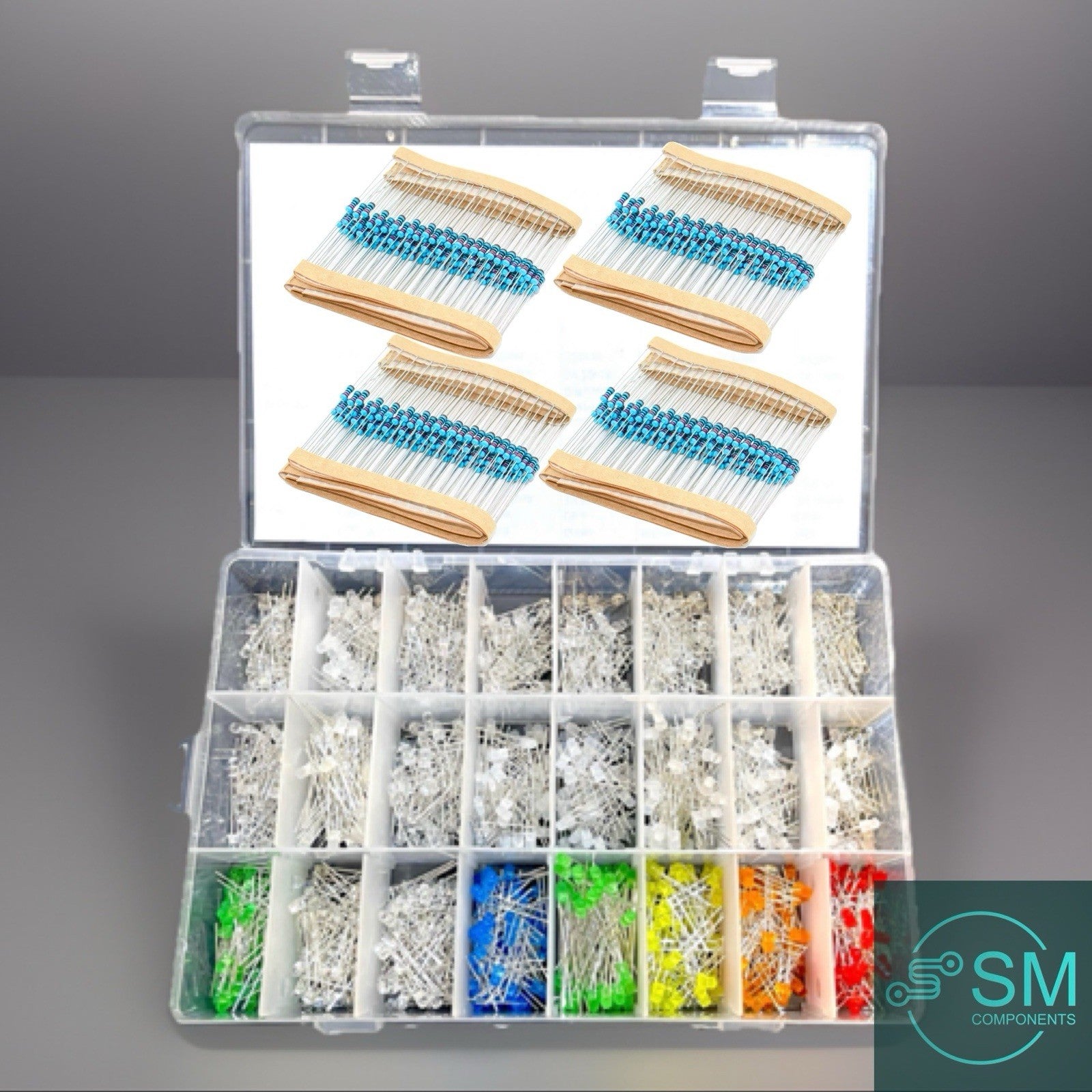

Package: 1200 F3 (3mm) x 24 types, each colour 50pcs. 200pcs 1/4 watt resistors.
