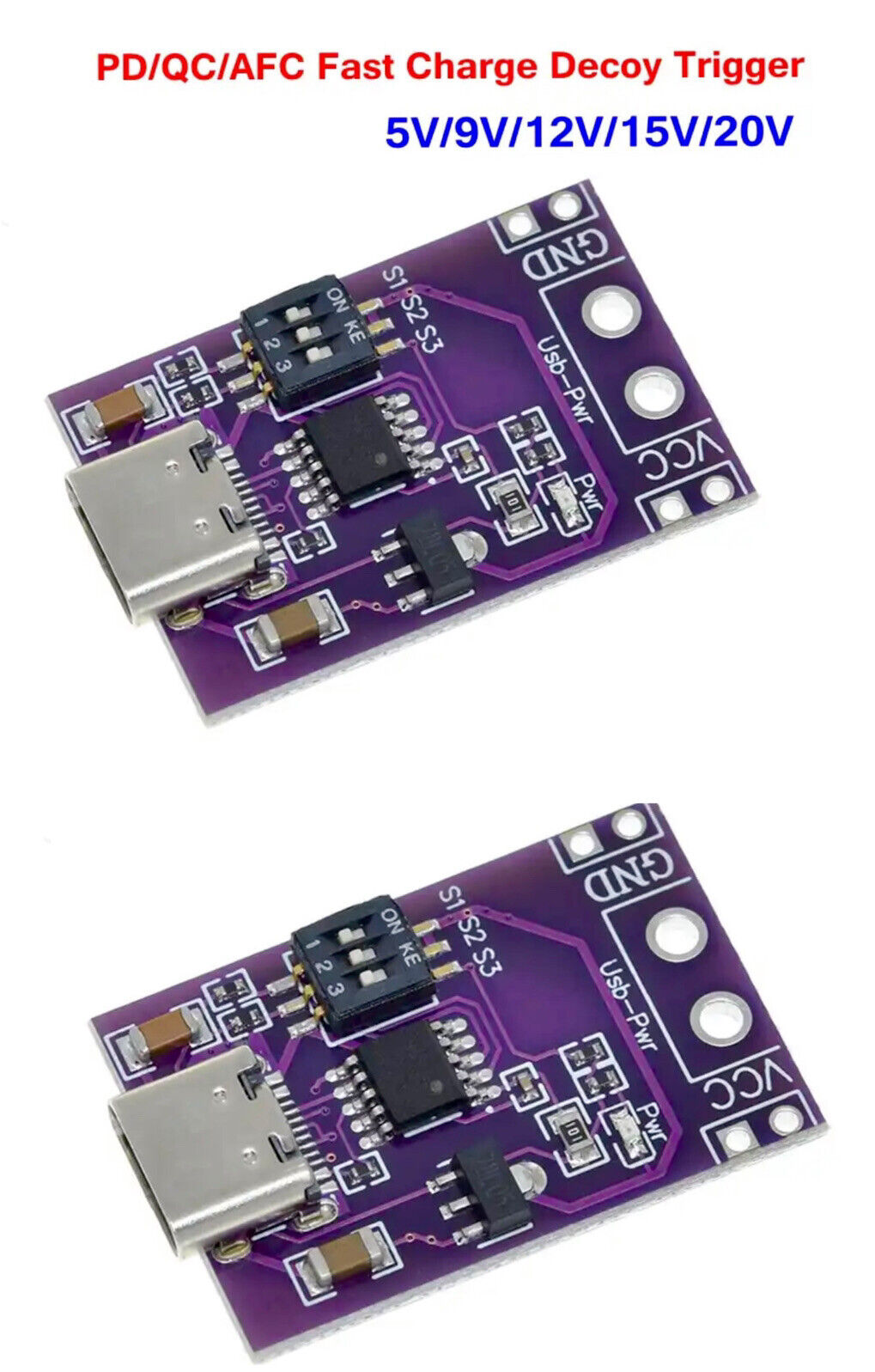

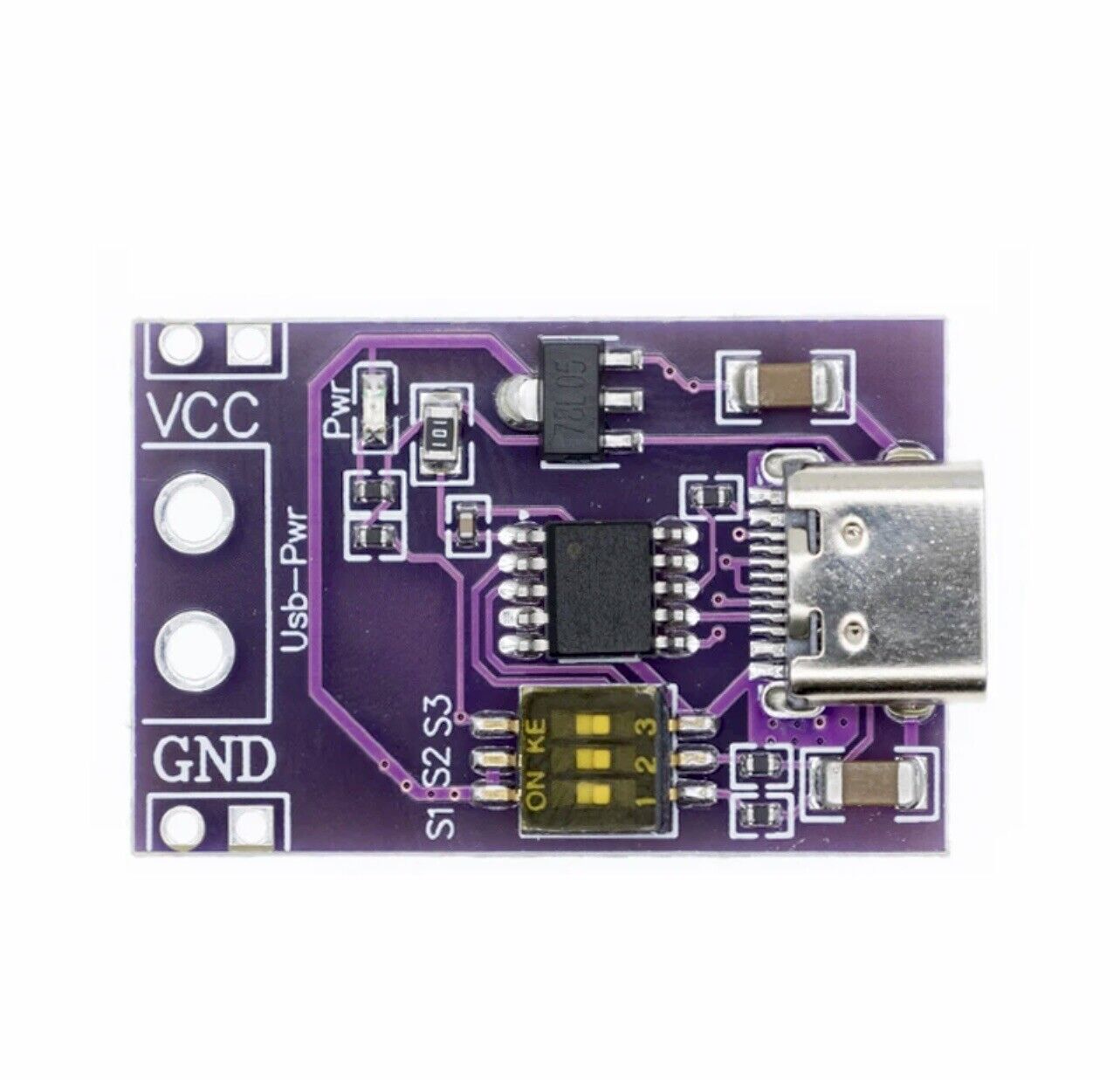

3 X USB Type-C PD/QC/AFC Decoy Trigger Board 5V-20V ADJ Output PD 2-3.0 Trigger

Nominal Voltage Rating (DC): 12 V

Mounting Style: Stand Alone

Plug Type: Type C

Nominal Power Rating: 20 W

MPN: Does Not Apply

Minimum Operating Temperature: -20 °C

Colour: Purple

Installation Area: Indoor

Brand: DIY Robot

Type: Does Not Apply

Output Voltage Rating (DC): 5 V

Item Height: 0.5cm 5mm

Model: USB Trigger Board

Connectivity: USB-C

Features: Adjustable Output Voltage

Maximum Operating Temperature: 65 °C

Country/Region of Manufacture: China

3 x USB Type-C QC AFC Decoy Trigger Board 9V 12V 15V Output PD2.0 PD3.0 Trigger Adapter Fast Charge to suit USB-PD Notebook Power Supply Charge Module or For Your specific needs.

Description

Features:

1: stable performance

2: Simple installation

3: Wide application

4: Safe and reliable

5: Support 5V 9V 12V 15V 20V fixed voltage output

Fast charge support protocol: PD2.0/PD3.0, QC2.0/QC3.0, AFC

Support voltage: 5V, 9V, 12V, 15V, 20V (voltage step is not supported)

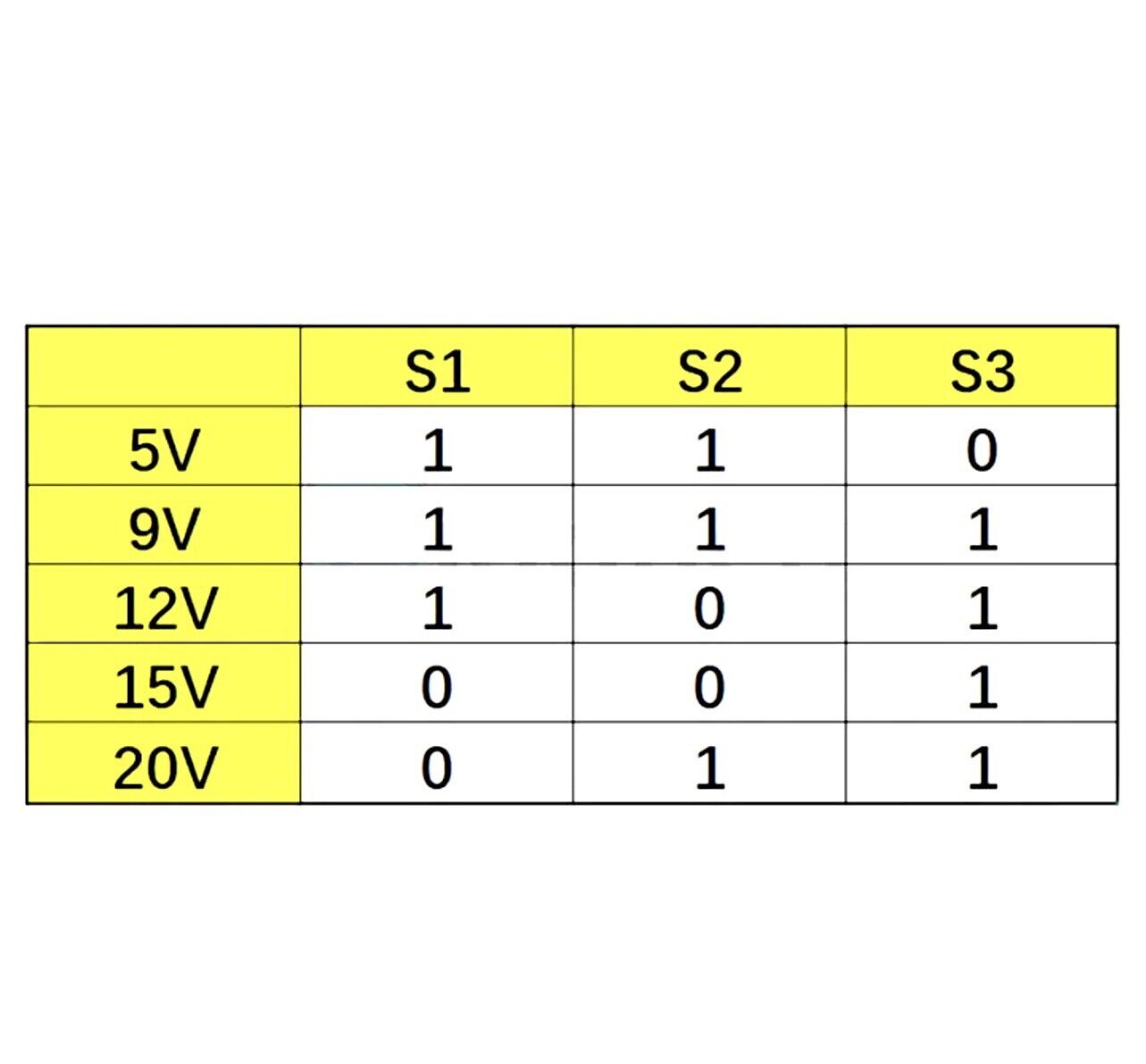

Voltage adjustment method: According to the table on the back of the board, adjust the DIP switch to control the voltage output

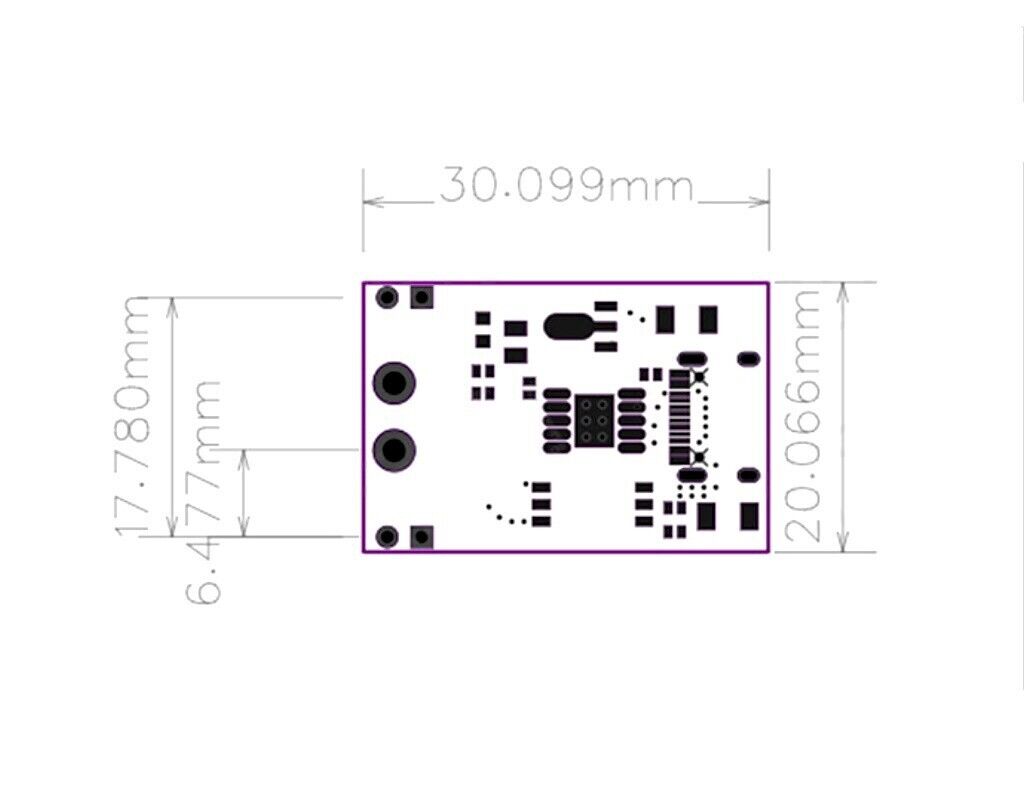

Size: 3.1*2*cm

Net weight: 2.9g

1. After adjusting the DIP switch, because there is no voltage indicator, it is recommended to use a multimeter to measure the voltage before connecting to the application circuit.

2. If the DIP switch is not adjusted according to the table, the module will output any one of the above voltages.

Specifications

Package

3 x SMD Decoy Trigger Module

Please use minimum 5V X 4-6 Amp Power Supply To obtain 15-20V output.
