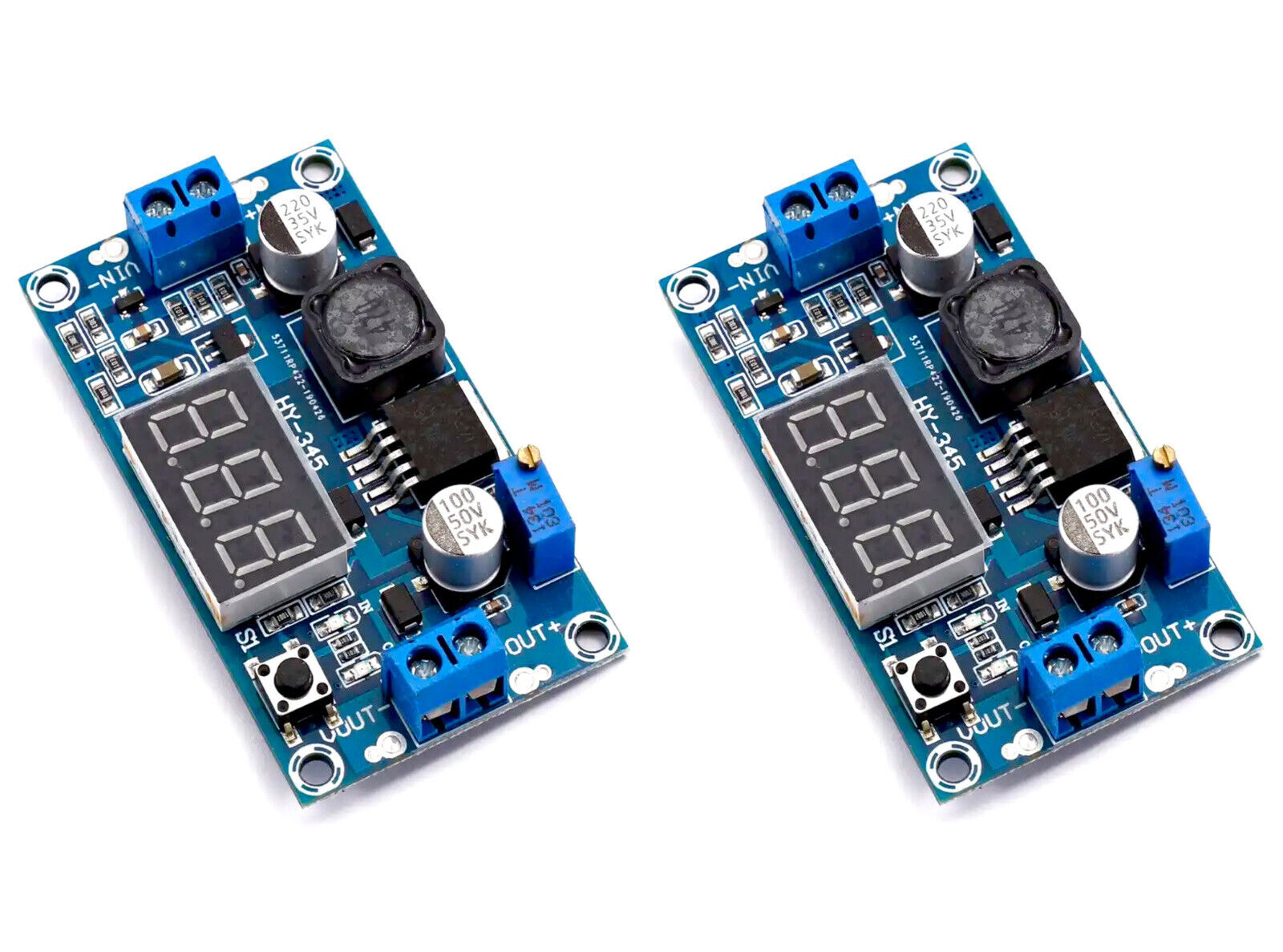

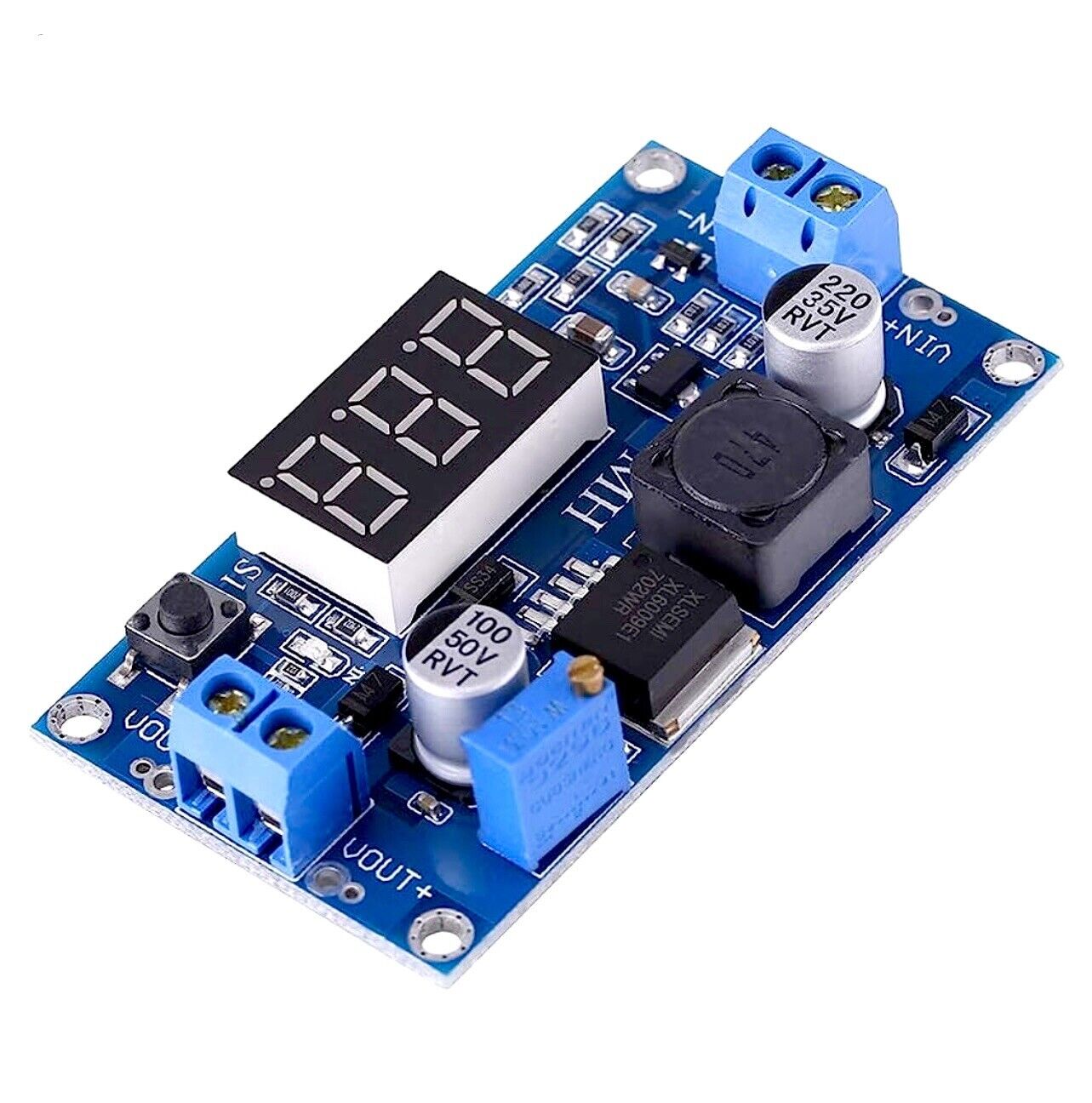

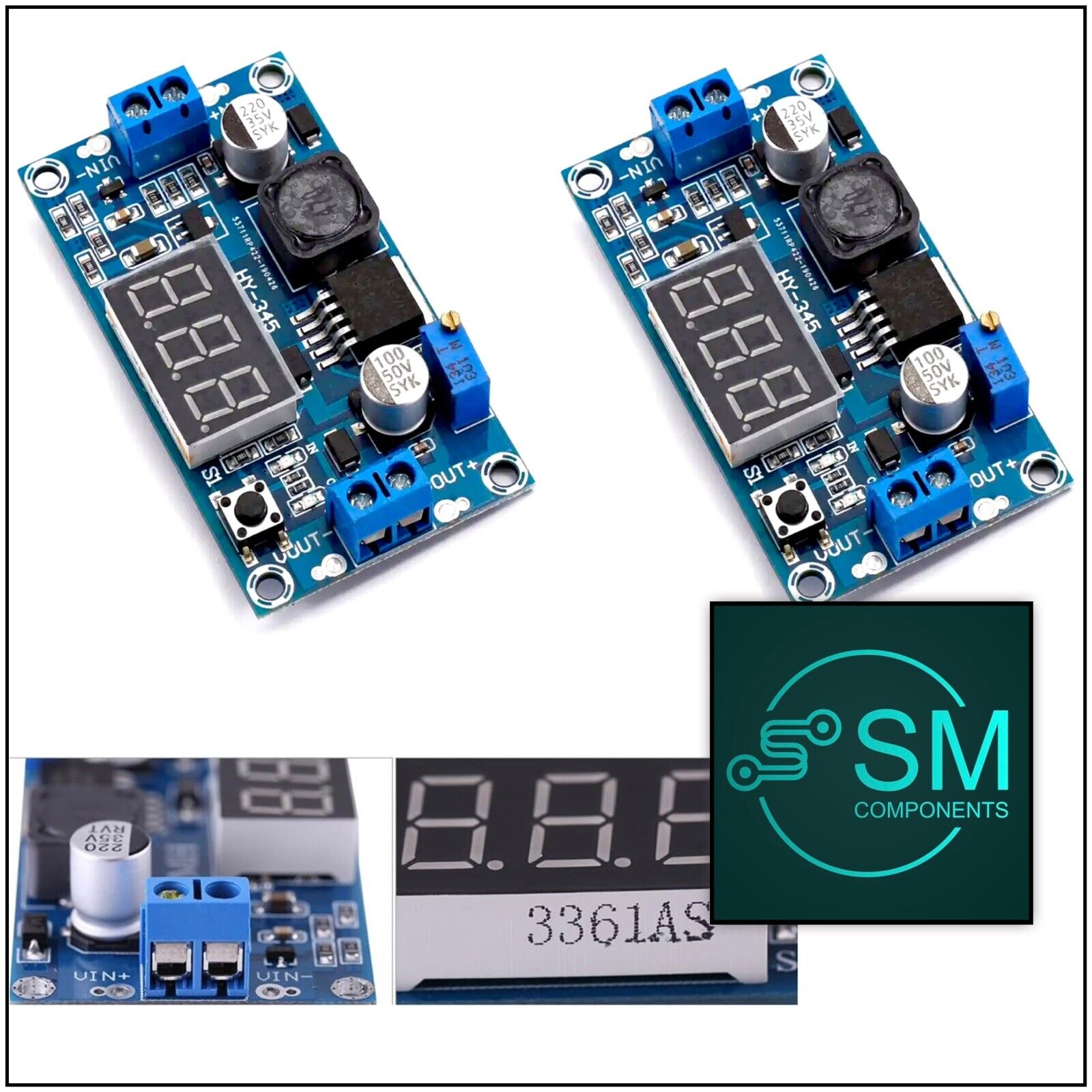

2PCS - XL6009 DC-DC Variable Voltage Boost Step-Up Regulator Module With Display

Brand: Does not apply

Type: Adjustable Boost Converter

Model: XL6009

MPN: HY-345

Unit Quantity: 2 X XL6009 MODULES

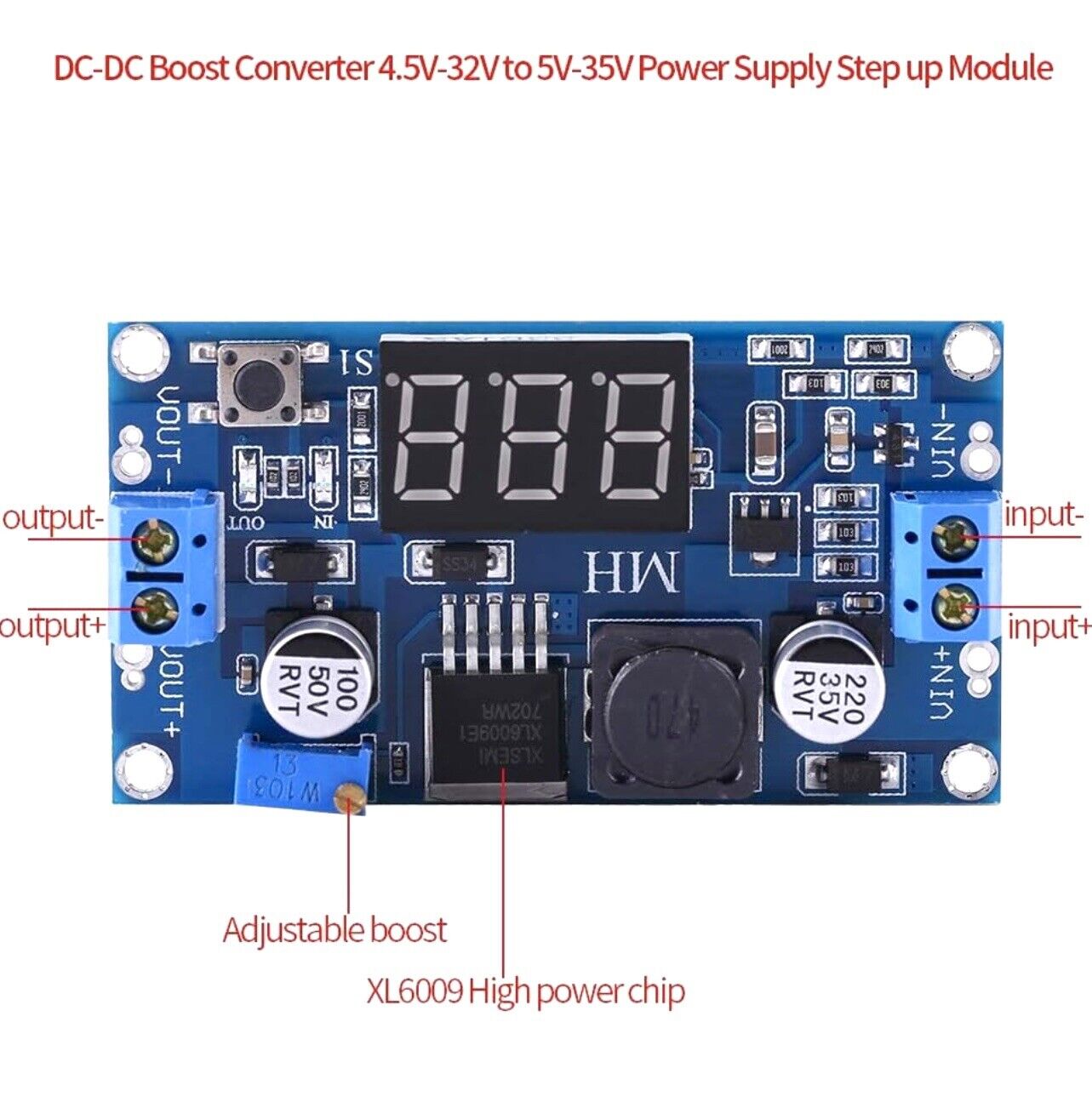

2 X DC-DC XL6009 Digital Boost Step Up Power Supply Module Adjustable 4.5-32V to 5-52V Step-up Voltage Regulator With LED Voltmeter Display.

Sent with Australia Post Regular Letter with tracking number.

1. Module Feature: Non-isolation booster

2. Rectifier system:Not synchronous rectifier

3. Input voltage:4.3V-32V

4. Output voltage: 5V-52V

5. Incoming current:4A(maximum)

6. Transfer efficiency: 94% (The highest) Normal efficiency for 85%

7. Switching frequency:400KHz

8. Output ripple:50mV

9. Load regulation:±0.5%

10. Voltage regulation:±0.5%

11. Operating temperature:-40°~+85°

12. Size:6.98cm*3.80cm

Function key:

1). Short press: input/output display options

2). Moderate press: Enter the fine-tuning state .Increase or decrease the offset (the default is 0), when the voltage display inaccurate use .Short according to the regulation, long press or long according to restore

3). Long press: the state of low power consumption, the digital tube and the lights are out, the normal work of the module. Click the button again to restore. Normal display

Clockwise to adjust output voltage:

Clockwise----- increasing voltage

Counterclockwise----reduce the voltage
