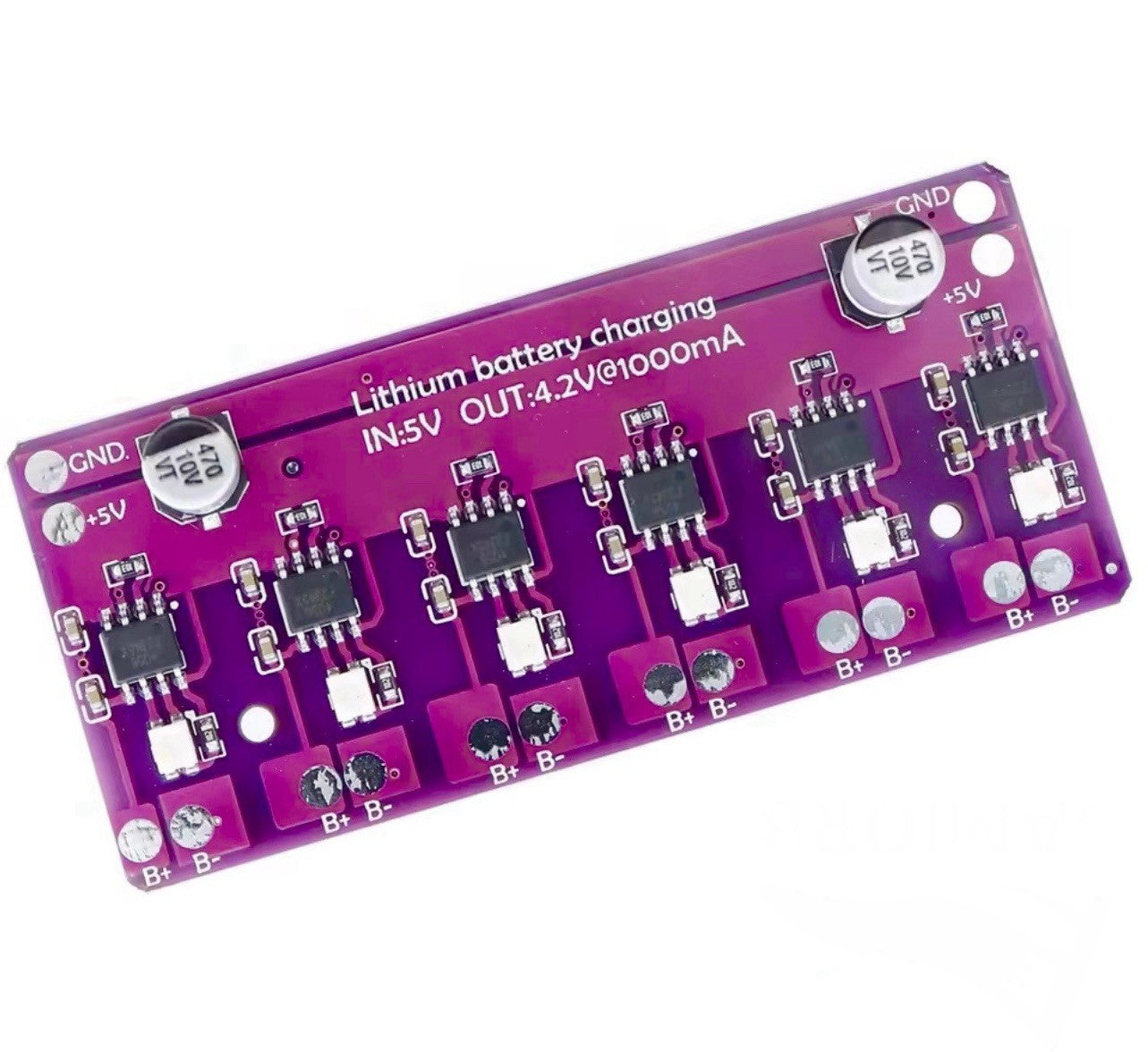

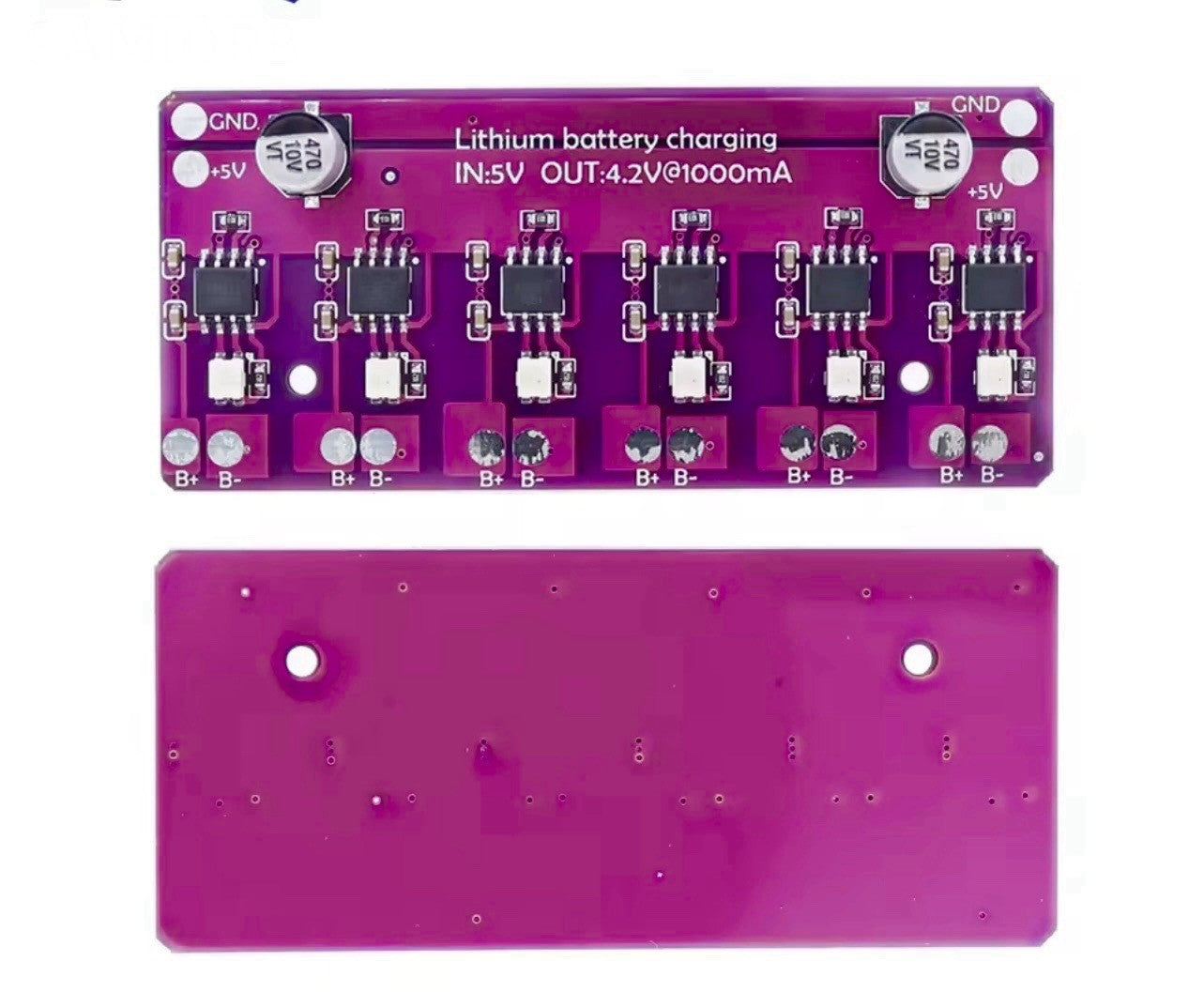

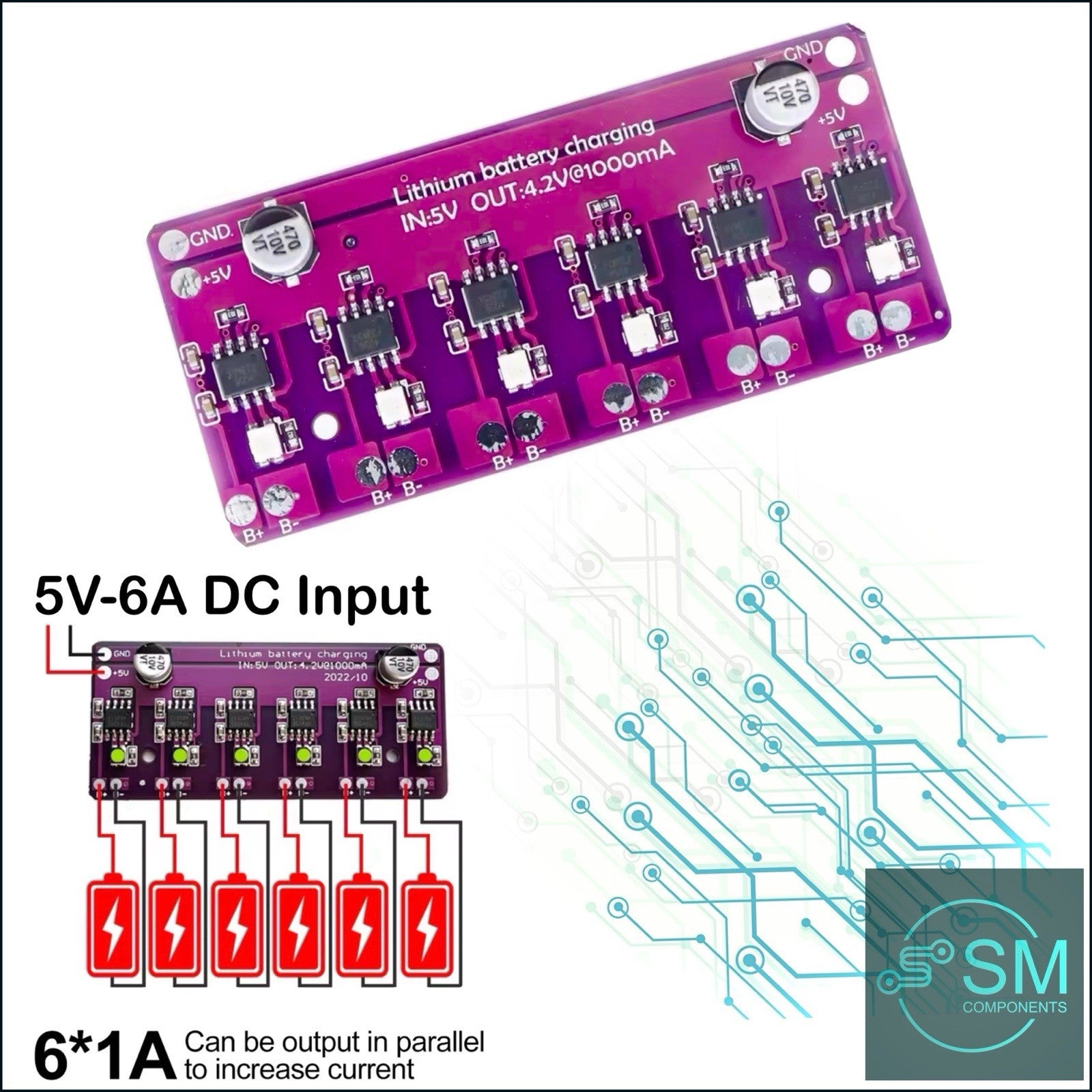

25Pcs 6 x 1A Parallel Battery Charging 5VDC 6A Lithium Battery Circuit Board

Nominal Voltage Rating (DC): 5VDC

Mounting Style: Stand Alone

Brand: Generic

Type: Lithium Charging Module

Nominal Current Rating: 1 A

Output Voltage Rating (DC): 4.2V

Maximum Operating Temperature: 85 °C

Country/Region of Manufacture: China

Minimum Operating Temperature: -50 °C

Protection Properties: Overcharge Protection,Overvoltage Protection

Colour: Purple

2-5Pcs 6 x 1A Parallel Battery Charging 5VDC - 6A Lithium Battery Circuit Board

Sent with Australia Post Tracked Envelope

Features:

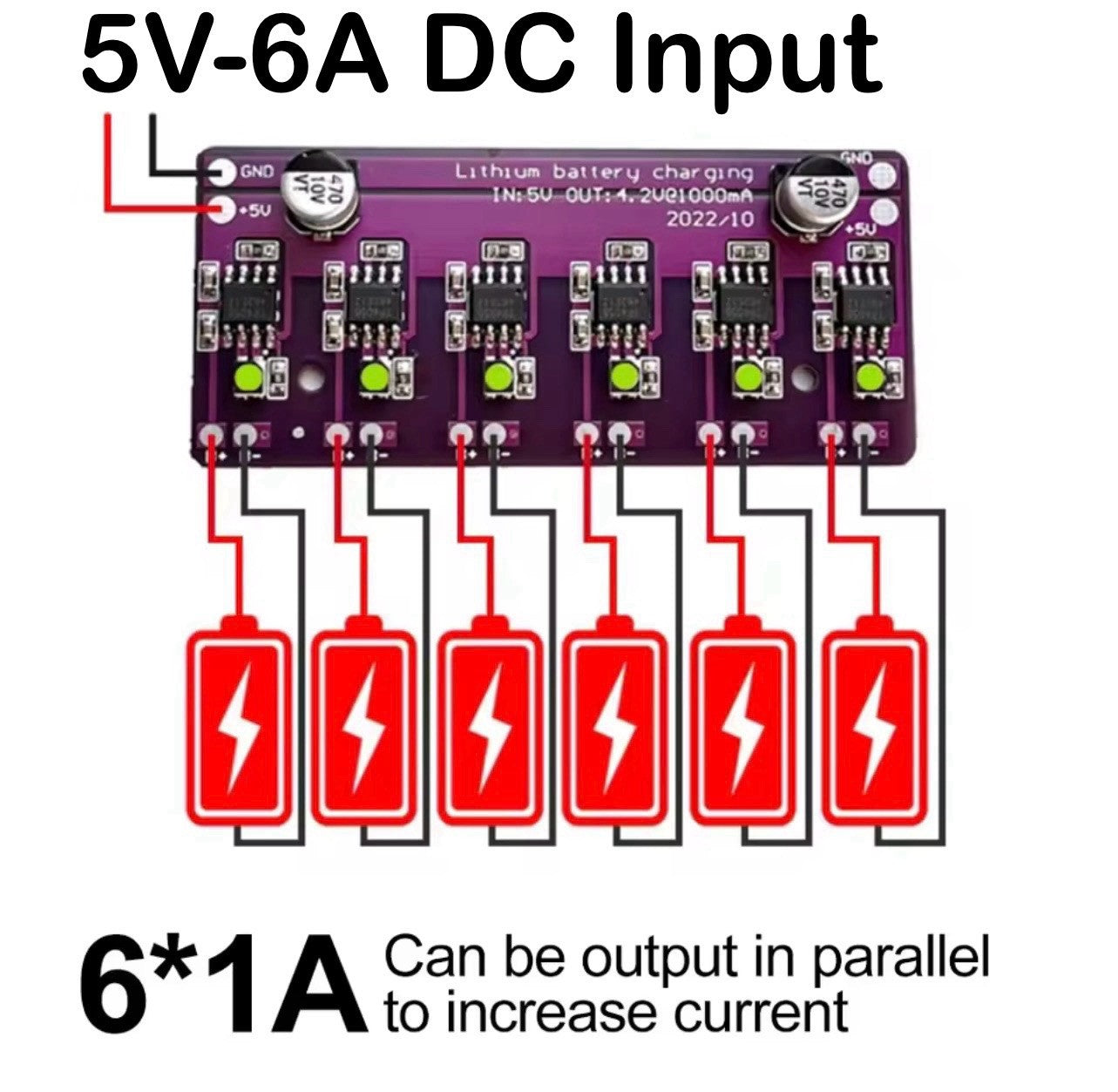

1. 6 x 1A parallel output can increase the current

2. Lithium battery charging module 4056

independent 6 groups in parallel, each output 1000ma

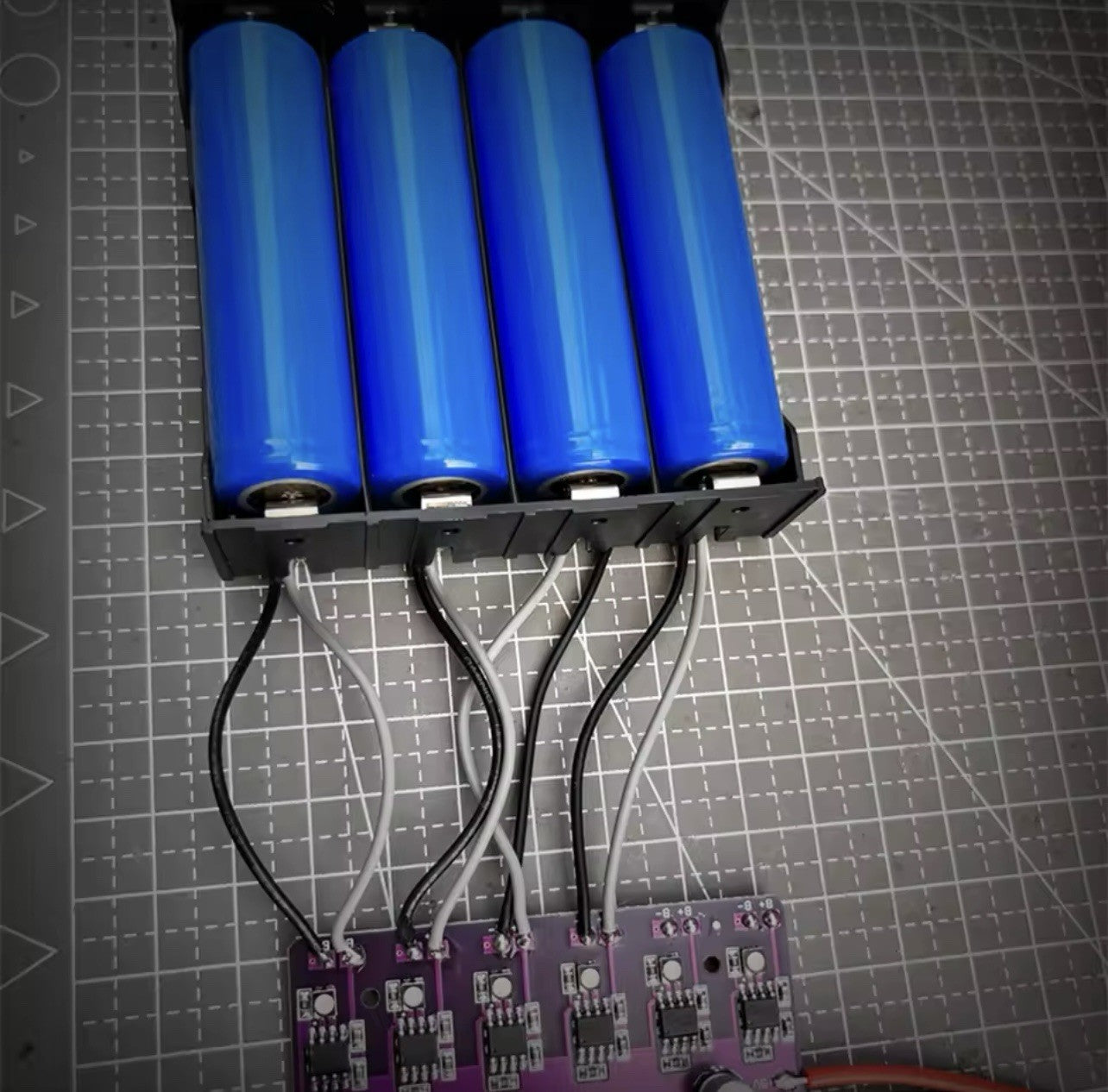

3. Support 6 batteries to charge 5V input circuit together

4. The output is common ground, and multiple

bits can be connected in parallel to increase the output current

5. With status indicator light, more convenient to use

Product parameters:

Input voltage: 5V-6V (exceeding the voltage will cause damage)

Output voltage: 4.2V (1%)

Output current: 1A

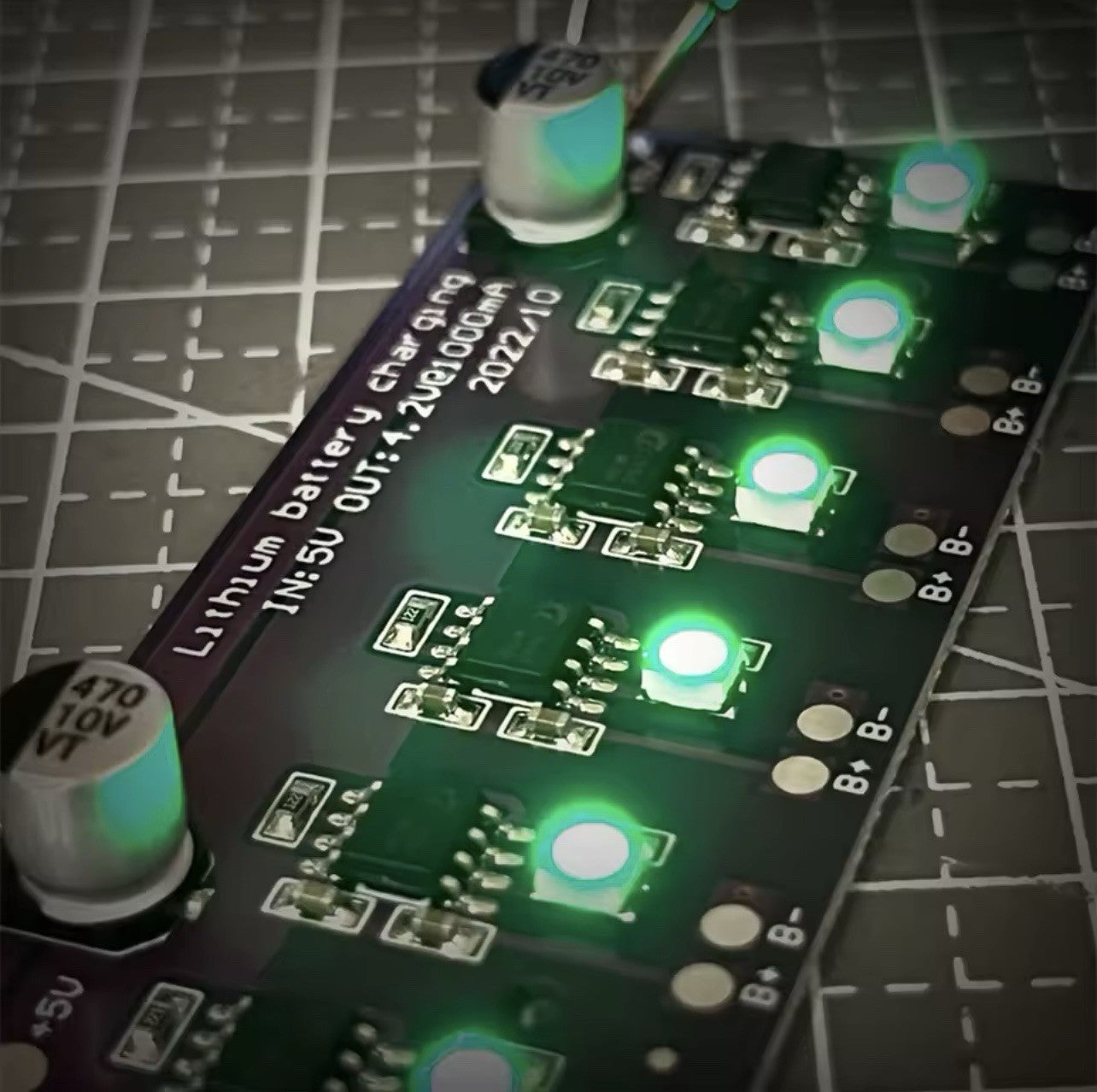

Status indication: LED charging red light,

fully charged to green (green light is always on or green light is flashing)

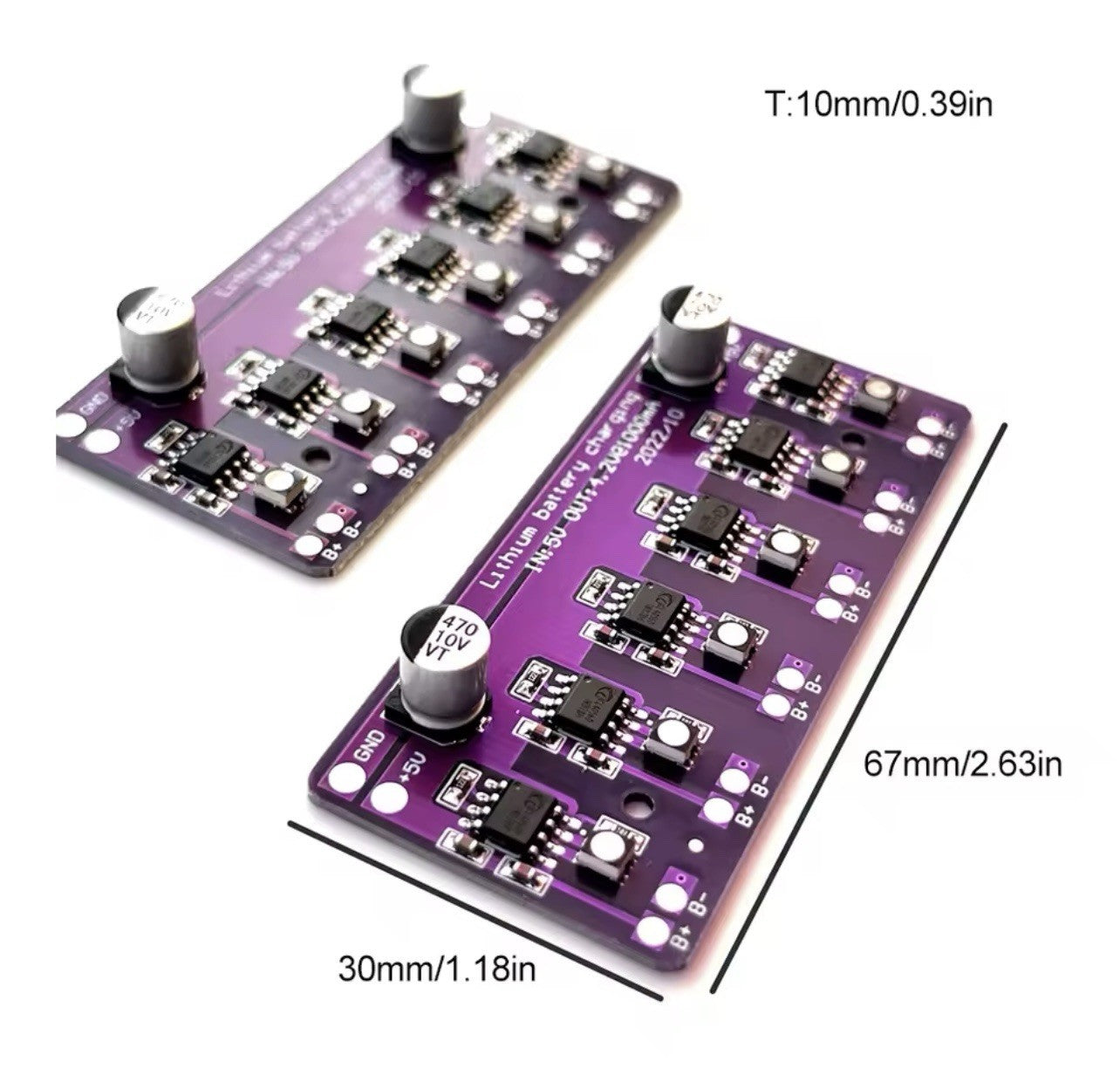

Body size: 40MM*67MM*T10MM

Note:

1. The input cannot be reversed or

overvoltage, and the output cannot be reversed to the battery, otherwise the

chip will be damaged.

2. The output has a common ground, and

multiple bits can be connected in parallel to increase the output current, but

it cannot be connected in series to charge the battery.

3. This product does not contain a

transformer or onboard power supply.

For best options use a dedicated 5VDC - 6A power supply, or voltage regulator from higher voltages, ie 12V

4. The board can also have its outputs linked, ie negative tied and positives tied, to increase the current to the charged battery.
