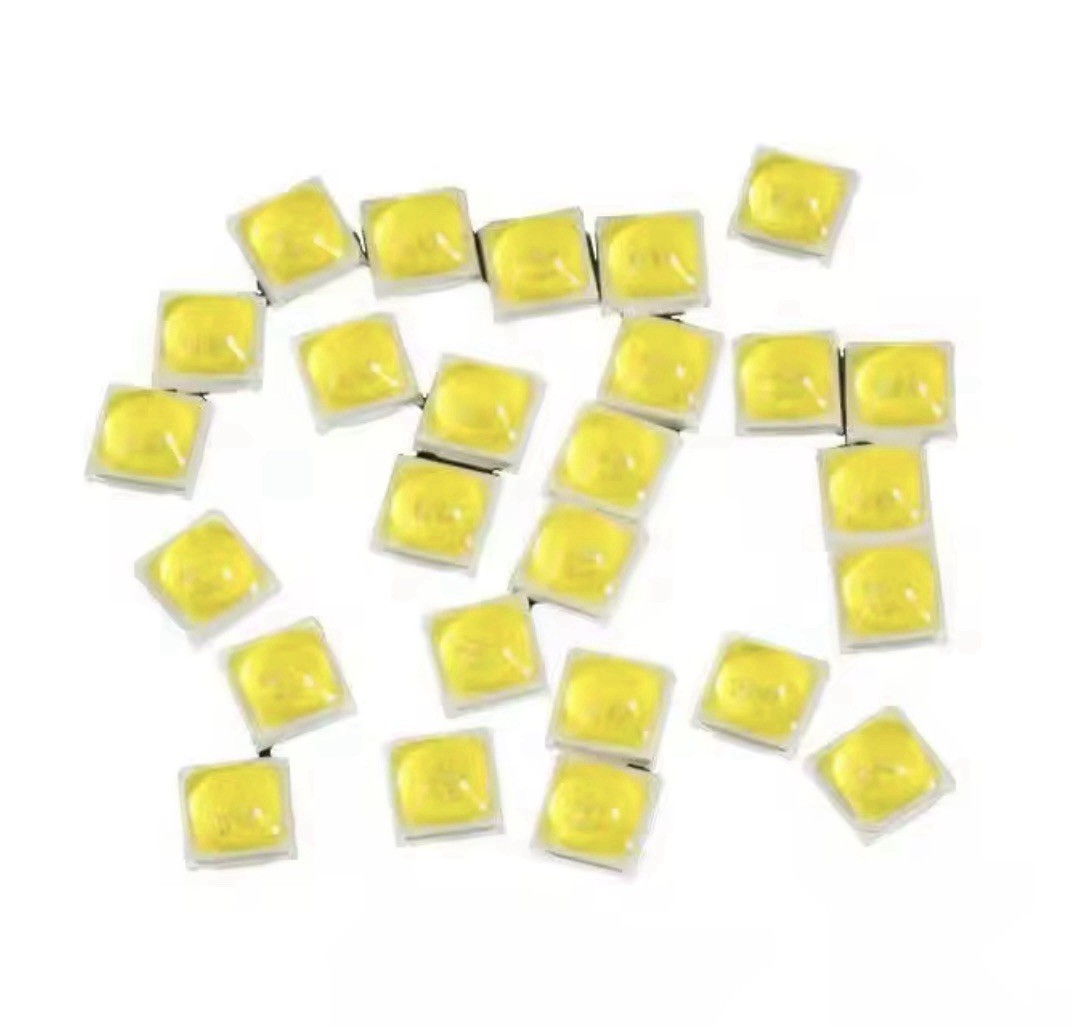

20100PCS 1 Watt 365405nm 50505054 LED SMD Ultra Violet Surface Mount LED

Mounting Style: Surface Mount

Nominal Current Rating: 20mA

Configuration: Double Chip

Viewing Angle: 110°

Lens Shape: Dome

Lens Surface: Diffuser Filter

Nominal Voltage: 3.8 VDC

Package/Case: SMD

Forward Current: Up Too 300mA

MPN: Does Not Apply

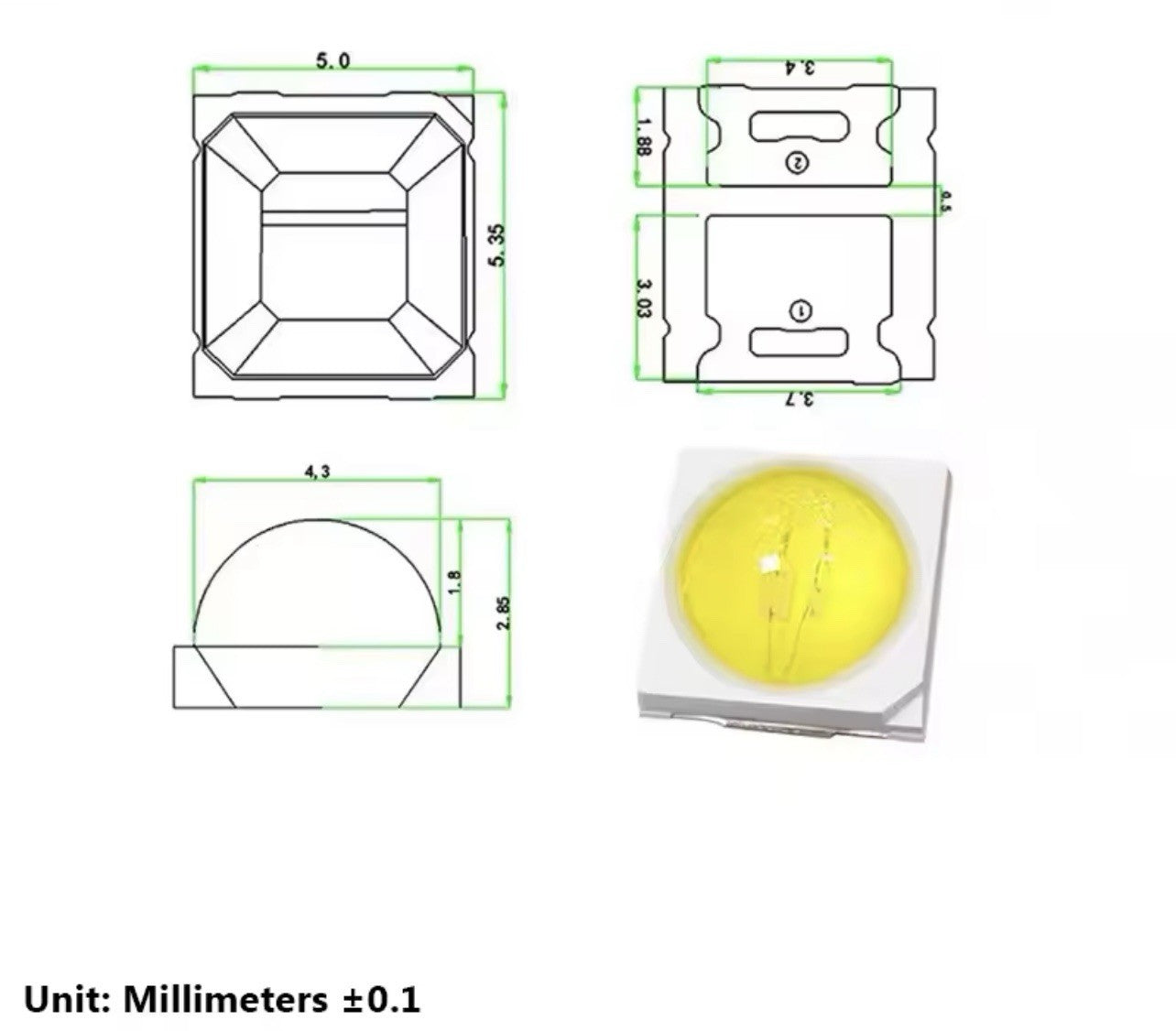

Item Length: 5 mm

Wavelength: 365-405nm

Brand: SMD

Power Dissipation: 1000 mW

Type: Multi-Chip Based LED

Item Height: 5 mm

Number of Pins: 2

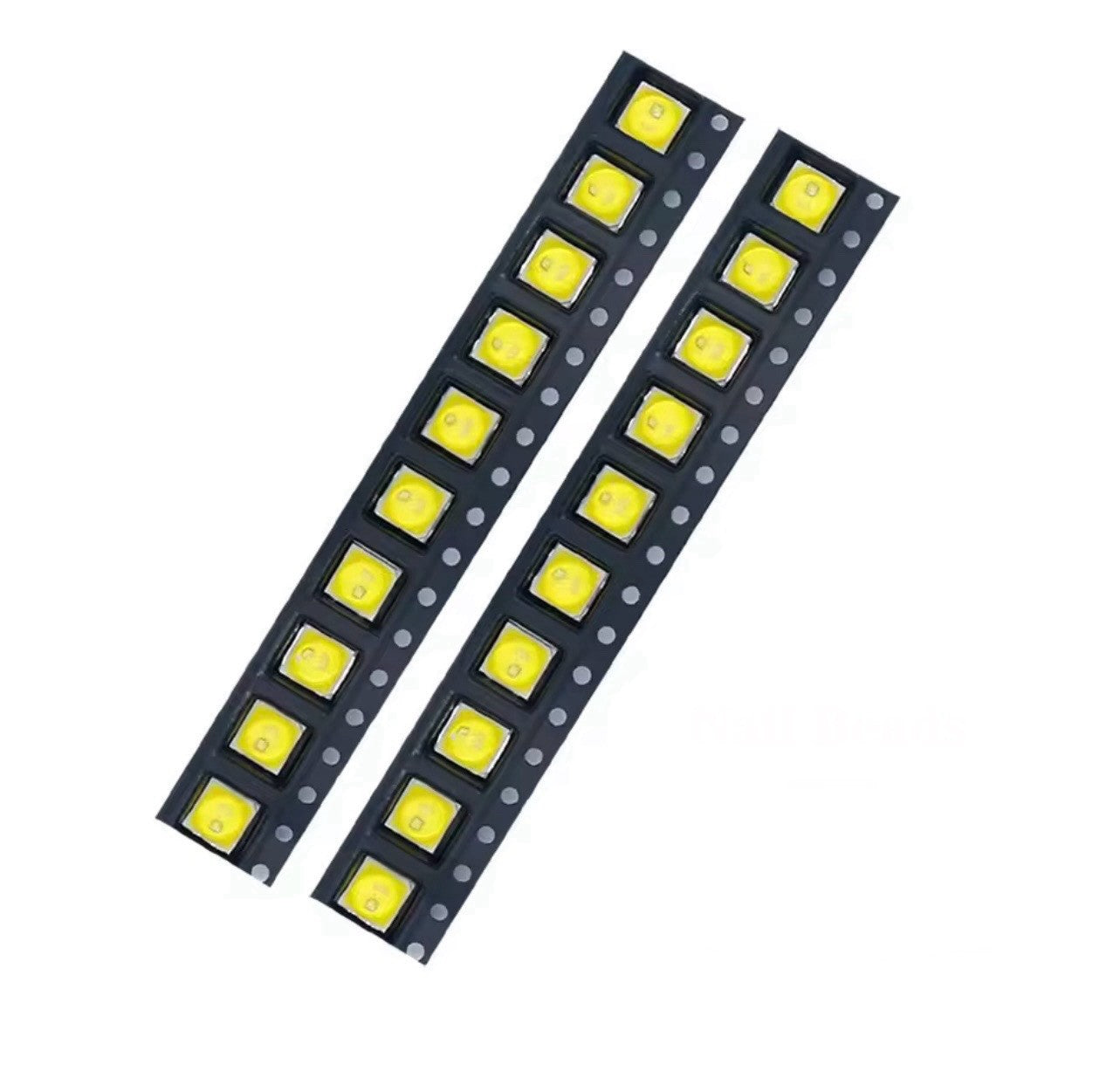

Packaging: Cut Tape

LED Colour: Ultraviolet

Number of LEDs: 100

Country/Region of Manufacture: China

Unit Quantity: 20 Pieces, 50 Pieces, 100 Pieces

Item Width: 5 mm

Forward Voltage: 3.6 V

20 Pieces, 50 Pieces, 100 Pieces 1 Watt 365-405nm 5050-5054 LED SMD Ultra Violet Surface Mount LED light emitting diodes

Manufactured by GoodLay Optoelectronics using quality SanAn chips.

Item sent with Australia post tracked letter.

1W5050SMD 5054SMD

Voltage & Current:

3.6-4.0V 250-300mA Parallel Circuit

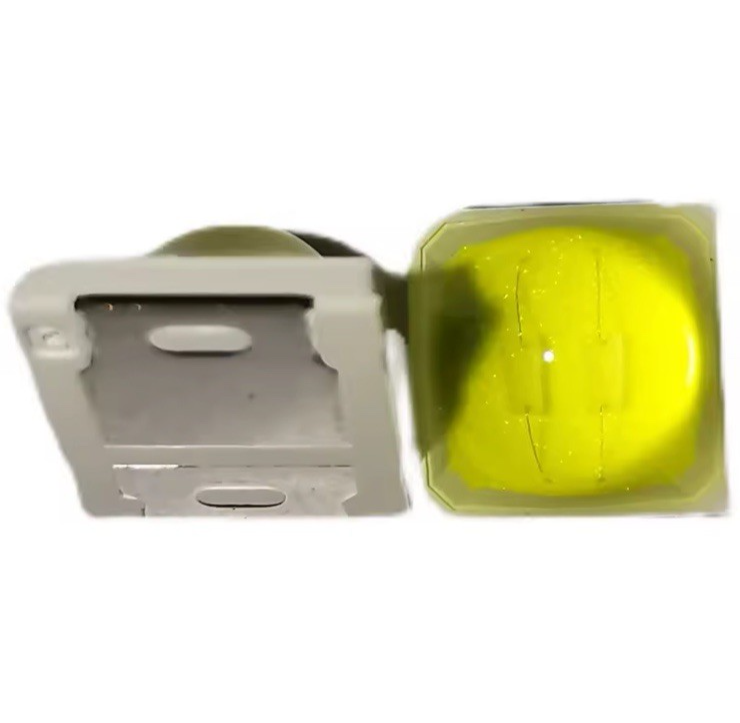

Images in photos explain chip setup.

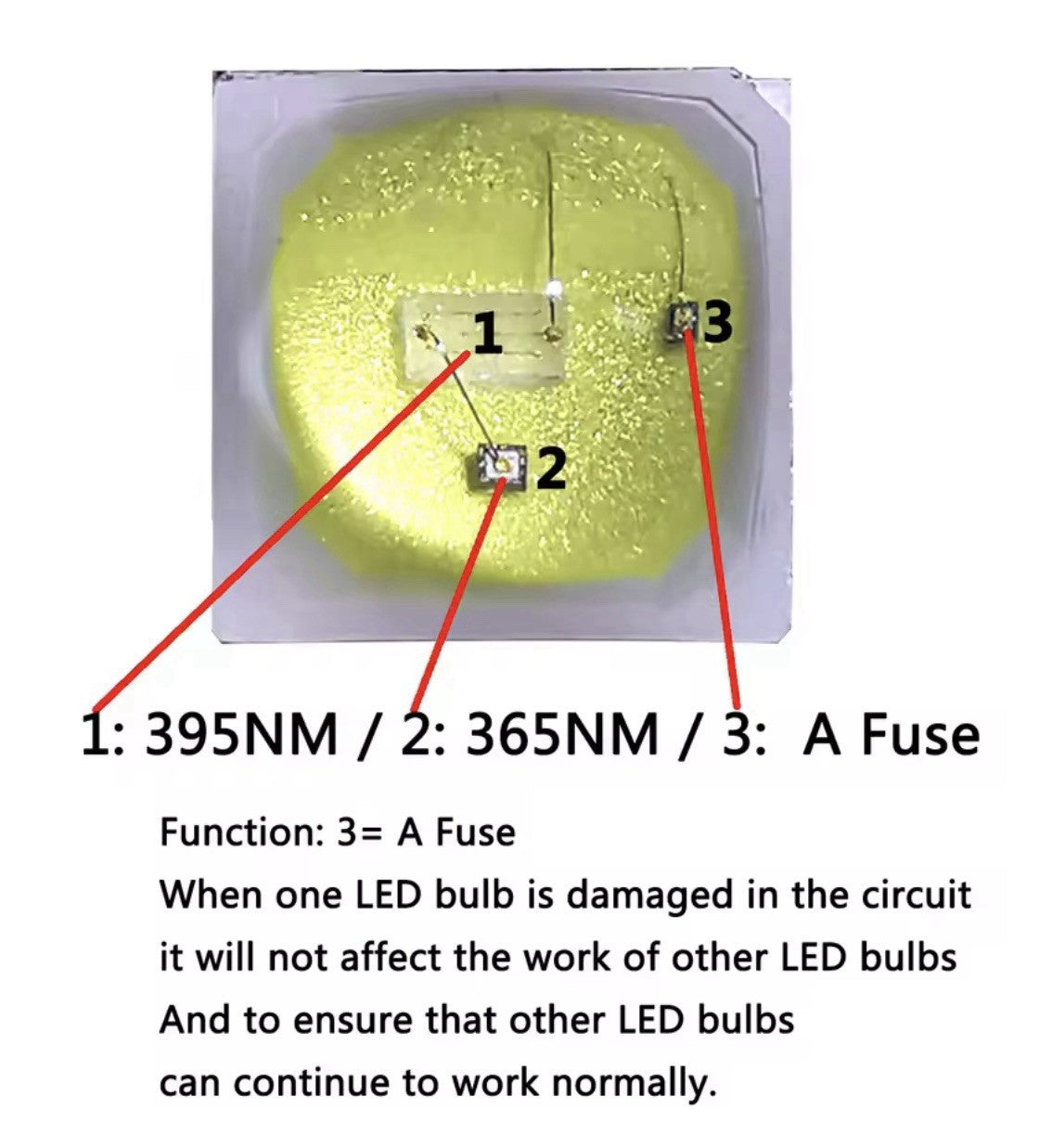

1: 395nm, 2: 365nm, 3: A Fuse Function: 3= A Fuse.

When one LED bulb is damaged in the circuit it will not affect the work of other LED bulbs And to ensure that other LED bulbs can continue to work normally.

Ideal for UV glues, resin, resin casting that requires a setting UV spectrum of 365-405nm.

These chips MUST be mounted on an appropriate aluminium PCB, or FR-4 with large heat sinking properties. These chips produce a lot of heat!
