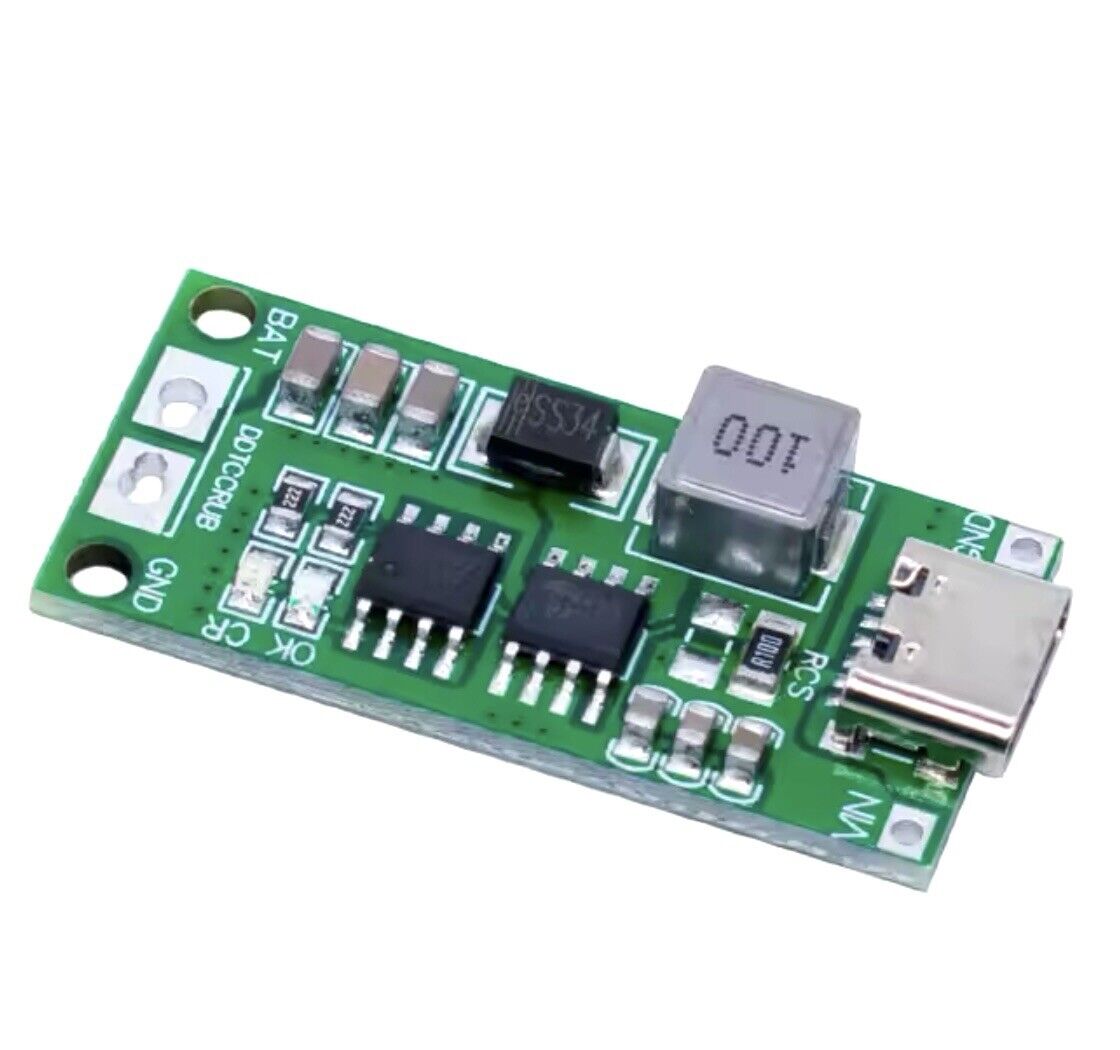

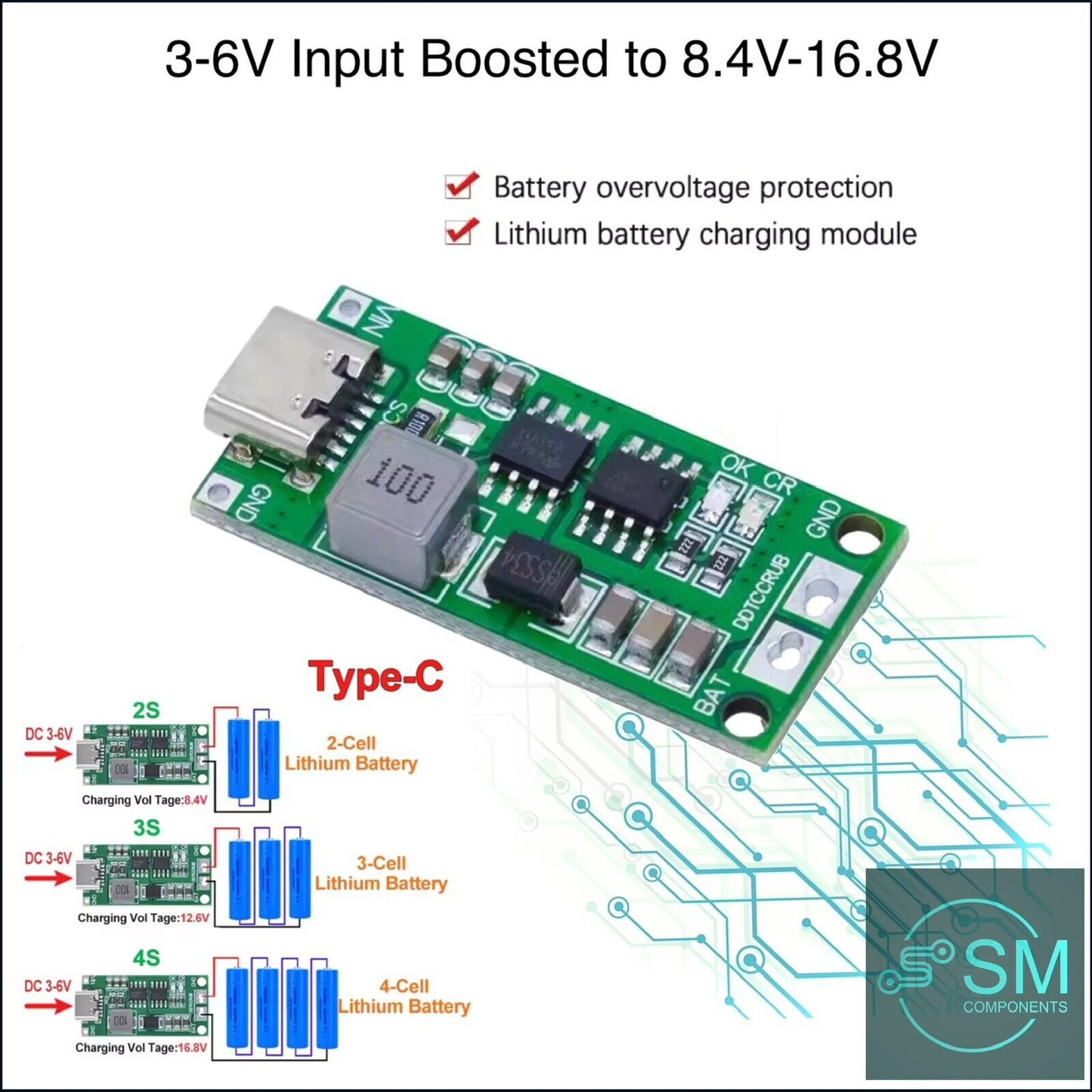

2 X Type-C 2S-3S-4S 2A Lipo Lithium Polymer Charge Unit 3-6V Input- 8.4V - 16.8V

Nominal Voltage Rating (DC): 12 V

Mounting Style: Stand Alone

Nominal Current Rating: 2 A

Plug Type: Type C

Current Conversion: DC to DC

Nominal Power Rating: 6 W

Minimum Operating Temperature: -40 °C

Installation Area: Indoor/Outdoor

Colour: Green

Brand: TZT V1031

Output Voltage Rating (AC): 6 V

Type: Boosted Charge Module

Output Voltage Rating (DC): 36 V

Inrush Current Rating: 2 A

Maximum Operating Temperature: 100 °C

Country/Region of Manufacture: China

Protection Properties: Overcharge Protection

2 x Type-C 2S-3S-4S 2A Lipo Lithium Polymer Charge Module 3-6V Input to 8.4V - 16.8V

Shipping with Australia Post regular Letter no tracking number included.

Tracked options available

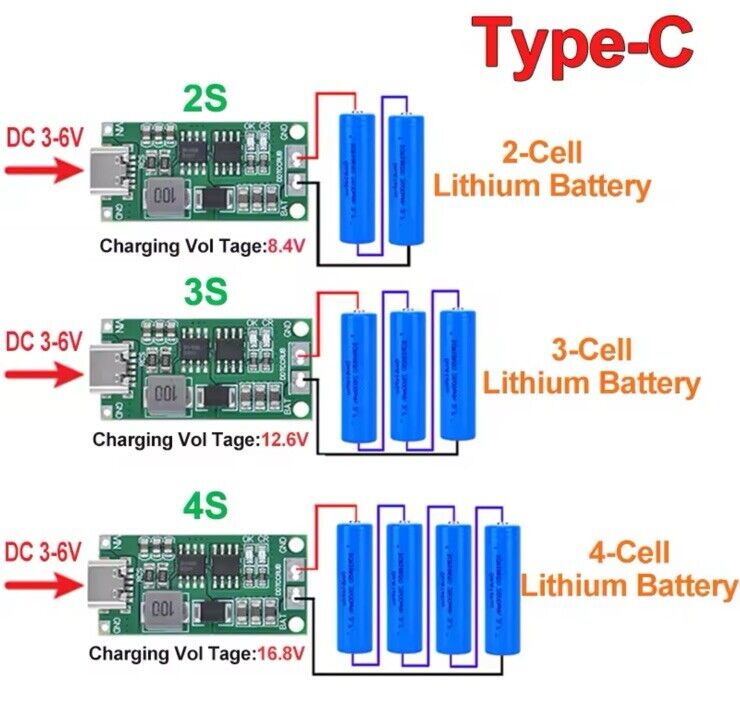

Product parameters

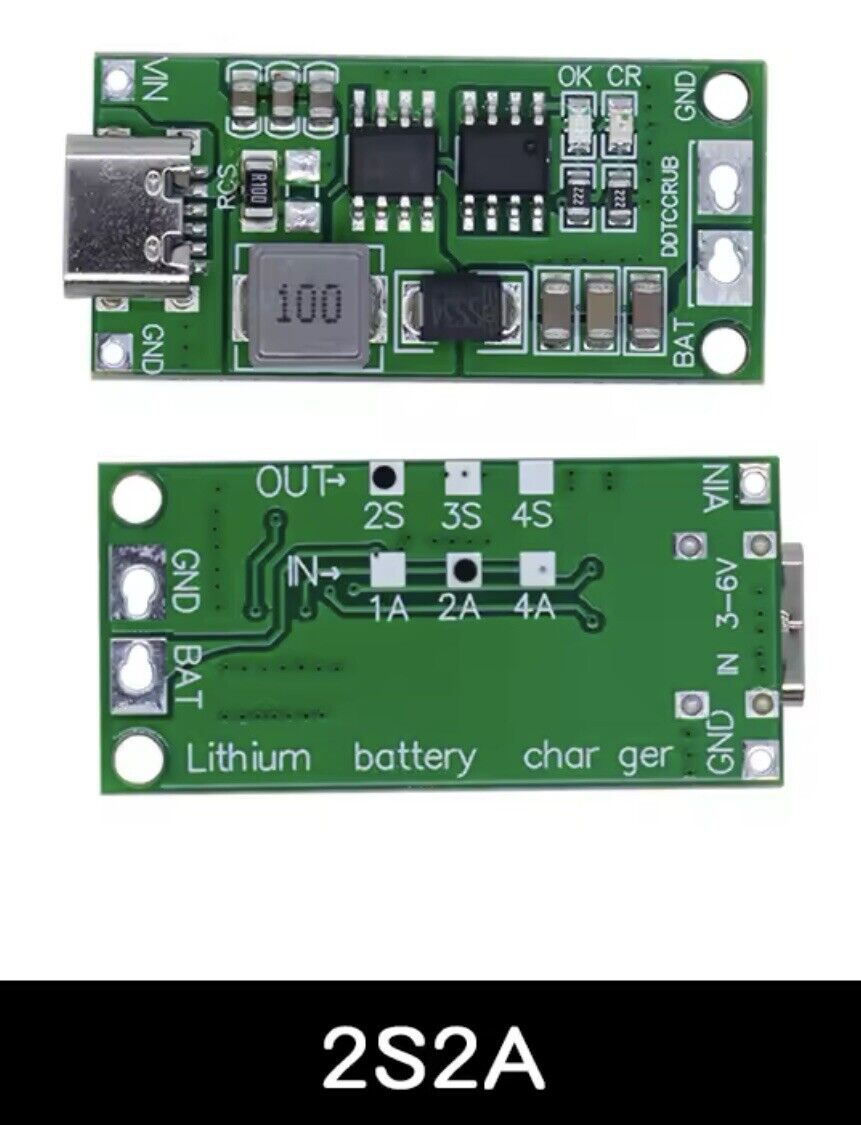

2-Cell (2S) 8.4V Version:

Input Voltage: DC 3-6V (recommended DC 3.7V-5V)

Input Current; 2A (2A Version)

Charging voltage: 8.4 V

Charging Current: 1.1A (2A Version)

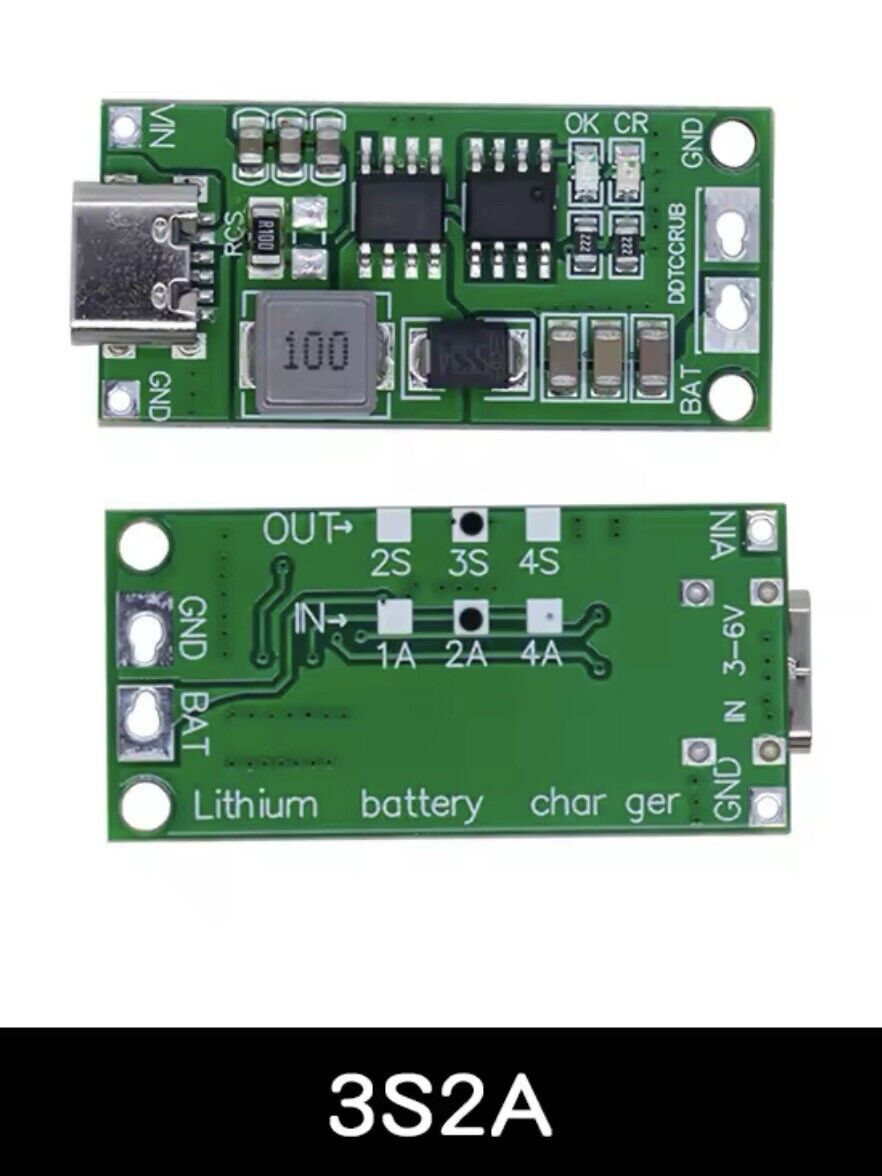

3-Cell (3S) 12.6V Version:

Input Voltage: DC3-6V (recommended DC 3.7V-5V )

Input Current: 2A (version 2A)

Charging voltage: 12.6 V

Charging Current: 0.74A (2A Version)

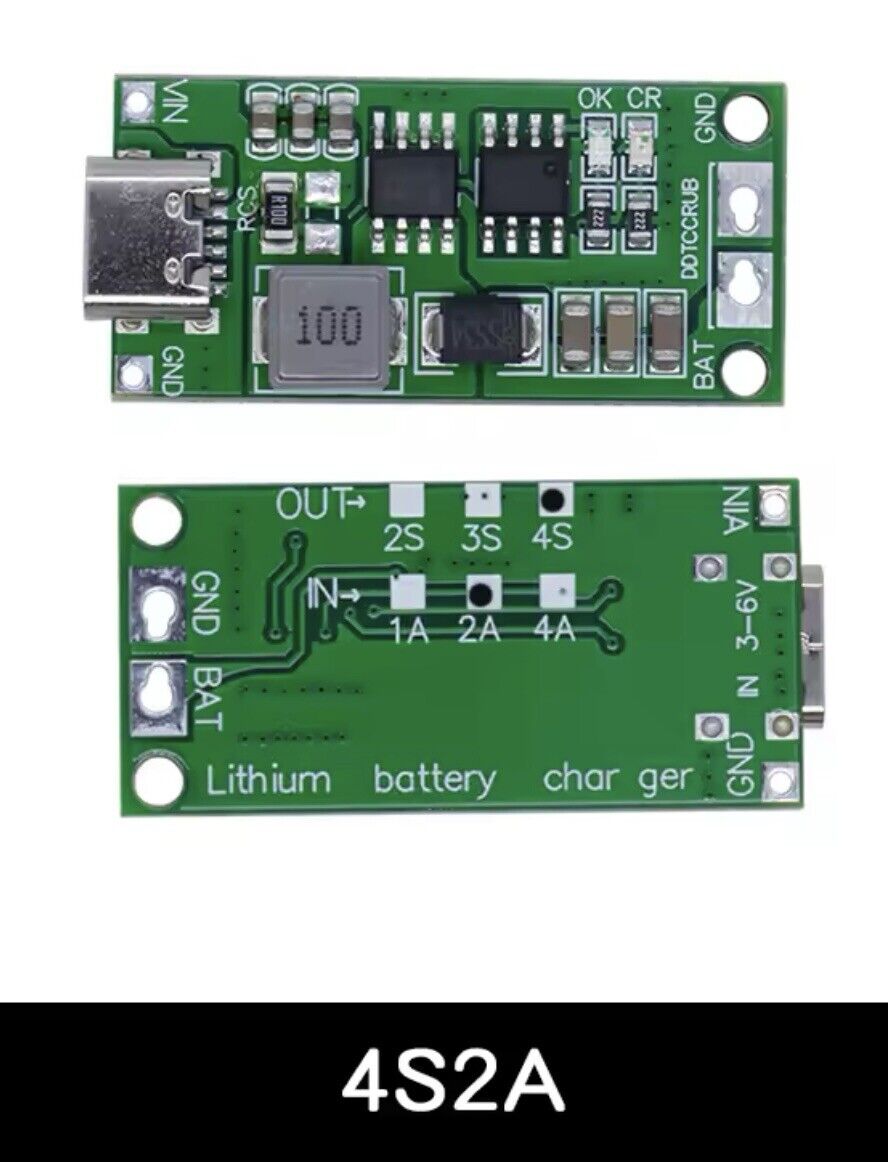

4-Cell (4S) 16.8V Version:

Input Voltage: DC3-6V (DC 3.7 V5V is recommended)

Input Current: 2A (2A Version)

Charging voltage: 16.8 V

Charging Current: 0.56A (version 2A)

The switching frequency is up to 1 MHz

The electric protection voltage is lower than the input and the battery is short-circuited

Good adaptability to input power supply, limited driving ability, battery overvoltage protection

LED indicator: "CR" LED charging status

LED indicator: "OK" LED charging or constant voltage mode.
