2 X 3W High Voltage 2MΩ Resistor Non-Inductive Glass Film Resistance HVR80A 10kv

Power Rating: 3 W

Termination Style: Axial

MPN: Does Not Apply

Material: Glass

Item Length: 82mm

Minimum Operating Temperature: -55 °C

Brand: Hulzhou

Series: HVR80AH

Type: High Voltage Glass

Tolerance Rating: ±5 %

Manufacturer Warranty: 1 Year

Item Height: 9 mm

Packaging: Tray

Resistance Rating: 2 MΩ

Maximum Operating Temperature: 180 °C

Country/Region of Manufacture: China

UPC: Does not apply

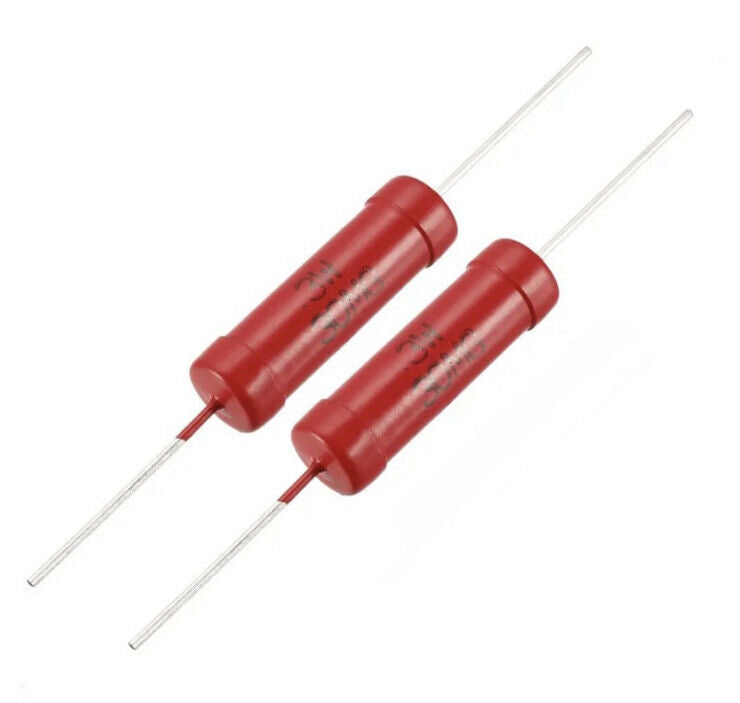

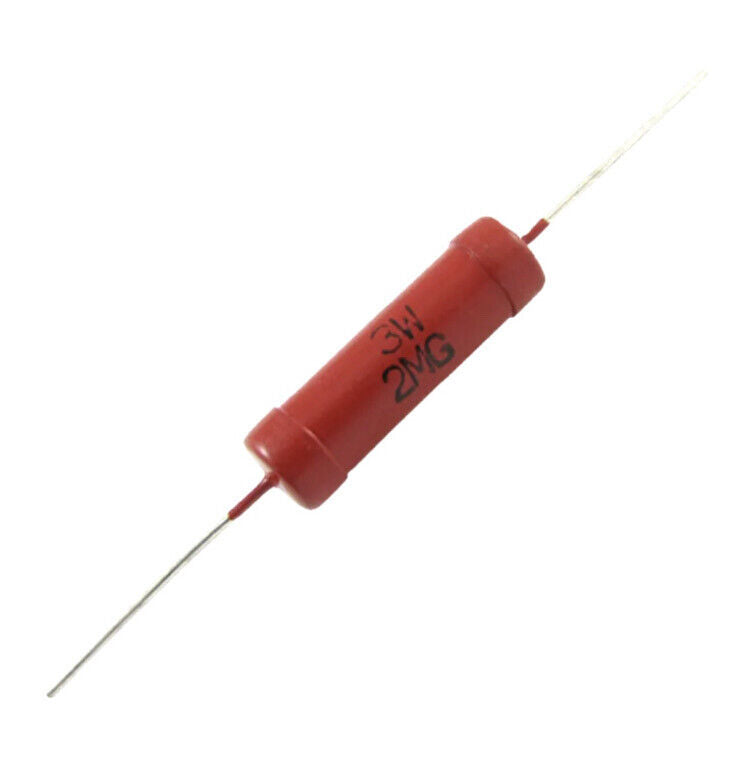

2 X 3W High Voltage 2MΩ Resistor Non-Inductive Glass Film Resistance HVR80A 10kv.

Sent with Australia Post Tracked Parcel

Excellent quality non-Inductive high voltage glass over resistors.

Ideal for any High Voltage project such as Marx Generator, Voltage Doubler, High Voltage bleed resistors, Current Limiting.

Type: 10kv high voltage glazed resistor

Power Rating: 3W

Resistance: 2M Ω

Size: 30mm x 9mm body, 82mm total length

Tolerance: 5% +-

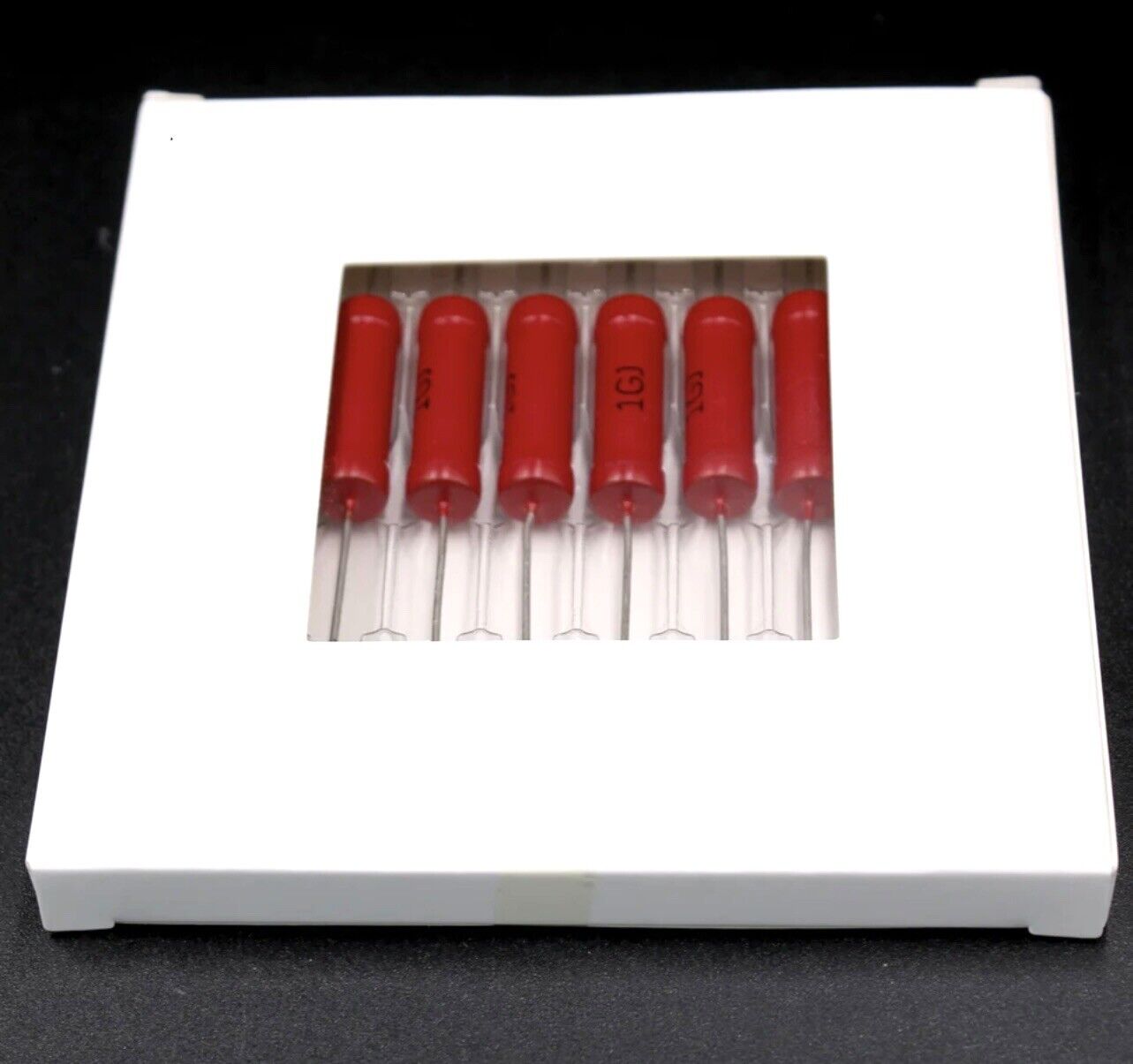

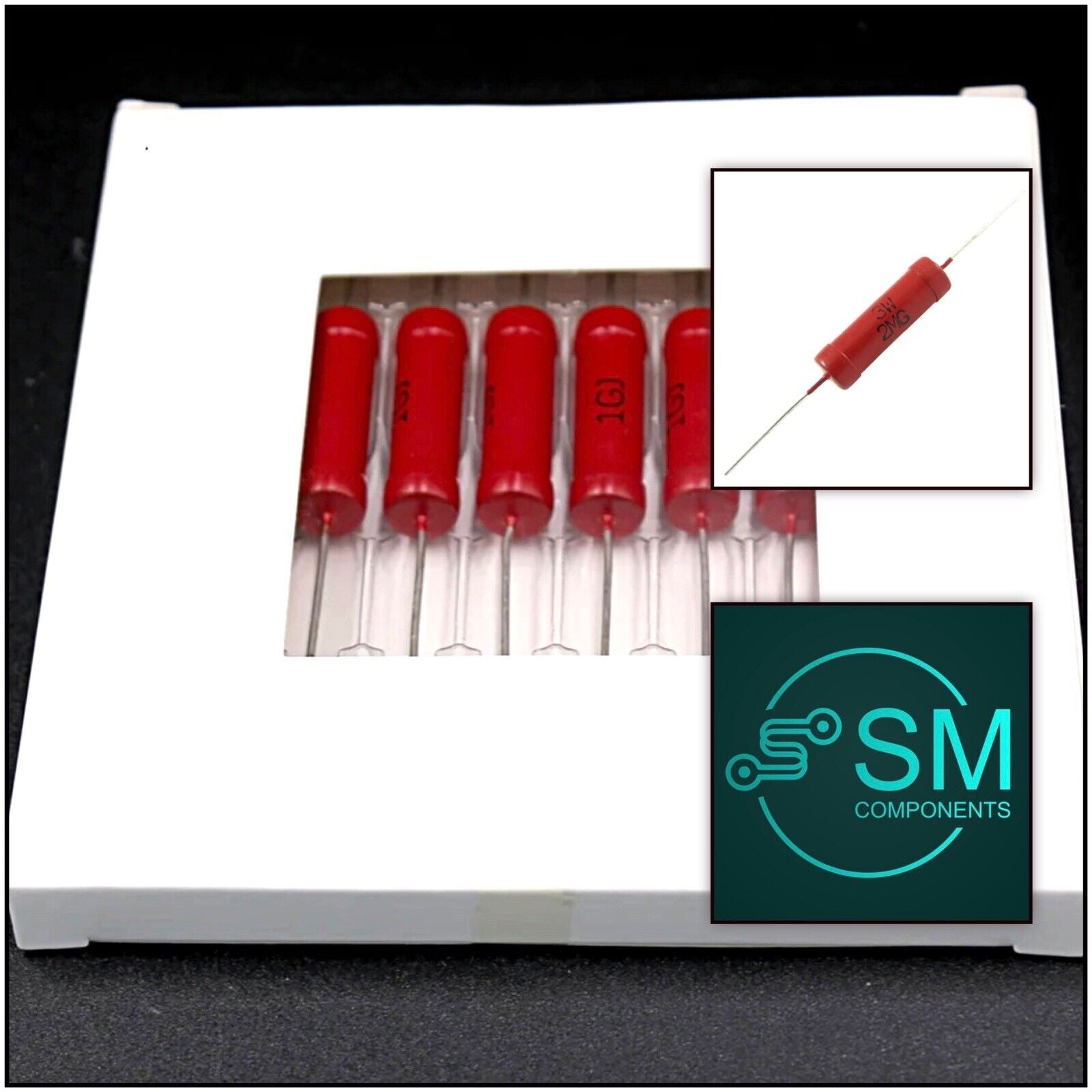

Packing includes 2 resistors

IF YOU REQUIRE MORE THAN 10 RESISTORS, PLEASE MESSAGE US FOR A DISCOUNTED PRICE
