1Pc XH-M229 Desktop Chassis Power Supply ATX DIY Adapter Breakout Board Inc CASE

Connectors: 24 Pin,24P ATX

Brand: Unbranded

Compatible Brand: All ATX Power Supplies

Voltage Compatibility: Variable

Form Factor: 24 Pin ATX

Type: ATX Breakout Board

Maximum Power: 1000 + Watts

Maximum Wattage: 1000 W

Model: XH-M229

Number of Outlets: 4

Features: Fused

Colour: Blue

1 Piece XH-M229 Desktop Chassis Power Supply ATX Adapter Board Takeout Board Efficiency Computer Power Office ATX Port Home Breakout Board including acrylic case.

Condition is "Brand New". Sent with Australia Post Standard Letter no tracking

Product name: ATX power supply board

Compatible with the port: ATX (compatible with partial BTX type)

The PIN number: 24 pin

Switch: Yes

Number of sets of output: Four sets of different voltages

Board Size: 128x48x30 mm/5.04x1.89x1.18 (L*W*H)

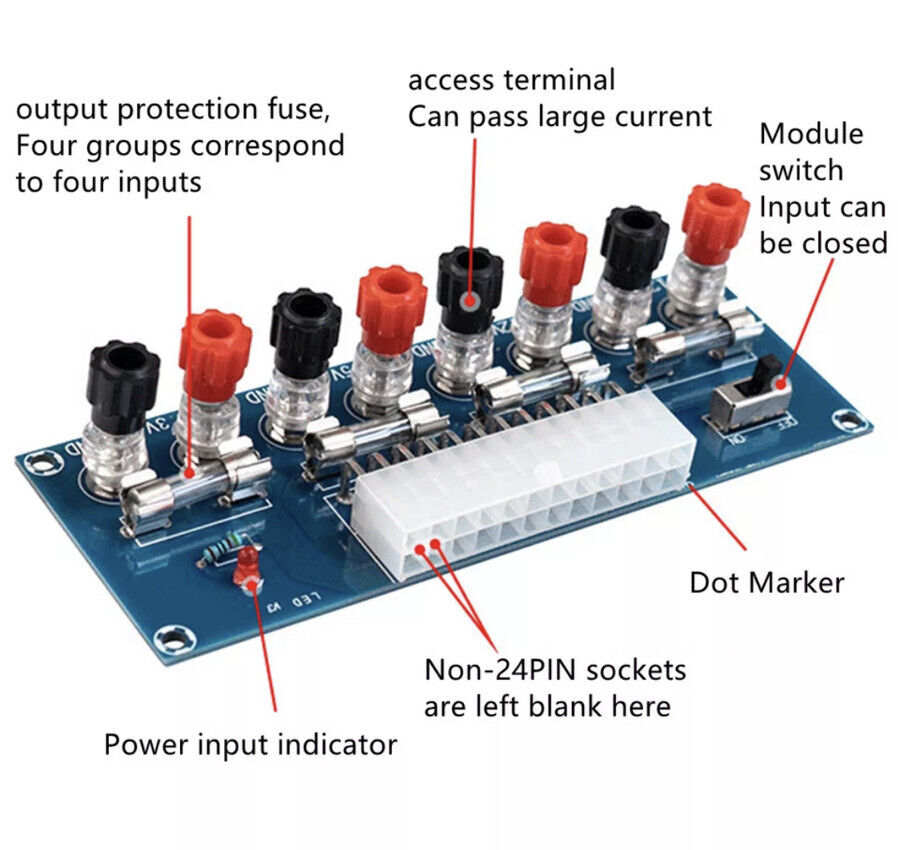

Feature:

1. With power output indicator.

2. With module switch to turn off output.

3. The output terminal can pass the maximum current.

4. With output protection fuse,four groups correspond to four road output.

notes:

Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

Due to the manual measurement and different measurement methods, please allow 1-5 mm deviation. Thanks!

descriptions:

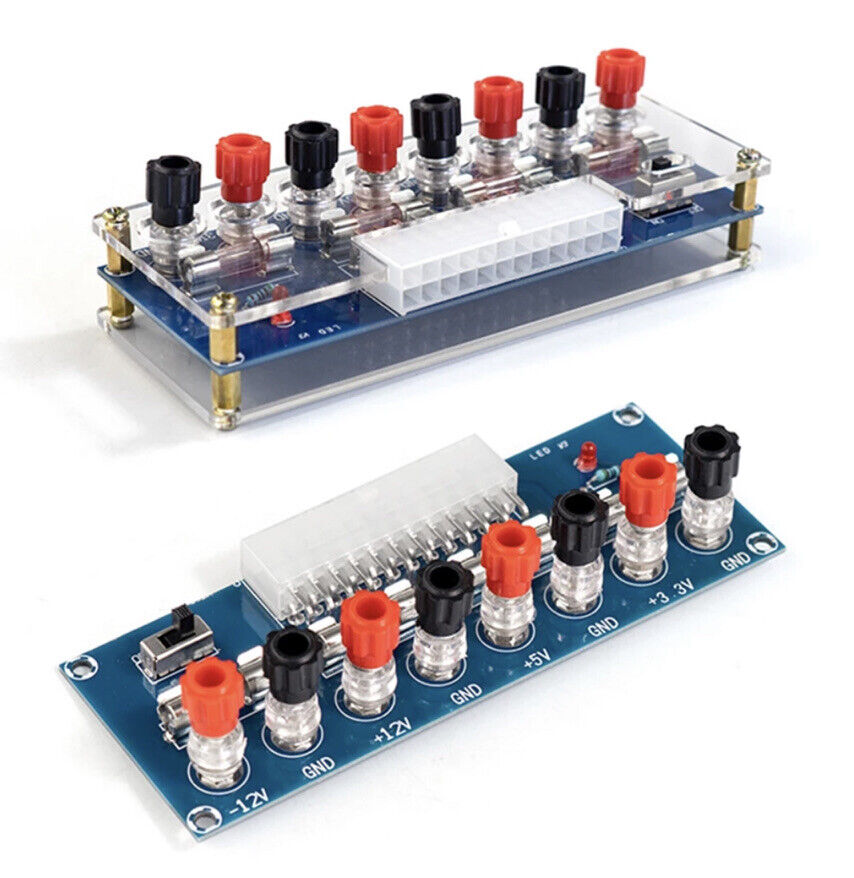

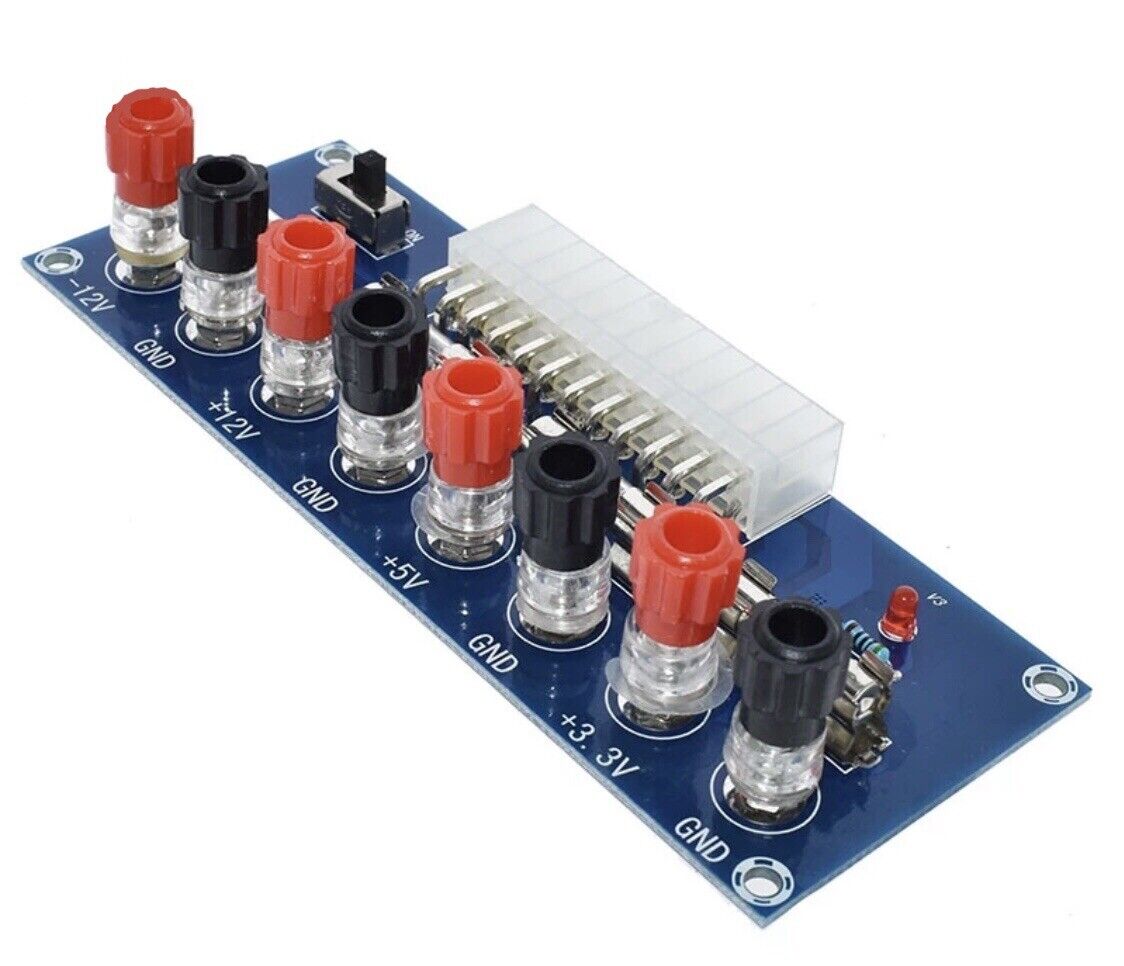

There is a -12V,a +12V,a 5V,a 3.3V terminal.

Each output take a 5A fuse. Overcurrent ,fuse can be replaced by yourself.

Each power rail has a corresponding ground connection; all of the power rails are brought out to a binding post.

About the 24pin port:

The 24pin port powers the computer motherboard in the host computer. Usually, this port is used together.

package including

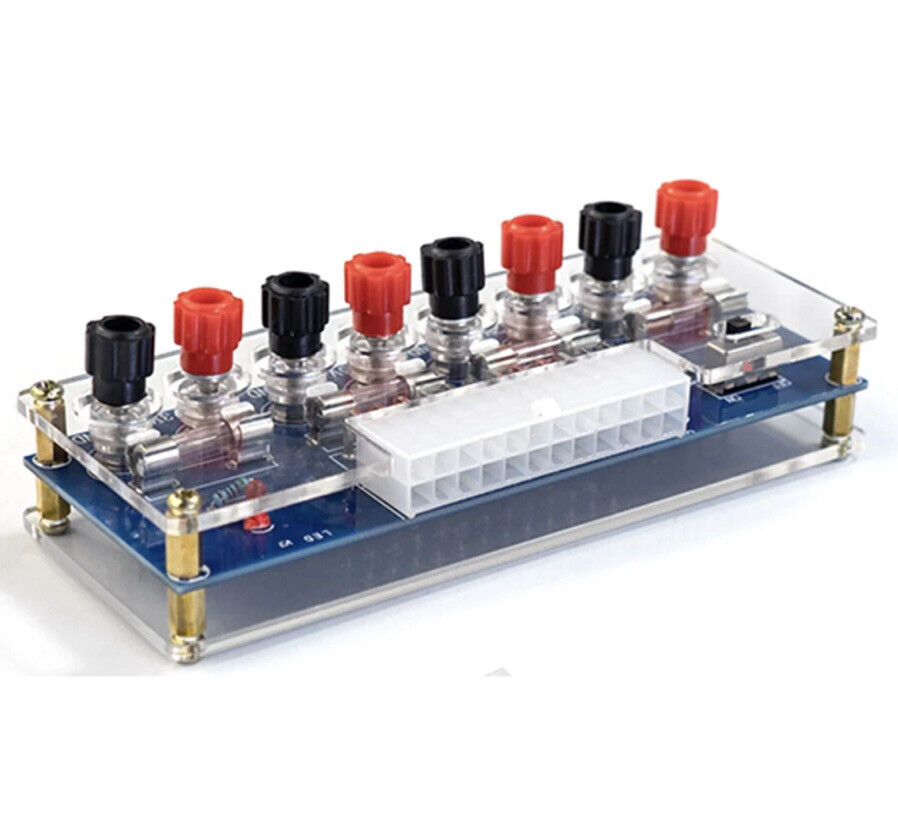

1 * XH-M229 PC ATX Benchtop Power Adapter Board + clear acrylic case.

Product name :ATX power supply board

Model :XH - M229

Compatible with the port: ATX (compatible with partial BTX type)

The PIN number:24 pin

Switch :Yes

Number of sets of output:Four sets of different voltages

Size:48 * 128 * 30 mm
