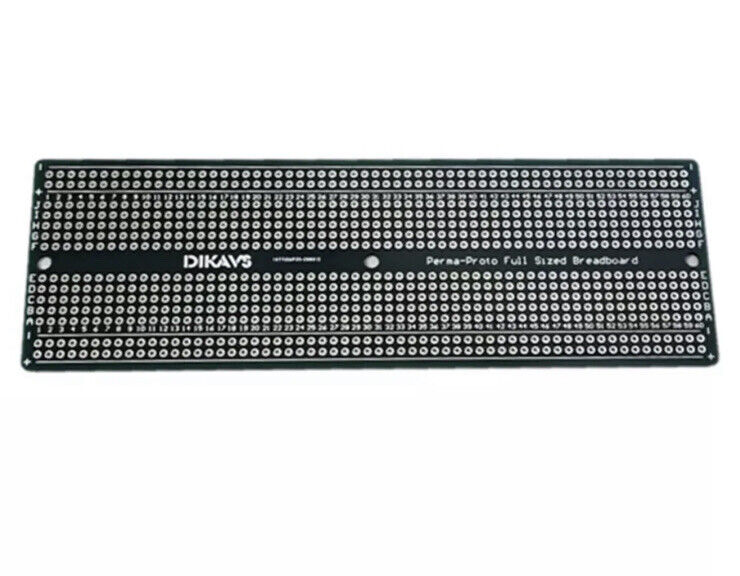

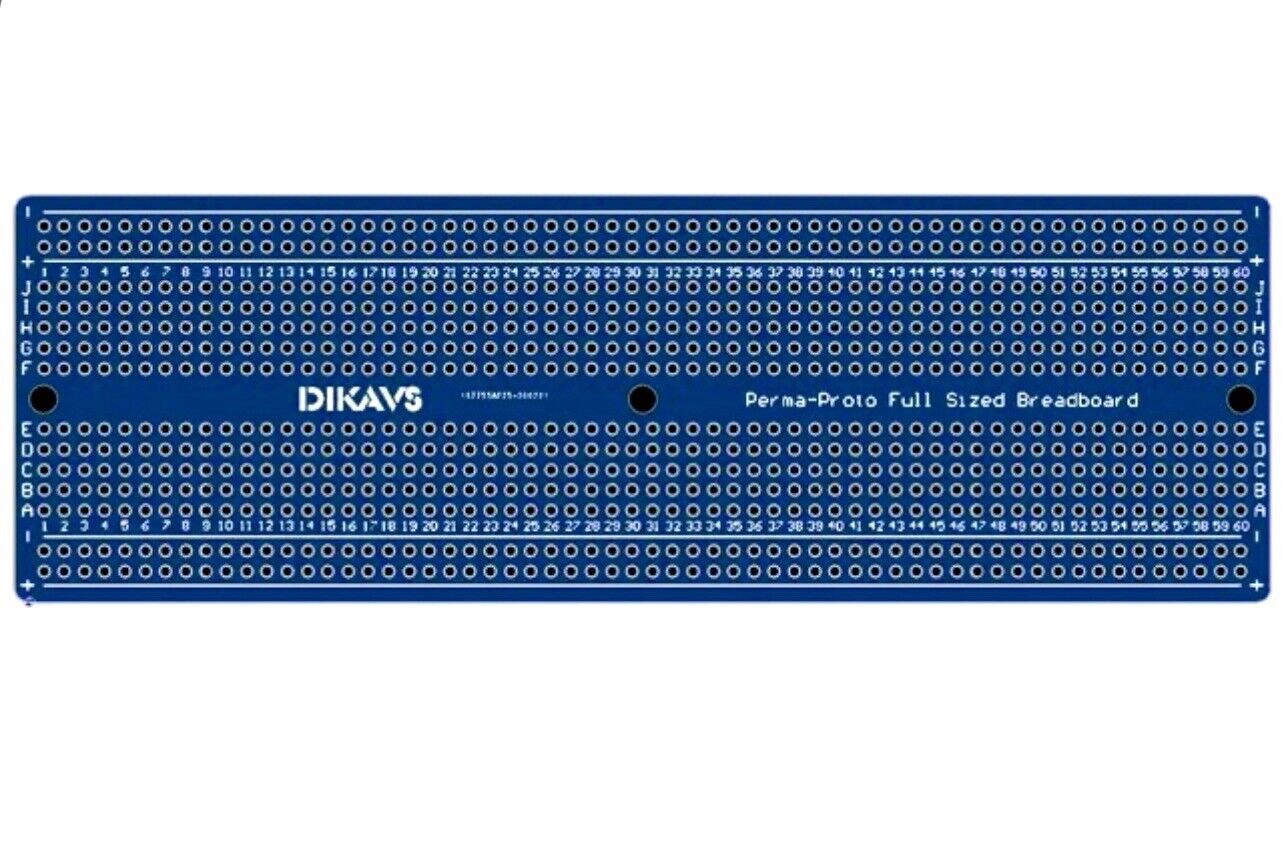

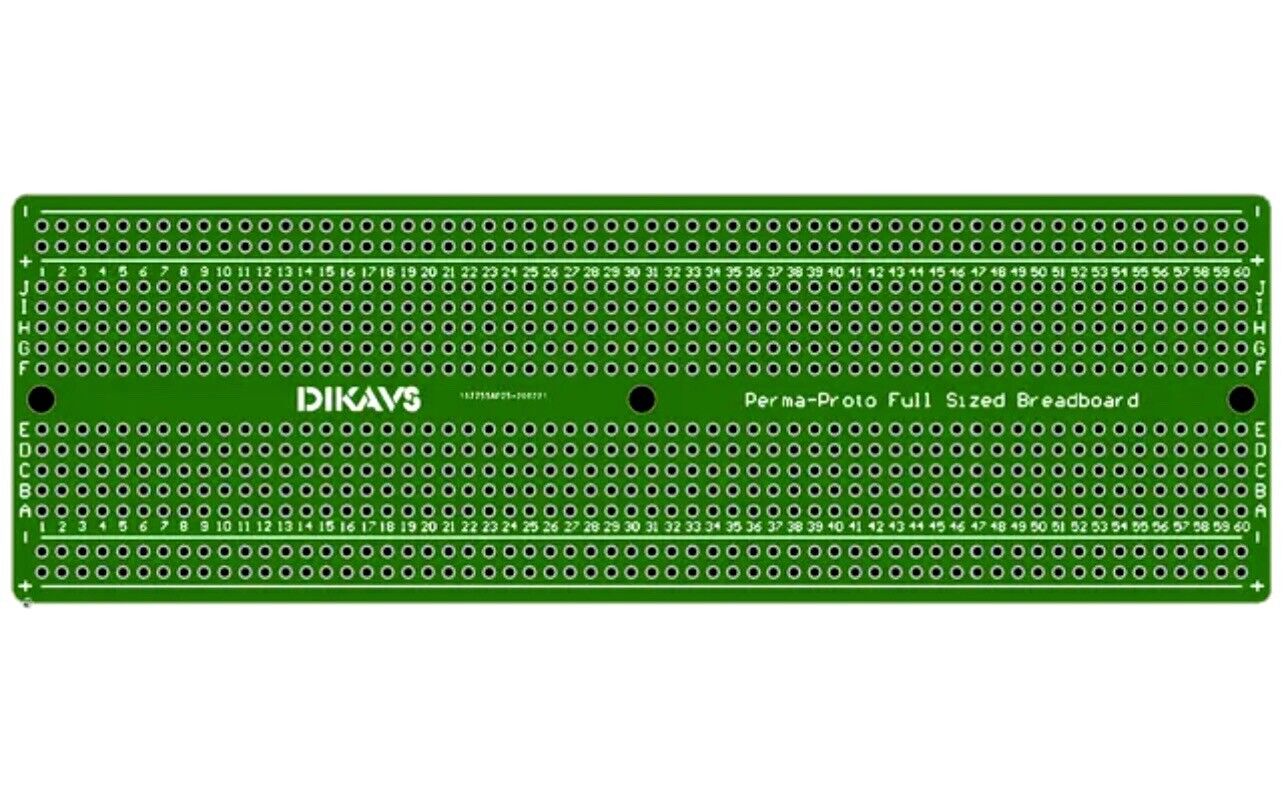

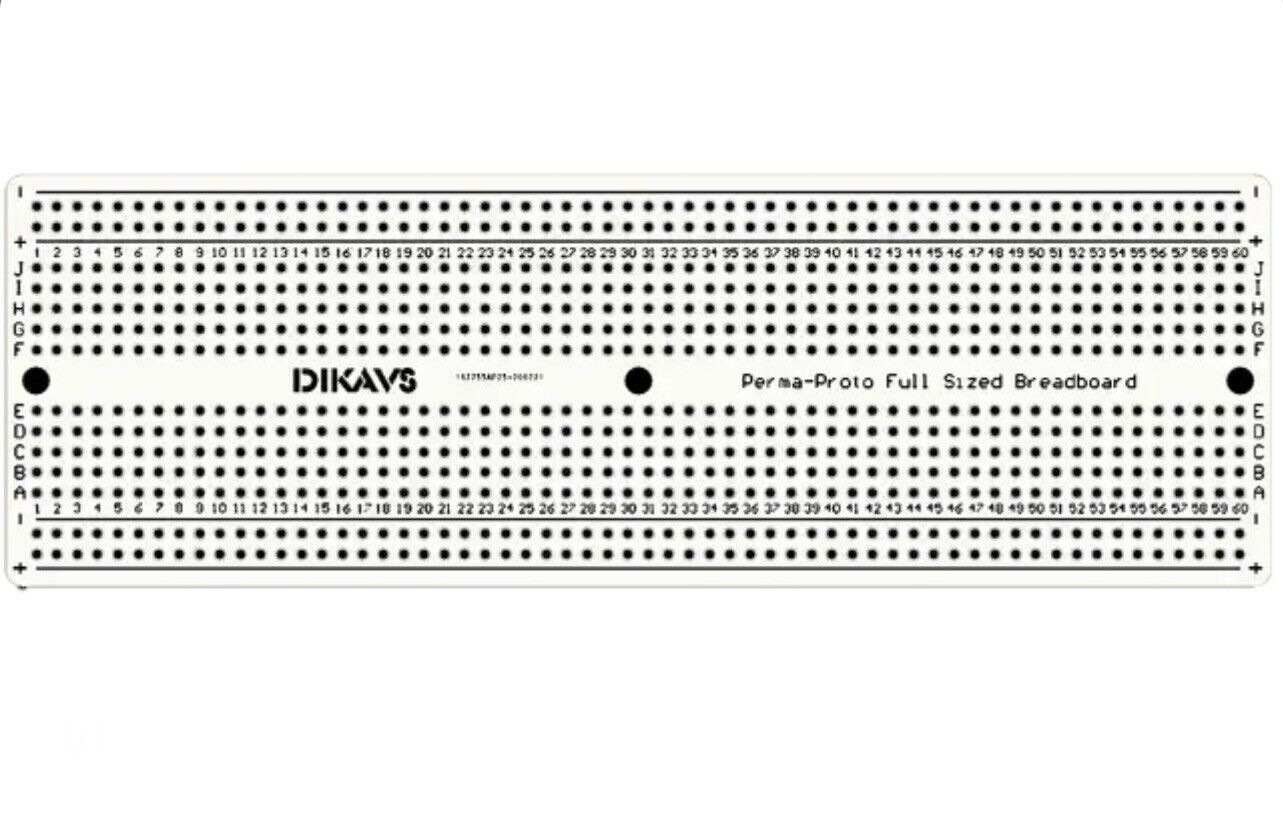

1PC 157x51mm Double Sided FR4 Breadboard Prototype PCB Solder Board All Colours

Brand: DIKAVS

Mounting Style: Through-Hole

PCB Type: Double-Sided PCB

Number of Rows: 60 Rows

Number of Tie-Points: 840 Points

Material: FR-4

Country/Region of Manufacture: China

1 PC Double Side Arduino Prototype Universal PCB Circuit Board DIY Soldering. The boards are super high quality, all with gold pads. They are set out as per a full size breadboard, with voltage rails down each side.

Condition is Brand New. Sent with Australia Post Standard letter no tracking - Free, Tracked options Available.

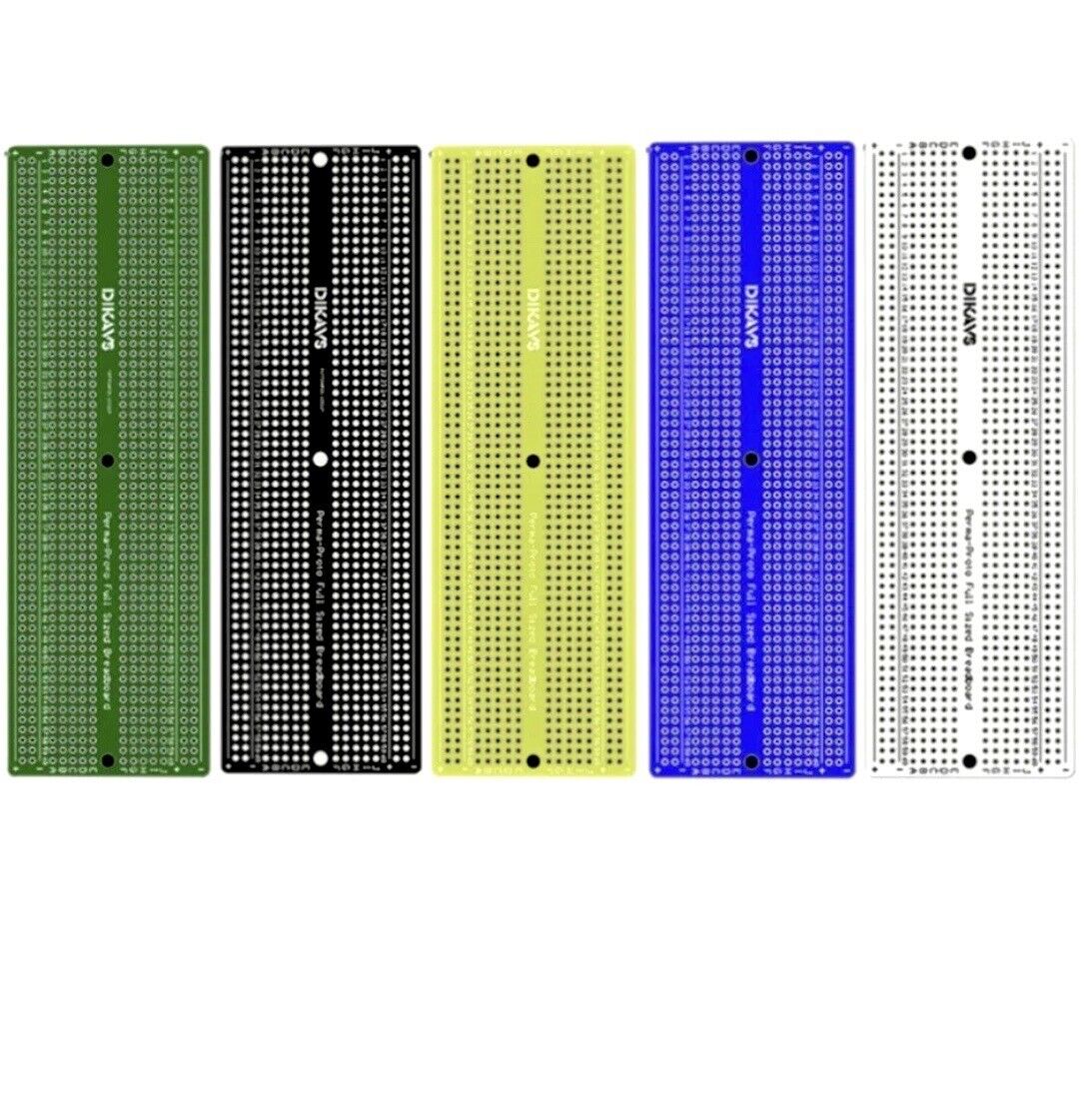

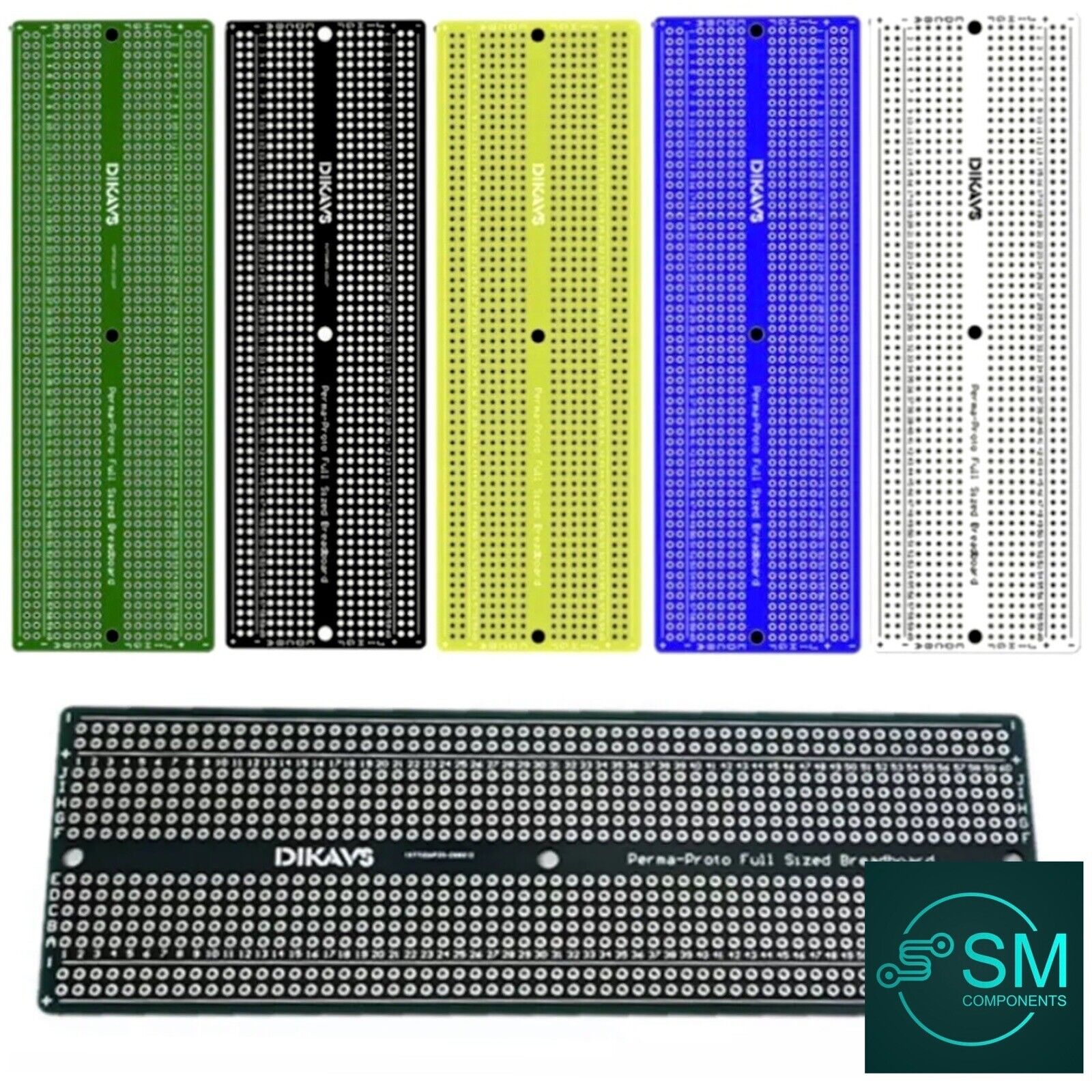

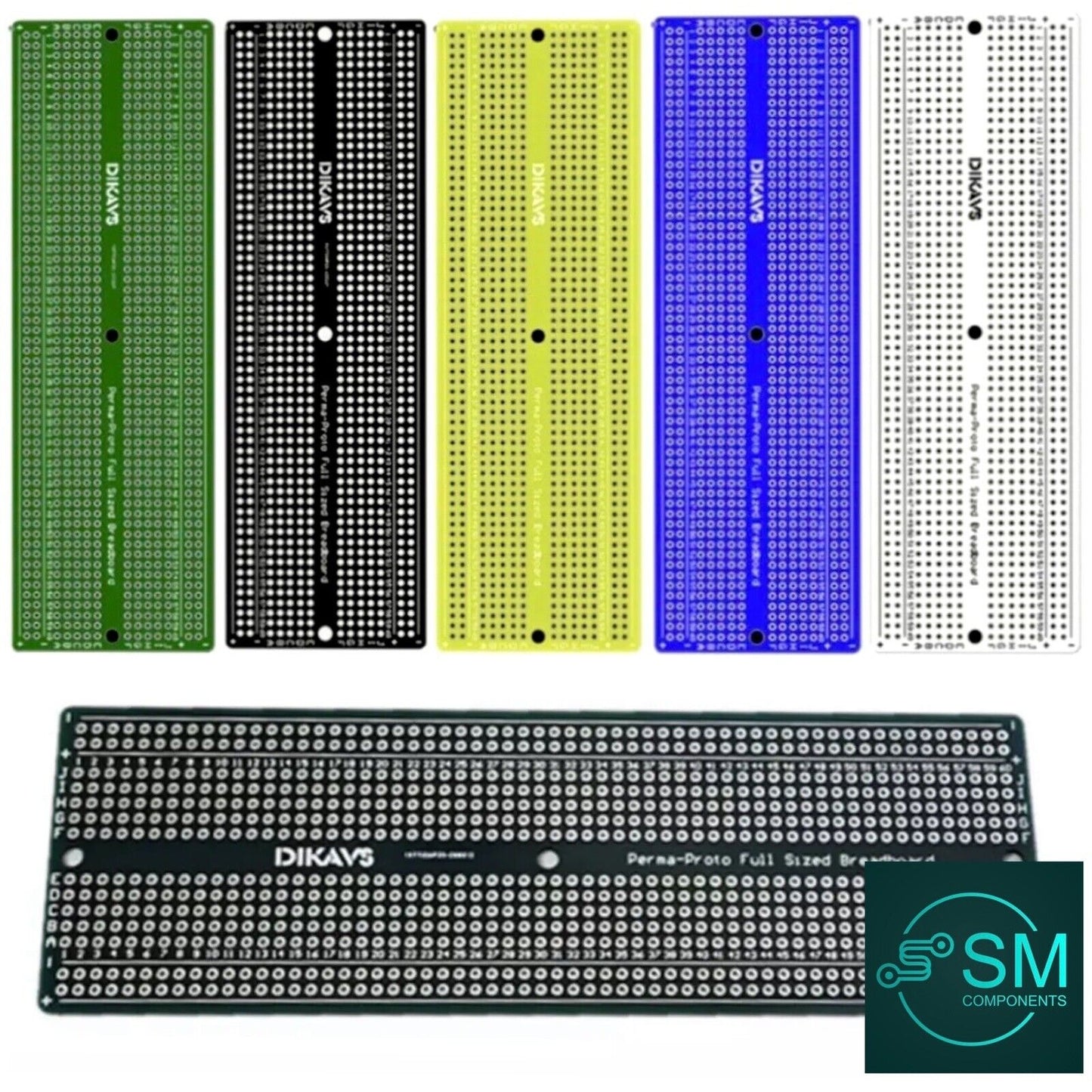

Available Colours: Blue, Black, Green, White, Yellow

Universal PCB Circuit Board for DIY Soldering

Description: Universal Breadboard

Condition: New

Size: approx. 157mm x 51mm

Aperture: approx. 0.1cm/ 0.039"(+-5% error)

Hole pitch: appro. 0.254cm/ 0.1"

Thickness: approx. 0.16cm/ 0.063"

All holes are plated through

Both sides are identical

60 rows of double 5-hole rows

4 power rails with positive/negative markings

6.2" x 2.0" (157mm x 51mm), 0.063" thick FR4

1.2mm / 0.047" drill holes

3 x 0.125" or 3.2mm mounting holes 2.95" apart

Weight: 23g
