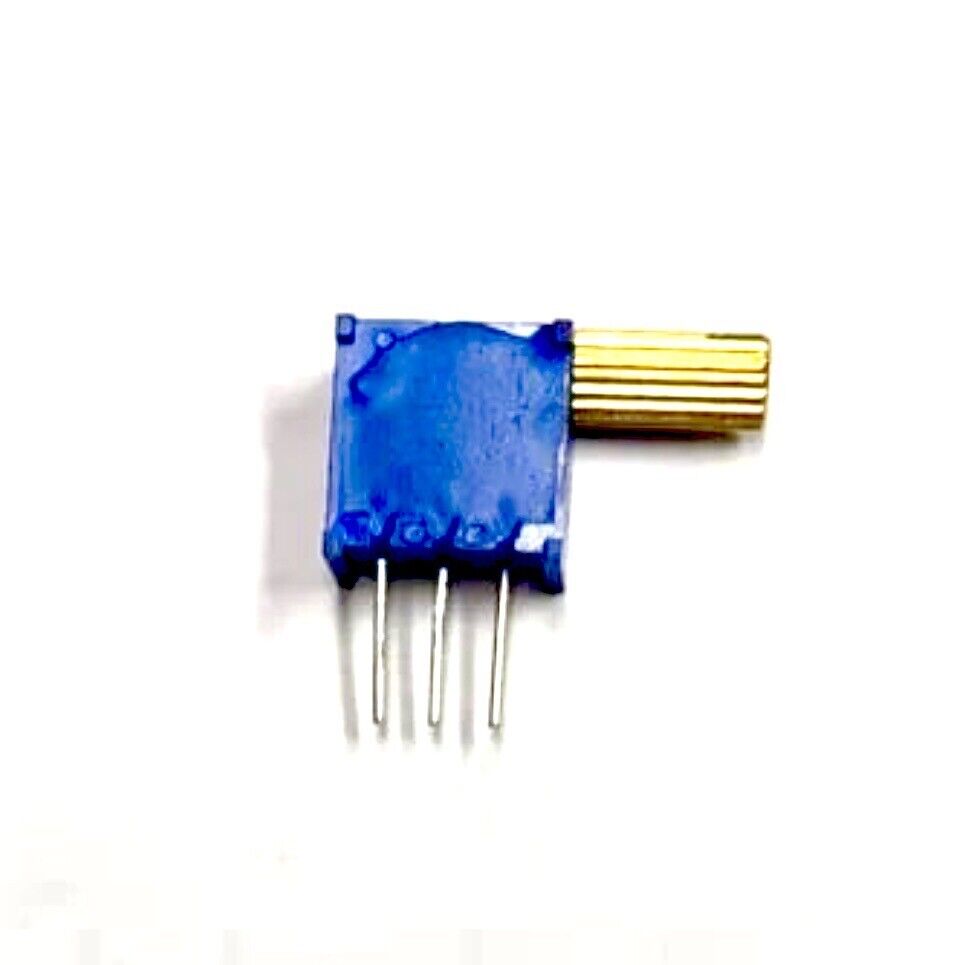

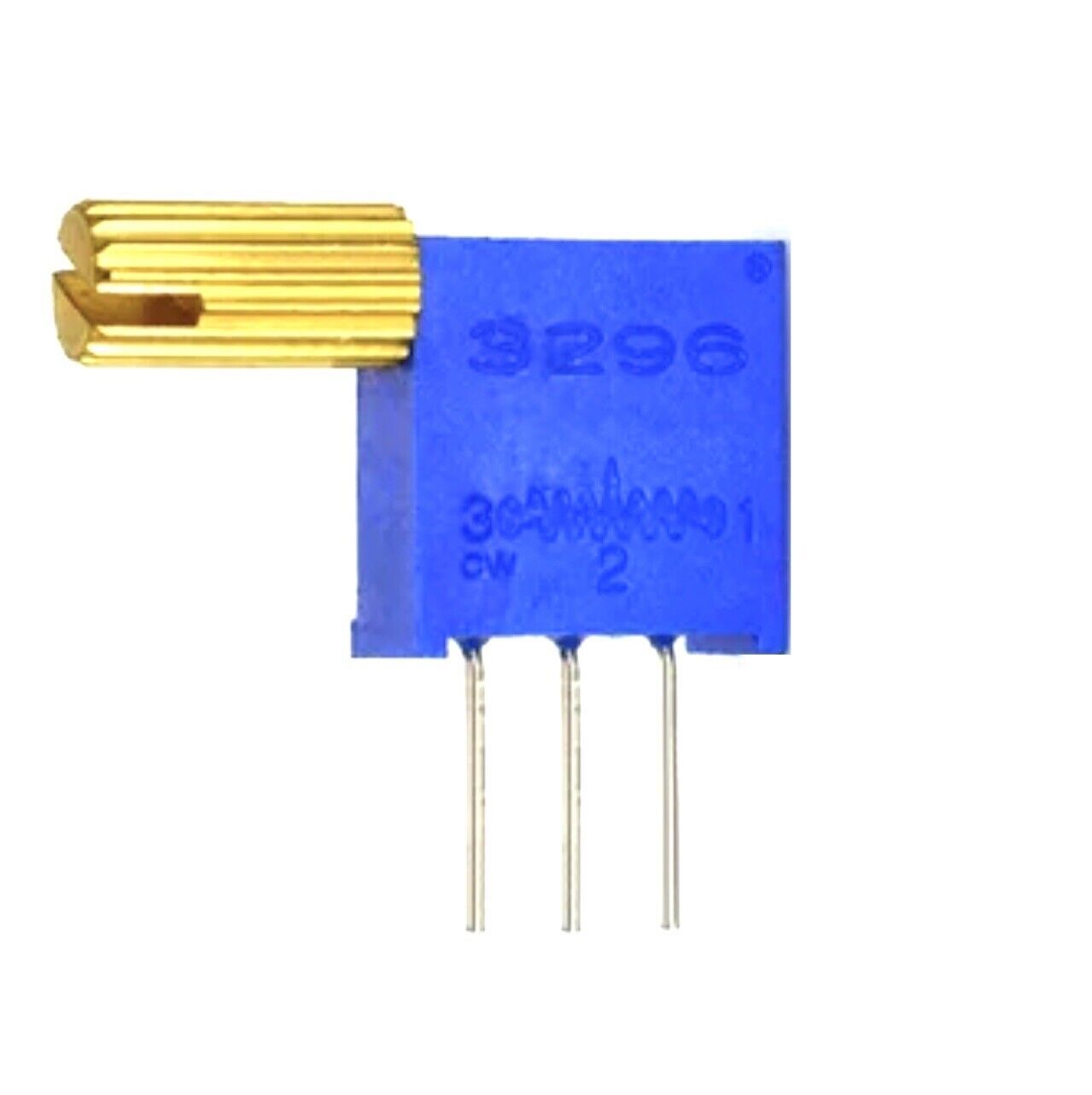

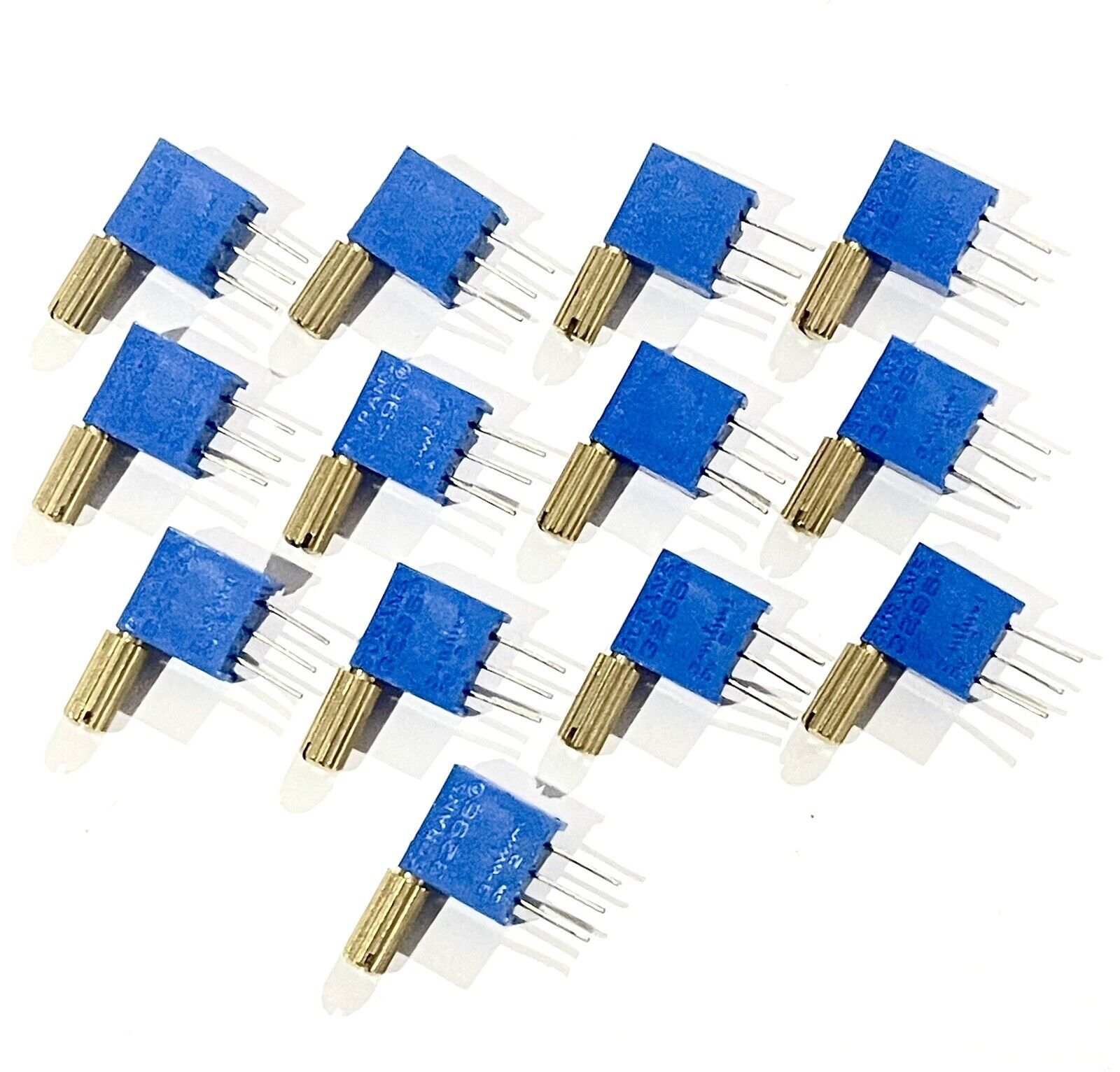

13PCS 3296X-1 Inc Brass Handle 100Ω- 2MΩ ±10% DIP Variable Resistor Trimmer Pot

Mounting Style: PCB Mount

Material: Brass,Carbon Steel,Cermet,Metal,Nylon

Minimum Operating Temperature: -55 °C

Trimmer Type: Multi-Turn

Brand: Unbranded

Series: 3296

Type: Trimmer Resistor

EAN: Does not apply

Tolerance Rating: ±10 %

Manufacturer Warranty: 6 Months

Resistance Rating: 100 Ω - 2M Ω

Maximum Operating Temperature: 125 °C

Country/Region of Manufacture: China

13PCS 3296X-1 Inc Brass Handle 100Ω- 2MΩ ±10% DIP Variable Resistor Trimmer Pot.

Sent With Australia Post Regular Letter NO TRACKING INCLUDED. Tracked Options Available.

Manufacturer: Burans

Product Category: Trimmer Resistors - Through Hole

RoHS: Details

REACH - SVHC:

Series: 3296

Termination Style: PC Pin

Product: Multiturn

Number of Turns: 25

Resistance: 100Ω, 500Ω, 1KΩ, 2KΩ, 5KΩ, 10KΩ, 20KΩ, 50KΩ, 100KΩ, 200KΩ, 500KΩ, 1MΩ, 2MΩ

Adjustment: Side Cross

Power Rating: 500 mW (1/2 W)

Voltage Rating: 300 V

Tolerance: 10 %

Temperature Coefficient: 100 PPM / C

Orientation: Horizontal Adjustment

Minimum Operating Temperature: - 55 C

Maximum Operating Temperature: + 125 C

Packaging: Bag

Brand: Bourns

Element Type: Cermet

Height: 10.03 mm

Length: 9.53 mm

Mounting Style: PCB Mount

Product Type: Trimmer Resistors Pot

Subcategory: Potentiometers, Trimmers & Rheostats

Trade name: Trimpot

Type: 0.375 in Square Trimpot Trimmer Resistor

Width: 4.83 mm

Unit Weight: 850 mg
