10Pcs RK-097N Linear Sealed single turn 3 Pin Potentiometer 1K Ohm - 500K ohm

Brand: Linear

Mounting Style: PCB Mount

Type: Single Turn Potentiometer

Termination Style: Pin

Manufacturer Warranty: 1 Year

Number of Turns: 1

10PCS RK097N Linear Sealed Potentiometer 5K,10K,20K,50K,100K 3pins 15mm Shaft.

Sent with Australia Post Regular Letter no tracking. Tracked options available.

10PCS Single Value 6mm 3 pin Potentiometers

Available Resistances below

B1K Ω

B5K Ω

B10K Ω

B20K Ω

B50K Ω

B100K Ω

B100K Ω

B250K Ω

B500K Ω

3pin Potentiometer Type - B Variable Resistors Single Turn Rotary Carbon Film Taper Linear Potentiometer

Description:

1.Single turn Linear, Suits Most Standard Knobs.（this item do not include Knobs)

2.Top adjustment type and knurled shaft for easy operate in daily use.

3. Main used to control electrical devices such as volume controls on audio equipment.

4. Knurled shaft with split design for push-on knob.

Specification:

Product Name: Carbon Film Potentiometer

Model: RV097NS

Material: Carbon film Metal

Resistance Value available: 1K Ohm, 5K Ohm, 10K Ohm, 20K Ohm, 50K Ohm, 100K Ohm, 250K Ohm, 500K Ohm.

Tolerance: ±10%

Turn Number: Single Turn

Terminals Number: 3

Features: Round Shaft (knurled)

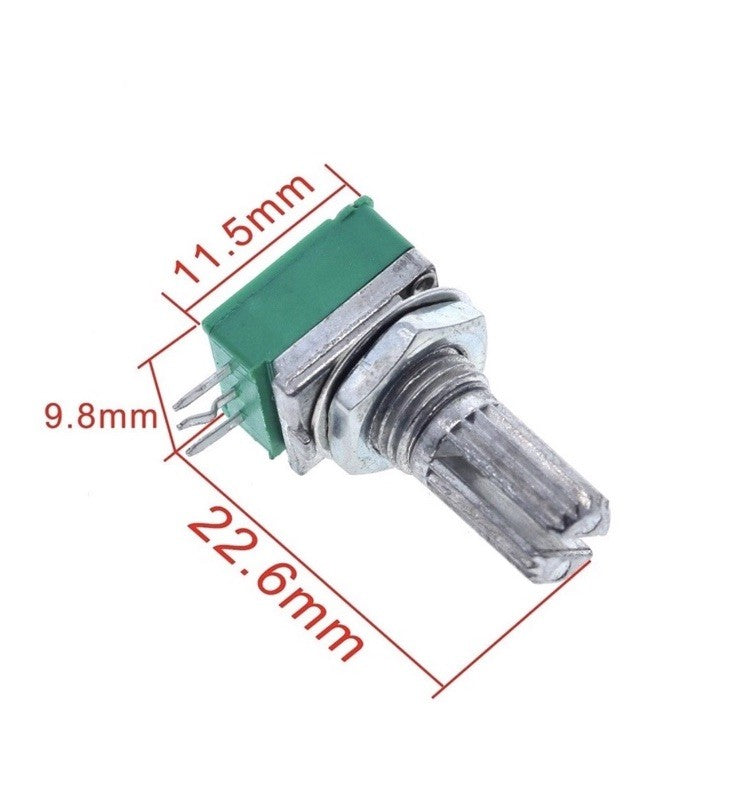

Total Size: 22mm x 9mm x 11mm(LWH)

Screw Thread Dia.: 6.7mm

Shaft Diameter: 6mm/0.24 inch

Shaft Length: 10mm/0.39 inch

Package Included:

10 Pieces x 3pin Potentiometer Type B

Single Value Variable Resistors Rotary Carbon Film Taper Linear Potentiometer
