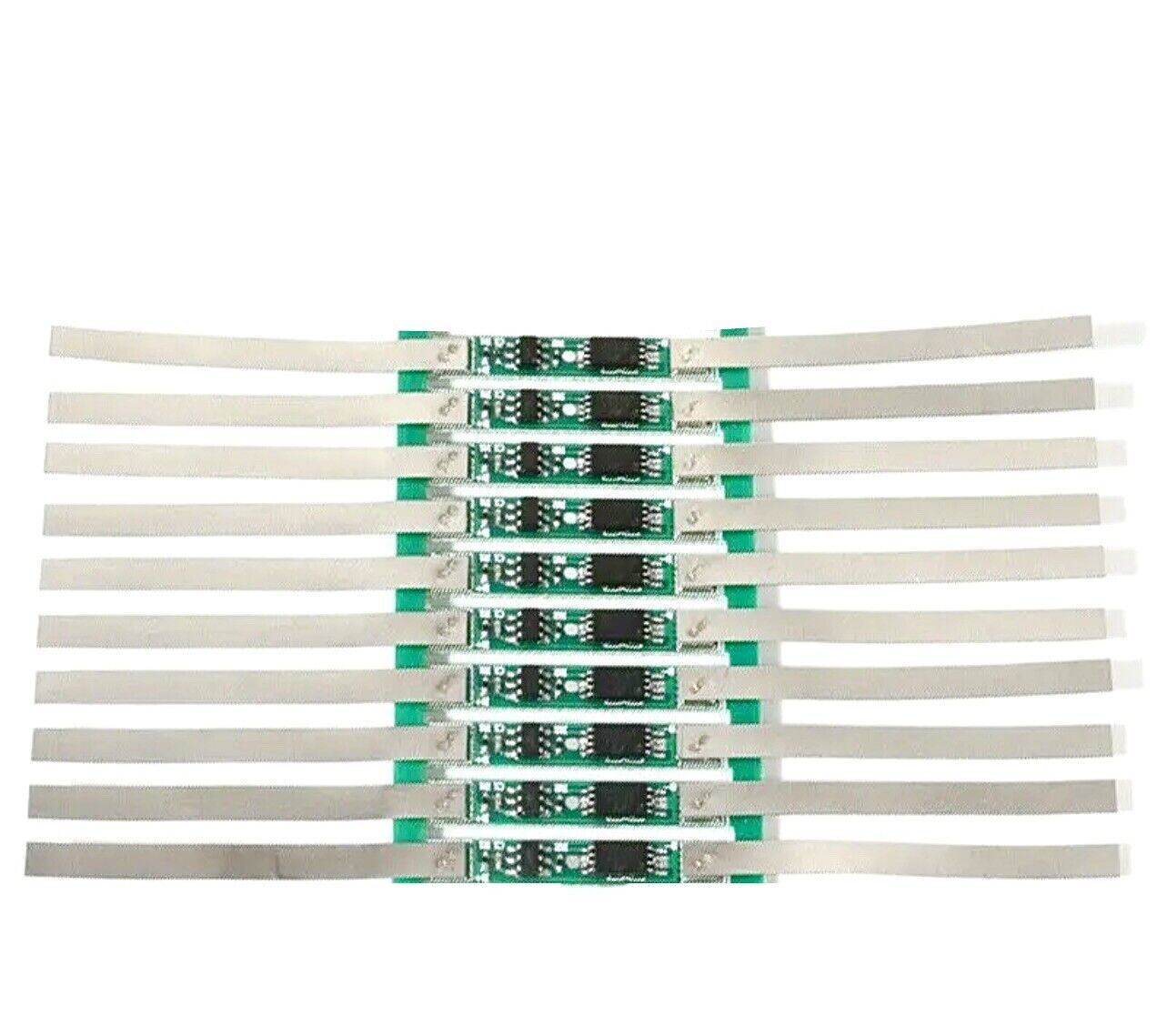

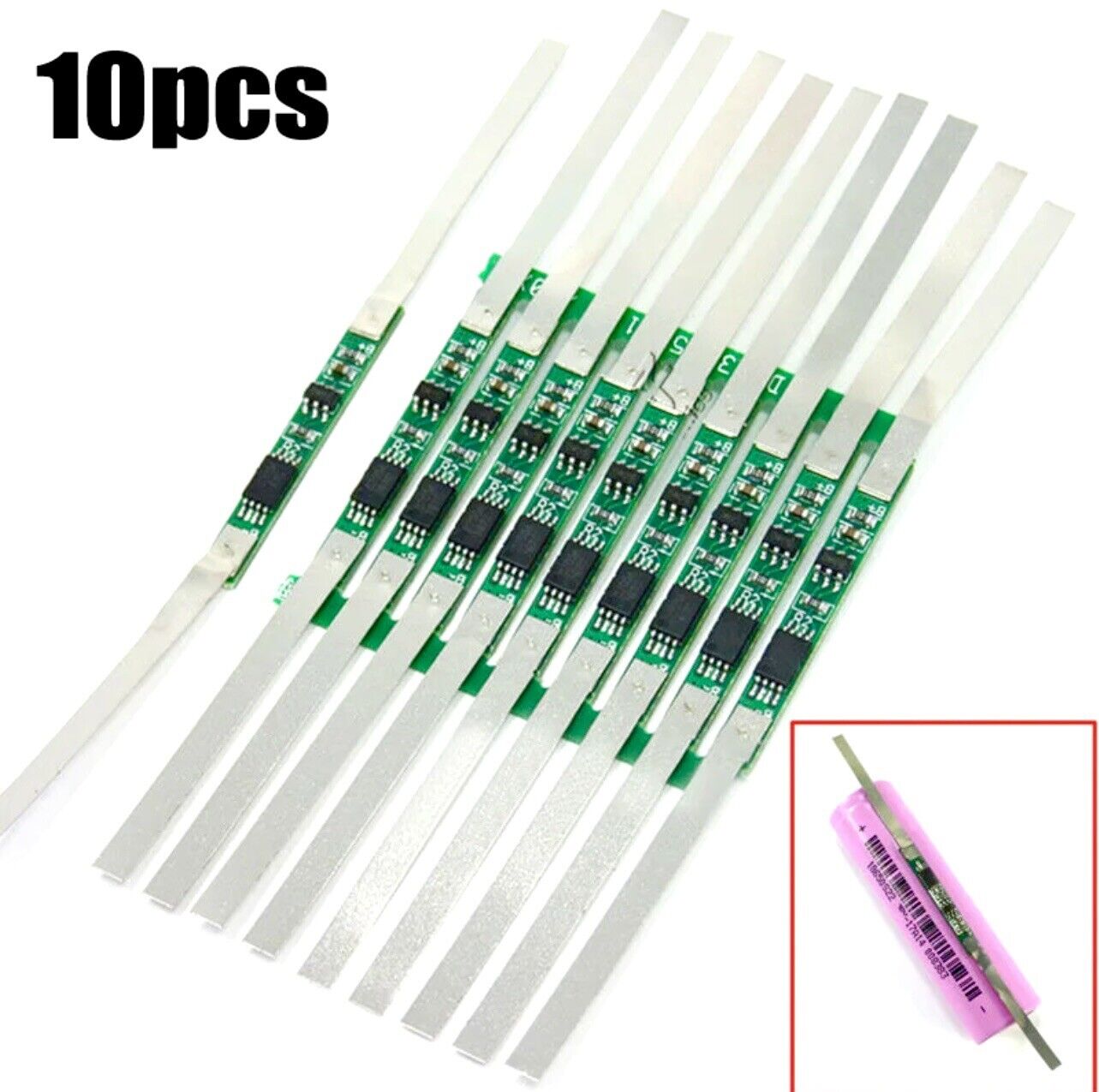

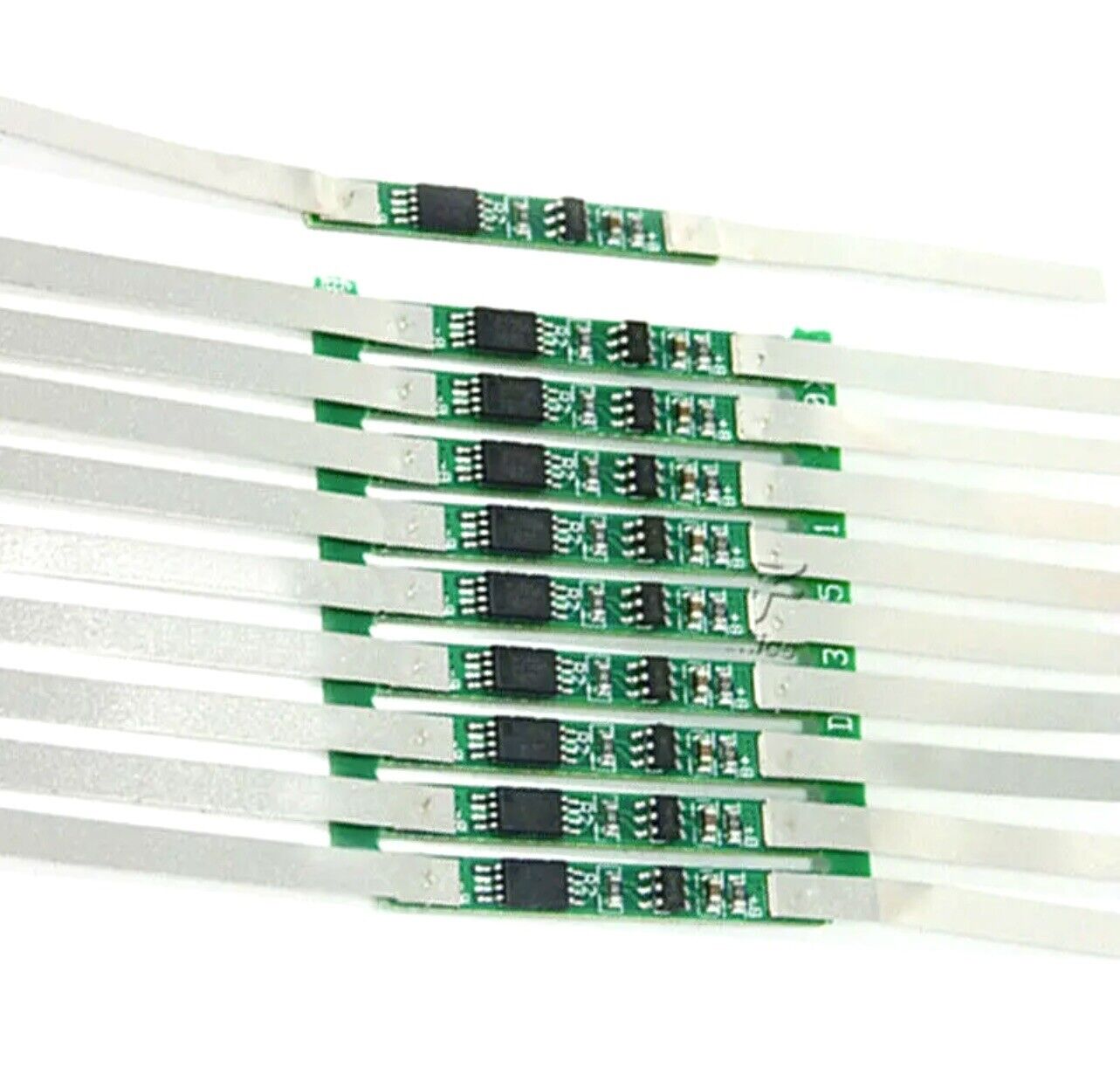

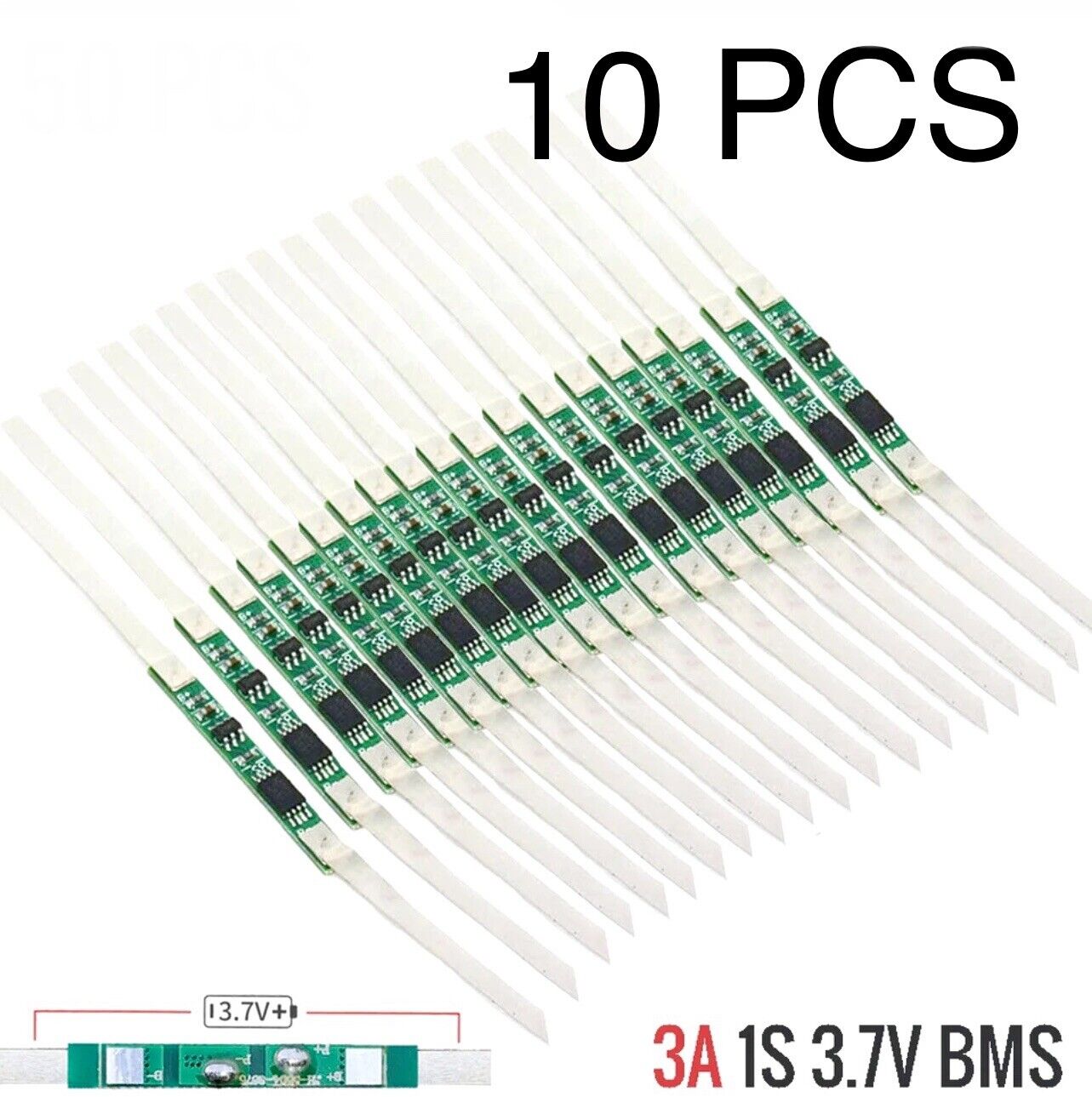

10pcs`3A BMS protection board for 1S 3.7V 18650 Li-ion lithium battery cell

Nominal Voltage Rating (DC): 3.7 V

Mounting Style: Battery Mount

Nominal Current Rating: 3 A

color: Does not apply

Plug Type: Solder Tabs

UPC: Does not apply

MPN: Does not apply

Minimum Operating Temperature: -10 °C

Colour: Green-Black-Silver

Brand: Unbranded

Type: BMS 18650 or Similar

Output Voltage Rating (DC): 4.2 V

Model: 18650BMS

Inrush Current Rating: 3 A

Maximum Operating Temperature: 55 °C

Country/Region of Manufacture: China

Protection Properties: Discharge Protection,Low Voltage Protection,Reverse Current Protection,Overcharge Protection,Overvoltage Protection

10pcs`3A BMS protection board for 1S 3.7V 18650 Li-ion lithium battery cell.

Sent with Australia Post regular Letter no tracking number included

Features:

Main IC using original "precision" imported components.

With over charge, over discharge, short circuit, over current protection function, for a variety of different shapes of 3.N capacity lithium batteries.

Low current consumption.

Stable performance.

Fine workmanship and durable.

Can meet the performance requirements of many aspects, to ensure, the absolute safety of the battery group.

Suitable for many requirements of high integration, low cost occasions.

:Specification:

Dimension: 28*3mm (Approx)

Over Charge Release Voltage: 4.275±0.025V

Over Charging Voltage Range: 4.075±0.025V

Over Discharge Voltage Range: 2.5±0.1V

Over Current Detection Current: 2.8±0.3A

Main function: over charging protection, over discharge protection, short circuit protection, over current protection function.

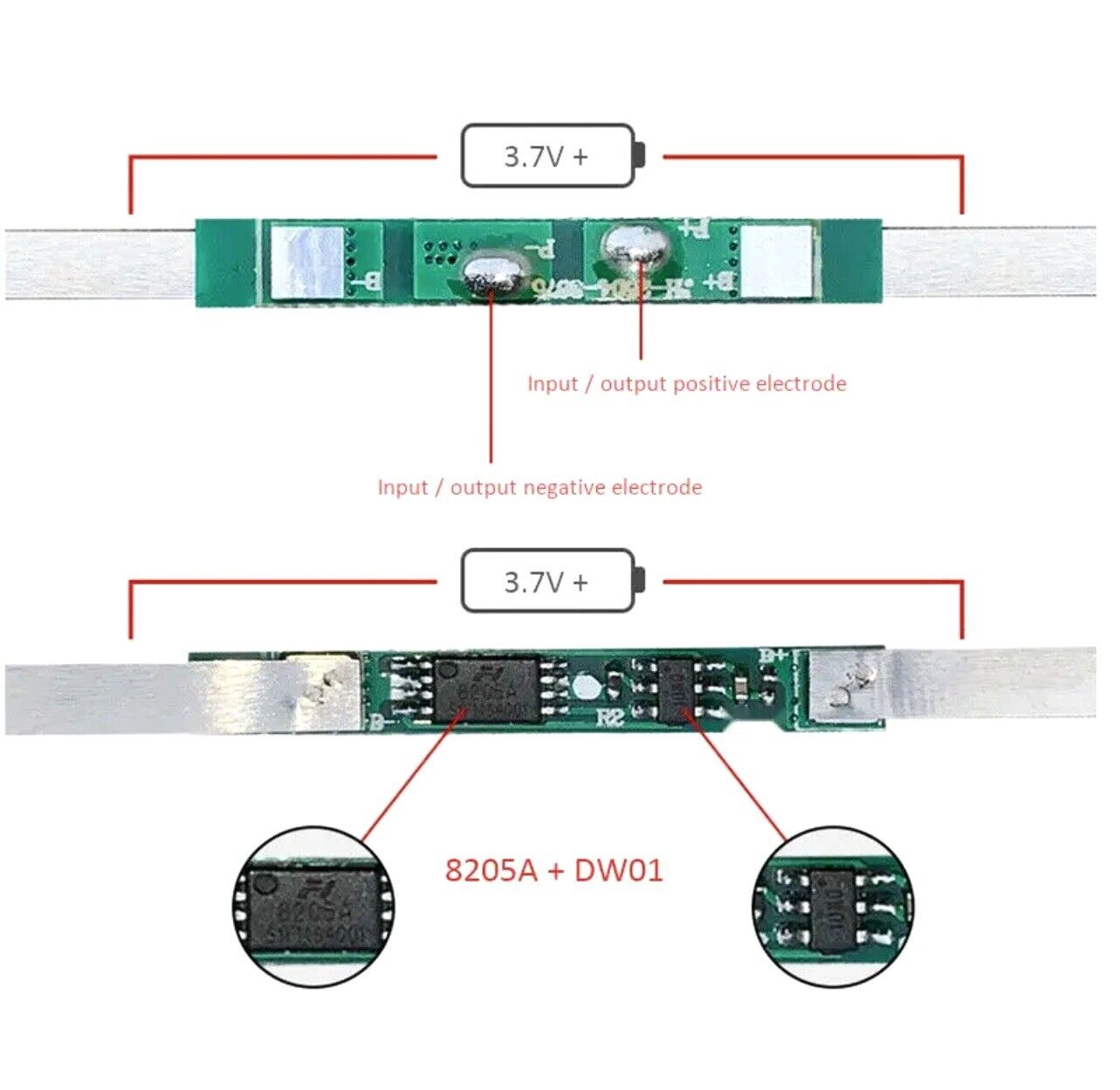

:Connection description:

B+ connect to battery+

B- connect to battery-

P+ for battery output input+

P- for battery output input-

Package Contents:

10 Pieces Protection Board
