100pcs 2x5x7mm Diffused Yellow Green Resin Square Led Light Emitting Diode

Configuration: Single

Viewing Angle: 110°

Custom Bundle: No

MPN: Does Not Apply

Item Length: 5 mm

Item Height: 7mm

Number of Pins: 2

Number of LEDs: 100

Item Width: 2 mm

Mounting Style: Through-Hole

Nominal Current Rating: 20 mA Max

Lens Shape: Rectangular

Lens Surface: Diffused

Nominal Voltage: 2.1 V

Forward Current: 20 mA

Light Intensity: 400-500mcd

LED Size: 2 X 5 X 7

Wavelength: 565-569nm

Brand: Goodlay

Power Dissipation: 60 mW

Series: 257

Type: Single Chip LED

Packaging: Bag

LED Colour: Yellow green

Country of Origin: China

Forward Voltage: 2.0-2.2 V

UPC: Does not apply

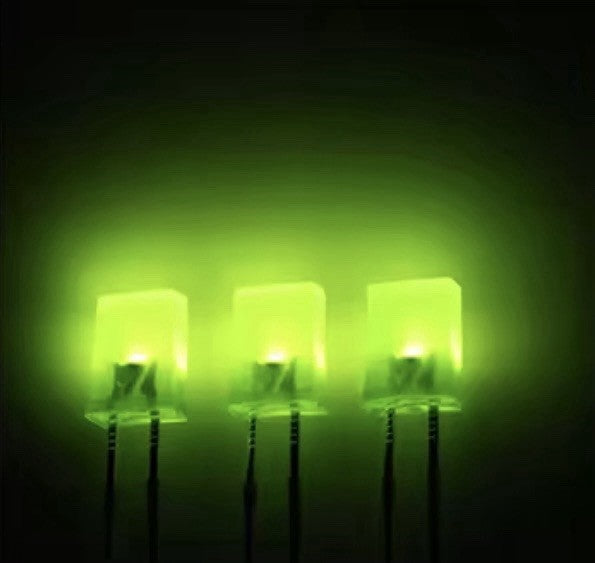

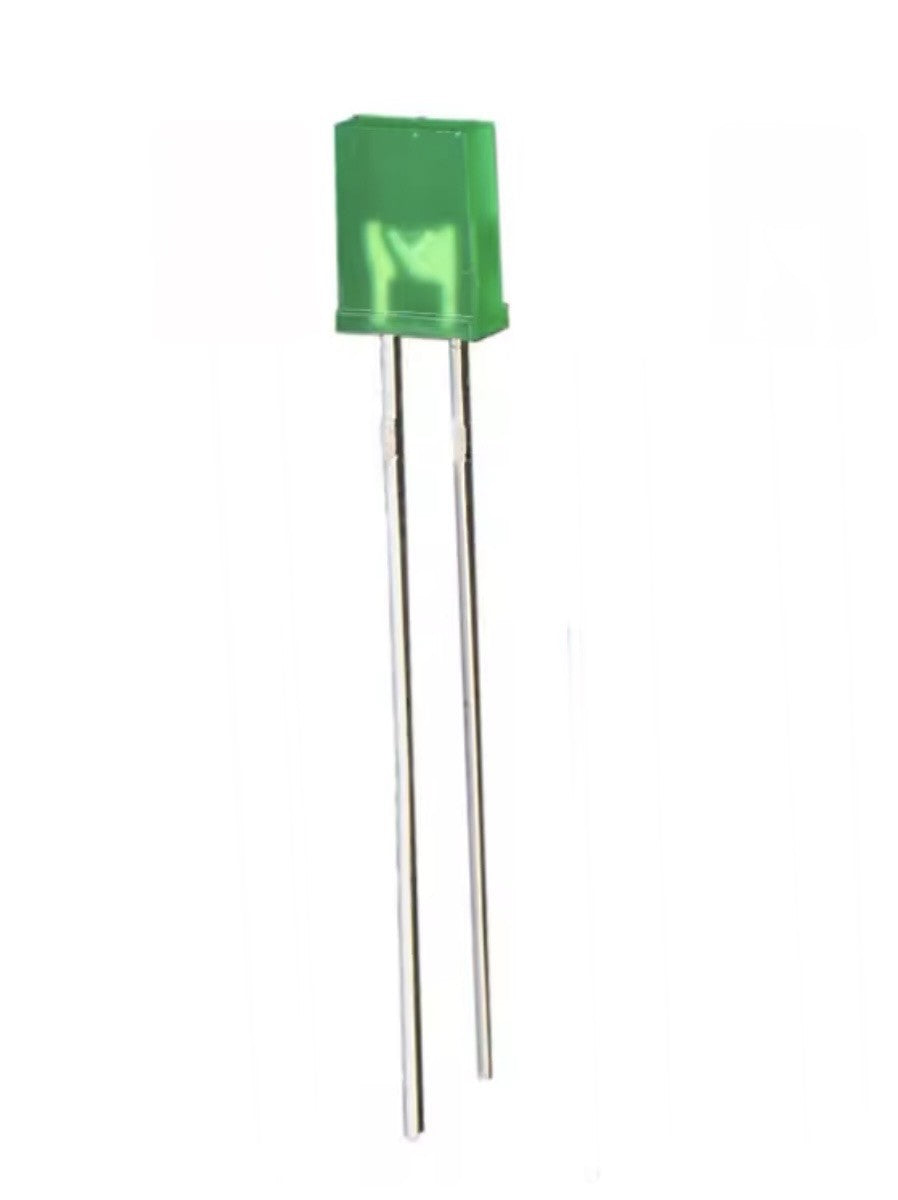

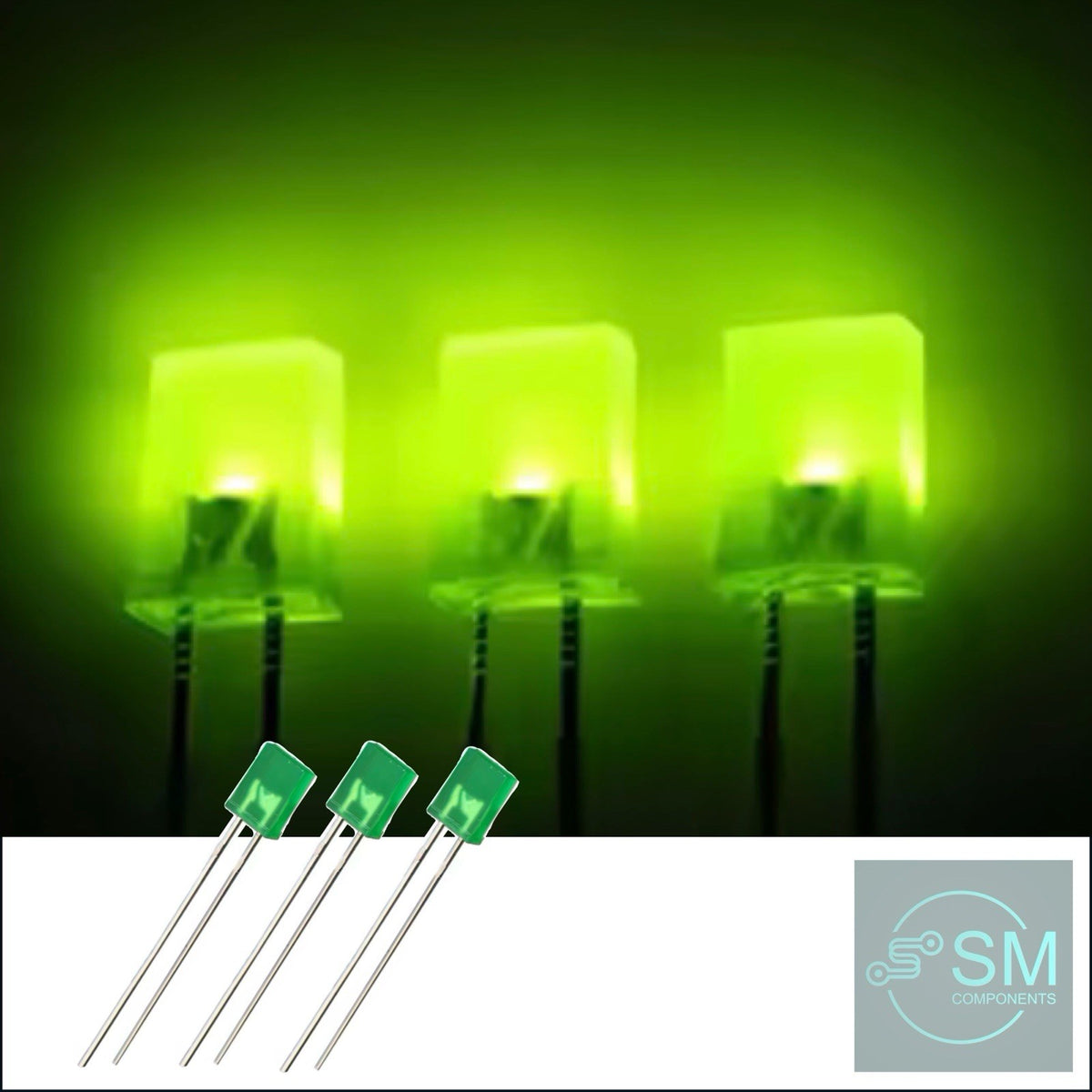

100pcs 2x5x7 DIP Rectangular Led Diodes (YELLOW GREEN ) with Diffused green resin top.

VF 2.0 - 2.2 volts. These LEDs are normally used in indicator lights, but can be used in any led diy needs.

Condition is Brand New.

Sent with Australia Post Domestic Regular Letter.

Series: 2 x 5 x 7

Chip Manufacturer: San’an

Colour: Yellow Green

Colour Temperature: 565-569nm

Vf: 2.0 - 2.2 Volts

400-500mcd

Amperage Range: 1mA - 20mA ( Maximum )

Conductor material: 99.99% alloy wire

These diodes are the traditional GaAsP (Gallium Arsenide Phosphide) type, low power, low brightness, with superior longevity.

If you are unsure on powering or driving any LEDS, please message us and we can help you with voltages, resistors or any other need.
