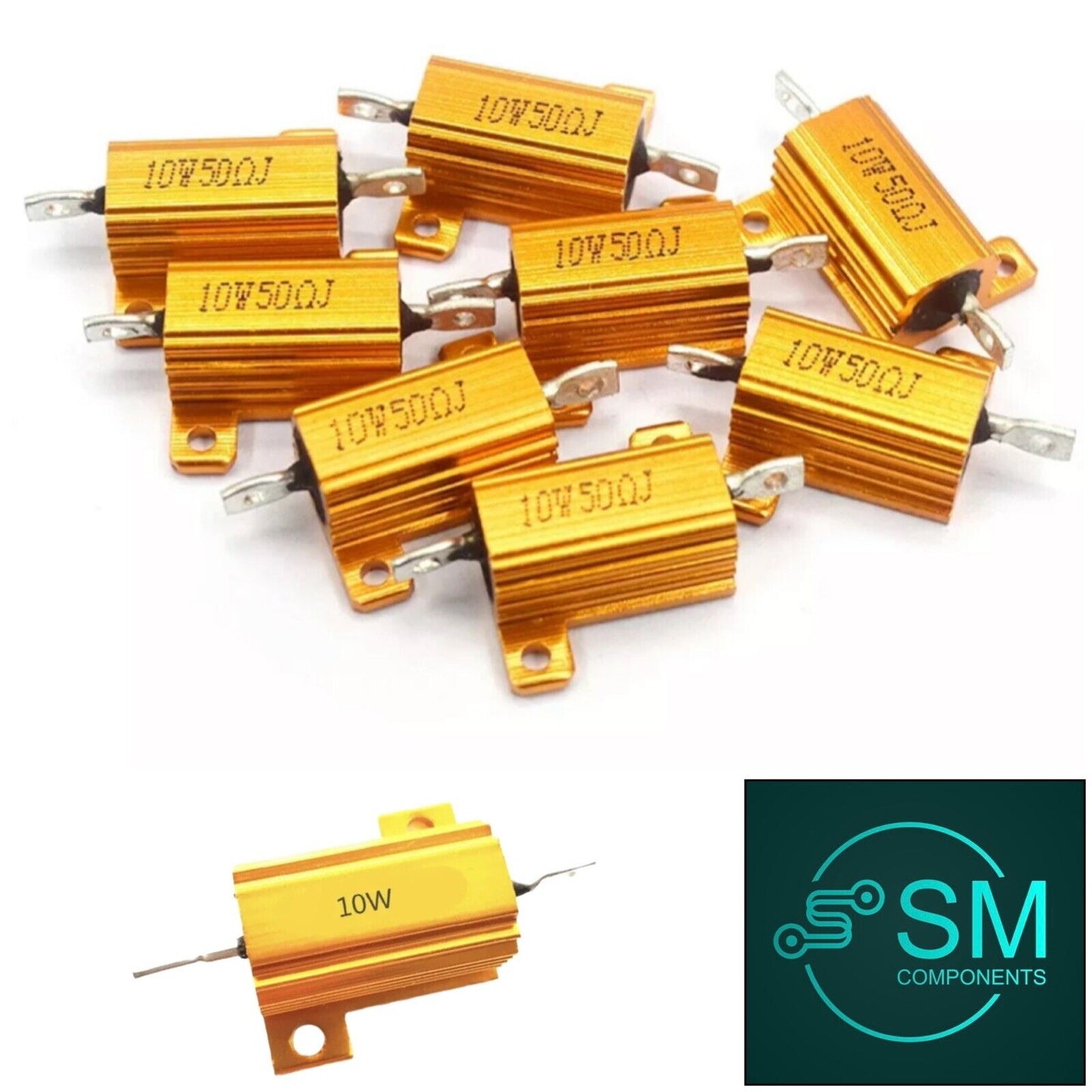

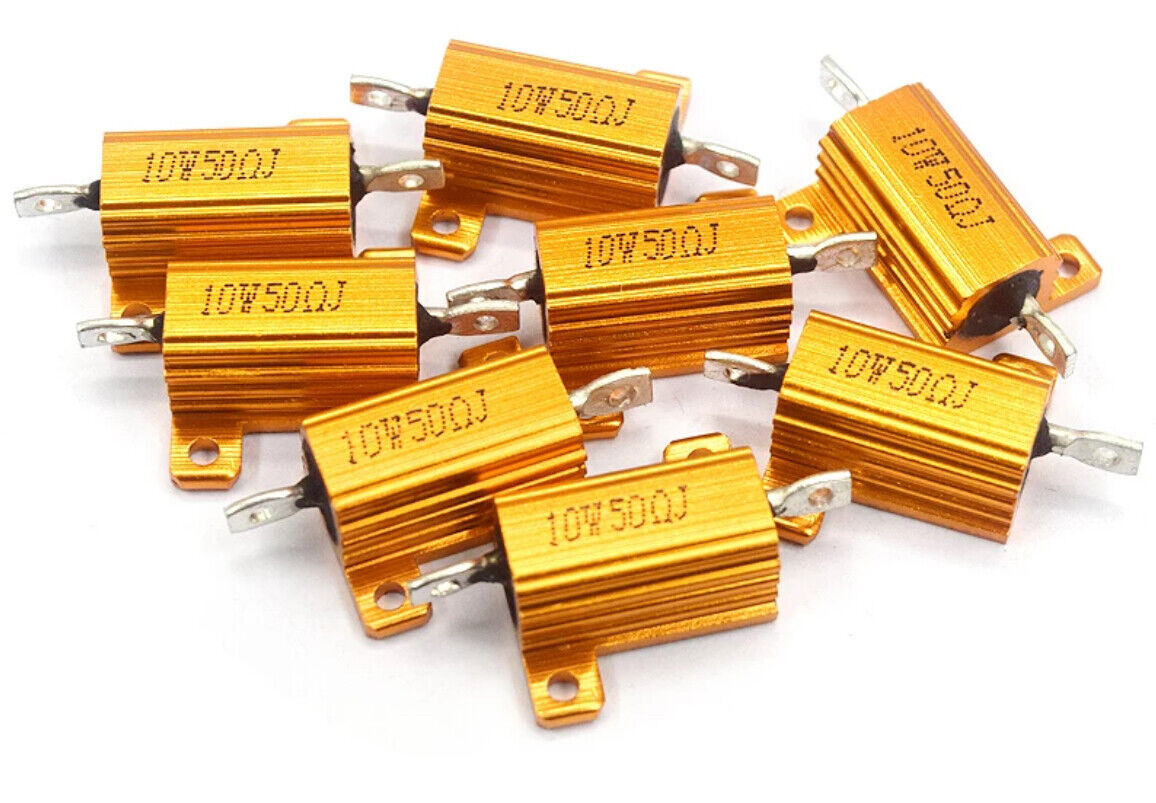

1 X 10 Watt Power Resistor Aluminium Shell Case Wirewound Resistors 0.1Ω~50KΩ

1 X 10 Watt Power Resistor Aluminium Shell Case Wirewound Resistors 0.1Ω~50KΩ

$5.94 AUD
$5.94 AUD
Sale Sold out
Shipping calculated at checkout.
Resistance

Power Rating: 10 W

Brand: Unbranded

Type: Power Wirewound Resistor

Tolerance Rating: ±5 %

Termination Style: Axial solder or screw tab

Material: Aluminium

Maximum Operating Temperature: 155 °C

Resistance Rating: 0.1R - 50KR

Country/Region of Manufacture: China

Minimum Operating Temperature: -55 °C

Features of aluminium shell resistors:1. Good heat dissipation, suitable for heat sink installation2. High insulation3. Fully welded structure4. Install on the substrate to apply heat absorption effect5. Moulded structure with environmental protection6. There is no inductive winding for low-reactance components7. Good reliability in operationMainly used in current-limiting protection circuits and measurement and control circuits, testing aging bench power supplies, inverters, automotive LED lights, automation equipment, audio, elevators, frequency dividers, servo industries and other harsh industrial control environments.
