0.28”/0.36” Digital DC Voltage Meter LED Voltage Display Three Wire DC0-100V

0.28”/0.36” Digital DC Voltage Meter LED Voltage Display Three Wire DC0-100V

Regular price $6.70 AUD
Regular price Sale price $6.70 AUD
Sale Sold out
Shipping calculated at checkout.
Size
Display Colour

Brand: Unbranded

Type: 0-100VDC LED Display

MPN: VM0.28-0.36

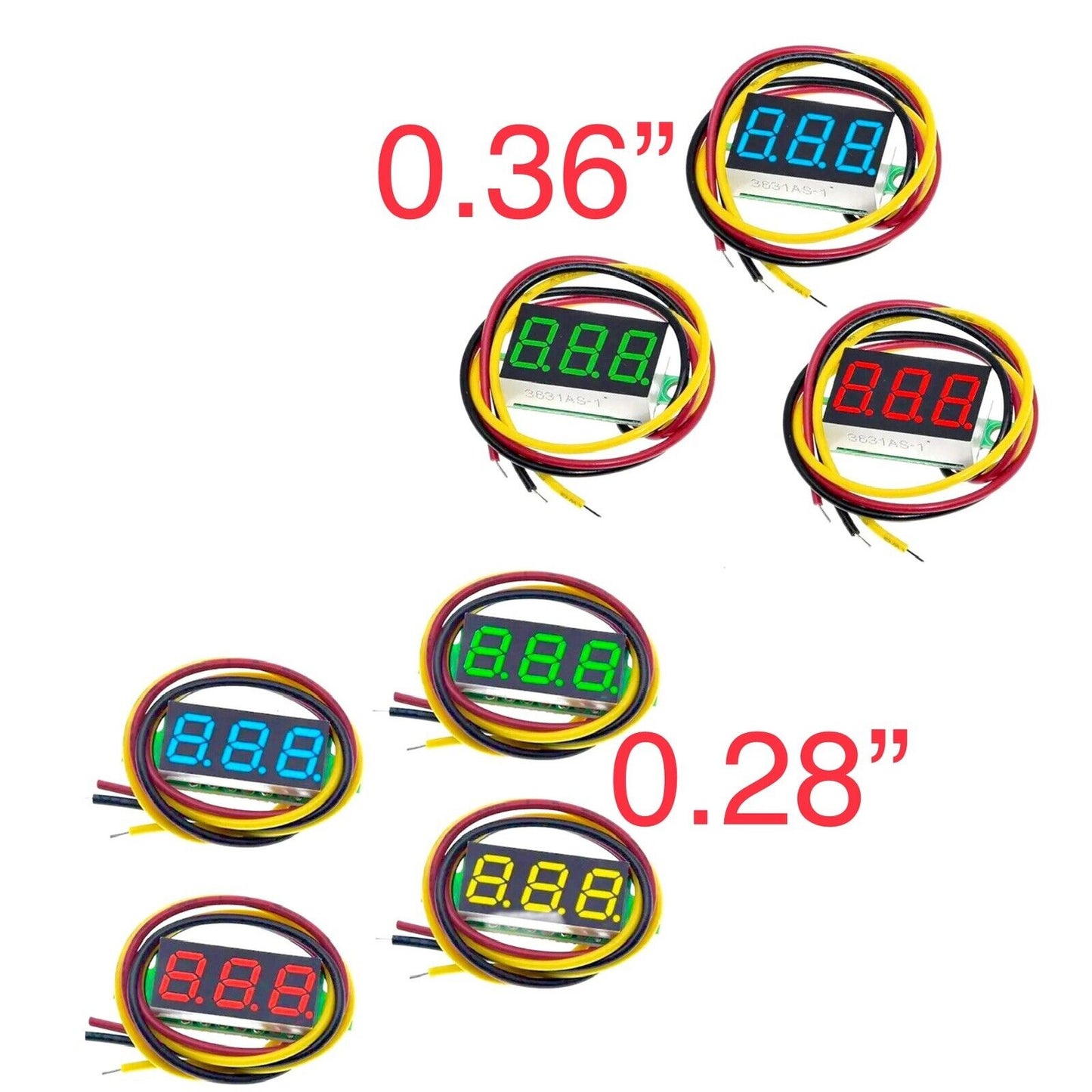

2 x 0.28"or 2 x 0.36"displays selected from dropdown box on main page.
Sent with Australia Post Regular Letter NO tracking Included. Tracking options Available.

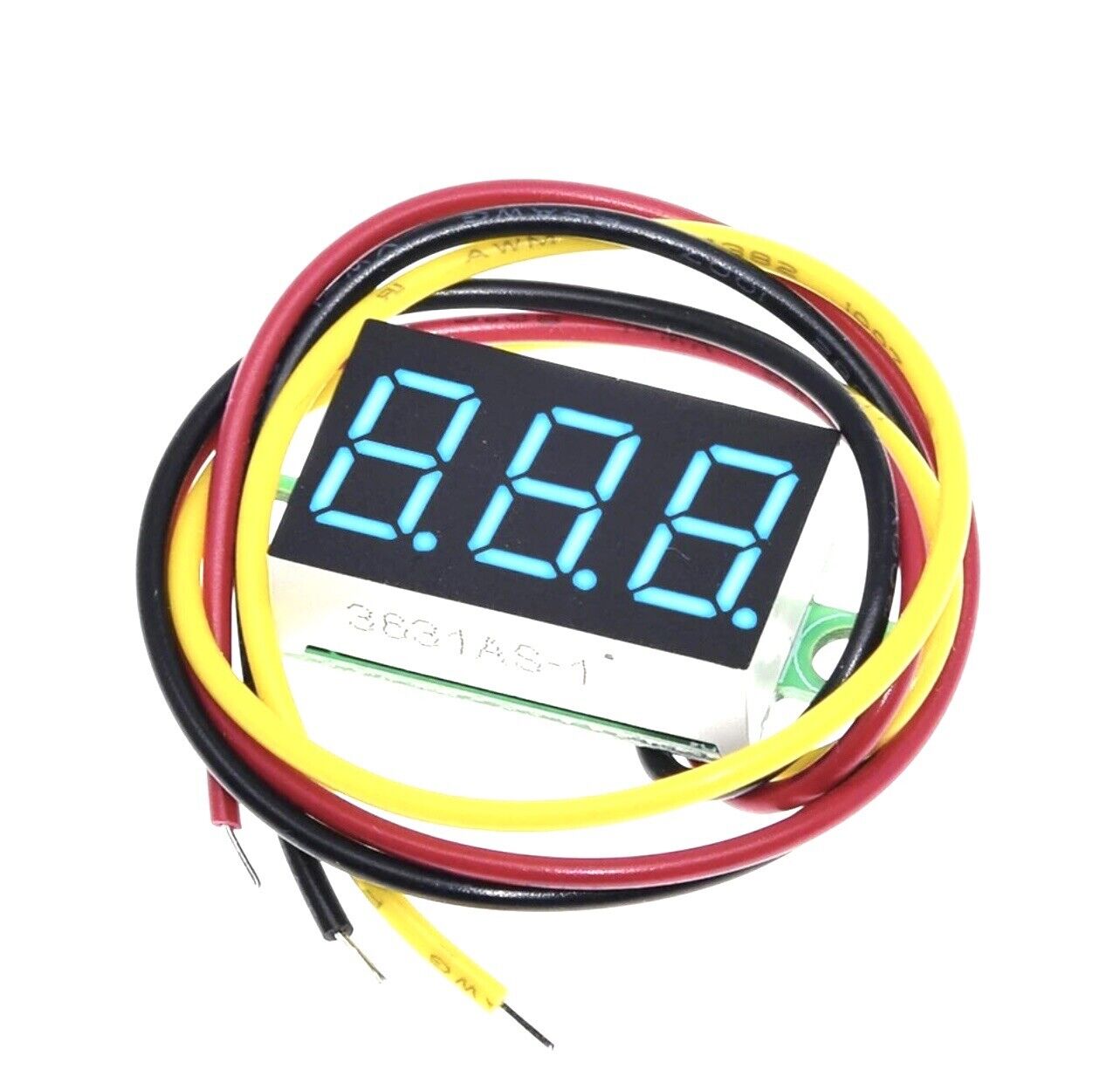

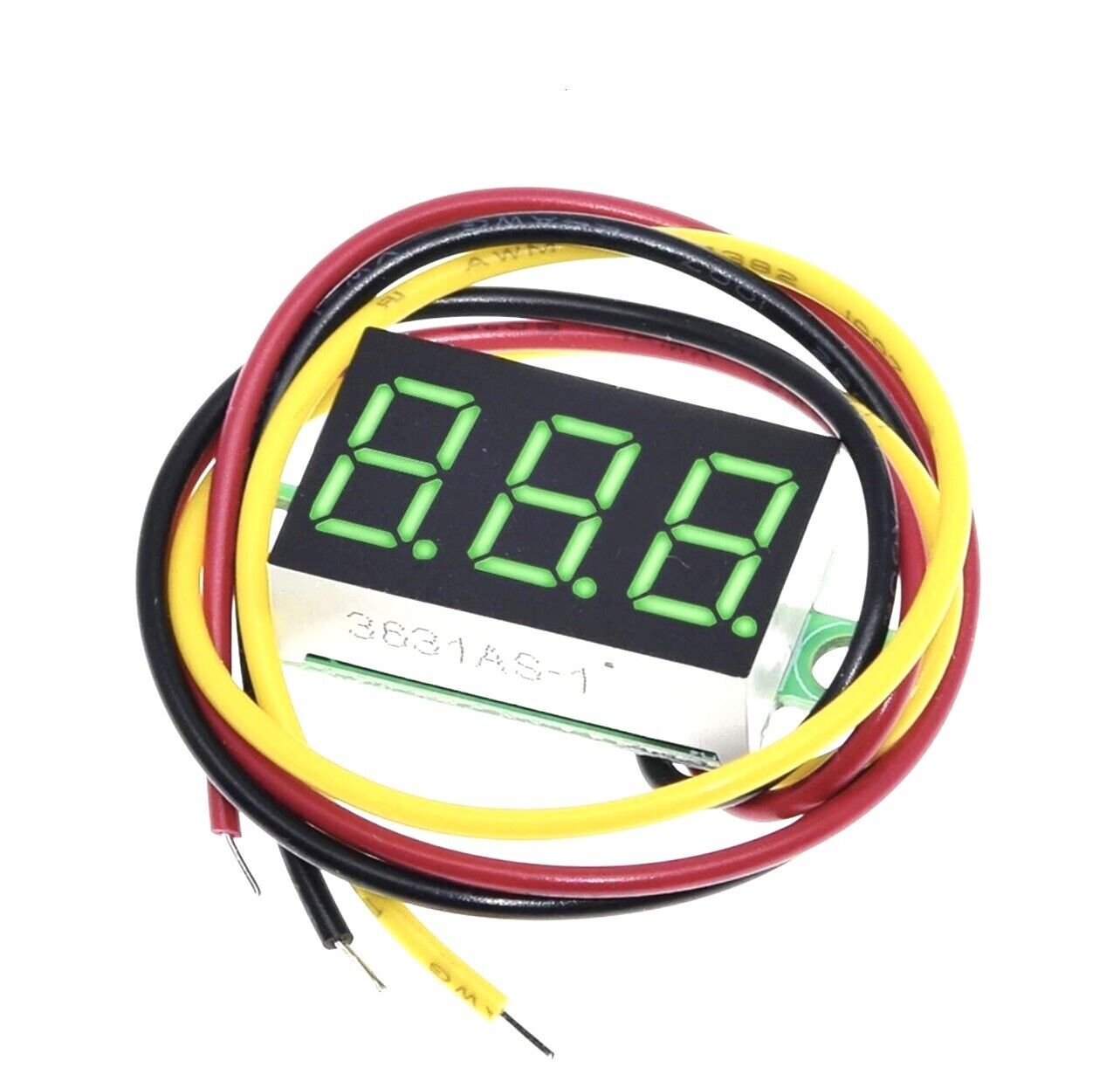

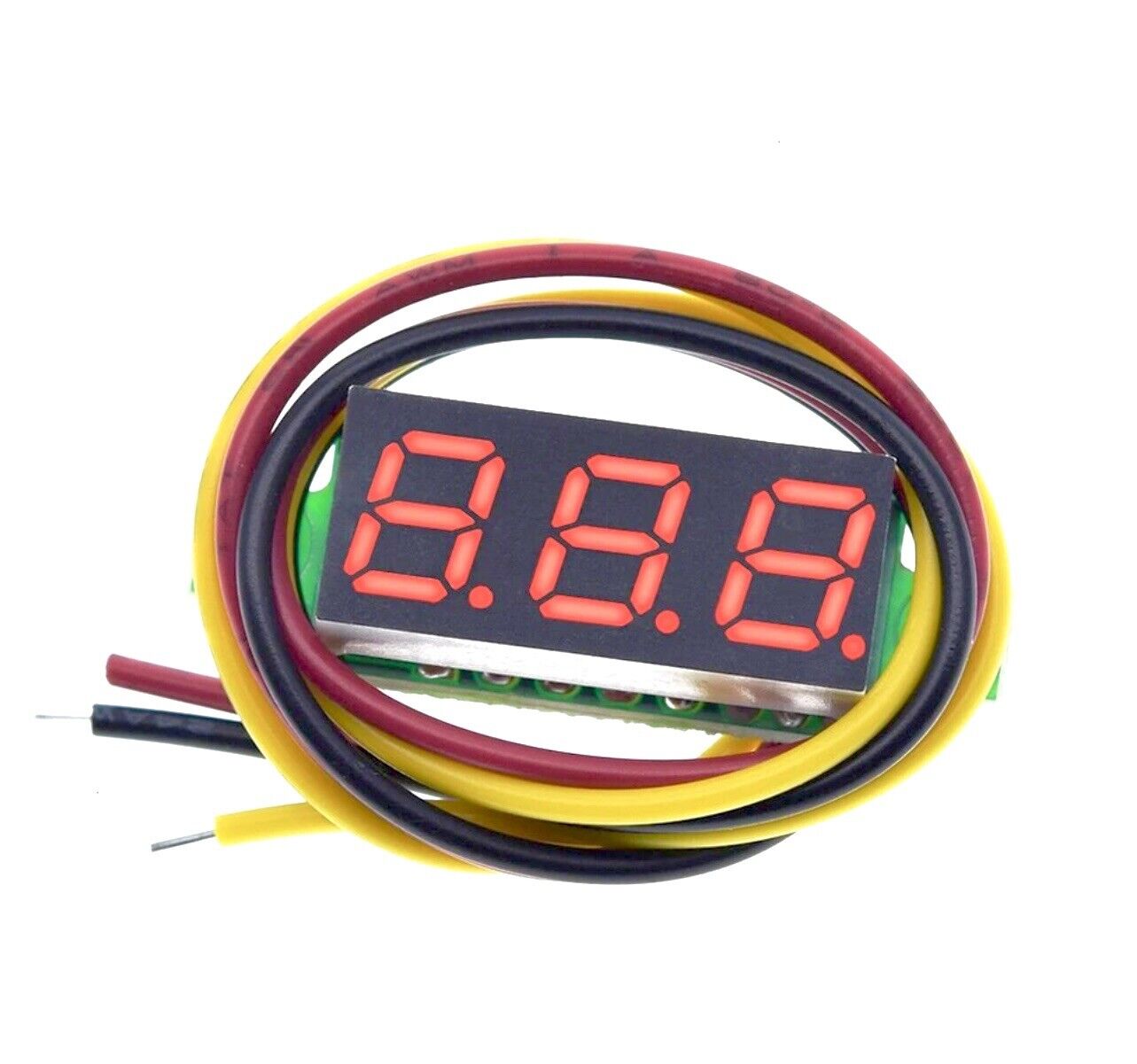

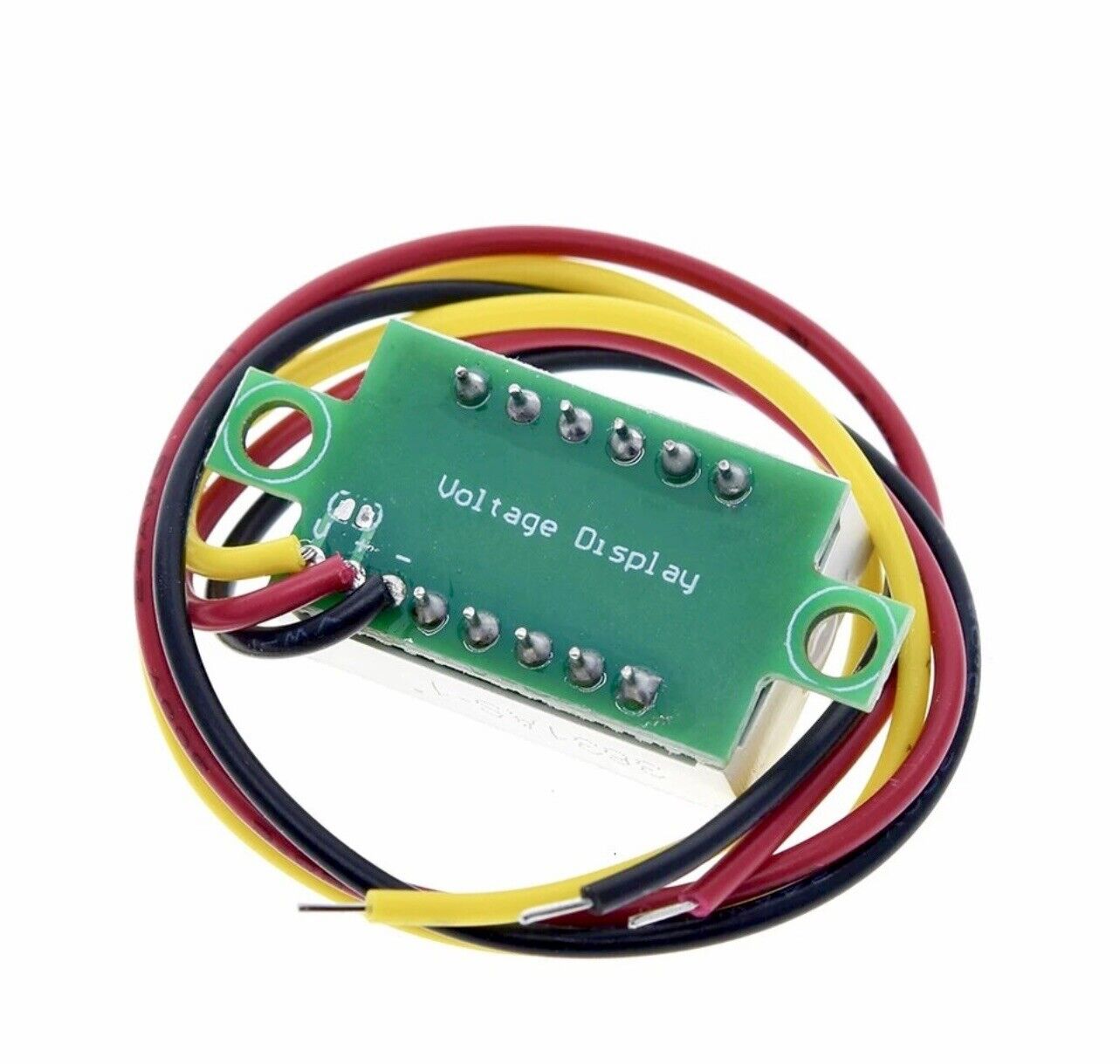

Both voltmeters are small, 0.28" or  0.36", with ranges DC DC0-100V, 3-wire generic products. These are the latest design and can work directly on 5V, 9V, 12V, 24V and other circuits, without regulation. With three wiring, easy access to car / battery car / motorcycle car line, with reverse polarity protection function, line reversed not burn. Used to monitor battery voltage, grasp the battery voltage state, it can also be used for other products voltage measurement applications.
Feature:
1. product stability, high measurement accuracy
2. Overall standard size, easy installation
3. Power supply protection circuit using a polar
NOTE: Three-line voltage range 0-100V, but also for the use of second-line voltage is within 30V, otherwise there is a danger of damaging..


Technical Parameters:
Operating voltage: 4.0 ~ 30V (with a reverse polarity protection function)
Detection voltage: 0.0 ~ 100V
Operating Current: <20mA

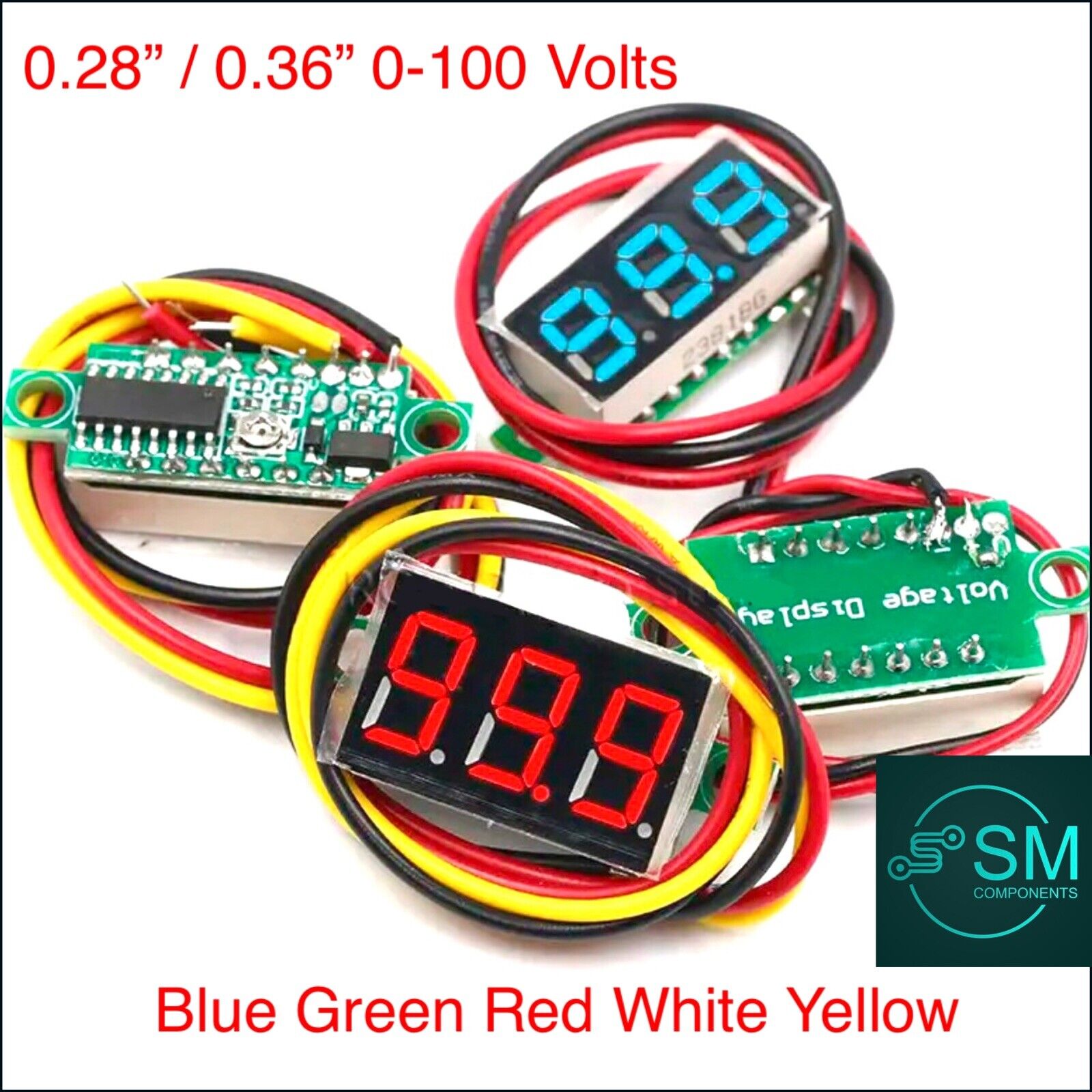

Display: 0.28 "LED or 0.36"LED, red, green, blue, yellow, and white colour display

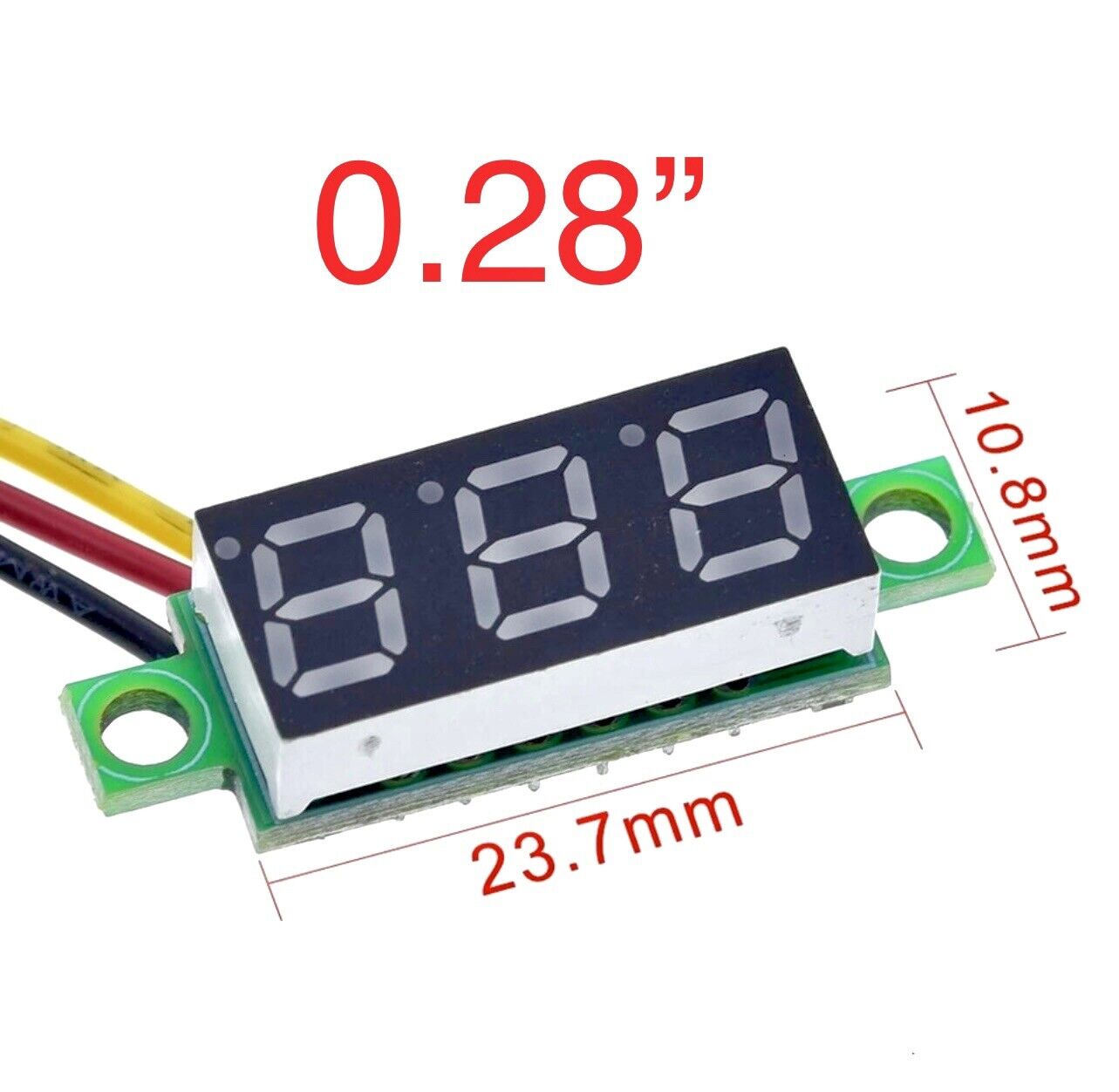

Dimensions: (0.28")  30 × 11.7 × 9.2 mm (length*width*height)
Dimensions: (0.36")  30 × 14.3 ×11.2 mm (length*width*height)
Screen cut-out size: 0.28" 22.9mm x 10.4mm
Screen cut-out size 0.36" 22.9mm x 14.4mm
Measurement rate: ≥200mS / times
Accuracy: 2 %
Extreme working conditions
Low operating voltage: + 4.0V (DETECTED VOLTAGE IS 0-100V)
Maximum working voltage: + 30V  (DETECTED VOLTAGE IS 0-100V)
Working temperature: -10 ~ + 65°C
Humidity: 10 to 80% (non-condensing)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure

Listing Includes 2 X Voltage Displays of your selected size and colour.
